Model

03-005

Image for WF-CF_PrimaryImage_1000.jpeg

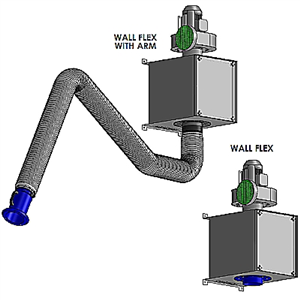

Wall Flex - 1400 CFM

Wall Flex (WF) - A Single/Dual Work-Station Filter Unit that includes a Polyester (washable) filter. With a max airflow rate of 300 CFM to 1400 CFM

Function:

The WallFlex is a wall-mounted work-station filtration unit that collects particles/gases at the source to protect the user from harmful contaminants.

WallFlex is a mechanical filter unit, complete with direct mount to P-Max fan. Designed for use with extraction arms and/or ducted applications.

Available with:
  • Stanchions and Wall Brackets
  • Hose Connectors and Fittings
  • Variable Frequency Drives
  • Silencer Option

Construction:

  • 10/12/14/16 gauge Powder-coated steel sheet.
  • Complete with an integrated wall bracket and 6.33" (160mm) connection flange.
  • 120V/1/60 1.5HP fan
  • 1400 CFM Fan complete with motor starter, 12' cord and switch

  • Please note extraction arms longer than 11' are required to be mounted to a column or wall and not to the underside of the filter unit. Additional sheet metal fittings and/or hoses and/or hose clamps may be required.

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
WF-CF-7-8 1"H x 1"W x 1"D 200 lbs
WF-CF-7 1"H x 1"W x 1"D 200 lbs
WF-CF-5-8 "H x "W x "D 0 lbs
WF-CF-5 "H x "W x "D 0 lbs
WF-CF-3000-115 60"H x 39"W x 40.01"D 140 lbs
WF-CF-10-8 60"H x 39"W x 40.01"D 140 lbs
P-169 13"H x 10"W x 34"D 28 lbs
P-168 13"H x 10"W x 34"D 28 lbs
P-167 13"H x 10"W x 34"D 28 lbs
P-146-H 24"H x 72"W x 24"D 100 lbs
P-146 15"H x 12"W x 65"D 66 lbs
P-145-H 24"H x 72"W x 24"D 100 lbs
P-145 12"H x 15"W x 54"D 62 lbs
P-144 15"H x 12"W x 54"D 52 lbs
P-143 14"H x 12"W x 37.5"D 46 lbs
P-051 12"H x 10"W x 53"D 33 lbs
P-010-H 24"H x 72"W x 24"D 100 lbs
P-010 12"H x 10"W x 65"D 56 lbs
P-009-H 24"H x 72"W x 24"D 100 lbs
P-009-45HK 24"H x 72"W x 24"D 10 lbs
P-009 12"H x 10"W x 65"D 52 lbs
P-008-HT "H x "W x "D 0 lbs
P-008 12"H x 10"W x 53"D 42 lbs
P-007 12"H x 10"W x 34"D 36 lbs
P-006 12"H x 10"W x 34"D 35 lbs
P-005 12"H x 10"W x 53"D 30 lbs
P-003 14"H x 11"W x 54"D 35 lbs
P-002 13"H x 10"W x 34"D 28 lbs
BDT-ARM-160-1500 13"H x 10"W x 34"D 28 lbs

Key Buying Criteria:

  • 115v Volts: The Wallflex can plug into any circuit for limited setup time and enhanced production
  • Highly Temperature Resistance: With all steel construction, the Wallflex isn't susceptible to melting or warping
  • Small Footprint: Allows for use in tight/cramped areas
  • Effortless Positioning: Allows for quick and simple maneuvering

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding
  • Composite Dust
  • Deburring Dust
  • Grinding Particles
  • VOC gases
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
WF-CF-5 Wall Flex high efficiency filter system complete with:
  • 1.5 HP fan 115/1/60 TEFC
  • Switch
  • Overload
  • Plug
  • Cord
  • 5' extraction arm 6.33" (160mm)Ø
WF-CF-7 Wall Flex high efficiency filter system complete with:
  • 1.5 HP fan 115/1/60 TEFC
  • Switch
  • Overload
  • Plug
  • Cord
  • 7' extraction arm 6.33" (160mm)Ø
WF-CF-3000-115 Wall Flex high efficiency filter system complete with:
  • 1.5 HP fan 115/1/60 TEFC
  • Switch
  • Overload
  • Plug
  • Cord
  • 10' extraction arm 6.33" (160mm)Ø
WF-CF-5-8 Wall Flex high efficiency filter system complete with:
  • 1.5 HP fan 115/1/60 TEFC
  • Switch
  • Overload
  • Plug
  • Cord
  • 5' extraction arm 8" (200mm)Ø
WF-CF-7-8 Wall Flex high efficiency filter system complete with:
  • 1.5 HP fan 115/1/60 TEFC
  • Switch
  • Overload
  • Plug
  • Cord
  • 7' extraction arm 8" (200mm)Ø
WF-CF-10-8 Wall Flex high efficiency filter system complete with:
  • 1.5 HP fan 115/1/60 TEFC
  • Switch
  • Overload
  • Plug
  • Cord
  • 10' extraction arm 8" (200mm)Ø

6.33'' (160mm)Ø - Extraction Arms - Arm only
Part # Qty Description
BDT-ARM-160-1500 5’ (1500mm) Flexi-I Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.)
  • Complete with damper & turning flange
P-002 7’ (2000mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface.
  • Complete with damper & horizontal surface mounting bracket
P-003 10’ (3000mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface.
  • Complete with damper & horizontal surface mounting bracket
P-005 17' (5180mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface
  • Complete with damper & horizontal surface mounting bracket
EX-ARM-160-1500 5' (1500mm) Flexi-I Extraction Arm 6.33" (160mm)Ø
  • Complete with damper & wall/fan bracket
EX-ARM-160-2000 7’ (2000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket
EX-ARM-160-3000 10' (3000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket
P-008-HT 10’ (3000mm) Flexi-I Extraction Arm 6.5" (165mm)Ø
  • 850° F
EX-ARM-160-4000 14' (4000mm) Flexi-l Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket
P-009-45HK 45° Hockey Klubben for 14' Flexi.
P-009-H 13' 5" (4115mm) Flexi-I Extraction Arm 6.33" (160mm)Ø for use in horizontal position in applications such as off the top of a Wall flex or on a Mobi-Pulse with Chimney.
EX-ARM-160-5000 17' (5000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket
P-010-H 16' 5" (5030mm) Flexi-I Extraction Arm 6.33" (160mm)Ø for use in horizontal position in applications such as off the top of a Wall flex or on a Mobi-Pulse with Chimney.
P-051 1.5m Hanging Flexi Arm.
P-167 5’ (1500mm) Flexi-II Extraction Arm 8" (200mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.)
  • Complete with damper & turning flange
P-168 7’ (2000mm) Flexi-I Extraction arm 6.33" (160mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.)
  • Complete with damper & turning flange
P-169 7’ (2000mm) Flexi-I Extraction 6.33" (160mm)Ø arm for mounting to horizontal surface (EG: Mobi Flex, Table, etc.)
  • Complete with damper & turning flange

8" (200mm)Ø - Extraction Arms - Arm only
Part # Qty Description
EX-ARM-200-2000 7' (2000mm) Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
EX-ARM-200-3000 10' (3000mm)Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
EX-ARM-200-4000 14' (4000mm) Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
P-145-H 13' 5" (4115mm) Flexi-II Extraction Arm 8" (200mm)Ø
  • For use in horizontal position in applications such as off the top of a Wall flex or on a Mobi-Pulse with Chimney.
EX-ARM-200-5000 17' (5000mm)Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
P-146-H 16' 5" (5000mm) Flexi-II Extraction Arm 8" (200mm)Ø.
  • For use in horizontal position in applications such as off the top of a Wall flex or on a Mobi-Pulse with Chimney.

Frequently bought together these options:


Part # Qty Description
WF-1 Wall Flex high-efficiency filtration system complete with:
  • 1.5 HP direct mount P-Max fan 115/1/60 TEFC motor
WF-2 Wall Flex high efficiency filtration system complete with:
  • 2 HP direct mount P-Max fan 230/3/60 TEFC motor
WF-3 Wall Flex high efficiency filtration system complete with:
  • 2 HP direct mount P-Max fan 575/3/60 TEFC motor
WF-4 Wall Flex high efficiency filtration system complete with:
  • 2 HP direct mount P-Max fan 230/1/60 TEFC motor

Part # Qty Description
P-023 Ceiling/Floor Stanchion 9' 75" (3000mm) for Flexi & Pro-Flex Extraction Arms.

Part # Qty Description
Rigid Duct-WF-DMF Rigid ductwork for Dual Miniflex arms onto a Wall Flex unit.

Part # Qty Description
R-060 5" (125mm)Ø inlet - galvanized, 8 bolts M8 x 16mm.
R-061 6" (150mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.
  • Packed in plastic
R-062 8" (200mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.
R-063 4" (100mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.
R-064 3" (75mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.

Part # Qty Description
SIL-18 Silencer for P-Max series fan, 18" (200mm) (for use with P-Max Fans).
SIL-20 Silencer for P-Max series fan, 20" (200mm) (for use with P-Max Fans).
SIL-26 Silencer for P-Max series fan, 26" (200mm) (for use with P-Max Fans).
SIL-4 Silencer for P-Max series fan, 4" (200mm) (for use with P-Max Fans).
SIL-8 Silencer for P-Max series fan, 8" (200mm) (for use with P-Max Fans).

Part # Qty Description
OM-019/200 Standing Flange for mounting Flexi II arms on DCH/PCH units: 8" (200mm)Ø.
P-143-1 Wall Bracket for P-143, P-144, P-145, & P-146 - 8" (200mm)Ø.

Part # Qty Description
IN-FD-8 Fire Dampers 8 CD-RD.
WFHOP-00-R0-1 Hopper for Wall Flex.

Part # Qty Description
7FR0-3150 Cell/poly blend 188 sq ft fire retardant filter, 16” (400mm) OD 9.6 ID total length 16” (400mm) w/a 3/16 gasket on each end. Open both ends external cage internal and external expanded metal.
  • FOR USE WITH WF SELF CLEANING WITH HOPPER
CF-537 Replacement filter Rectangular for RF-CF-X, Roll Flex
  • This filter is rectangular for units purchased after Dec 2013, prior units require P-160 round filter
  • Please refer to Serial label for replacement filters for all units purchased after July 15, 2021
P-160 80/20 Cell Polyester blended replacement filter cartridge for standard Roll-Flex units.
  • This filter is ROUND for units purchased BEFORE Dec 2013, more recent units require P-537 rectangular filter
  • Please refer to Serial label for replacement filters for all units purchased after July 15, 2021
P-160-M metalized high efficiency filter for flamable particulates. Static free 100% washable with soap and low pressure power washing. Filter comes complete with all mounting hardware (Threaded rods, Nutserts, Alignment flange and wing nuts.
P-160-OEM OEM Replacement filter for Mobi-Flex.
  • Washable spun-bound polyester
  • Cleanable with detergent & high pressure water
P-160-WF-OEM OEM Replacement filter for Mobi-Flex. Washable spun-bound polyester. Cleanable with Detergent and high pressure water. Rectangular
P-160-PTFE P-160 with PTFE Media Teflon.
P-004-MFC-16 Filter, Gas/Micro - Combo Filter - spun bond polyester/activated carbon
  • Comes with 15 lbs. of activated charcoal
P-004-WFC-16 Combo Filter. Spun bond polyester Pre-filter and Deep Bed activated carbon (holds approx. 20 lbs.) 16" Deep.
CHARCOAL-15 15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CHARCOAL-CP20 20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40 40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
