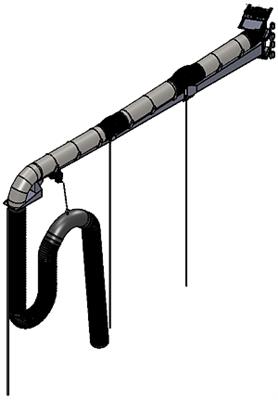

G-MAX Heavy Vehicle Exhaust (Mining equipment, Other Heavy equipment) Articulated Crane Drop for Hose - up to 30” Ø (up to 25,000 CFM)

The G-MAX Articulating Crane Drops allows you to position the Hose Drop on any side of the vehicle and to position the extraction system against the wall and out of the way. The G-MAX Articulating Crane will reach as far as 36' into the service bay and pass over the top of heavy equipment with ease, it is made from three articulated booms which allows you also to avoid any obstacles in the bay.
  • Low Temperature Hose: suitable for temperatures up to 250º F
  • High Temperature Hose: suitable for temperatures of 600º F
  • Ultra High temperatures available up to 2500º F
FUNCTION
The G-MAX Articulating Crane Drops allows you to position the Hose Drop on any side of the vehicle and to position the extraction system against the wall and out of the way. The G-MAX Articulating Crane will reach as far as 36' into the service bay and pass over the top of heavy equipment with ease, it is made from three articulated booms which allows you also to avoid any obstacles in the bay.
  • Low Temperature Hose: suitable for temperatures up to 250º F
  • High Temperature Hose: suitable for temperatures of 600º F
  • Ultra High temperatures available up to 2500º F
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
G-MAX-32-v14-2X-R0
Double articulating GMAX complete with the following features & specifications:
  • Double articulation complete with 12' primary boom & 20' secondary boom
  • Internal honeycomb design
  • 40' of 14" (350mm)Ø, 1500° hose.
  • Dual position pneumatic blast gate
  • Electric balancer
  • Motorized primary articulation (complete with remote control
  • 3 hose swivels
  • Quick connection (male and female supplied)
  • Orbital brake on secondary articulation
G-MAX-36-v18-00-R0
33' Articulating Crane for VE drops c/w 40' of 18 diameter hose... Suitable for 700 degree applications including with:
  • Lifting elbow
  • Swivels
  • Electric Balancer
This was originally called 'G-MAX-36' when it was added as a custom product by the sales rep.
G-MAX-36-v24-00-R0
33' (10000mm) Articulating crane for VE drops complete with 40' of 24" (610mm)Ø 1000° F hose.

This was originally called 'G-MAX-36' when it was added as a custom product by the sales rep.
G-MAX-36-v24-B1-00-R0
G-MAX FIRST BOOM SECTION
WBB-36
G-MAX Wall Bracket with Boom Sections

Part #
Description
BAL-___KG
Balancer ___KG.
L-ELB-___
Lifting Elbow ___" Ø.
SWIVEL-___
Swivel ___ Ø.
VE-SAD-10
10" (250mm)Ø Saddle/Hose support for Vehicle Exhaust Hoses on ACD's, simple hose drops.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
PYRO-12-850
12" (300mm)Ø, 2ply hose 850° F - Suitable for use in constant flexing applications or with hose reels color BLACK.
  • Rated up to 25" (630mm) of static pressure
  • Steel helix embedded for added safety, not exposed
  • Light weight, approximately 2.1 lbs/foot

Part #
Description
___
Single Nozzle ___" Ø.
___" W-HOOD
Welding hood ___" Diameter
___" Y-NOZ
Wye Nozzle ___" Diameter
WBB-36H-___
___ diameter Hose
WBB-36H-DECR-___
___ Long - _______ Temp Hose - ______ KG

Part #
Description
LEV-PBG-3P-24-00
24" (610mm)Ø, 3 POSITION PNEUMATIC BLAST GATE.
LEV-QC-18-00-R0
18" (460mm)Ø Quick Connector for the end of the G-Max hose for fast connecting to tailpipe adaptor.
ROPE-YELLOW-3/8
3/8" Yellow Rope, sold by complete spool of 630'.
