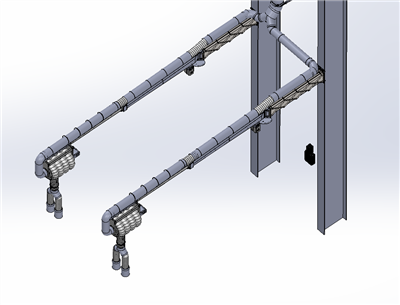

Specification Drawings Mounting Examples
Solutions
Industries
  • Dealerships and Service Garages Dealerships and Service Garages
  • Emergency Services Emergency Services
  • Marine Marine
  • MRO MRO
  • Municipal & DOT Garage Municipal & DOT Garage
  • National Defense National Defense
  • Painting Painting
  • Paper & Leather Paper & Leather
  • Process Engineering Process Engineering
  • Public Transportation Public Transportation
  • Vehicle Repair Vehicle Repair
  • Waste Management Waste Management
Processes
  • Ambulance Services
  • Bus Maintenance and Repair
  • Cars & Small Trucks Repair
  • Dealerships
  • Diesel Engines Repair
  • Fire Stations
  • Leather Tanning
  • Military Vehicle Repair
  • Motorcycles & ATV Repair
  • Outboard Motor Test
  • Police Services
  • Rubber Calender Rolls
  • Service Garages
  • Small Paint Booth
  • Subway Maintenance and Repair
  • Train Maintenance and Repair
  • Truck Repair
  • Vehicle Repair Garage
  • Vehicle Service and Maintenance
  • Waste Management Facilities
Engineering Control Methods
  • Hose Drops with Articulating Crane

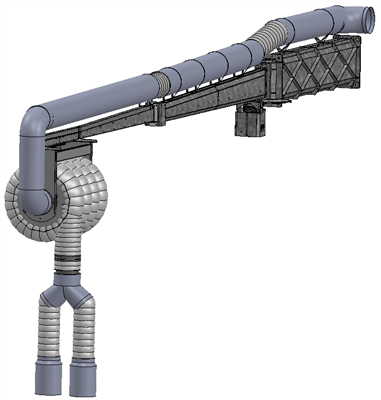

Patriot Series Articulating Crane with Hose Reel Drop - Ø10'' /12'' /14'' Hoses

The Patriot Series Articulating Crane with Hose Reel Drop is a high-performance, long-reach vehicle exhaust extraction system engineered to capture airborne contaminants directly at the source. Designed for heavy-duty facilities where large vehicles or multiple bays require extended coverage, this system delivers up to 7000 CFM and 7500 FPM of exhaust removal power. The combined articulating crane and hose reel configuration ensures precise fume capture while maintaining easy maneuverability, full workspace access, and superior operator safety.
FUNCTION
The Patriot Series integrates a rugged articulating boom with a high-capacity hose reel drop to provide total control of contaminant capture. The hose reel—available as either motorized or spring-return—enables smooth deployment and retraction of large-diameter hoses, allowing operators to position the nozzle or hood directly at the emission source with minimal effort. Once activated, the system immediately removes exhaust gases, dust, and vapors before they can disperse into the breathing zone.

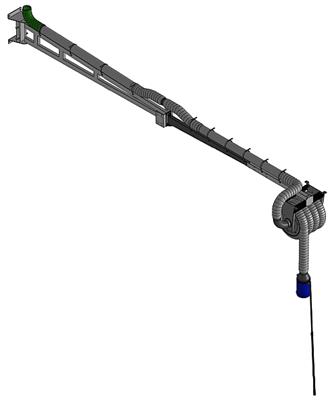

With a total horizontal reach of up to 45 feet, the articulating crane provides full access to every area of the service bay. Its multi-joint design allows for precise placement around vehicles or equipment, and when not in use, the boom folds neatly against the wall—freeing valuable floor space. This versatility makes the Patriot Series ideal for maintenance shops, fleet service centers, and industrial vehicle repair facilities.

Hose reels are available in 10”, 12”, and 14” diameters, accommodating a wide range of airflows and exhaust types. The system can be configured with fixed boom extensions (4’ or 10’) for added coverage and can integrate with direct-mount fans, ducting, and filtration units to meet specific application demands.

Main Options include:
  • Motorized Hose Reel (120V Motor, 200 N·m torque)
  • Spring-Return Hose Reel
  • Double Articulating Boom Arm (Comprised of 1 Herculean and 1 H-max boom)
  • Optional Motorized primary Articulation
  • Fixed Boom Extensions (4’ or 10’ options)
  • Ø10”, Ø12”, or Ø14” Hose Reels
  • Direct-Mount Exhaust Fans (1–30 HP)
  • Overhead Stack Adapters
  • Variable Frequency Drives
  • High-Temperature and Abrasion-Resistant Hose Options
CONSTRUCTION
The Patriot Series boom assemblies are built from powder-coated and galvanized steel for maximum corrosion resistance and mechanical durability. Each pivot joint features sealed ball bearings and disc-brake friction locks that provide 180° of smooth, controlled articulation and secure positioning during use.

The hose reel assembly is fabricated from 10–18 gauge galvanized steel and equipped with a 120V Centris electric motor producing 200 N·m of torque. The drive system draws 790 Watts at 6.6 Amps and supports 12 full hose rotations for consistent retraction performance. The drum utilizes sealed bearings on the motor side and a laser-cut Teflon bearing on the duct side to ensure minimal maintenance and long service life. Hoses are temperature- and abrasion-rated and reinforced with a steel wire helix to endure high heat and heavy-duty conditions.
KEY CRITERA
  • Extended Reach: Up to 45 ft of total reach with optional extensions for maximum coverage
  • High Flow Performance: Supports up to 7000 CFM and 7500 FPM for heavy-duty exhaust capture
  • Compact Storage: Ability to fold flat against the wall to preserve valuable workspace
  • Operator Efficiency: Single-person operation with smooth, motorized hose retraction control
  • Optional Motorized primary Articulation
  • Versatile Configurations: Multiple hose diameters, reel types, and boom options available
  • Rugged Durability: Heavy-gauge steel construction and sealed bearing joints for 24/7 use
  • Low Maintenance: Corrosion-resistant finishes and precision bearings for long service intervals
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Diesel Exhaust Fumes
  • Gasoline Exhaust Fumes
  • Vehicle Service Bays
  • Heavy Equipment Maintenance
  • Bus, Truck, and Emergency Vehicle Exhaust Extraction
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
LD-160-BRACKET
Wall mounted Support bracket for the LD-160-3 Fan.
LD-240-BRACKET
Support bracket for the LD-240-3 Fan.

Part #
Description
HRE-10-25-HT
10" (250mm) Motorized Hose Reel - complete with:
  • 25' (7500mm) of 850º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Large Hose Reel Assembly
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-10-33-HT
10" (250mm) Motorized Hose Reel - complete with:
  • 33' (1000mm) of 850º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Large Hose Reel Assembly
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-12-25-HT
12" (305mm) Motorized Hose Reel - complete with:
  • 25' (7500mm) of 850º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Large Hose Reel Assembly
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-12-33-HT
12" (305mm) Motorized Hose Reel - complete with:
  • 33' (1000mm) of 850º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Large Hose Reel Assembly
  • Fan & Tailpipe adapter *SOLD SEPERATELY*
HRE-14-25-HT
14" (350mm) Motorized Hose Reel - complete with:
  • 25' (7500mm) of 850º F Hose
  • 120V Motor
  • Remote Control and Receiver
  • Large Hose Reel Assembly
  • Fan & Tailpipe adapter *SOLD SEPERATELY*

Part #
Description
H-MAX-HT-10D-4.5M
HMAX EXTENSION 14' 7" (4500mm), 12" (305mm) HIGH TEMPERATURE 850º F.
H-MAX-HT-12D-3M
10 (3000mm) H-MAX Boom Kit 12" (300mm)Ø comes complete with:
  • 850° High temp 12" (300mm)Ø hose
  • Spiral duct kit across the top of the boom
H-MAX-HT-12D-4.5M
HMAX EXTENSION 14' 7" (4500mm), 12" (305mm) HIGH TEMPERATURE 850º F.
H-MAX-HT-12D-4M
14' (4270mm) H-MAX Boom Kit 12" (300mm)Ø comes complete with:
  • 850° High temp 12" (300mm)Ø hose
  • Spiral duct kit across the top of the boom
H-MAX-HT-14D-4.5M
14' (4270mm) H-MAX Boom Kit 14" (350mm)Ø comes complete with:
  • 850° High temp 14" (350mm)Ø hose
  • Spiral duct kit across the top of the boom
H-MAX-HT-8D-3M
HMAX EXTENSION 10' (3000mm), 8" (200mm) HIGH TEMPERATURE 850° F.
H-MAX-HT-8D-4.5M
HMAX EXTENSION 14' 7" (4500mm), 8" (200mm) HIGH TEMPERATURE 850° F.

Part #
Description
HERC-HD-3M-850-8D
10' (3000mm) HERCULIAN HD Articulating Extension Boom with 850º 8" (200mm) duct kit.
HERC-HD-4.5M-850-10D
4.5m (15') HERCULIAN Articulating Extension Boom complete with 10" (250mm)Ø 850° F hose & duct kit
HERC-HD-4.5M-850-12D
4.5m (15') HERCULIAN Articulating Extension Boom complete with 12" (300mm)Ø 850° F hose & duct kit
HERC-HD-4.5M-850-14D
4.5m (15') HERCULIAN Articulating Extension Boom complete with 14" (300mm)Ø 850° F hose & duct kit

Part #
Description
IN-RED-LIN-16-14
16" - 14" Duct Reducers, 22 gauge. RD
LD-240-3
10,000 CFM@ 7.5" (190mm) w.g. to 12,000 CFM@ 5.5" (140mm) w.g. BI Direct Drive Fan with slip fit inlet, flanged outlet; Class IV complete with 20 HP, 575/3/60, 1750 RPM
MB-HERC
Entire assembly for Mounting Bracket for Herculian to mount to structural beam. Includes:
  • (2) mount clamps
  • Threaded rod
  • Required hardware
Only order 1 "MB-HERC" for each HERC boom
P-025-XCPA-1204E9A-N4-15HP
Custom Thermal Feedback Loop Enclosed Panel Assembly. Controls fan ramp speed up/down based upon temperature and pressure in the system.

• 1x 60A Non-Fusible Disconnect – Rotary Type • 1x Line Side Fuse Holders (Fuses Included) • 1x Hand/Off/Auto Selector Switch • 1x “High Temp” Pushbutton • 1x Green LED Pilot Light – 24V • 2x Red LED Pilot Light – 24V • 2x Control Relays • 1x Buzzer • Terminal Blocks • English Labelling • 600 – 24V Control Transformer – 100VA (Fuses Included) • 600 – 240V Control Transformer – 500VA (Fuses Included) • NEMA 4/12 Metal Enclosure – Ventilated • Wired, Assembled & ETL/UL/CSA Approved • Made in Canada!

P-025-XCPA-1204E9A-N4-20HP
Custom Thermal Feedback Loop Enclosed Panel Assembly. Controls fan ramp speed up/down based upon temperature and pressure in the system.

• 1x 60A Non-Fusible Disconnect – Rotary Type • 1x Line Side Fuse Holders (Fuses Included) • 1x Hand/Off/Auto Selector Switch • 1x “High Temp” Pushbutton • 1x Green LED Pilot Light – 24V • 2x Red LED Pilot Light – 24V • 2x Control Relays • 1x Buzzer • Terminal Blocks • English Labelling • 600 – 24V Control Transformer – 100VA (Fuses Included) • 600 – 240V Control Transformer – 500VA (Fuses Included) • NEMA 4/12 Metal Enclosure – Ventilated • Wired, Assembled & ETL/UL/CSA Approved • Made in Canada!

PYRO-6-850
6" (150mm)Ø, 2ply Silicone/Nomex hose (price per foot), colour Orange.
  • Standard factory cut ends
FREQUENTLY BOUGHT TOGETHER

Part #
Description
PYRO-12-1200
12” (300mm)Ø, 2ply hose 1200° F - Suitable for use in constant flexing applications (price per foot).
  • Color: BLACK
  • Minimum length 25' Max length 40'
PYRO-14-1200
14” (350mm)Ø, 2ply hose 1200° F - Suitable for use in constant flexing applications (price per foot).
  • Color: BLACK
  • Minimum length 25' Max length 40'
PYRO-16-1200
16” (400mm)Ø, 2ply hose 1200° F - Suitable for use in constant flexing applications (per foot).
  • Color: BLACK
  • Minimum length 25' Max length 40'
  • Price per foot
PYRO-8-1200
8" (200mm)Ø, 2 ply hose 1200° F - Suitable for use in constant flexing applications or with hose reels (price per foot). Color BLACK

Part #
Description
PYRO-10-850
10" (250mm)Ø, 2ply hose 850° F - Suitable for use in constant flexing applications or with hose reels (price per foot).
  • Color: BLACK
  • Minimum length 25' Max length 50'
PYRO-12-850
12" (300mm)Ø, 2ply hose 850° F - Suitable for use in constant flexing applications or with hose reels color BLACK.
  • Rated up to 25" (630mm) of static pressure
  • Steel helix embedded for added safety, not exposed
  • Light weight, approximately 2.1 lbs/foot
PYRO-14-850
14" (350mm)Ø, 2ply hose 850° F - price per foot.
PYRO-16-850
16" (400mm)Ø, 2ply hose 850° F - (1) piece 20ft length.
PYRO-8-850
8" (200mm)Ø, 2 ply hose 850° F - Suitable for use in constant flexing applications or with hose reels (price per foot).
  • Color: Orange
  • Minimum length 25' Max length 50'

Part #
Description
HERC-EXTENSION-120
HERC EXTENSION - 120" (10ft) in length. Used to increase length of HERC boom assemblies. Made of 1/4" steel. Same bolt pattern as the HERC bracket. Modular Assembly. To be bolted (1 1/8" bolts) and welded to a column.
HERC-EXTENSION-48
HERC EXTENSION - 48" in length. Used to increase length of HERC boom assemblies. Made of 1/4" steel. Same bolt pattern as the HERC bracket. Modular Assembly.To be bolted (1 1/8" bolts) and welded to a column.

Part #
Description
RCA-UCC
Under Carriage Clip for RCA Nozzle. For quick connection to under carriage tailpipes

Part #
Description
RCA-12
12" (300mm) Diesel Stack Adapter with:
  • 14" (350mm) opening for exhaust pipes

Part #
Description
14-QC-BS-SW-LWR
Lower half of 14" (350mm) quick connect swivel.
Wall Hanger
Wall Hanger for extra hose.
