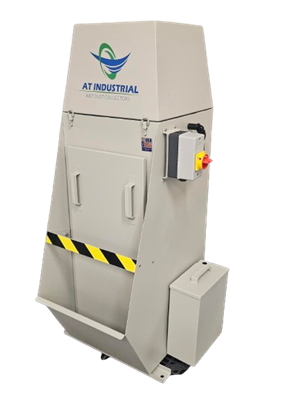

SSWC - Wet Collector Explosive Dusts - Self cleaning/draining filter system built in - 1200 to 5,500 CFM

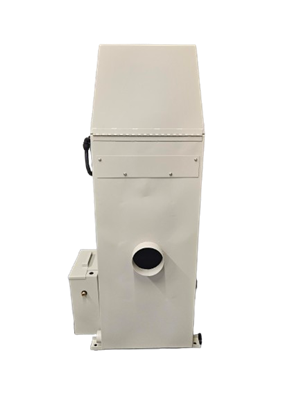

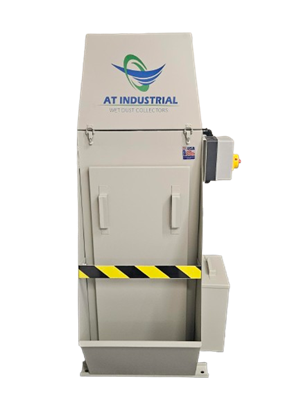

The Stainless Steel Wet Dust Collection System from LEV-CO comes in a variety of models that are intended for safe, efficient collection of various dusts from sanding, grinding and deburring operations. Dust particles sink to the base of the tank and are easily racked into a disposal container using.
FUNCTION
CONSTRUCTION
1. Dust suitable for wet collection includes:
- Quick wetting and sinking dust
- Materials of a combustible nature
- Applications where sparks may occur
- Applications where mixing of material and various minerals occur
- Other special applications.
- No filter bags/Low maintenance
- Stainless steel construction
- Water level controller
- 1 Micron solid/liquid phase after filter
- Sound silencer
- Magnetic starter, prewired with main disconnect
- T.E.F.C. motors
- Small particle grids for higher efficiency
- Models 1200 CFM to 5500 CFM
- Explosion-proof motors
- HEPA and Carbon filters
- Custom ductwork kits
- Single and Dual Extraction arms (6.5” to 12” diameter – 7’ to 17’ long)
- Portable option (Wheel kits)
- Custom direct mount Downdraft tables
- Water level controller
CONSTRUCTION
Standard Construction
- Main Motor Main Motor --> 3 to 25 HP T.E.F.C., 220-440-575 V, 3 phase / 60 Hz
- Main Tank --> Made of welded construction and properly ribbed stainless steel.
- Baffles --> Designated for continuous water spray to filter contaminated air; made of stainless steel.
- Eliminator Grid --> Standard to all units; increases efficiency and performance.
- Water Level Float --> Adjustable float valve that monitors the machine water level; adjusts to keep optimum collector performance; made of brass.
- Water Drain Valve --> 1 inch gate valve drains unit when cleaning; made of brass.
- Water Level Scale --> Mounts in an easy to read location for water level monitoring.
- Impeller --> Balanced to minimize vibration; made of stainless steel.
- Miscellaneous Fittings and Hardware --> Prevents rusting; made of brass and stainless steel.
- Electrical Equipment --> Push button motor starter and overload; wired to motor with water tight connectors and conduit; includes main disconnect switch
BASE MODELS, OPTIONS & ACCESSORIES
Part #
Description
SS-C3-800
Stainless steel wet dust collector, 800 CFM, 6" (150mm)Ø inlet, 3 HP motor, 208-230/460 V/3/60. Designed for capture and containment of combustible metal dusts from grinding, deburring, sanding, and metal finishing applications.
- 304 seam-welded stainless steel cabinet
- Internal baffle system separates and removes dust particles from water
- Automatic water level control
- Front-access maintenance latches for cleaning and service
- Approx. dimensions: 19" W x 38" D x 60" H
- Approx. shipping weight: 350 lbs.
- Sump capacity: 40 gal.
SS-C3-1200
Stainless steel wet dust collector, 1200 CFM, 6" (150mm)Ø inlet, 3 HP motor, 208-230/460 V/3/60. Designed for capture and containment of combustible metal dusts from grinding, deburring, sanding, and metal finishing applications.
- 304 seam-welded stainless steel cabinet
- Internal baffle system separates and removes dust particles from water
- Automatic water level control
- Front-access maintenance latches for cleaning and service
- Approx. dimensions: 19" W x 38" D x 60" H
- Approx. shipping weight: 350 lbs.
- Sump capacity: 40 gal.
SS-C5-1800
Stainless steel wet dust collector, 1800 CFM, 8" (200mm)Ø inlet, 5 HP motor, 208-230/460 V/3/60. Designed for capture and containment of combustible metal dusts from grinding, deburring, sanding, and metal finishing applications.
- 304 seam-welded stainless steel cabinet
- Internal baffle system separates and removes dust particles from water
- Automatic water level control
- Front-access maintenance latches for cleaning and service
- Approx. dimensions: 26" W x 38" D x 81" H
- Approx. shipping weight: 650 lbs.
- Sump capacity: 65 gal.
SS-C5-2500
Stainless steel wet dust collector, 2500 CFM, 8" (200mm)Ø inlet, 5 HP motor, 208-230/460 V/3/60. Designed for capture and containment of combustible metal dusts from grinding, deburring, sanding, and metal finishing applications.
- 304 seam-welded stainless steel cabinet
- Internal baffle system separates and removes dust particles from water
- Automatic water level control
- Front-access maintenance latches for cleaning and service
- Approx. dimensions: 26" W x 38" D x 81" H
- Approx. shipping weight: 650 lbs.
- Sump capacity: 42 gal.
SS-C7-3000
Stainless steel wet dust collector, 3000 CFM, 12" (300mm)Ø inlet, 7.5 HP motor, 208-230/460 V/3/60. Designed for capture and containment of combustible metal dusts from grinding, deburring, sanding, and metal finishing applications.
- 304 seam-welded stainless steel cabinet
- Internal baffle system separates and removes dust particles from water
- Automatic water level control
- Front-access maintenance latches for cleaning and service
- Approx. dimensions: 34" W x 49" D x 83" H
- Approx. shipping weight: 750 lbs.
- Sump capacity: 95 gal.
SS-C15-5000
Stainless steel wet dust collector, 5000 CFM, 14" (350mm)Ø inlet, 15 HP motor, 208-230/460 V/3/60. Designed for capture and containment of combustible metal dusts from grinding, deburring, sanding, and metal finishing applications.
- 304 seam-welded stainless steel cabinet
- Polypropylene doors standard on C15-5000 and larger models
- Internal baffle system separates and removes dust particles from water
- Automatic water level control
- Front-access maintenance latches for cleaning and service
- Approx. dimensions: 48" W x 59" D x 96" H
- Approx. shipping weight: 1250 lbs.
- Sump capacity: 135 gal.
SS-C20-8000
Stainless steel wet dust collector, 8000 CFM, 18" (450mm)Ø inlet, 20 HP motor, 208-230/460 V/3/60. Designed for capture and containment of combustible metal dusts from grinding, deburring, sanding, and metal finishing applications.
- 304 seam-welded stainless steel cabinet
- Polypropylene doors standard on C15-5000 and larger models
- Upgraded OSHA/NFPA electrical package standard on C20-8000 and larger models
- Internal baffle system separates and removes dust particles from water
- Automatic water level control
- Front-access maintenance latches for cleaning and service
- Approx. dimensions: 56" W x 68" D x 133" H
- Approx. shipping weight: 1530 lbs.
- Sump capacity: 180 gal.
SS-C40-15000
Stainless steel wet dust collector, 15000 CFM, dual 26" (660mm)Ø inlets, dual 20 HP motors, 460 V/3/60. Designed for capture and containment of combustible metal dusts from high-volume grinding, deburring, sanding, and metal finishing applications.
- 304 seam-welded stainless steel cabinet
- Polypropylene doors standard on C15-5000 and larger models
- Upgraded OSHA/NFPA electrical package standard on C20-8000 and larger models
- Internal baffle system separates and removes dust particles from water
- Automatic water level control
- Front-access maintenance latches for cleaning and service
- Approx. dimensions: 72" W x 59" D x 133" H
- Two 2" (50mm)Ø drains
Part #
Description
SS-C7-3000-EXHE
External 99.97% HEPA Filter Option for SS-C7-3000 Wet Dust Collector.
Part #
Description
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge.
3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.
Part #
Description
Wet-Col-Wheel
4" (100mm)Ø swivel caster with 1/2 threaded stem and brake, rate for 600 lbs.
FREQUENTLY BOUGHT TOGETHER
Part #
Description
SS-CX-NEMA-ELEC
NEMA electrical package for wet dust collector operation. Complete with:
- Starts collector when process machinery is turned on
- Monitors water level to ensure proper CFM production
- Regulates water level to support consistent operation of manufacturing process
Part #
Description
COIL-2WAY
COIL, 2 WAY, N.C, SING SOL,SPRING RET, 1/2" NPT PORTS.
COIL-BUSHJOST
12VDC COIL FOR BUSHJOST VALVE.
COIL-BUSHJOST-VALVE
NORGREN COIL FOR BUSCHJOST VALVE 24 VDC.
COIL-BUSHJOST-VALVE-120
NORGREN COIL FOR BUSCHJOST VALVE 120/60.
Part #
Description
WSS2-50
18 x 27 x 1.875 Stainless Steel Filter.
