SS-C20-8000
Overview

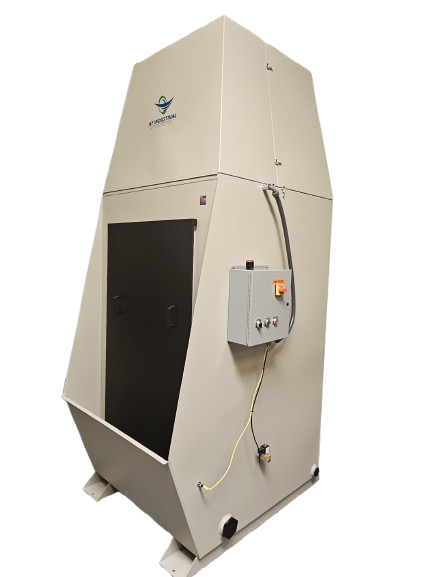

Stainless steel wet dust collector, 8000 CFM, 18" (450mm)Ø inlet, 20 HP motor, 208-230/460 V/3/60. Designed for capture and containment of combustible metal dusts from grinding, deburring, sanding, and metal finishing applications.
- 304 seam-welded stainless steel cabinet
- Polypropylene doors standard on C15-5000 and larger models
- Upgraded OSHA/NFPA electrical package standard on C20-8000 and larger models
- Internal baffle system separates and removes dust particles from water
- Automatic water level control
- Front-access maintenance latches for cleaning and service
- Approx. dimensions: 56" W x 68" D x 133" H
- Approx. shipping weight: 1530 lbs.
- Sump capacity: 180 gal.
Specificiations
Shipping Specificiations
| Shipping Weight | 650.0 lbs. |
| Shipping Length | 1 in. |
| Shipping Width | 1 in. |
| Shipping Height | 1 in. |

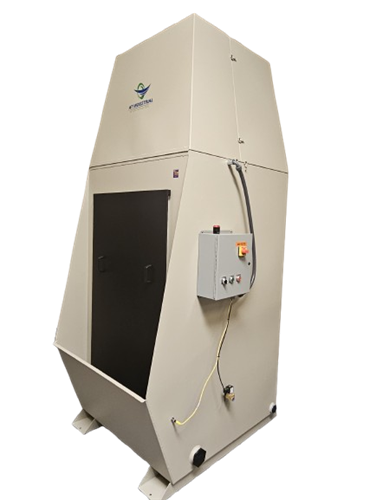

The Stainless Steel Wet Dust Collection System from LEV-CO comes in a variety of models that are intended for safe, efficient collection of various dusts from sanding, grinding and deburring operations. Dust particles sink to the base of the tank and are easily racked into a disposal container using.
- Quick wetting and sinking dust
- Materials of a combustible nature
- Applications where sparks may occur
- Applications where mixing of material and various minerals occur
- Other special applications.
- No filter bags/Low maintenance
- Stainless steel construction
- Water level controller
- 1 Micron solid/liquid phase after filter
- Sound silencer
- Magnetic starter, prewired with main disconnect
- T.E.F.C. motors
- Small particle grids for higher efficiency
- Models 1200 CFM to 5500 CFM
- Explosion-proof motors
- HEPA and Carbon filters
- Custom ductwork kits
- Single and Dual Extraction arms (6.5” to 12” diameter – 7’ to 17’ long)
- Portable option (Wheel kits)
- Custom direct mount Downdraft tables
- Water level controller
CONSTRUCTION
- Main Motor Main Motor --> 3 to 25 HP T.E.F.C., 220-440-575 V, 3 phase / 60 Hz
- Main Tank --> Made of welded construction and properly ribbed stainless steel.
- Baffles --> Designated for continuous water spray to filter contaminated air; made of stainless steel.
- Eliminator Grid --> Standard to all units; increases efficiency and performance.
- Water Level Float --> Adjustable float valve that monitors the machine water level; adjusts to keep optimum collector performance; made of brass.
- Water Drain Valve --> 1 inch gate valve drains unit when cleaning; made of brass.
- Water Level Scale --> Mounts in an easy to read location for water level monitoring.
- Impeller --> Balanced to minimize vibration; made of stainless steel.
- Miscellaneous Fittings and Hardware --> Prevents rusting; made of brass and stainless steel.
- Electrical Equipment --> Push button motor starter and overload; wired to motor with water tight connectors and conduit; includes main disconnect switch
