Pro-Flex - Ø 5''/ 6.5''/ 8''

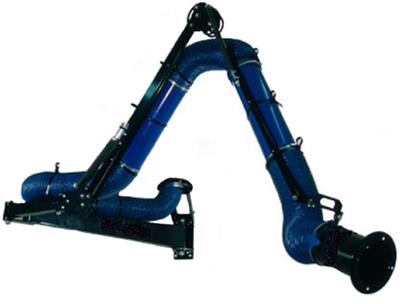

The externally supported PRO-FLEX Extraction Arm is features an advanced "parallelogram/counterbalanced" design, eliminating the need for constant adjustment of friction joints and ensuring exceptional ease of use. This superior arm is an ideal solution for a wide range of source-capture applications.
FUNCTION
It is not just a stretched out extractor arm. Two ball-bearing mounted horizontal arms with disc-brakes give an excellent horizontal maneuverability. It is also specifically recommended for applications requiring an "easy to position" extractor that does not require constant adjustment.
Pro-Flex Extractor Crane is the optimal solution when you need to cover large work areas. It come in 28 different configurations:
  • Lengths: 3M (10') -- 4M (14') -- 5m (17’) -- 6m (20') -- 7m (23’) -- 8m (26’) -- 9 m (30’)
  • Diameters: 4” (100mm) -- 5” (125mm) -- 6.33” (160mm) -- 8” (200mm).
CONSTRUCTION
All systems consist of (1) double articulating extension crane and (1) 3m (10’) externally supported Pro-Flex Extraction Arm.

The parallelogram mechanism is complete with 3 spring-assisted joints black baked-on enamel steel hood with handle and damper.

The articulation between wall bracket and parallelogram mechanism allows the extraction arm to be folded against the wall and out of the way.

The Wall Bracket is constructed of 6 and 2.5 mm steel, painted with black baked-on enamel.

Complete with (2) integrated swivel bearing points for 360° continuous rotation, integrated duct and direct mount fan connections.

The Internal Support is a combination of 50 x 25mm and 22 x 22mm, 2.5 mm steel tubing is used as the structure for the support mechanism.

"Parallelogram" technology is used along with (3) spring assisted joints to provide precise counter balancing of the extractor's inner and outer arm.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
PRO-100-2M
2m (6.5’) Pro-Flex Extraction Crane 4" (100mm)Ø. Complete with hood & wall bracket
PRO-100-3M
3m (10’) Pro-Flex Extraction Crane 4" (100mm)Ø Complete with hood and wall bracket
PRO-100-4M
4m (13.5') Pro-Flex Extraction Crane 4" (100mm)Ø Complete with hood & wall bracket
PRO-100-5M
5m (17’) Pro-Flex Extraction Crane 4" (100mm)Ø Complete with hood & wall bracket
PRO-100-6M
6m (20’) Pro-Flex Extraction Crane 4" (100mm)Ø. Complete with hood & wall bracket
PRO-100-7M
7m (23’) Pro-Flex Extraction Crane 4" (100mm)Ø. Complete with hood & wall bracket
PRO-100-8M
8m (26’) Pro-Flex Extraction Crane 100mm (4”)Ø. Complete with hood & wall bracket
PRO-100-9M
9m (30’) Pro-Flex Extraction Crane 4" (100mm)Ø. Complete with hood & wall bracket
DISCONTINUED

Part #
Description
PRO-125-2M
2m (6.5’) Pro-Flex Extraction Crane 5" (125mm)Ø. Complete with hood & wall bracket.
PRO-125-3M
3m (10’) Pro-Flex Extraction Crane 5" (125mm)Ø. Complete with hood & wall bracket.
PRO-125-4M
4m (13.5’) Pro-Flex Extraction Crane 5" (125mm)Ø. Complete with hood & wall bracket.
PRO-125-5M
5m (17’) Pro-Flex Extraction Crane 5" (125mm)Ø. Complete with hood & wall bracket.
PRO-125-6M
6m (20’) Pro-Flex Extraction Crane 5" (125mm)Ø. Complete with hood & wall bracket.
PRO-125-7M
7m (23’) Pro-Flex Extraction Crane 5" (125mm)Ø. Complete with hood & wall bracket.
PRO-125-8M
8m (26’) Pro-Flex Extraction Crane 5" (125mm)Ø. Complete with hood & wall bracket.

Part #
Description
PRO-160-2M
6’ 5" (2000mm) Pro-Flex Extraction Crane 6.33" (160mm)Ø. Complete with hood & wall bracket
PRO-160-3M
10’ (3000mm) Pro-Flex Extraction Crane 6.33" (160mm)Ø. Complete with hood & wall bracket
PRO-160-4M
13' 5" (4000mm) Pro-Flex Extraction Crane 6.33" (160mm)Ø Complete with hood & wall bracket
PRO-160-5M
16' 5" (5000mm) Pro-Flex Extraction Crane 6.33" (160mm)Ø Complete with hood & wall bracket
PRO-160-6M
20’ (6000mm) Pro-Flex Extraction Crane 6.33" (160mm)Ø Complete with hood & wall bracket
PRO-160-7M
23’ (7000mm) Pro-Flex Extraction Crane 6.33" (160mm)Ø Complete with hood & wall bracket
PRO-160-8M
26’ (8000mm) Pro-Flex Extraction Crane 6.33" (160mm)Ø Complete with hood & wall bracket
PRO-160-9M
30’ (9000mm) Pro-Flex Extraction Crane 6.33" (160mm)Ø Complete with hood & wall bracket

Part #
Description
PRO-200-2M
6’ 5" (2000mm) Pro-Flex Extraction Crane 8" (200mm)Ø Complete with hood & wall bracket
PRO-200-3M
10’ (3000mm) Pro-Flex Extraction Crane 8" (200mm)Ø Complete with hood & wall bracket
PRO-200-4M
13' 5" (4100mm) Pro-Flex Extraction Crane 8" (20mm)Ø.
PRO-200-5M
16' 5" (5000mm) Pro-Flex Extraction Crane 8" (200mm)Ø Complete with hood & wall bracket
PRO-200-6M
20’ (6000mm) Pro-Flex Extraction Crane 8" (200mm)Ø Complete with hood & wall bracket
PRO-200-7M
23’ (7000mm) Pro-Flex Extraction Crane 8" (200mm)Ø
  • Complete with hood & wall bracket
PRO-200-8M
26’ (8000mm) Pro-Flex Extraction Crane 8" (200mm)Ø Complete with hood & wall bracket
PRO-200-9M
30’ (9000mm) Pro-Flex Extraction Crane 8" (200mm)Ø Complete with hood & wall bracket DISCONTINUED
PRO-250-3M-360S
10’ (3000mm) Pro-Flex Extraction Crane with 360° swivel 10" (250mm)Ø
