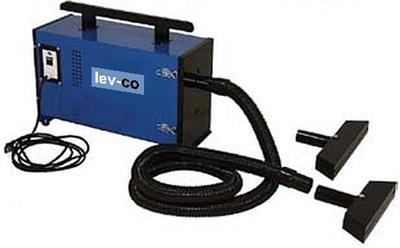

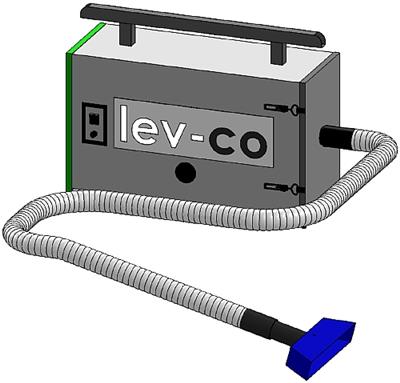

Porta-Flex

Porta-Flex units draw away polluted air and filters it through a 3 stage filtration system. These Plug and Play units have flow rates of 160 and 280 m3/H.

The P-610 Porta-Flex is a single motor unit designed for use with smokeless welding torches and lighter duty applications for the collection of dust and smoke at the source.

The P-612 Porta-Flex unit is a dual-powered fan system assuring consistent and effective performance.

The P-614 Porta-Flex unit is a single motor unit with an automatic start and stop feature.

The selection of filter combinations allows these units to effectively capture and remove airborne smoke, dust, fumes, grit, or other contaminants from welding and other industrial processes.

Available Options:

• Pre-Filter Option
• After-Filter Option
• Hood and Nozzle Accessories
• Replacement Hoses
• Single and Dual Motor Options

• All Steel Construction: Weight (28 Lbs:13kg)
• Heavy duty 14 ga. electrical cable and plug 15' (4.5M)
• Light Weight Extraction Hose 2" (50mm)Ø, 8' long (2.5m)
• Compact design 650mm x 250mm x 450mm
• "Plug and Play" design: 110V/1/60Hz

• User friendly, Plug and Play unit
• Low operation costs
• Ability to carry with ease especially into small areas and zones where access is limited such as roofs and basements
• Ability to plug into any standard circuit
• Saves space in production area

Top 5 contaminants/processes/applications:

• Welding in confined spaces
• Chromium fume
• Maintenance and repair work
• Stone cutting
• Mechanic shops

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
