P-610
Overview

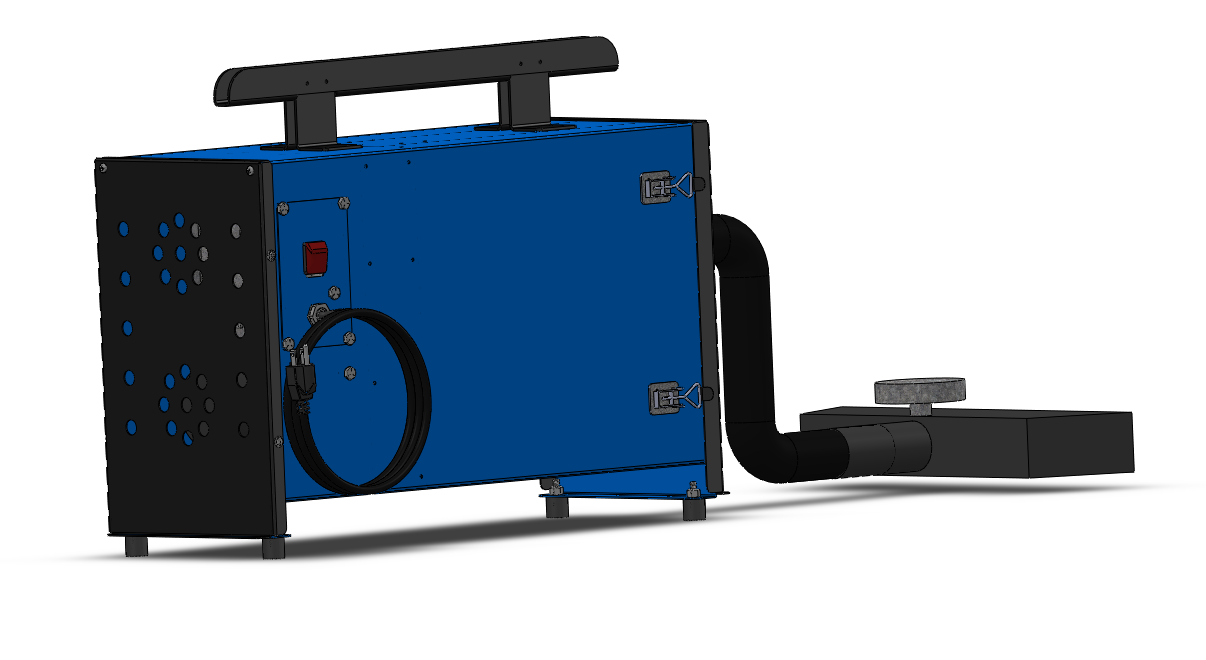

The Porta-Flex is a user-friendly, portable welding fume extractor with 1 Fan - 1KW 160 m3/H & a built-in filter for welding fumes & smoke. It has 2.5m flexible hose and a P-615 magnetic nozzle . Suitable for welding in confined spaces or difficult-to-reach locations. Perfect for service and repair work. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
Specificiations
| Horse Power | 2.5 |
| Voltage | 2.4 |
| RPM | 17750 |
| Phase | 1 |
| Full Load Amps | 14.7 |
| Hertz | 60 |
Shipping Specificiations
| Shipping Weight | 50.0 lbs. |
| Shipping Length | 26 in. |
| Shipping Width | 12 in. |
| Shipping Height | 23.5 in. |
At 28 lbs. the Porta-Flex units are a lightweight suitcase model that will go anywhere. Designed for use in confined spaces and areas where portability is a must. The one-person portable unit quickly removes harmful airborne smoke and particulate from the breathing and work zone through the 8' flexible hose, optional positioning arm, and nozzles with a magnetic base.
The P-610 Porta-Flex is a single motor unit designed for use with smokeless welding torches and lighter duty applications for the collection of dust and smoke at the source.
The P-612 Porta-Flex unit is a dual-powered fan system assuring consistent and effective performance.
The P-614 Porta-Flex unit is a single motor unit with an automatic start and stop feature.
The selection of filter combinations allows these units to effectively capture and remove airborne smoke, dust, fumes, grit, or other contaminants from welding and other industrial processes.
Available Options:
- Pre-Filter Option
- After-Filter Option
- Hood and Nozzle Accessories
- Replacement Hoses
- Single and Dual Motor Options
CONSTRUCTION
- All Steel Construction: Weight (28 Lbs:13kg)
- Heavy duty 14 ga. electrical cable and plug 15' (4.5M)
- Light Weight Extraction Hose 2" (50mm)Ø, 8' long (2.5m)
- Compact design 650mm x 250mm x 450mm
- "Plug and Play" design: 110V/1/60Hz
KEY CRITERA
- User friendly, Plug and Play unit
- Low operation costs
- Ability to carry with ease especially into small areas and zones where access is limited such as roofs and basements
- Ability to plug into any standard circuit
- Saves space in production area
SUITABLE FOR
- Welding in confined spaces
- Chromium fume
- Maintenance and repair work
- Stone cutting
- Mechanic shops
- At-Source Capture Systems Learn More
Aerospace
Auto body repair
Construction
Educational
Farm & Heavy Equipment
Food & Beverage
Machine Shop
Metalworking
Mining & Quarrying
Misc. Operations
MRO
Municipal & DOT Garage
National Defense
Vehicle Repair
Welding Shops
- Aluminum buffing
- Auto Shop
- Bandsaw
- Buffing and Polishing
- Canning
- Chip Collection
- Concrete Demolition Hammer
- Concrete Floor Grinder/Polisher
- Core Grinding
- Diamond Coring Rigs
- Drilling
- Food Packaging Plant
- LongWall Mining
- Manual Buffing and Polishing
- Other
- Rock Drills
- Soldering
- Steel Welding
- Surface Grinders
- Welding Shop
- Wood Shop
- Point Source high vacuum low volume extraction & filtration
