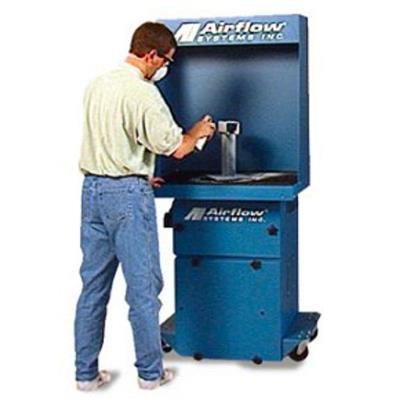

Paint Booth - 85''H x 43''W OR 49''H x 42''W
Paint Booth - A (800 CFM) portable paint booth that is readily accessible for jobs involving spray painting, grinding, polishing, and soldering.
Volatile Organic Compounds ans Spray Painting.
FUNCTION
CONSTRUCTION
KEY CRITERA
SUITABLE FOR
Removes fumes, dust, and odors for a healthier work environment. Includes access door for easy filter removal. Removable panel for access to the direct-drive motor/blower compartment.
Available with:
Available with:
- Variable Frequency Drives
- Filter Options
- Preventative Maintenance Pressure Gauges
CONSTRUCTION
- 14/16 gauge steel cabinet with powder-coat finish.
- Standard with the following filter configuration: 2" (50mm) polyester pre-filters, 95% main filter (21 sq. ft.)
- For 115/1/60 the unit comes standard with a 25' power cord and an ON/OFF switch
- For 3 phase motors (230/460/575) the motor is wired to an external junction box
- The unit meets electrical requirements for Class 1, Group - D
- (4) casters for easy maneuverability
- 24''D x 32''W x 36”H
KEY CRITERA
- Portable, Self-Contained Unit: Easy to set up, use and move
- Heavy-Duty Top-Mounted Table with 300 PSF rated steel grate: Provides maximum loading of up to 550 lbs.
- High-Efficiency 4-Stage Filtration: Provides up to 95% filtration efficiency.
- Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; non-sparking; no belts or pulleys to replace.
- Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
- Removable Doors: Easy access for cleaning and filter changeout.
- Prewired to an Explosion-Proof Box: Meets Group-D electrical requirements.
SUITABLE FOR
Top 5 contaminants/processes/applications:
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
- Spray Painting
- Light Dusts
- Grinding
- Polishing
- Soldering
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES
Part #
Description
FB-800
Portable Paint Booth 1.5HP 115/1/60HZ.
- AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation
FB-800-1
Portable Paint Booth 1.5HP 115/1/60HZ.
- Unit completes complete with all electrical controls but must be wired by a local approved electrician
FB-800-2
Portable Paint Booth, 1.5HP 208-230/460/3/60HZ.
- AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation
FB-800-3
Portable Fume/Booth 1.5HP 575-600/3/60HZ.
- AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation
Part #
Description
FB-800-HEPA
Internal Hepa option, includes:
- (1) 95% filter (21 sq.ft. of media)
- (1) 99.97% hepa
Part #
Description
FB-800-PG-101
0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
- Surface mounted
FUME/BOOTH-800-ALUM
Aluminum Bar Grate Option for Standard FUME/BOOTH-800 Unit.
FUME/BOOTH-800-COATED
Vinyl Coated Bar Grate Option for Standard FUME/BOOTH-800 Unit.
FUME/BOOTH-800-FIBER
Fiberglass Bar Grate Option for Standard FUME/BOOTH-800 Unit
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge.
3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.
Part #
Description
FB-800-Deduct-Elect
Deduct for labour associated with the wiring of the motor.
NB: Please include all the electrical components in a seperate box or bag taped to the table surface of the FB800.Please also include motor documents indicating class of motor and CSA Approval insignia.
NBB:The electrical junction box of the motor CAN be opened for testing, but none of the "knock-Outs" in the motors Electrical junction box can be broken. (As the breaking of these knock-outs can only be broken by the installing electrical contractor)
FREQUENTLY BOUGHT TOGETHER
Part #
Description
2AF9-0001
Adsorber module, flat, refillable. (18" x 24" x 2½").
- Holds 18 lbs. of charcoal
- Charcoal sold separately
2AZ2-0013
2" (50mm) Polyester Filter, pad only, (18" x 24" x 2").
2AF2-0011
2" (50mm) Polyester Frame & Pad. (18" x 24" x 2").
7FA8-0004
2" (50mm) Aluminum mesh pre-filter.
7FP9-0006
95% cartridge, 21 sq. ft. For use with the Dt-800, DS-1, MiniPac, & Fume Booth 800.
CHARCOAL-15
15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CHARCOAL-20
20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.
Target Contaminants:
Target Contaminants:
- Hydrocarbons
- VOC's
- Oxides of sulfur
- Formaldehyde
- Nitric Oxide
- Hydrogen Sulfide
- Lower molecular weight
- Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.
Target Contaminants:
Target Contaminants:
- Hydrocarbons
- VOC's
- Oxides of sulfur
- Formaldehyde
- Nitric Oxide
- Hydrogen Sulfide
- Lower molecular weight
- Aldehydes & organic acids
