Model

08-002

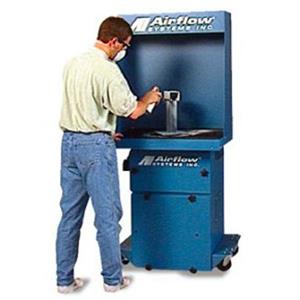

Image for fumebooth800.jpg

Paint Booth - 85''H x 43''W OR 49"H x 42"W

Paint Booth - A (800 CFM) portable paint booth that is readily accessible for jobs involving spray painting, grinding, polishing, and soldering. Volatile Organic Compounds & Spray Painting

Function:

Removes fumes, dust and odors, for a healthier work environment. Includes access door for easy filter removal. Removable panel for access to the direct-drive motor/blower compartment.

Available with:
  • Variable Frequency Drives
  • Filter Options
  • Preventative Maintenance Pressure Gauges

Construction:

  • 14 & 16 gauge steel cabinet with powder-coat finish.
  • Standard with the following filter configuration: 2" polyester prefilters, 95% main filter (21 sq. ft.)
  • For 115/1/60 the unit comes standard with a 25'power cord and an ON/OFF switch
  • For 3 phase motors (230/460/575) the motor is wired to an external junction box
  • The unit meets electrical requirements for Class 1, Group - D
  • 4 casters for easy maneuverability
  • 24''D X 32''W X 36”H

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
FB-800-2 85"H x 43"W x 43"D 441 lbs
FB-800-1 49"H x 42"W x 39"D 487 lbs
FB-800 85"H x 43"W x 45"D 452 lbs

Key Buying Criteria:

  • Portable, self-contained unit: Easy to set up, use and move
  • Heavy-duty top-mounted table with 300 PSF rated steel grate: Provides maximum loading of up to 550 lbs.
  • High-efficiency 4-stage filtration: Provides up to 95% filtration efficiency.
  • Direct-drive blower: Higher static pressure, longer filter life and greater reliability; non-sparking; no belts or pulleys to replace.
  • Ultra-Seal® filter mounting: Eliminates contaminant bypass of filters.
  • Removable doors: Easy access for cleaning and filter changeout.
  • Prewired to an explosion-proof box: Meets Group-D electrical requirements.

Suitable For:

Top 5 contaminants/processes/applications:

  • Spray Painting
  • Light Dusts
  • Grinding
  • Polishing
  • Soldering
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
FB-800 Portable Paint Booth 1.5HP 115/1/60HZ. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation. RD - Adjusted Prices 12/31/2009 -
FB-800-1 Portable Paint Booth 1.5HP 115/1/60HZ. Unit completes complete with all electrical controls but must be wired by a local approved electrician.
FB-800-2 Portable Paint Booth, 1.5HP 208-230/460/3/60HZ. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
FB-800-3 Portable Fume/Booth 1.5HP 575-600/3/60HZ. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Frequently bought together these options:


Part # Qty Description
FB-800-HEPA Internal hepa option; includes (1) 95% filter (21 sq.ft. of media) and (1) 99.97% hepa.

Part # Qty Description
2AF9-0001 Adsorber module, flat, refillable. (18" x 24" x 2½"). Holds 18 lbs. of charcoal.Charcoal sold separately.
2AZ2-0013 2" Polyester Filter, pad only, 18 x 24 x 2
2AF2-0011 2" Polyester Frame & Pad .
7FA8-0004 2 Aluminum mesh prefilter.
7FP9-0006 95% cartridge, 21 sq. ft. For use with the Dt-800, DS-1, MiniPac & Fume Booth 800
CHARCOAL-15 15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CHARCOAL-20 20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-CP20 20 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
CHARCOAL-CP40 40 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids

Part # Qty Description
FB-800-PG-101 0-10" magnahelic pressure gauge, approximately 5" diameter size. Surface mounted.
FUME/BOOTH-800-ALUM Aluminum Bar Grate Option for Standard FUME/BOOTH-800 Unit
FUME/BOOTH-800-COATED Vinyl Coated Bar Grate Option for Standard FUME/BOOTH-800 Unit
FUME/BOOTH-800-FIBER Fiberglass Bar Grate Option for Standard FUME/BOOTH-800 Unit
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-5 pressure gauge. 3/16 inside diameter tubing ordered separately.
PG-10 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-10 pressure gauge. 3/16 inside diameter tubing ordered separately.

Part # Qty Description
VFD-KIT-1HP-115-230-3 1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3 2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3 3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
