FB-800

$34,052.01  $25,539.01 CAD
25% OFF SAVE $8,513.00

Overview

Standard Product
Out of Stock
Portable Paint Booth 1.5HP 115/1/60HZ.
  • AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation
RD - Adjusted Prices 12/31/2009 -

Specificiations


Shipping Specificiations

Shipping Weight 452.0 lbs.
Shipping Length 45 in.
Shipping Width 43 in.
Shipping Height 85 in.
Model 08-002: Paint Booth - 85''H x 43''W OR 49''H x 42''W

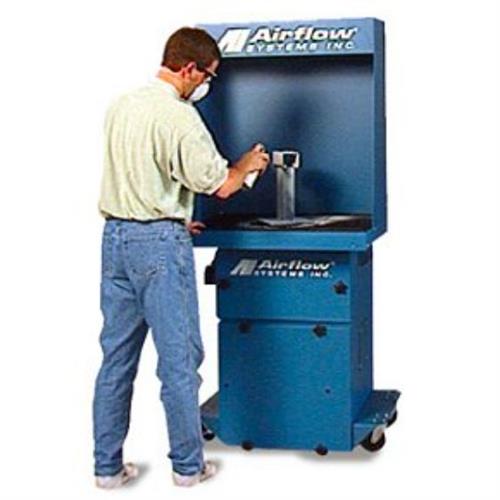

Paint Booth - A (800 CFM) portable paint booth that is readily accessible for jobs involving spray painting, grinding, polishing, and soldering. Volatile Organic Compounds ans Spray Painting.
FUNCTION
Removes fumes, dust, and odors for a healthier work environment. Includes access door for easy filter removal. Removable panel for access to the direct-drive motor/blower compartment.

Available with:
  • Variable Frequency Drives
  • Filter Options
  • Preventative Maintenance Pressure Gauges

CONSTRUCTION
  • 14/16 gauge steel cabinet with powder-coat finish.
  • Standard with the following filter configuration: 2" (50mm) polyester pre-filters, 95% main filter (21 sq. ft.)
  • For 115/1/60 the unit comes standard with a 25' power cord and an ON/OFF switch
  • For 3 phase motors (230/460/575) the motor is wired to an external junction box
  • The unit meets electrical requirements for Class 1, Group - D
  • (4) casters for easy maneuverability
  • 24''D x 32''W x 36”H

KEY CRITERA
  • Portable, Self-Contained Unit: Easy to set up, use and move
  • Heavy-Duty Top-Mounted Table with 300 PSF rated steel grate: Provides maximum loading of up to 550 lbs.
  • High-Efficiency 4-Stage Filtration: Provides up to 95% filtration efficiency.
  • Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; non-sparking; no belts or pulleys to replace.
  • Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
  • Removable Doors: Easy access for cleaning and filter changeout.
  • Prewired to an Explosion-Proof Box: Meets Group-D electrical requirements.

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Spray Painting
  • Light Dusts
  • Grinding
  • Polishing
  • Soldering
