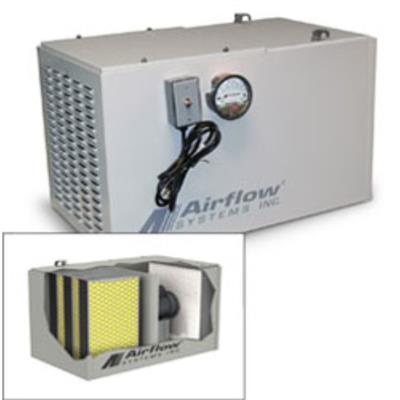

MPH-5 - 500 CFM

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a horizontal profile. It includes an option for 24" (610mm)leg stands, mounting angles to hang or surface mount, a rubber vibration isolator, and an 8" (200mm) inlet collar on the bottom. It features (3) MistPlus II main filter, (1) MERV14 pleated synthetic washable filter, and a 1/2 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines horizontally to capture contaminants and can be suspended from any suitable roof support strut.

Main Options:

• Multiple Filter Types and Configurations
• Preventative Maintenance Pressure Gauges
• Variable Frequency Drives

• Includes filter access door on each side for left or right-hand applications
• Acoustically lined blower cabinet
• Max Door Opening: 40 ft ²
• Ultra-Seal® filter mounting system
• Three Phase Motor

Specifications:

• Construction: 18 Gauge welded steel cabinet with powder-coat finish
• Blower Pkg (HP): 1/2 HP,
• Noise Level (dBA): 71 dBA
• Electrical: 115/1/60, 7.2 amps
• Nominal Air Flow (CFM): 500

• 95% Collection Efficiency at 1 to 4 Microns:Designed specifically for oil mist, the Airflow Systems, Inc.® MistPlus® II filter provides up to 95% filtration efficiency of 1 to 4 micron mist droplets. The proprietary, V-shaped filter design aids in drainage of collected mist; extending filter life.
• MERV 14 Collection Efficiency:MERV 14 rated after-filter provides an additional contaminant barrier. Collection efficiency is increased; filter life is extended.
• Sealed Cabinet Construction:18 gauge steel, seam-sealed cabinet eliminates contaminant escape common with stitch-welded or bolt-on panel designs.
• Lever locking Filter Placement System:Ensures quick and accurate filter replacement; eliminates contaminant bypass of filters, reduces equipment and facility maintenance. Top access door speeds filter maintenance.
• Low-Profile Cabinet Design:Machine-top orientation enables installation directly above the machine tool-even in low ceiling applications; saves floor space.
• Superior Liquid Drainage: 8-inch bottom inlet allows for 24-hour, 7-day operation with no need for manual handling of collected liquids.
• Extended Filter Life, Reduced Maintenance:MistPlus® II filter design reduces dirt loading and filter maintenance; extending filter life up to two years.
• Backward-Inclined Blower: Energy-efficient; superior air flow, low horsepower requirement, higher static pressure operation; acoustically-lined blower cabinet.

Top 5 contaminants/processes/applications:

• Grinding sparks
• CNC Machining
• Lathe Work
• Aerospace Machining
• Cold Heading of Metals

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
