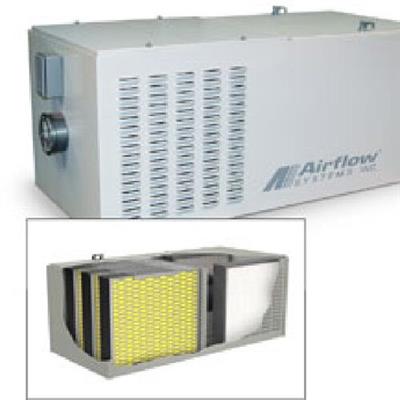

MPH10 - 1000 CFM

The MPH10 Oil Mist Collector produces 1000 CFM with 95%+ filter efficiency and is a direct machine-mounted design for single-unit metalworking applications.
FUNCTION
The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a horizontal profile. It includes the new removal bottom sump with a 3/4" drain, mounting angles to hang or surface mount, and an 8" (200mm) bottom inlet. It features a 1" (25mm) polyester pre-filter, a 4" (100mm) MERV 14 primary filter, and a 1 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines horizontally for direct capture of contaminants and can be suspended from any suitable roof support strut.

Main Options:
  • Fan/Motor Upgrades or Options
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives

CONSTRUCTION
  • Includes filter access door on each side for left or right-hand applications
  • Acoustically lined blower cabinet
  • Max Door Opening: 14 ft ²
  • Ultra-Seal® filter mounting system
  • Three Phase Motor

Specifications:
  • Construction: 16/18 Gauge welded steel cabinet with powder-coat finish
  • Blower Pkg (HP): 1 HP
  • Noise Level (dBA): 75 dBA
  • Electrical: 115/1/60, 12 Amps
  • Nominal Air Flow (CFM): 1000

KEY CRITERA
  • 95% Collection Efficiency at 1 to 4 Microns: Designed specifically for oil mist, the MistPlus® II filter provides up to 95% filtration efficiency of 1 to 4 micron mist droplets. The proprietary, V-shaped filter design aids in drainage of collected mist; extending filter life.
  • Sealed Cabinet Construction: 18 gauge steel, seam-sealed cabinet eliminates contaminant escape common with stitch-welded or bolt-on panel designs.
  • Lever locking Filter Placement System: Ensures quick and accurate filter replacement; eliminates contaminant bypass of filters, reduces equipment and facility maintenance.
  • Low-Profile Cabinet Design: Horizontal orientation allows for installation directly above the machine tool-even in low ceiling applications; saves floor space.
  • Superior Liquid Drainage: 10" (250mm) bottom inlet and 2" (50mm) deep sump enable high-volume, 24-hour, 7-day operation; no manual handling of liquids.
  • Extended Filter Life, Reduced Maintenance: MistPlus® II filter design reduces dirt loading and filter maintenance; extending filter life up to two years.
  • Direct-Drive Blower: Energy-efficient; superior air flow and higher static pressure operation; no belts or pulleys to replace, acoustic-lined cabinet.

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Grinding sparks
  • CNC Machining
  • Lathe Work
  • Aerospace Machining
  • Cold Heading of Metals
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

BASE MODELS, OPTIONS & ACCESSORIES
Part #
Description
MPH10-500-1
500CFM source capture mist collector with:
  • (3) MIST-PLUS II main filter with (2) MERV14 pleated synthetic, washable filters (17.5 x 18.5 x 3.75)
  • 1/2 HP 115/1/60 Hz
  • 77.5 dBA, with rubber vibration insulator and 10 collar on bottom
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
MPH-10-1000-1
1000 cfm source capture mist collector with:
  • (3) MIST-PLUS II main filter with (2) MERV14 pleated synthetic, washable filters (17.5 x 18.5 x 3.75)
  • 1 HP 115/1/60 Hz
  • 77.5 dBA, with rubber vibration insulator and 10 collar on bottom.
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
MPH10-1000-2
1000 cfm source capture mist collector with:
  • (3) MIST-PLUS II main filter with (2) MERV14 pleated synthetic, washable filters (17.5 x 18.5 x 3.75)
  • 1 Hp 208-230/460/3/60 Hz
  • 77.5 dBA, with rubber vibration insulator, and 10 collar on bottom.
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
MPH-10-1000-3
1000 cfm source capture mist collector with:
  • (3) MIST-PLUS II main filter with (2) MERV14 pleated synthetic, washable filters (17.5 x 18.5 x 3.75)
  • 1 HP 575/3/60 Hz
  • 77.5 dBA, with rubber vibration insulator and 10 collar on bottom.
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
Part #
Description
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.
MPH 10-PG-5
0-5" Minihelic dial pressure gauge for MPH10.
  • Specify Location or it will ship loose*
MPH 10-PG-6
0-6" Minihelic dial pressure gauge for MPH10.
  • Specify Location or it will ship loose*
Part #
Description
2KT8-4124
L type bracket kit for mounting mist collector to the wall - (2) required.
2KT8-4903
Kit, 10" (250mm) stand.
FREQUENTLY BOUGHT TOGETHER
Part #
Description
MPH 10-HANGING-CRADLE
Bracket/Frame, with gasket to hang unit from ceiling.
MPH 10-CART
18" (460mm)­­ cart with casters.
MPH 10-IA-FRONT
Cover the bottom inlet, and install a 8" (200mm) collar to FRONT ONLY of unit & install a drain loop, 1" x 3/4" reduce fitting with 3/4" copper p-trap pipe fittings & instructions.
MPH 10-STAND-10
10" (250mm) stand.
MPH10-BRACKET
Bracket/Frame, with gasket to hang unit from ceiling.
Part #
Description
MPH 10-1/2HP
1/2 Hp, 115/1/60 Hz motor in place of 1 HP 115/1/60 Hz (500 cfm).
Part #
Description
2AF8-4900
97% MIST-PLUS ™ II filter, metal frame - (3) required.
  • Horizonal Holes
3FM8-4901
Media replacement PAK (MIST-PLUS™ II) - (3) required.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
7FJ9-9004
HEPA, 99.97% filter for MP-14, PR01, MPH5, MPH10.
7FP1-4502
Filter pleated - Synthetic & Washable with MERV 15 efficiency.
  • (2) required
MPH 10-HEPA
(2) Internal 99.97% HEPA filter (17.5 x 18.5 x 4) - in addition to main MIST-PLUS II filters.
PRO 1-2AF7-4000
97% MIST-PLUS II filter, metal frame (3) required.
