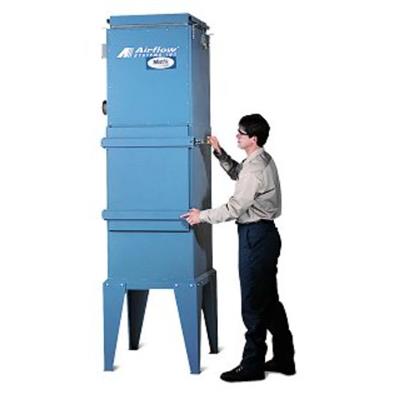

MP30 - 3000 CFM

The Model MP30 Oil Mist Collector produces up to 3000 CFM with 95%+ filtration efficiency and is designed for medium- to heavy-duty metalworking applications.
FUNCTION
The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a vertical profile. It includes the new removal bottom sump with a 1.5" (40mm) drain, mounting angles to hang or surface mount, and a 14" (350mm) bottom inlet. It features a 2" (50mm) aluminum mesh pre-filter, (4) Mist-Plus primary filter, and a 5 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines horizontally for direct capture of contaminants and can be suspended from any suitable roof support strut.

Main Options:
  • Multiple Filter types and configurations
  • Motor Options
  • Sound Attenuation
  • Preventative maintenance pressure gauges
  • Variable Frequency Drives
CONSTRUCTION
  • Includes filter access door on each side for left or right-hand applications
  • Acoustically lined blower cabinet
  • Max Door Opening: 40 ft ²
  • Ultra-Seal® filter mounting system
  • Three Phase Motor

Specifications:
  • Construction: 16 Gauge welded steel cabinet with powder-coat finish
  • Blower Pkg (HP): 5 HP
  • Noise Level (dBA): 78 dBA
  • Electrical: 208-230/460/575/3/60, 12/6 amps
  • Nominal Air Flow (CFM): 3000

Dimensions (Inches):
  • Width = 28
  • Height = 76
  • Depth = 29
KEY CRITERA
  • Exclusive Mist-Plus® Containment Management System:Delivers over 95% filtration efficiency; reduces operating costs by extending maintenance cycles and filter life.
  • Welded Steel Cabinet:Eliminates contaminant escape common with bolt-on panel cabinets.
  • Baked-On Powder Coat Finish: Resists harsh industrial environments.
  • Hinged Front Access Filter Door: Eases filter access; reduces filter maintenance and changeout time.
  • Sloped Drain Pan: Facilitates reclamation of captured oil mist.
  • Lever locking Filter Mounting: Eliminates contaminant bypass of filters.
  • Small Footprint: Compact cabinet requires minimal floor space; eases machine installation.
  • Continuous Draining: Provides for longer filter life.
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Grinding sparks
  • CNC Machining
  • Lathe Work
  • Aerospace Machining
  • Cold Heading of Metals
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
MP30-1
MP30 industrial air cleaner with a 5 Hp TEFC motor 208-230/460/3/60 Hz. 10-14"Ø duct collar connection right hand side of unit when looking at the collector front access doors
MP30-2
MP30 industrial air cleaner with a 5 Hp TEFC motor 575-600//3/60 Hz
  • 14" (350mm)Ø inlet on the left hand side of the unit when you look at the filter access door

Part #
Description
MP30-EXDOP
Ext. 95% DOP.
MP30-2P
2" (50mm) Polyester pre-filter option for standard MP30 Unit.
MP30-EXAD
External adsorber module, 2000 cfm, 50 lbs. capacity. Order charcoal separately, which adds 15 to overall height and 22 lbs to ship weight
MP30-EXHE - 2HP
External HEPA, 24" x 24" x 12" 99.97%, (1) hepa filter. 2000 cfm.
  • Adds 12" (300mm) to height and 20 lbs. to ship weight
  • 2HP MOTOR ONLY
  • For PG-6 use 2PG6-HEPA
MP30-EX-MERV14
External MERV14 pleated, synthetic filter, 2000 cfm.
  • Adds 4" (100mm) to height & 15 lbs. to ship weight
MP30-HEPA-XL
Extended Life HEPA is an A frame assembly with (2) each 2000 CFM 99.97 HEPA vs 1 HEPA in the EXHE assembly.
MP30-MERV14-XL
Extended Life MERV14 pleated, synthetic filter, is an A frame assembly with (2) each 2000 cfm vs. (1) MERV14 pleated, synthetic filter, in the EX-MERV14 assembly.

Part #
Description
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.
MP14-PG-10
0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted
MP30-PG-10
0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted
MP4-PG-6
0-6" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted

Part #
Description
3AB7-5701
KIT, 5HP WHL REPLCMNT, PLSTC TO ALUM, MP30 - Wheel with inlet cone.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
MP30-SILENCER
Silencer, TOP MOUNT (Not available with EXHE, EXDOP, & EXAD).

Part #
Description
MP30-3HP
Cost adder for 3HP, 3 Phase, wash-down motor/blower option.
MP30-2400 CFM
3Hp TEFC, 2400 CFM Blower Option for Standard MP30 Unit.
MP30-2HP-2100CFM
2 HP motor/blower, in place of 5HP - 69 dBA.

Part #
Description
DM-113-03.0-104
3" (75mm)Ø Master Pur-SL Hose.
  • Super lightweight polyester/polyurethane with wire reinforcement
  • Very flexible and clear
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
DM-113-04.0-104
4" (100mm)Ø Master Pur-SL Hose
  • Super lightweight polyester/polyurethane with wire reinforcement
  • Very flexible and clear
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
  • 4" x 6' HANGING ON WALL CLEAR
DM-113-05.0-104
5" (125mm)Ø Master Pur-SL Hose.
  • Super lightweight polyester/polyurethane with wire reinforcement
  • Very flexible and clear
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
DM-113-06.0-104
6" (160mm)Ø Master Pur-SL Hose.
  • Super lightweight polyester/polyurethane with wire reinforcement
  • Very flexible and clear
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
DM-113-08.0-104
8" (200mm)Ø Master Pur-SL Hose.
  • Super lightweight polyester/polyurethane with wire reinforcement
  • Very flexible and clear
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
DM-113-10.0-104
10" (250mm)Ø Master Pur-SL Hose.
  • Super lightweight polyester/polyurethane with wire reinforcement
  • Very flexible and clear
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
DM-113-12.0-104
12" (300mm)Ø Master Pur-SL-FG Hose.
  • Super lightweight polyester/polyurethane with wire reinforcement
  • Very flexible and clear
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
DM-113-14.0-104
14" (350mm)Ø Master Pur-SL Hose.
  • Super lightweight polyester/polyurethane with wire reinforcement
  • Very flexible and clear
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
DM-113-16.0-104
16" (400mm)Ø Master Pur-SL Hose.
  • Super lightweight polyester/polyurethane with wire reinforcement
  • Very flexible and clear
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)

Part #
Description
HR-10-OM
10" (250mm)Ø Hose Ring to connect oil mist hose to CNC machine.
HR-12-OM
12" (300mm)Ø Hose Ring to connect oil mist hose to CNC machine.
HR-14-OM
14" (400mm)Ø Hose Ring to connect oil mist hose to CNC machine.
HR-16-OM
16" (460mm)Ø Hose Ring to connect oil mist hose to CNC machine.
HR-3-OM
3" (75mm)Ø Hose Ring to connect oil mist hose to CNC machine.
HR-4-OM
4" (100mm)Ø Hose Ring to connect oil mist hose to CNC machine.
HR-5-OM
5" (125mm)Ø Hose Ring to connect oil mist hose to CNC machine.
HR-6-OM
6" (150mm)Ø Hose Ring to connect oil mist hose to CNC machine.
HR-8-OM
8" (200mm)Ø Hose Ring to connect oil mist hose to CNC machine.

Part #
Description
2AF9-0006
Adsorber v-bank module.
  • (2) are need for Pac 91
7FJ9-5005
95% @ 0.3 micron DOP Filter for MP30.
7FJ9-9005
99.97% @ 0.3 micron Mini Pleat 1500 CFM MERV 17 HEPA Filter for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, & Air Pod.
7FP1-4505-OEM
MERV 14 Filter - synthetic & washable.
  • Pleated for F-120, F122, F240, F360, F480, 200, 202, 203, MP30, PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, PAC91, EASY BENCH, & MP60
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.
  • Suitable when the complaint is more of a mixed or sharp chemical odour, especially if there may be acidic, sulfur, ammonia/amine, aldehyde, or corrosive gas components.


Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
2AF7-5001
95% Mist-Plus Filter
  • (4) required / MP-30 unit
  • (8) required / MP-60 unit
  • (16) required / MP-120 unit
2AF7-5002
97% MIST-PLUS II filter, metal frame.
  • (4) each MP30 & PRO 2
  • (8) each MP60 & PRO 3; or
  • (16) each MP120 & PRO 4
2AF7-5003
Polyester PRE-filter, pad, & frame.
3FM7-5701
Media Pack Refill kit (Mist- Plus) for MP-30, MP-60, & MP-120.
  • (4) each MP30
  • (8) each MP60; or
  • (16) each MP120
  • Price is Per Kit
You would need to order (4) of this P/N in order to be able to replace the media in all four filters in the MP30. When you order (1) 3FM7-5701 you’ll receive (2) sets of media - this would replace the media on both side of the “V” shaped filter.
3FM7-5702
Media Pack Refill kit (Mist- Plus II) for MP-30, MP-60 and MP-120.
  • (4) each MP30
  • (8) each MP60; or
  • (16) each MP120
  • Each kit consists of (2) filter packs
7FA8-0007
2" (50mm) Aluminum mesh pre-filter for MP30 unit.
7FJ9-5112
95% @ 0.3 micron DOP filter complete with metal frame, 72 deep.
7FP1-1412
Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP1-4505-P
High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
