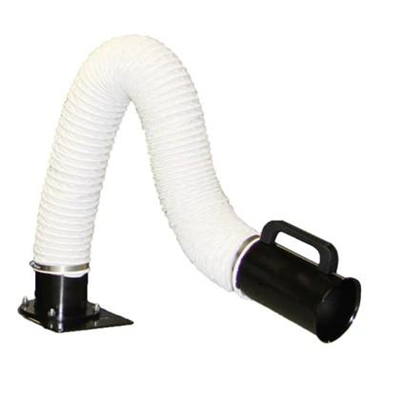

Mini-MAX - Ø 3'' & 4''

The Mini-Max Extraction Arm uses an internally supported, spring-balanced design to capture fumes, vapors, gases, and light dust directly at the source — keeping operators protected and workspaces clean. Available in both wall- and table-mounted configurations, its internal linkage ensures a compact profile and smooth, precise movement with minimal effort. Ideal for laboratory, soldering, sampling, and weighing applications where low-flow, local extraction is required.
FUNCTION
The Mini-Max provides a powerful yet lightweight solution for capturing contaminants right at the emission point. Its internal support structure, built from mild steel tubing with spring-assisted joints, maintains perfect counterbalance between the inner and outer arms — allowing the hood to stay steady wherever it’s placed. The system is available in 4' to 6' lengths with 3" or 4" diameter hoses, providing versatile coverage across small- to medium-size benches. The hood, wall bracket, and arm assembly are delivered ready to install, complete with mounting hardware for either wall or table configuration. With its black baked-enamel steel hood and integrated ring handle, the Mini-Max offers ergonomic positioning and efficient source capture. It’s an excellent choice for laboratories, dental facilities, and light manufacturing areas where precise airflow control and operator comfort are essential. Optional accessories extend system functionality, including:
  • Exhaust Fan (with motor overload protection)
  • Bird Screen
  • Backdraft Damper
  • Exhaust Duct
  • Wall Flashing
CONSTRUCTION
  • Internal Support System: Mild steel tubular structure houses spring-balanced joints that counteract hood weight for smooth, stable motion.
  • Balanced Movement: Internal tension springs ensure precise counterbalancing between inner and outer arm sections.
  • Arm Finish: All steel components coated with a durable black baked-on enamel for corrosion and wear resistance.
  • Hose: Soft, flexible, chemical-resistant hose prevents damage to nearby surfaces and equipment.
  • Hood: Black enamel-coated steel hood with optimized airflow design and integrated ring handle for accurate positioning.
  • Mounting Options: Supplied with steel wall-mount and table-mount brackets, both allowing 360° rotation for full-range coverage.
  • All-Metal Construction: No white-metal or plastic parts — built entirely from steel for strength and long-term reliability.
  • Low Maintenance: Sealed internal mechanism and smooth surfaces simplify cleaning and inspection.
KEY CRITERA
  • Very lightweight and requires little to no adjustment
  • Only 1.6 pounds of force required to position
  • Soft hose prevents damage
  • All-steel structure
  • No white metal or plastic parts
  • Low-maintenance
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Soldering
  • Gluing
  • Food and Pharma Dusts
  • Sampling
  • weighing
  • Prosthetic Dusts
  • Contaminants from Dental Processes
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
EX-ARM-75-1000
3' 2" (975mm) Wall/Ceiling Mount Arm
  • Complete with hood, handle PVC/fiberglass UL90 hose, Internal powder coated steel support and standard 360° turning flange outlet 3"Ø (75mmØ)
EX-ARM-75-1300
4' 2" (1280mm) Wall/Ceiling Mount Arm
  • Complete with hood, handle PVC/fiberglass UL90 hose, Internal powder coated steel support and standard 360° turning flange outlet 3"Ø (75mmØ)
EX-ARM-75-1600
5' 24" (1600mm) Wall/Ceiling Mount Arm
  • Complete with hood, handle PVC/fiberglass UL90 hose, Internal powder coated steel support and standard 360° turning flange outlet 3"Ø (75mmØ)

Part #
Description
EX-ARM-100-1000
3' 3" (1005mm) Wall/Ceiling Mount Arm.
  • Complete with hood, handle PVC/fiberglass UL90 hose, Internal powder coated steel support and standard 360° turning flange outlet 4"Ø (100mmØ)
EX-ARM-100-1300
4' 2" (1280mm) Wall/Ceiling Mount Arm.
  • Complete with hood, handle PVC/fiberglass UL90 hose, Internal powder coated steel support and standard 360° turning flange outlet 4"Ø (100mmØ)
EX-ARM-100-1600
5' 2" (1585mm) Wall/Ceiling Mount Arm.
  • Complete with hood, handle PVC/fiberglass UL90 hose, Internal powder coated steel support and standard 360° turning flange outlet 4"Ø (100mmØ)

Part #
Description
P-666
1m Wall/Ceiling Mount Arm, .100mm inside. Complete with standard 360 turning flange bracket.
P-667
1.3m Wall/Ceiling Mount Arm, .100mm inside. Complete with standard 360 turning flange bracket.
P-668
1.6m Wall/Ceiling Mount Arm, .100mm inside. Complete with standard 360 turning flange bracket.

Part #
Description
P-660
(1m) Wall/Ceiling Extraction Externally Supported Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)
P-661
(1.3m) Wall/Ceiling Extraction Externally Supported Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)
P-662
(1.6m) Wall/Ceiling Extraction Externally Supported Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)

Part #
Description
P-656
Flexa 1m Bench Top Mounting Extraction Arm 360° turning flange & outlet.
  • .100mmØ
P-657
Flexa 1.3m Bench Top Mounting Extraction Arm 360° turning flange & outlet.
  • .100mmØ
P-658
Flexa 1.6m Bench Top Mounting Extraction Arm 360° turning flange & outlet.
  • .100mmØ

Part #
Description
P-649
(1m) Top Mounting Extraction Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)
P-650
(1.3m) Top Mounting Extraction Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)
P-651
(1.6m) Top Mounting Extraction Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)

Part #
Description
P-663
(1m) Top Mounting Extraction Externally Supported Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)
P-664
(1.3m) Top Mounting Extraction Externally Supported Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)
P-665
(1.6m) Top Mounting Extraction Externally Supported Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)

Part #
Description
P-669
Chemikus 1m. Bench Top including 360 turning flange and outlet .100mm
P-670
Chemikus 1.3m. Bench Top including 360 turning flange and outlet .100mm
P-671
Chemikus 1.6m. Bench Top including 360 turning flange and outlet .100mm
FREQUENTLY BOUGHT TOGETHER

Part #
Description
R-061
6" (150mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm. Packed in plastic.
R-062
8" (200mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.
R-063
4" (100mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.
R-064
3" (75mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.

Part #
Description
P-147-1
P-Max direct drive fan 0.5 HP 115-230V/1/60
  • 100% weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-147-2
P-Max direct drive fan 0.5 HP 208-230-460V/3/60.
P-147-3
P-Max direct drive fan 0.5 HP 575V/3/60.

Part #
Description
P-148-1
P-Max© direct drive fan 0.75 HP 115-230V/1/60.
P-148-2
P-Max© direct drive fan 0.75 HP 208-230V/460V/3/60.
P-148-3
P-Max© direct drive fan 0.75 HP 575V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part #
Description
P-149-1
P-Max© direct drive fan 1 HP 115-230V/1/60.
P-149-2
P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-3
P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part #
Description
EX-FAN-1.5-115/230
P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)
  • 100% Weather-proof and can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
EX-FAN-1.5-2-230/460
P-Max© direct drive fan 1.5 HP 208-230V/460V/3/60 (use P-152-2HP-2 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
EX-FAN-1.5-3-575
P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP

Part #
Description
PDK-8
Industrial grade 8" (200mm)Ø duct kit for direct exhausting of P-Max fans - for wall exhaust.
  • (2) 24" - 8"Ø lateral duct
  • (1) 8" (200mm)Ø long radius elbow
  • 24" - 8" exhaust fitting complete with 45° weather configuration
  • Backdraft damper
  • Bird screen
  • 16" x 16" exterior wall flashing
PDK-8-RF
Duct Kit for roof penetration with Velocity Cone, complete with the following parts:
  • (2) pcs - 24" - 8"Ø lateral duct
  • (1) pc Velocity cone
  • (1) pc tall cone
  • (1) pc strom collar
  • (1) pc - 8" (200mm) exhaust fitting
  • Backdraft damper
  • Bird screen
16" x 16" exterior roof flashing

Part #
Description
P-021
Ceiling/Floor Stanchion 3' 3" (1000mm) for Flexi & Pro-Flex Extraction Arms.
P-022
Ceiling/Floor Stanchion 6' 5" (2000mm) for Flexi & Pro-Flex Extraction Arms.
P-023
Ceiling/Floor Stanchion 9' 75" (3000mm) for Flexi & Pro-Flex Extraction Arms.

Part #
Description
P-024-1
115V/1/60 Fan Motor control station up to 1.5 HP - Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection on/off 14A control power cord & plug
  • Overload rating according to the FLA of the motor
  • Field assembly & installation required
P-024-2
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • Motor Circuit Protector type - "E" rotary 0.63-1.0A OVERLOAD---> HP rating: 1/2@460/3/60, 1/2@575/3/60
P-024-3
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 1-1.6A OVERLOAD ---> HP rating: 1/3@230/3/60. 3/4@460/3/60, 1.0@575/3/60
P-024-4
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 1.6-2.5A OVERLOAD ---> HP rating: 1/2@230/1/60, 1/2@230/3/60, 1.5@460/3/60, 1.5@575/3/60
P-024-5
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 2.5-4A OVERLOAD ---> HP rating: 1/8@115/1/60, 1/3@230/1/60, 3/4@230/3/60, 2.0@460/3/60, 3.0@575/3/6
P-024-6
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 4.0-6.3A OVERLOAD---> HP rating: 0.25@115/1/60, 0.75@230/1/60, 1.5@230/3/60, 3/0@460/3/60, 5.0@575/3/6
Price update Jan 30 2010 TC
P-024-7
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 6.3-10A OVERLOAD---> HP rating: 1/2@115/1/60, 1.5@230/1/60, 3@208/3/60, 3.0@230/3/60, 5@460/3/60, 7.5@575/3/60
P-024-8
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 10-16A OVERLOAD---> HP rating: 1.0@115/1/60, 2.0@230/1/60, 3.0@208/3/60, 5.0@230/3/60, 10@460/3/60, 10@575/3/60V
P-024-9
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 16-20A OVERLOAD---> HP rating: 1.5@115/1/60, 3@230/1/60, 5@208/3/60, 5@230/3/60, 10@460/3/60, 15@575/3/60
P-024-10
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection, field assembly required
  • 20-25A OVERLOAD---> HP rating: 1.5@115/1/60, 2@230/1/60, 3@208/3/60, 5@230/3/60, 15@460/3/60, 15@575/3/60
P-024-11
Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection, field assembly required
  • 25-32A OVERLOAD---> HP rating: , 5@230/1/60, 10@208/3/60, 10@230/3/60, 20@460/3/60, 25@575/3/60
