Model

01-098

Image for DT-ARM-160_PrimaryImage_200 2.jpeg

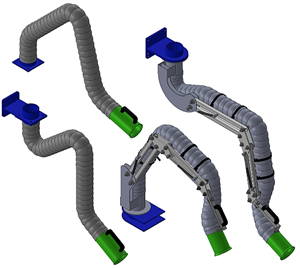

Mini-MAX - Ø 3'' & 4''

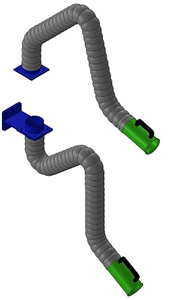

Mini-Max Extraction Arms offer an effective solution for capturing low-flow fumes and dust at their source, safely directing them away from users and expelling them into the atmosphere.

Available from 4'- 6' total length. 3'' 4''Ø hose.

Mini-Max Extraction Arms are delivered 'ready to install' with an included wall bracket for immediate setup.

Function:

Mini-max arms are ideal for most Laboratory applications including things like soldering, gluing, sampling and more, offering versatile coverage of fume, dust, and gas sources at any angle, thanks to the arm's flexible design.

Optional components include:
  • Exhaust Fan comes with motor overload
  • Bird Screen
  • Backdraft Damper
  • Exhaust Duct
  • Wall Flashing

Construction:

  • Internal support structure constructed from mild steel tubing, featuring spring-assisted joints to ensure precise counterbalancing of the extractor's inner and outer arms.
  • The Mini-Max Extraction Arm is equipped with a black baked-on enamel steel hood designed for optimized airflow, a ring handle, and a black baked-on enamel wall bracket.
  • Our extraction arm is supported by a wall-mounted bracket option.
  • Our extraction arm is also supported by a table-mounted bracket option.
  • The extraction arm comes in lengths with a range from 4 feet to a maximum length of 6 feet, allowing for sources that may be upstream or downstream to be covered and have the fumes, dust, or gases captured.


Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
P-671 0"H x 0"W x 0"D 0 lbs
P-670 0"H x 0"W x 0"D 0 lbs
P-669 0"H x 0"W x 0"D 0 lbs
P-668 0"H x 0"W x 0"D 0 lbs
P-667 0"H x 0"W x 0"D 0 lbs
P-666 0"H x 0"W x 0"D 0 lbs
P-665 0"H x 0"W x 0"D 0 lbs
P-664 0"H x 0"W x 0"D 0 lbs
P-663 0"H x 0"W x 0"D 0 lbs
P-662 0"H x 0"W x 0"D 0 lbs
P-661 0"H x 0"W x 0"D 0 lbs
P-660 0"H x 0"W x 0"D 0 lbs
P-658 12"H x 10"W x 36"D 30 lbs
P-657 12"H x 10"W x 36"D 30 lbs
P-656 12"H x 10"W x 36"D 30 lbs
P-651 12"H x 10"W x 36"D 30 lbs
P-650 12"H x 10"W x 36"D 30 lbs
P-649 12"H x 10"W x 36"D 30 lbs
EX-ARM-75-1600 8"H x 18"W x 31"D 12 lbs
EX-ARM-75-1300 8"H x 18"W x 31"D 11 lbs
EX-ARM-75-1000 8"H x 18"W x 31"D 10 lbs
EX-ARM-100-1600 8"H x 18"W x 32"D 16 lbs
EX-ARM-100-1300 8"H x 18"W x 31"D 15 lbs
EX-ARM-100-1000 8"H x 18"W x 31"D 14 lbs

Key Buying Criteria:

  • Very lightweight and requires little to no adjustment
  • Only 1.6 pounds of force required to position
  • Soft hose prevents damage
  • All-steel structure
  • No white metal or plastic parts
  • Low-maintenance

Suitable For:

Top 5 contaminants/processes/applications:

  • Soldering
  • Gluing
  • Food and Pharma Dusts
  • Sampling
  • weighing
  • Prosthetic Dusts
  • Contaminants from Dental Processes
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
EX-ARM-75-1000 3' 2" (975mm) Wall/Ceiling Mount Arm
  • Complete with hood, handle PVC/fiberglass UL90 hose, Internal powder coated steel support and standard 360° turning flange outlet 3"Ø (75mmØ)
EX-ARM-75-1300 4' 2" (1280mm) Wall/Ceiling Mount Arm
  • Complete with hood, handle PVC/fiberglass UL90 hose, Internal powder coated steel support and standard 360° turning flange outlet 3"Ø (75mmØ)
EX-ARM-75-1600 5' 24" (1600mm) Wall/Ceiling Mount Arm
  • Complete with hood, handle PVC/fiberglass UL90 hose, Internal powder coated steel support and standard 360° turning flange outlet 3"Ø (75mmØ)

Part # Qty Description
EX-ARM-100-1000 3' 3" (1005mm) Wall/Ceiling Mount Arm.
  • Complete with hood, handle PVC/fiberglass UL90 hose, Internal powder coated steel support and standard 360° turning flange outlet 4"Ø (100mmØ)
EX-ARM-100-1300 4' 2" (1280mm) Wall/Ceiling Mount Arm.
  • Complete with hood, handle PVC/fiberglass UL90 hose, Internal powder coated steel support and standard 360° turning flange outlet 4"Ø (100mmØ)
EX-ARM-100-1600 5' 2" (1585mm) Wall/Ceiling Mount Arm.
  • Complete with hood, handle PVC/fiberglass UL90 hose, Internal powder coated steel support and standard 360° turning flange outlet 4"Ø (100mmØ)

Part # Qty Description
P-666 1m Wall/Ceiling Mount Arm, .100mm inside. Complete with standard 360 turning flange bracket.
P-667 1.3m Wall/Ceiling Mount Arm, .100mm inside. Complete with standard 360 turning flange bracket.
P-668 1.6m Wall/Ceiling Mount Arm, .100mm inside. Complete with standard 360 turning flange bracket.

Part # Qty Description
P-660 (1m) Wall/Ceiling Extraction Externally Supported Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)
P-661 (1.3m) Wall/Ceiling Extraction Externally Supported Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)
P-662 (1.6m) Wall/Ceiling Extraction Externally Supported Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)

Part # Qty Description
P-656 Flexa 1m Bench Top Mounting Extraction Arm 360° turning flange & outlet.
  • .100mmØ
P-657 Flexa 1.3m Bench Top Mounting Extraction Arm 360° turning flange & outlet.
  • .100mmØ
P-658 Flexa 1.6m Bench Top Mounting Extraction Arm 360° turning flange & outlet.
  • .100mmØ

Part # Qty Description
P-649 (1m) Top Mounting Extraction Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)
P-650 (1.3m) Top Mounting Extraction Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)
P-651 (1.6m) Top Mounting Extraction Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)

Part # Qty Description
P-663 (1m) Top Mounting Extraction Externally Supported Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)
P-664 (1.3m) Top Mounting Extraction Externally Supported Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)
P-665 (1.6m) Top Mounting Extraction Externally Supported Arm
  • Complete with standard 360° turning flange outlet (.75mmØ)

Part # Qty Description
P-669 Chemikus 1m. Bench Top including 360 turning flange and outlet .100mm
P-670 Chemikus 1.3m. Bench Top including 360 turning flange and outlet .100mm
P-671 Chemikus 1.6m. Bench Top including 360 turning flange and outlet .100mm

Frequently bought together these options:


Part # Qty Description
R-061 6" (150mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm. Packed in plastic.
R-062 8" (200mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.
R-063 4" (100mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.
R-064 3" (75mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.

Part # Qty Description
P-147-1 P-Max direct drive fan 0.5 HP 115-230V/1/60
  • 100% weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-147-2 P-Max direct drive fan 0.5 HP 208-230-460V/3/60.
P-147-3 P-Max direct drive fan 0.5 HP 575V/3/60.

Part # Qty Description
P-148-1 P-Max© direct drive fan 0.75 HP 115-230V/1/60.
P-148-2 P-Max© direct drive fan 0.75 HP 208-230V/460V/3/60.
P-148-3 P-Max© direct drive fan 0.75 HP 575V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part # Qty Description
P-149-1 P-Max© direct drive fan 1 HP 115-230V/1/60.
P-149-2 P-Max© direct drive fan 1 HP 208-230V/460V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-3 P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part # Qty Description
EX-FAN-1.5-115/230 P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)
  • 100% Weather-proof and can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
EX-FAN-1.5-2-230/460 P-Max© direct drive fan 1.5 HP 208-230V/460V/3/60 (use P-152-2HP-2 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
EX-FAN-1.5-3-575 P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP

Part # Qty Description
PDK-8 Industrial grade 8" (200mm)Ø duct kit for direct exhausting of P-Max fans - for wall exhaust.
  • (2) 24" - 8"Ø lateral duct
  • (1) 8" (200mm)Ø long radius elbow
  • 24" - 8" exhaust fitting complete with 45° weather configuration
  • Backdraft damper
  • Bird screen
  • 16" x 16" exterior wall flashing
PDK-8-RF Duct Kit for roof penetration with Velocity Cone, complete with the following parts:
  • (2) pcs - 24" - 8"Ø lateral duct
  • (1) pc Velocity cone
  • (1) pc tall cone
  • (1) pc strom collar
  • (1) pc - 8" (200mm) exhaust fitting
  • Backdraft damper
  • Bird screen
16" x 16" exterior roof flashing

Part # Qty Description
P-021 Ceiling/Floor Stanchion 3' 3" (1000mm) for Flexi & Pro-Flex Extraction Arms.
P-022 Ceiling/Floor Stanchion 6' 5" (2000mm) for Flexi & Pro-Flex Extraction Arms.
P-023 Ceiling/Floor Stanchion 9' 75" (3000mm) for Flexi & Pro-Flex Extraction Arms.

Part # Qty Description
P-024-1 115V/1/60 Fan Motor control station up to 1.5 HP - Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection on/off 14A control power cord & plug
  • Overload rating according to the FLA of the motor
  • Field assembly & installation required
P-024-2 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • Motor Circuit Protector type - "E" rotary 0.63-1.0A OVERLOAD---> HP rating: 1/2@460/3/60, 1/2@575/3/60
P-024-3 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 1-1.6A OVERLOAD ---> HP rating: 1/3@230/3/60. 3/4@460/3/60, 1.0@575/3/60
P-024-4 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 1.6-2.5A OVERLOAD ---> HP rating: 1/2@230/1/60, 1/2@230/3/60, 1.5@460/3/60, 1.5@575/3/60
P-024-5 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 2.5-4A OVERLOAD ---> HP rating: 1/8@115/1/60, 1/3@230/1/60, 3/4@230/3/60, 2.0@460/3/60, 3.0@575/3/6
P-024-6 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 4.0-6.3A OVERLOAD---> HP rating: 0.25@115/1/60, 0.75@230/1/60, 1.5@230/3/60, 3/0@460/3/60, 5.0@575/3/6
Price update Jan 30 2010 TC
P-024-7 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 6.3-10A OVERLOAD---> HP rating: 1/2@115/1/60, 1.5@230/1/60, 3@208/3/60, 3.0@230/3/60, 5@460/3/60, 7.5@575/3/60
P-024-8 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 10-16A OVERLOAD---> HP rating: 1.0@115/1/60, 2.0@230/1/60, 3.0@208/3/60, 5.0@230/3/60, 10@460/3/60, 10@575/3/60V
P-024-9 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 16-20A OVERLOAD---> HP rating: 1.5@115/1/60, 3@230/1/60, 5@208/3/60, 5@230/3/60, 10@460/3/60, 15@575/3/60
P-024-10 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection, field assembly required
  • 20-25A OVERLOAD---> HP rating: 1.5@115/1/60, 2@230/1/60, 3@208/3/60, 5@230/3/60, 15@460/3/60, 15@575/3/60
P-024-11 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection, field assembly required
  • 25-32A OVERLOAD---> HP rating: , 5@230/1/60, 10@208/3/60, 10@230/3/60, 20@460/3/60, 25@575/3/60
