MNSD - AIR CLEANER - 400 & 600 CFM

Stand-alone MNSD Multipurpose No Supply Duct with HEPA H14 professional Airpurifiers are used indoors for reducing COVID-19 and other Viruses in the air. They come in two sizes. 700m3/h and 1000m3/h. It is recommended to filter the total air volume in a room 6 times/hour.

For your safety, each HEPA H14 filter is delivered with a Certificate and is leak tested. The efficiency is over 99.995% on particles and viruses which are under/over 0.16 micrometre (down to 0.01 micrometre). The Filters are manufactured in Europe by a HEPA H14 specialist, well known all over the world.

Here's how it works:

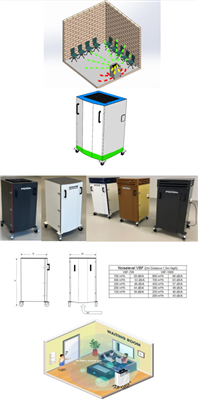

• STEP 1: The "Clean-to-less-clean" air movement supplies clean filtered air to the occupants breathing zone through a pre-engineered diffusion hood explicitly designed for the application e.g., Meeting Rooms, Lunchrooms, Locker Looms, Classrooms, etc. This precise air movement is essential as the viral particles associated with Covid-19 have shown that they can remain airborne, for up to 16 hours in still air.
• STEP 2: An ultra-low noise fan draws the room air in at floor level where the air is least clean. The air is then drawn in by a variable speed centrifugal fan, that allows the operator to control the flow, based on the number of people in the room.
• STEP 3:The air then passes through a silenced chamber engineered to dampen the associated noise generated by the air movement.
• STEP 4: A multi-stage filter module filters the contaminated air containing virus particles as small as 0.1 Micron (MicroMeters) to a purity level of 99.995%.
• STEP 5: An optional UVC germicidal treatment lamp can be purchased as a supplement to help destroy virus particles that may remain attached to the inner surfaces of the unit’s air intake housing.
• STEP 6: Thev clean filtered air is then returned to the indoor space through a low-noise duct and diffuser hood detailed in Step 1, thus completing the filtration and ventilation circuit. This allows the air in a typical room to be changed over 100 times an hour.

Each system Fan/Filter module complete with four-stage filtration:

1. Prefilter for larger particles >50 microns. (Washable)
2. High-efficiency F5 class secondary filter 40-60% efficiency on particles larger than 0.4 microns. (Disposable)
3. High-Efficiency HEPA H14 class final filter 99.995% efficient on particles smaller than 0.1 microns. (Delivered with Efficiency and leak test Certificate)
4. Outlet filter of washable Aluminum mesh (Washable)

Additional Information:

- All MNSD air-purifiers come complete with 120V variable-speed EC motors. Units are delivered ready to plug in and use. The fan speed can be adjusted to suit precise ‘Draft-Free’ airspeeds and ‘Ultra Quiet’ noise levels.
- When selected, duct kits come complete with lightweight sheet metal ducting, duct fitting, chains (to hang the hood and duct), and hooks (for the ceiling).
- The duct kit, hoods, and/or supply arms are simple to install and typically require no more than 30 minutes to set up.
- Units are fabricated with heavy-duty, all-steel materials of the highest quality.
- All units are delivered complete with 4x5" diameter locking casters. Alternatively, 5" legs can be ordered separately.
- Optional bacteria-killing UVC lamps can be placed before the HEPA H14 filter to kill surface viruses, mold and bacteria.

• All steel construction
• Clean to less Clean air pattern
• Does not blow air from person to person
• H14 HEPA filter
• Variable Flow Control
• Optional air velocity alarm
• MERV 10 Prefilter
• Optional Odor Control Filter with 11 lbs

Top 5 contaminants/processes/applications:

• Wildfire Smoke
• Smog
• Body odor
• Cigarette Smoke
• General Atmospheric Air Pollution

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
