L-796

$5,500.00  $4,125.00 CAD
25% OFF SAVE $1,375.00

Overview

Clearance Item
In Stock
COVID-ICA 700-HEPA (400 CFM) fan & filter unit H14, 99.995% @ 0.1 Micron. 115/1/60 Dba

Condition of product:
New in box

Specificiations

Horse Power 0.2
Voltage 115
RPM 1800
Phase 1
Full Load Amps 0.01
Hertz 60
Rated Airflow 400 CFM
Static Pressure 12 in.WC
Filter Type Hepa
Filter efficiency 99.995% @ 0.1 Micron
Inlet Size 18 x 18 in.
Outlet Size 20 x 20 in.

Shipping Specificiations

Shipping Weight 145.0 lbs.
Shipping Length 25 in.
Shipping Width 25 in.
Shipping Height 50 in.

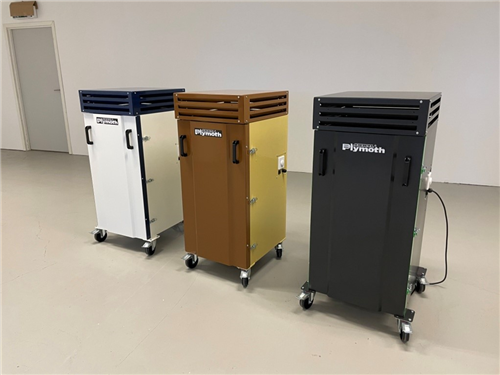

Model 20-015: MNSD - AIR CLEANER - 400 & 600 CFM
LEV-CO’s Stand-alone MNSD Multipurpose No Supply Duct with Hepa H14 Filtration for Coffee, Lunch, Meeting and Waiting Rooms, Offices, Schools, Restaurants, Fitness studios, Locker rooms, and Benches. A simple “Pre-engineered” solution with "Clean-to-less-clean" air distribution, HEPA H14 Filtration (99.995% @ 100 Nanometer), Duct and Diffusion Hood.
FUNCTION
Stand-alone MNSD Multipurpose No Supply Duct with HEPA H14 professional Airpurifiers are used indoors for reducing COVID-19 and other Viruses in the air. They come in two sizes. 700m3/h and 1000m3/h. It is recommended to filter the total air volume in a room 6 times/hour.

For your safety, each HEPA H14 filter is delivered with a Certificate and is leak tested. The efficiency is over 99.995% on particles and viruses which are under/over 0.16 micrometre (down to 0.01 micrometre). The Filters are manufactured in Europe by a HEPA H14 specialist, well known all over the world.

Here's how it works:
  • STEP 1: The "Clean-to-less-clean" air movement supplies clean filtered air to the occupants breathing zone through a pre-engineered diffusion hood explicitly designed for the application e.g., Meeting Rooms, Lunchrooms, Locker Looms, Classrooms, etc. This precise air movement is essential as the viral particles associated with Covid-19 have shown that they can remain airborne, for up to 16 hours in still air.
  • STEP 2: An ultra-low noise fan draws the room air in at floor level where the air is least clean. The air is then drawn in by a variable speed centrifugal fan, that allows the operator to control the flow, based on the number of people in the room.
  • STEP 3:The air then passes through a silenced chamber engineered to dampen the associated noise generated by the air movement.
  • STEP 4: A multi-stage filter module filters the contaminated air containing virus particles as small as 0.1 Micron (MicroMeters) to a purity level of 99.995%.
  • STEP 5: An optional UVC germicidal treatment lamp can be purchased as a supplement to help destroy virus particles that may remain attached to the inner surfaces of the unit’s air intake housing.
  • STEP 6: Thev clean filtered air is then returned to the indoor space through a low-noise duct and diffuser hood detailed in Step 1, thus completing the filtration and ventilation circuit. This allows the air in a typical room to be changed over 100 times an hour.

CONSTRUCTION

Each system Fan/Filter module complete with four-stage filtration:

1. Prefilter for larger particles >50 microns. (Washable)
2. High-efficiency F5 class secondary filter 40-60% efficiency on particles larger than 0.4 microns. (Disposable)
3. High-Efficiency HEPA H14 class final filter 99.995% efficient on particles smaller than 0.1 microns. (Delivered with Efficiency and leak test Certificate)
4. Outlet filter of washable Aluminum mesh (Washable)

Additional Information:

- All MNSD air-purifiers come complete with 120V variable-speed EC motors. Units are delivered ready to plug in and use. The fan speed can be adjusted to suit precise ‘Draft-Free’ airspeeds and ‘Ultra Quiet’ noise levels.
- When selected, duct kits come complete with lightweight sheet metal ducting, duct fitting, chains (to hang the hood and duct), and hooks (for the ceiling).
- The duct kit, hoods, and/or supply arms are simple to install and typically require no more than 30 minutes to set up.
- Units are fabricated with heavy-duty, all-steel materials of the highest quality.
- All units are delivered complete with 4x5" diameter locking casters. Alternatively, 5" legs can be ordered separately.
- Optional bacteria-killing UVC lamps can be placed before the HEPA H14 filter to kill surface viruses, mold and bacteria.

KEY CRITERA
  • All steel construction
  • Clean to less Clean air pattern
  • Does not blow air from person to person
  • H14 HEPA filter
  • Variable Flow Control
  • Optional air velocity alarm
  • MERV 10 Prefilter
  • Optional Odor Control Filter with 11 lbs

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Wildfire Smoke
  • Smog
  • Body odor
  • Cigarette Smoke
  • General Atmospheric Air Pollution

Solutions
Industries
  • Auto body repair Auto body repair
  • Dental Offices Dental Offices
  • Educational Educational
  • Emergency Services Emergency Services
  • Food & Beverage Food & Beverage
  • Vehicle Repair Vehicle Repair
Processes
  • Auto Shop
  • Buffing and Polishing
  • Fire Stations
  • Food Packaging Plant
  • Operating Room
Engineering Control Methods
No control methods exist for this product

Contact sales for more information at sales@lev-co.com

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

All prices are FOB our warehouse in Port Perry, Ontario. Prices exclude taxes, delivery, installation, electrical work, mechanical installation, fire/explosion detection and suppression, mechanical and structural engineering, approvals, drawings, governmental permits, and related fees unless specifically noted above.


Payment terms are Net 30 OAC for quotes under $7,500. For quotes over $7,500, payment terms are 40/30/30 OAC: 40% with order, 30% prior to the day of shipment, and 30% Net 30. Orders must total a minimum of $500 NET. Interest of 18% per year will be charged on all overdue accounts. A 3% service charge will be applied to credit card payments.


Payment and Release of Goods

All products are subject to availability and will not be released for shipment or pickup until full payment has been received and processed. Products remain the property of Lev-co until payment has been received in full.


Clearance item pricing applies only to the specific product, quantity, and configuration shown on this quote. Clearance items are available on a first-come, first-served basis and are subject to prior sale. Products are not reserved until the order has been accepted by Lev-Co and any required deposit has been received. Clearance pricing and availability are valid only while quantities last and may change without notice as part of Lev-Co's Clearance Center pricing program.


Unless specifically noted otherwise, clearance items are new, unused Lev-Co products and include Lev-Co's standard 3-year limited warranty. All Lev-Co sales come with our limited 30-day satisfaction guarantee unless otherwise noted on the quote.


Due to the limited-quantity nature of clearance inventory, all cancellations, returns, or requests for RGA approval are reviewed on a case-by-case basis and require prior written approval from Lev-Co. Any approved return may be subject to a 30% restocking fee, plus applicable inspection, repackaging, repair, and freight charges. Requests for RGA approval must be submitted within 15 days of receipt. If you believe you may need to return a product, please request approval before purchasing.


The contents, documents, images, drawings, attachments, emails, videos, facsimiles, messages, and related materials contained in this quote and associated communications are confidential and remain the property of Lev-Co, The Local Exhaust & Ventilation Company Inc. They are intended solely for review by the intended recipient(s). Unauthorized use, copying, scanning, emailing, faxing, distribution, or other disclosure of this information is prohibited.


Payment is due in full upon shipment. Net terms may be offered at Lev-co's discretion to established clients who have maintained an account with Lev-co for two or more years.
