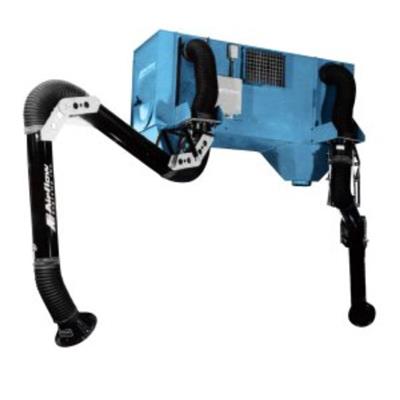

HC4 - 2000 CFM

The HC4 is a collector using a cartridge filtering system. This unit is ideal for limited floor space, as well as high maneuverability. With the use of our Flexi Extraction Arms, 4 stations can be filtered at any given moment, allowing for maximized productivity and allowing for capture at source extraction.

The unit comes complete with either DUAL inlets or (2) 10’ long E-Z Arm® high flow extractors (with damper and light in the hood), AUTO-CLEAN VIBRA-PULSE® filter cleaning system, a 3 HP TEFC motor, and a ½” NPT regulator, with a nominal flow rate of 2000 CFM.

Options Available:

• Pressure Gauge Kit: Indicates when filters require cleaning.
• Silencer: Reduces noise by 4 dB.
• Custom Cartridge Media: For specific applications.
• 14-ft. E-Z Arm® High Flow Extractors: Replaces standard 10-ft. E-Z Arm® Extractors for peak system performance.
• (2) 8" (200mm)Ø Inlets: Simplifies ducted application installation (less dual arms).

• Cabinet: 14 and 16ga. steel, powder-coated
• Blower Pkg (HP): 3.0
• Noise Level (dB): 82/78 silencer
• Electrical: 3.0 HP - 208-230/460/3/60, 9.2-8.0/4/3 amps
• Nominal Air Flow (CFM): 2000 @ 60Hz, 1750 @ 50Hz
• Front Access Panel: to AMCA Type B, non-sparking, blower/motor
• (2) Removable End Caps: for easy access to filters
• (2) Hoppers: 7.88” diameter outlets, 4-way
• Airfoil Blade: Adjustable
• Exhaust grille
• Motor: wired to junction box outside unit (Motor starter not included)

• Dual 10-ft. E-Z Arm® High Flow Extractors: Increases collection efficiency over ambient systems
• Class II Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace
• Non-Electrostatic Operation: High reliability, low maintenance
• Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems
• Auto-Clean Off-Line Filter Cleaning: Automatically cleans filters when unit is shut off

Top 5 contaminants/processes/applications:

• Oil smoke
• Coolant mist
• Smoke
• Dust
• Welding fumes

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
