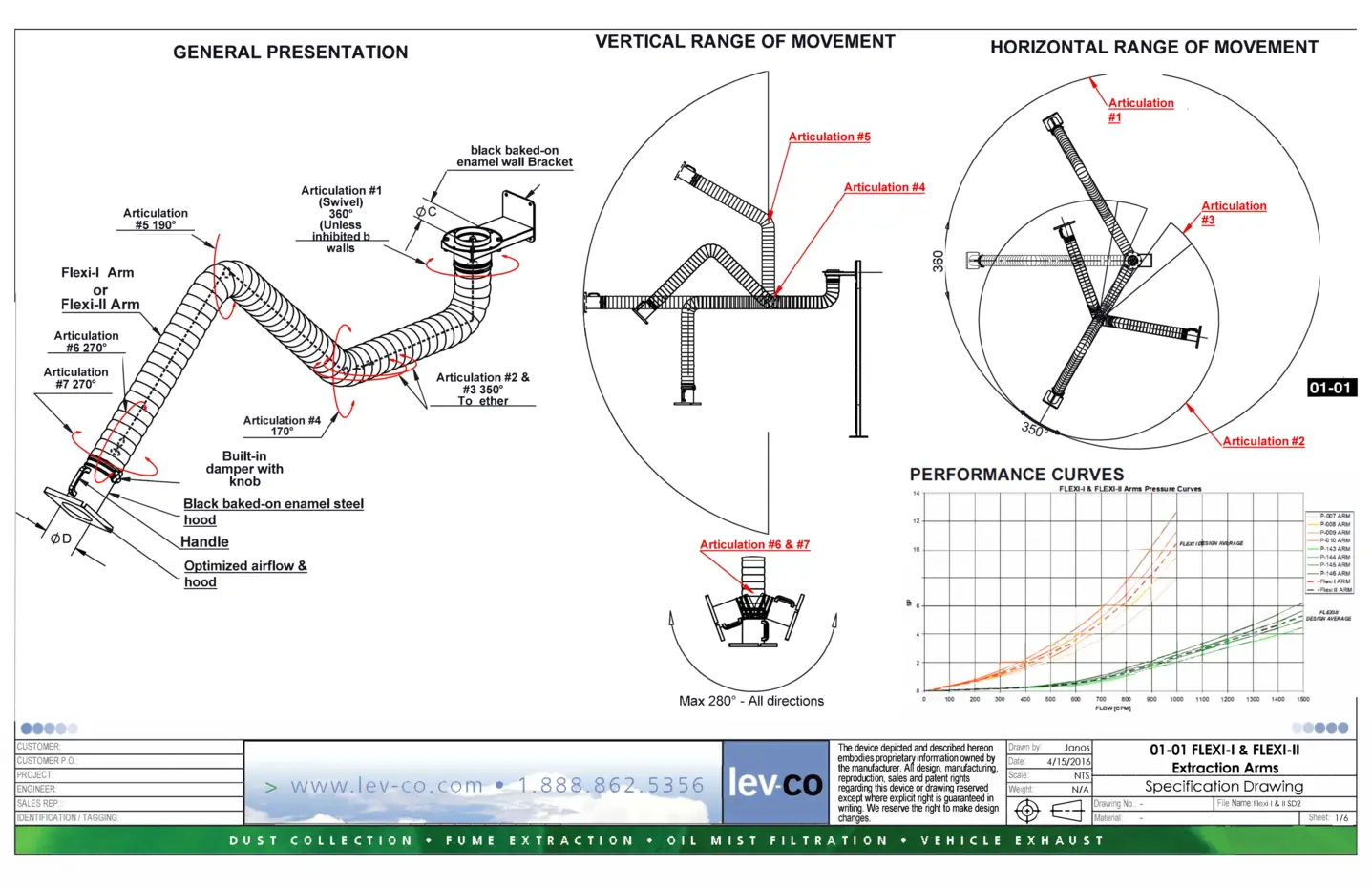

Specification Drawings

(01-01) flexi I & II sd - R3.pdf

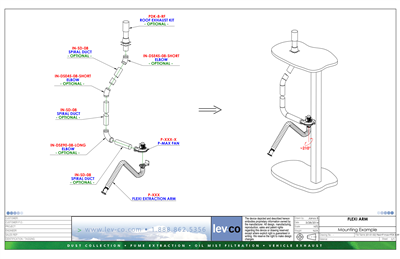

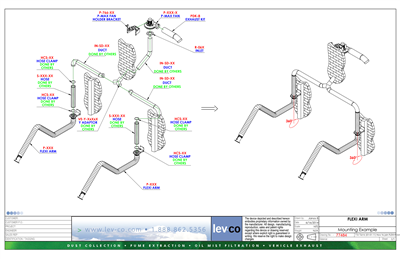

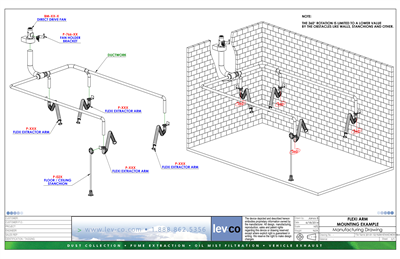

Mounting Examples

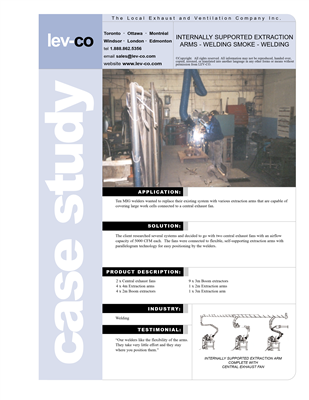

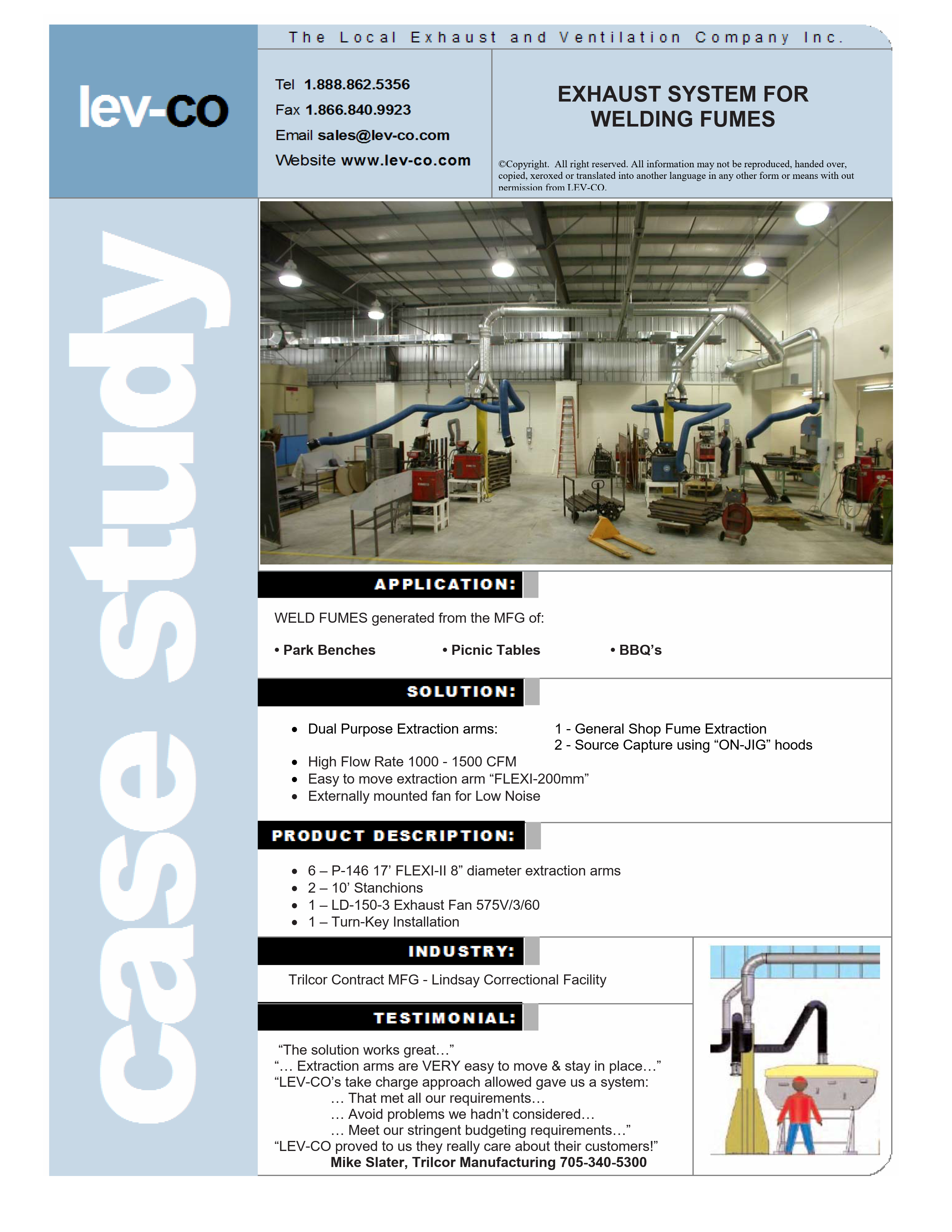

Case Studies

Video Case Studies

Solutions

Extraction Arms Learn More

Industries

Aerospace
Art's
Auto body repair
Bio & Pharma
Chemicals and Plastics
Dental Offices
Educational
Electronics
Farm & Heavy Equipment
Food & Beverage
Forensics
Machine Shop
Marine
Metalworking
Mining & Quarrying
Misc. Operations
MRO
Municipal & DOT Garage
Museums & Artifacts
National Defense
Public Transportation
Refineries & Energy
Vehicle Repair
Welding Shops
Woodworking

Processes

Aluminum buffing
Aluminum Welding
Animal Food Manufacturing
Artifact Cleaning
Auto Shop
Buffing and Polishing
Bus Maintenance and Repair
Canning
Cars & Small Trucks Repair
Chainsaw
Chemistry Laboratories
Copper Alloy Welding
Core Grinding
Drilling
Electronics Assembly Line
Farm Equipment Repair
Food Packaging Plant
Forensic Laboratories
Fruit Production
Heavy Equipment Repair
Hull Building
Jewelry Manufacturing
Lithography
Machine Shop
Magnesium Welding
Metal Polishing Belt
Military Vehicle Repair
Mortuary Table
Motorcycles & ATV Repair
Nickel Welding
Operating Room
Paleontology
Pesticide Manufacturing
Pill Productions
Plastic Manufacturing
Procedure Room
Prosthetics & Orthotics
Renewable Energy Manufacturing
Resin Manufacturing
Rubber Manufacturing
Screen Printing
Soap Manufacturing
Soldering
Stained Glass
Stainless Welding
Steel Welding
Subway Maintenance and Repair
Torch Cutting Ventilation
Vehicle Service and Maintenance
Welding Shop

Engineering Control Methods

Extraction Arms

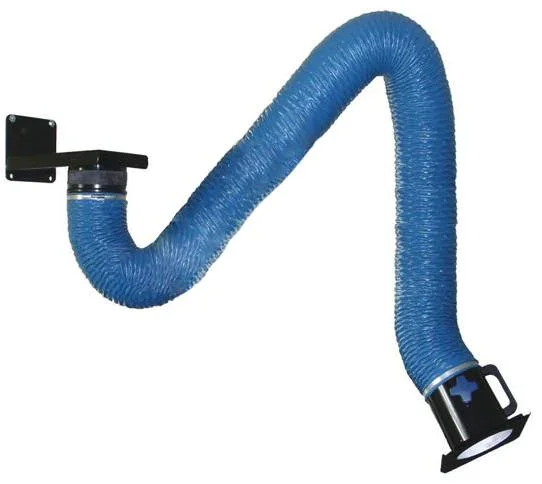

FLEXI - Extraction Arm - Ø 6.5'' & 8''

Get Pricing Get Pricing

FLEXI Extraction Arms offer an effective solution for capturing low-flow fumes and dust at their source, safely directing them away from users and expelling them into the atmosphere.

Available from 5'-17' total length. 6.5'' & 8''Ø hose. Typical flowrate of 650 CFM on 6.5'' hose to 1000 CFM on 8'' hose.

FLEXI Extraction Arms are delivered 'ready to install' with an included wall bracket for immediate setup.

Also commonly referred to as: Snorkel, Elephant Trunk, Smoke Eater, Fume Arm, Capture Arm, & Suction Arms.

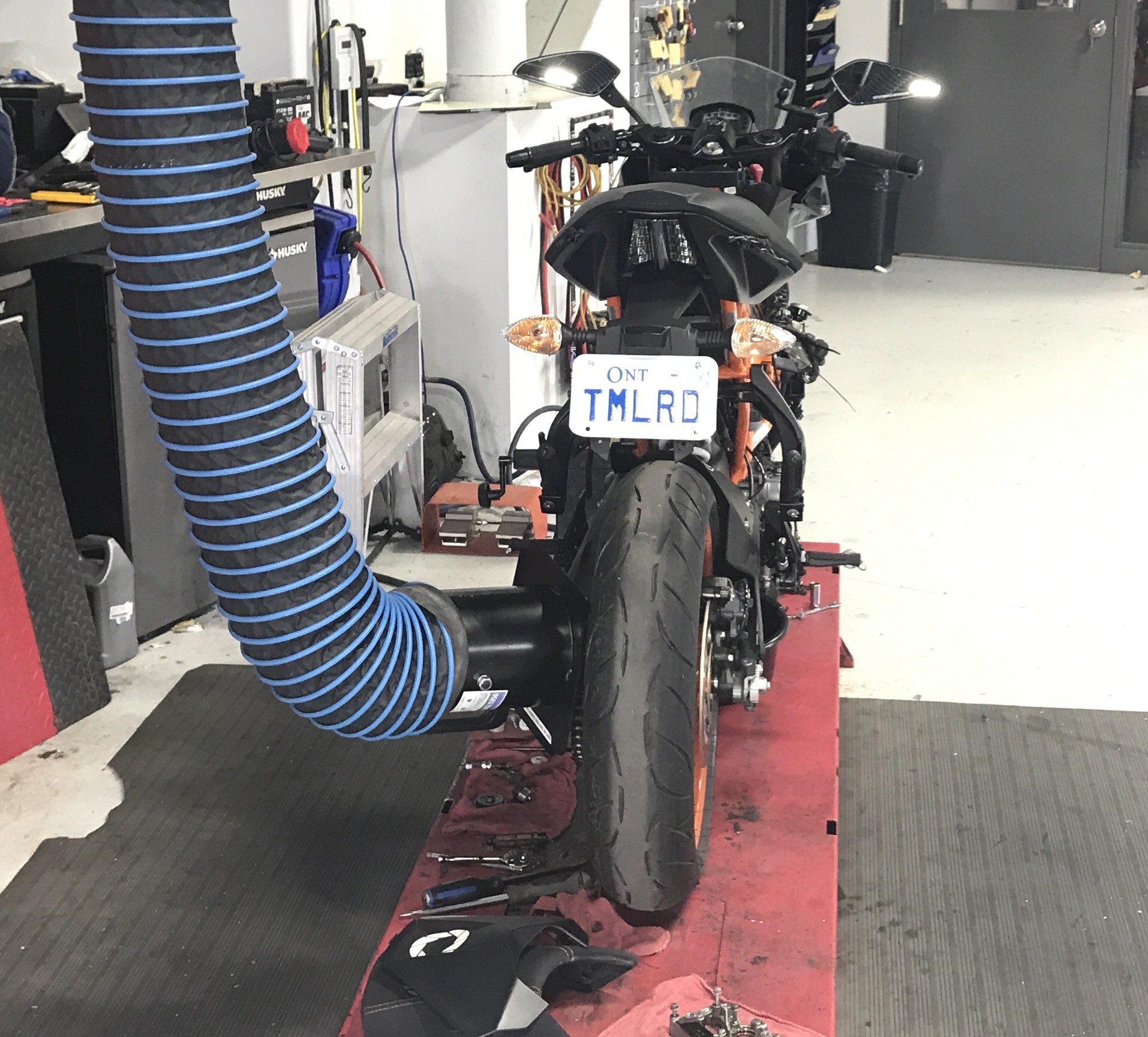

FUNCTION

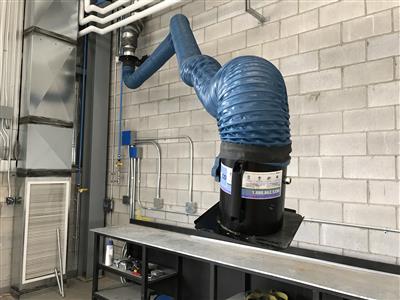

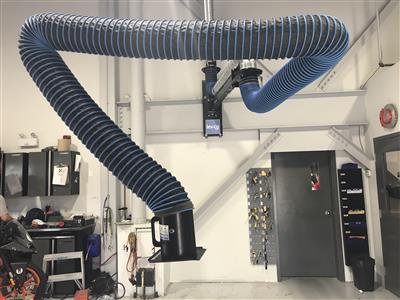

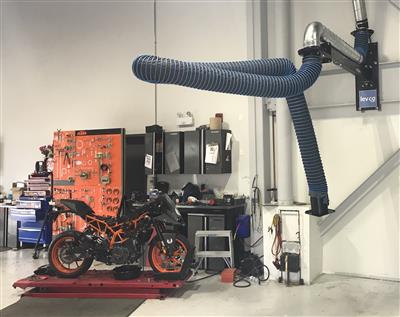

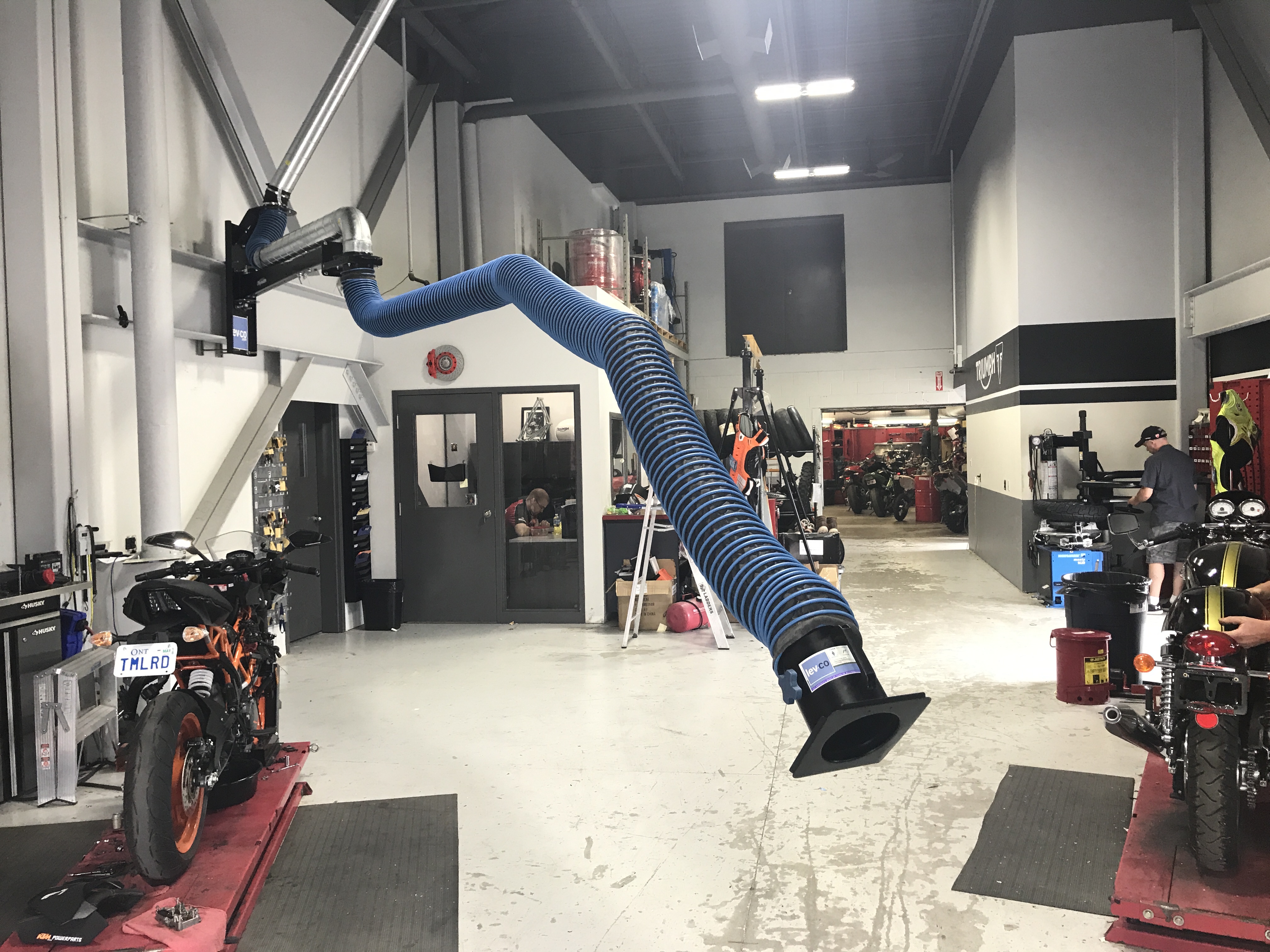

FLEXI Extraction Arms are ideal for use in garages and repair shops, offering versatile coverage of fume, dust, and gas sources at any angle, thanks to the arm's flexible design.

FLEXI Extraction Arms are also capable of supporting hoses for high-temperature applications, such as vehicle exhaust and welding fumes, withstanding temperatures up to 700ºF. Optional components include:

Exhaust Fan comes with motor overload
Bird Screen
Backdraft Damper
Exhaust Duct
Wall Flashing
Extension Hoses and Hoods

CONSTRUCTION

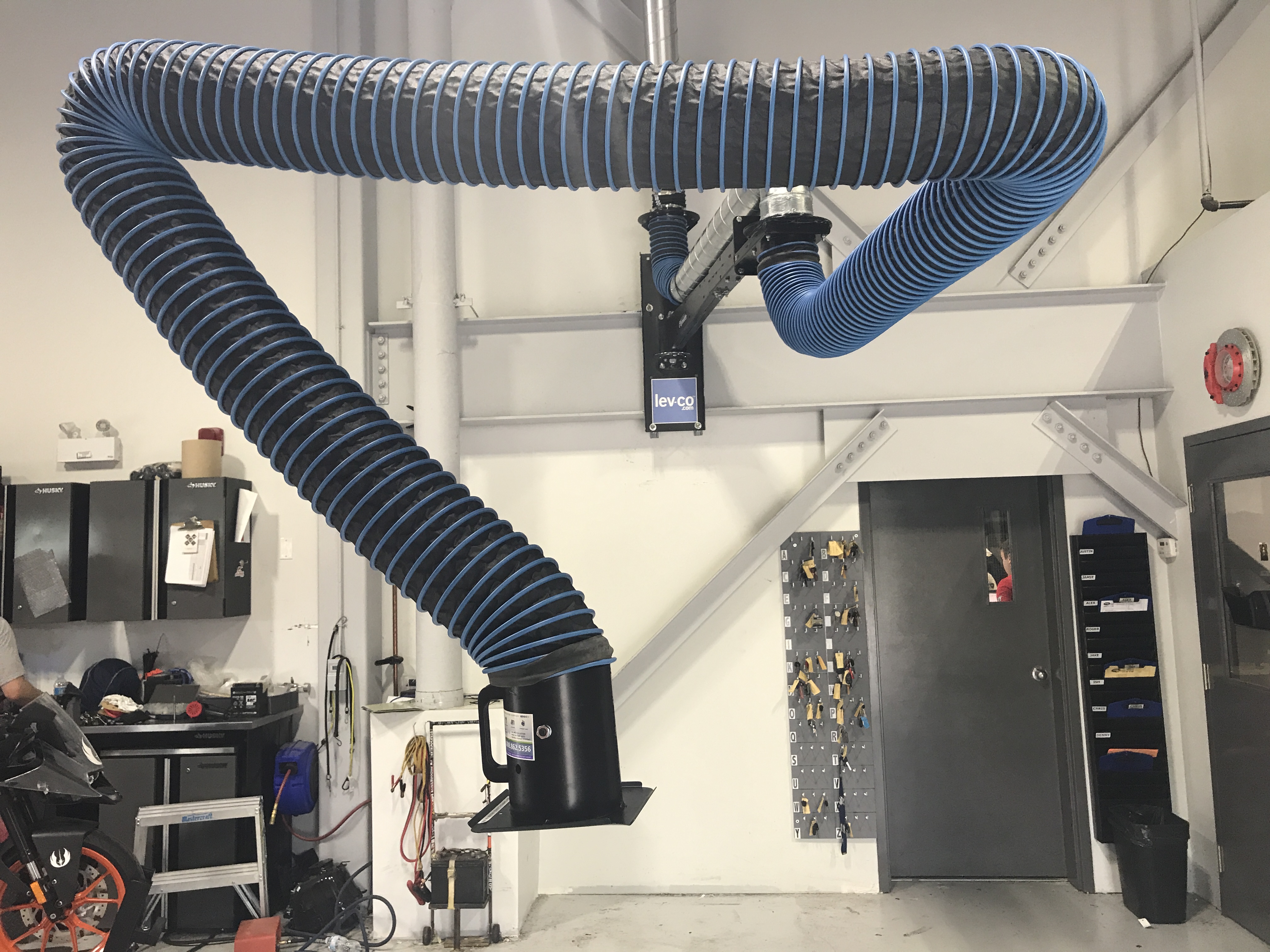

Internal support structure constructed from mild steel tubing, featuring three spring-assisted joints to ensure precise counterbalancing of the extractor's inner and outer arms.

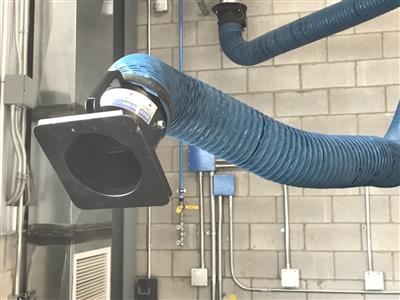

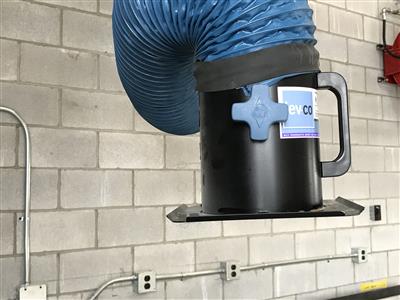

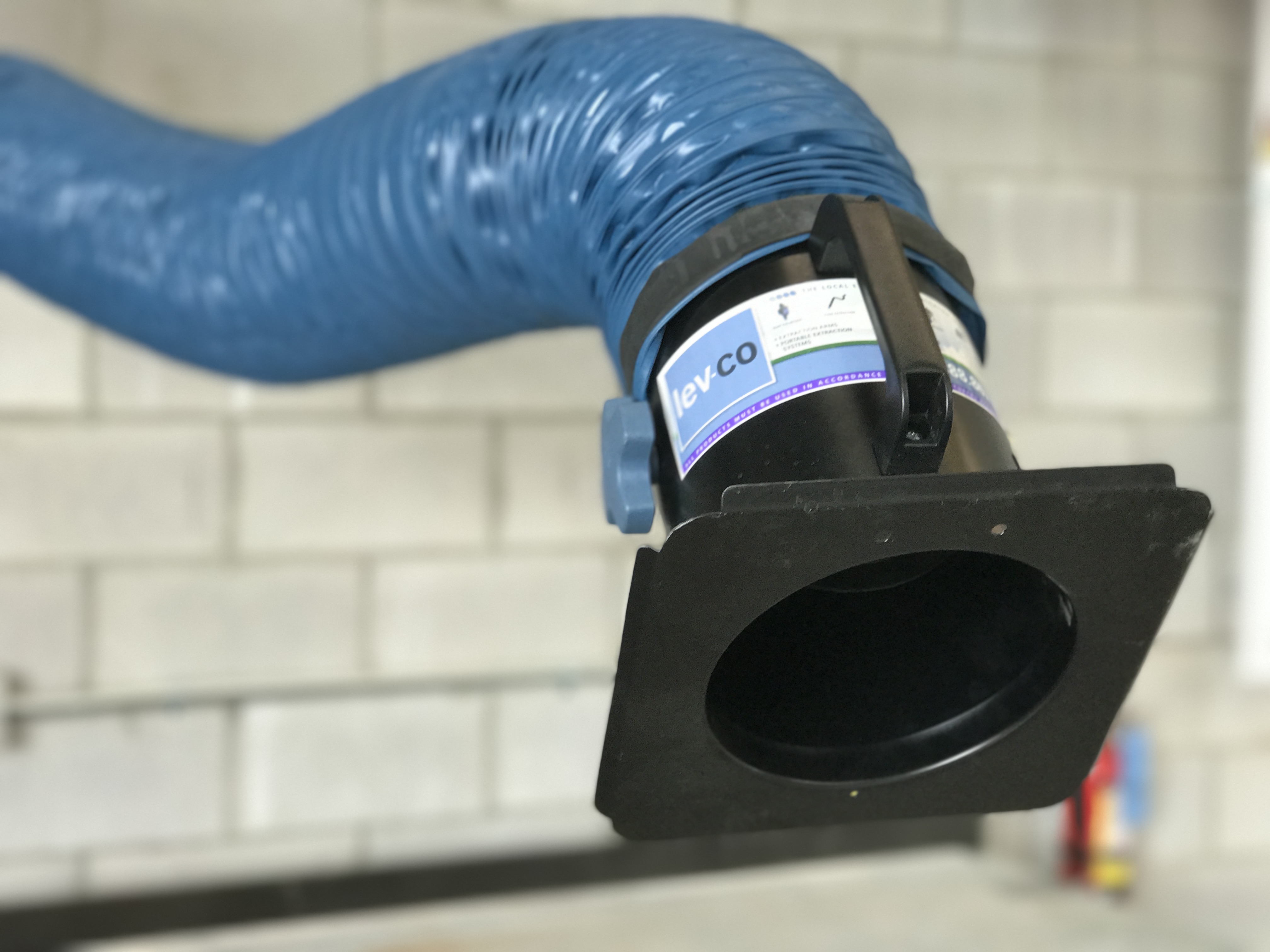

The FLEXI Extraction Arm is equipped with a black baked-on enamel steel hood designed for optimized airflow, a ring handle, an integrated damper, and a black baked-on enamel wall bracket.

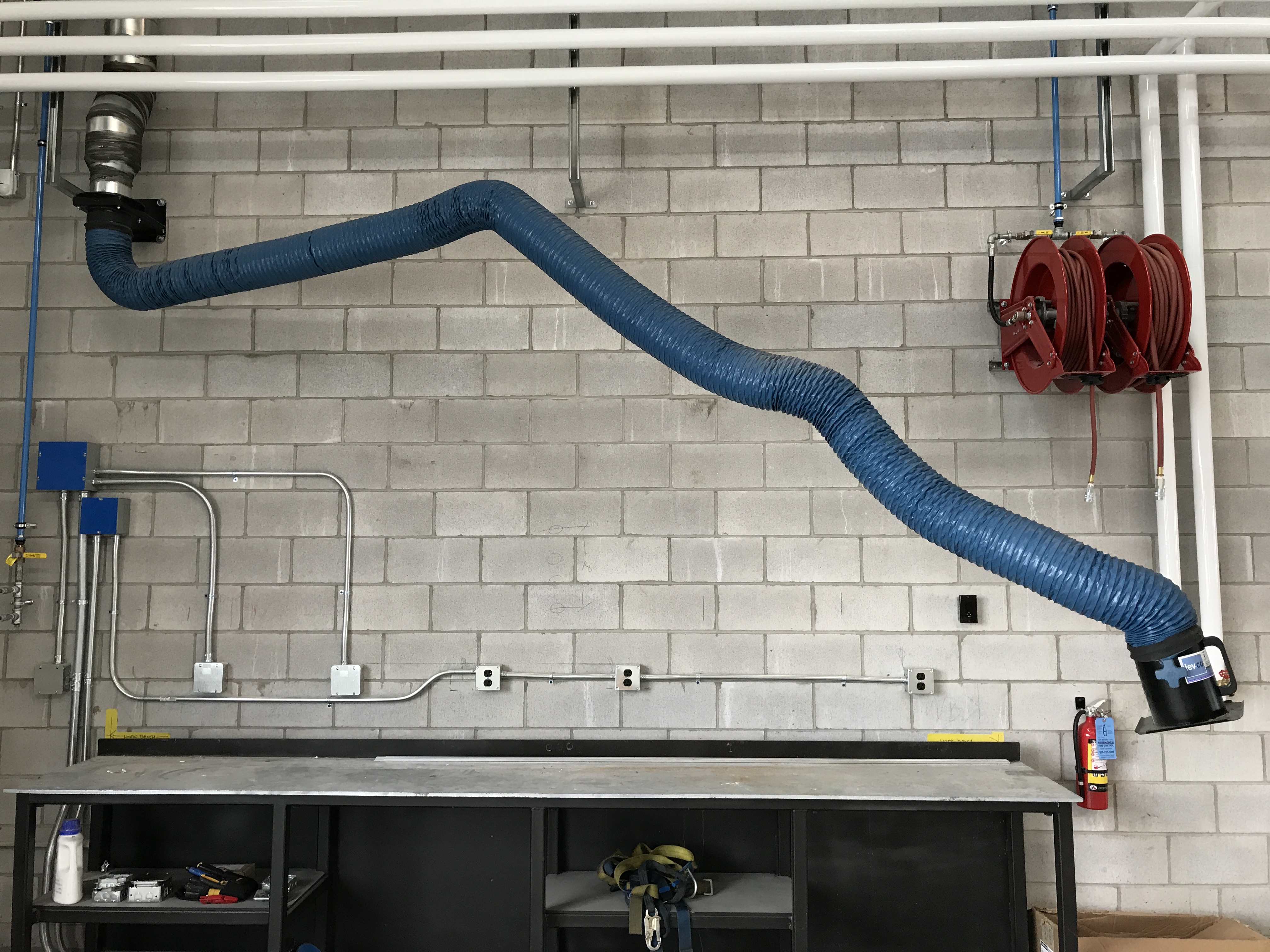

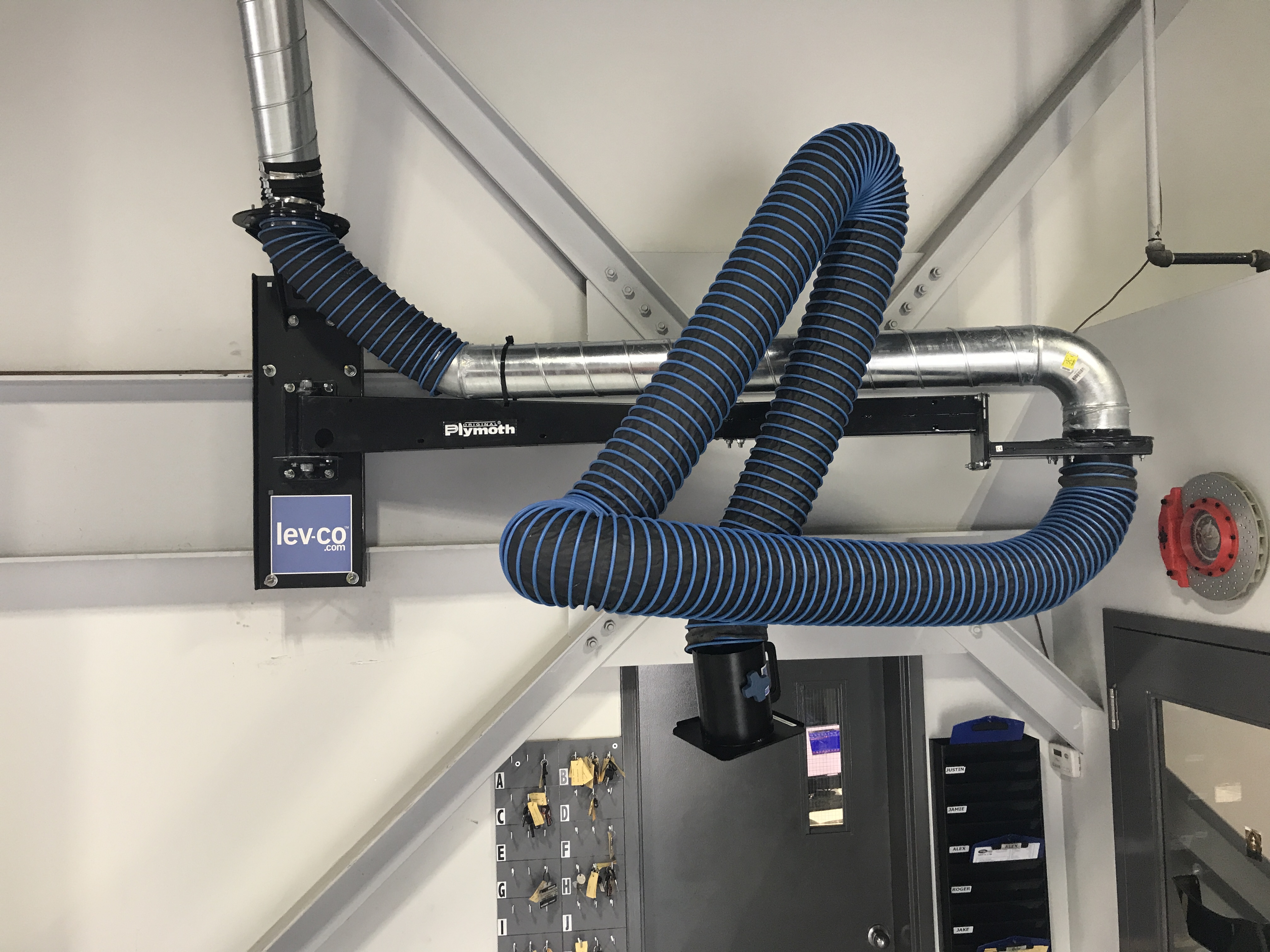

Our extraction arm is supported by a wall-mounted bracket with a dual-hinge, spring-loaded mechanism, featuring a built-in damper for smooth adjustment and secure positioning.
The extraction arm comes in lengths with a range from 7 feet to a maximum length of 17 feet, allowing for sources that may be upstream or downstream to be covered and have the fumes, dust, or gases captured.

***The P-149 and P-152 fans mount directly to the wall bracket of the arm***

KEY CRITERA

Very lightweight and requires little to no adjustment
Only 1.6 pounds of force required to position
Soft hose prevents damage
All-steel structure
No white metal or plastic parts
Low-maintenance

SUITABLE FOR

Top 5 contaminants/processes/applications:

Welding Smoke
Food and Pharma Dusts
Paint Fumes from spray balms
Prosthetic Dusts
Contaminants from Dental Processes

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

BASE MODELS, OPTIONS & ACCESSORIES

6.33" (160mm)Ø - Extraction Arms - Arm only

Part #

Description

EX-ARM-160-1500

5' (1500mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket

EX-ARM-160-2000

7’ (2000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket

EX-ARM-160-3000

10' (3000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket

EX-ARM-160-4000

14' (4000mm) Flexi-l Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket

EX-ARM-160-5000

17' (5000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket

6.33" (160mm)Ø - Extraction Arm Kits - Arm/Fan/Switch

6.33"Ø - Extraction Arm Kits - Arm/Fan/Switch

Part #

Description

EAF-6-5-ND

5’ Extraction Arm, 6.5" (160mm)Ø. Complete with 1.5 HP Fan, Switch & Plug

EAF-6-7-ND

7' Extraction Arm, 6.5" (160mm)Ø. Complete with 1.5 HP Fan, Switch & Plug

EAF-6-10-ND

10’ Extraction Arm, 6.5" (160mm)Ø. Complete with 1.5 HP Fan, Switch & Plug

EAF-6-14-ND

14' Extraction Arm, 6.5" (160mm)Ø. Complete with 1.5 HP Fan, Switch & Plug

EAF-6-17-ND

17’ Extraction Arm, 6.5" (165mm)Ø . Complete with 1.5 HP Fan, Switch & Plug

8" (200mm)Ø - Extraction Arm Kits - Arm/Fan/Switch

8"Ø - Extraction Arm Kit - Arm/Fan/Switch

Part #

Description

EAF-8-7-ND

7' Extraction Arm, 8” (200mm)Ø.Complete with 1.5 HP Fan, Switch & Plug

EAF-8-10-ND

10’ Extraction Arm, 8” (200mm)Ø.Complete with 1.5 HP Fan, Switch & Plug.

EAF-8-14-ND

14’ Extraction Arm, 8” (200mm)Ø.Complete with 1.5 HP Fan, Switch & Plug.

EAF-8-17-ND

17’ Extraction Arm, 8” (200mm)Ø.Complete with 1.5 HP Fan, Switch & Plug.

8" (200mm)Ø - Extraction Arms - Arm only

Part #

Description

EX-ARM-200-1500

5' (1500mm) Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket

EX-ARM-200-2000

7' (2000mm) Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket

EX-ARM-200-3000

10' (3000mm)Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket

EX-ARM-200-4000

14' (4000mm) Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket

EX-ARM-200-5000

17' (5000mm)Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket

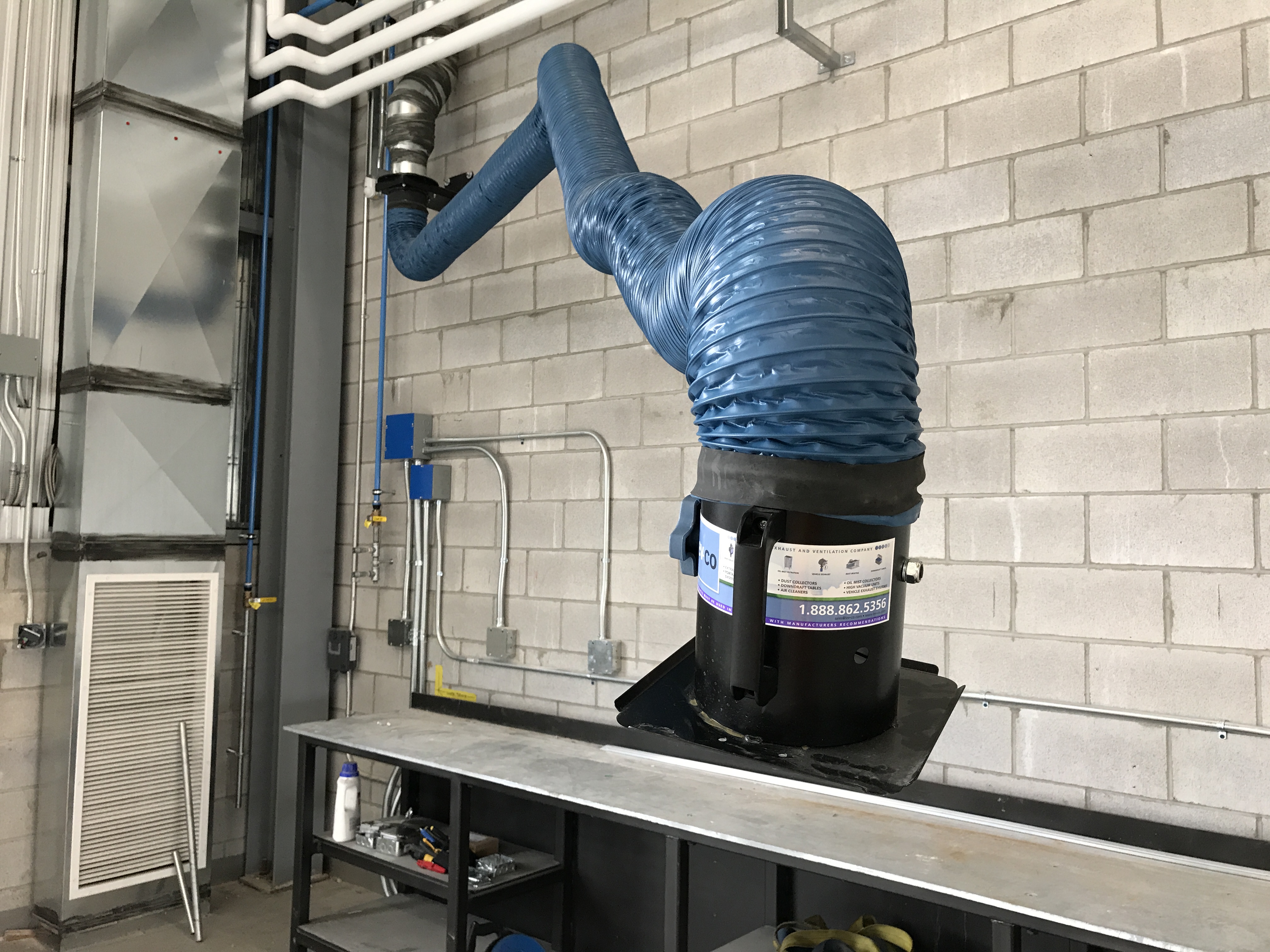

6.33" (160mm)Ø - Table Mounted Extraction Arms - Arm only

6.33"Ø - Table Mounted Extraction Arms - Arm only

Part #

Description

P-002

7’ (2000mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface. Complete with damper & horizontal surface mounting bracket

P-003

10’ (3000mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface. Complete with damper & horizontal surface mounting bracket

P-005

17' (5180mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface. Complete with damper & horizontal surface mounting bracket.

8" (200mm)Ø - Table Mounted Extraction - Arm only

8"Ø - Table Mounted Extraction - Arm only

Part #

Description

P-167

5’ (1500mm) Flexi-II Extraction Arm 8" (200mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.). Complete with damper & turning flange

P-170

7’ (2000mm) Flexi II 8" (200mm)Ø Extraction Arm for mounting to horizontal surface (EG: Mobi Flex, Table, etc.)Complete with damper & turning flange

P-171

10' (3000mm) Flexi II Extraction Arm 8" (200mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.) Complete with damper & turning flange

FREQUENTLY BOUGHT TOGETHER

Magnetic Hose extensions for extraction arms

Part #

Description

LEV-P-018-160-2MAG

LEV-P-018-160-2MAG - 3m (10') - 6.33" (160mm)Ø Extension Hose for extraction arms, complete with magnetic nozzle.

LEV-P-018-160-4MAG

10' long 6.5" (165mm), 250° hose, hood, & (4) magnets.

LEV-P-018-200-2MAG

10' long 8" (200mm), 250° hose, hood & (2) magnets.

LEV-P-018-200-4MAG

10' long 8" (200mm), 250° hose, hood, & (4) magnets.

LEV-P-018-200-4MAG-HT

10' long 8" (200mm), 850° hose, hood & (4) magnets.

Extension Hood (Up to 36" in diameter)

Part #

Description

RELH-6-24-EXT

Conical Bell Mouth hood extension for 6" (150mm) hoods.

24" (610mm)Ø receiving end
16G, Aluminum
Bell Mouth Version

RELH-6-36-EXT

Conical Bell Mouth hood extension for 6" (150mm) hoods.

36" (915mm)Ø receiving end
16G, Aluminum
Bell Mouth Verison

RELH-8-24-EXT

Conical Bell Mouth hood extension for 8" (200mm) hoods.

24" (610mm)Ø receiving end
16G, Aluminum
Bell Mouth Version

RELH-8-36-EXT

Conical Bell Mouth hood extension for 8" (200mm) hoods.

36" (915mm)Ø receiving end
16G, Aluminum
Bell Mouth Version

Replacement Hoses

Part #

Description

S-160-2

7.5' of 6.4"Ø hose - BLUE (replacement hose for P-002, P-006, & P-007).

S-160-3

11' of 6.4"Ø hose - BLUE (replacement hose for P-003 & P-008).

S-160-4

16' of 6.4"/160mm PVC coated polyester blue hose.

Price per piece (Replacement hose for P-009)

S-160-5

18' of 6.4"/160mm PVC coated polyester blue hose. Price per piece

S-200-2

7.5' of 8"Ø fire retardant PVC coated polyester blue hose.

Price per piece (Replacement hose for P-143)

S-200-3

11' of 8"Ø fire retardant PVC coated polyester blue hose.

Price per piece (Replacement hose for P-144 & P-171)

S-200-4

16' of 8"Ø fire retardant PVC coated polyester blue hose.

Price per piece (Replacement hose for P-145)

S-200-5

18' of 8"Ø fire retardant PVC coated polyester blue hose.

Price per piece (Replacement hose for P-146)

Direct Mount Fans - 0.75 HP - (Motor Starter NOT included)

Part #

Description

P-148-1

P-Max© direct drive fan 0.75 HP 115-230V/1/60.

P-148-2

P-Max© direct drive fan 0.75 HP 208-230V/460V/3/60.

P-148-3

P-Max© direct drive fan 0.75 HP 575V/3/60.

100% Weather-proof & can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Direct Mount Fans - 1.0 HP - (Motor Starter NOT Included)

Part #

Description

P-149-1

P-Max© direct drive fan 1 HP 115-230V/1/60.

P-149-2

P-Max© direct drive fan 1 HP 208-230V/460V/3/60.

100% Weather-proof & can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge

P-149-3

P-Max© direct drive fan 1 HP 575-600V/3/60.

100% Weather-proof & can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Direct Mount Fans - 1.5 HP - (Motor Starter NOT included)

Part #

Description

EX-FAN-1-115/230

P-Max© direct drive fan 1.1KW (1.5HP), 3600 RPM direct Mount fan (Please specify when ordering). 115V/1/60.

Complete with plug, switch, & motor overload protection
To include (2) restrictor plates loose in box

EX-FAN-1.5-115/230

P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)

100% Weather-proof and can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge

EX-FAN-1.5-3-575

P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)

100% Weather-proof & can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
Please specify 1.5 or 2 HP
If you need 2HP, please use P-152-3-2HP

Direct Mount Fans - 2.0 HP - (Motor Starter NOT Included)

Part #

Description

P-153-1

2.0 HP direct drive fan 115/230/1/60 with BI self cleaning aluminum wheel, AMCA type B spark resistance (1200CFM@5 wg), 30 Amp service/breaker (time delay) required.

100% Weather-proof & can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge
If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
The required wire grade size: #10 minimum

P-153-2

2.0 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.).

100% Weather-proof & can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge
If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
The required wire grade size: #10 minimum

P-153-3

2.0 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.)

100% Weather-proof & can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge
If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex, you will need to order an additional flange - part number: P-153-FL
The required wire grade size: #10 minimum

Direct Mount Fans - 3.0 HP - (Motor Starter NOT included)

Part #

Description

P-154-1

P-Max© direct drive fan 3 HP 208-230V/460V/3/60

100% Weather-proof & can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge

P-154-2

P-Max© direct drive fan 3 HP 575V/3/60

100% Weather-proof and can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Fan controllers for remote switching

Part #

Description

P-025-24S-230V-1PH-0.5HP

Energy Saver E- Man© 230V/1/60. Fan Motor control station for 0.5 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.

P-025-24S-230V-3PH-7.5 HP

Energy Saver E- Man© 230V/3/60. Fan Motor control station for 7.5 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.

P-025-24S-460V-3PH-20HP

Energy Saver E- Man© 460V/3/60. Fan Motor control station. Rated up to 20 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.

P-025-24S-575V-3PH-20HP

Energy Saver E- Man© 575V/3/60. Fan Motor control station. Rated up to 20 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.

P-025-24S-575V-3PH-30HP

Energy Saver E- Man© 575V/3/60. Fan Motor control station. Panel Mounted "Hand/Off/Auto" switch and Pilot light. Rated up to 30 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately #EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...#. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.

Fan Termination Kit

Part #

Description

PDK-8

Industrial grade 8" (200mm)Ø duct kit for direct exhausting of P-Max fans - for wall exhaust.

(2) 24" - 8"Ø lateral duct
(1) 8" (200mm)Ø long radius elbow
24" - 8" exhaust fitting complete with 45° weather configuration
Backdraft damper
Bird screen
16" x 16" exterior wall flashing

Manual Motor Starter

Part #

Description

P-024-1

115V/1/60 Fan Motor control station up to 1.5 HP - Permits manual start-stop of the fan. Comes complete with:

Motor overload protection on/off 14A control power cord & plug
Overload rating according to the FLA of the motor
Field assembly & installation required

P-024-2
