01-001

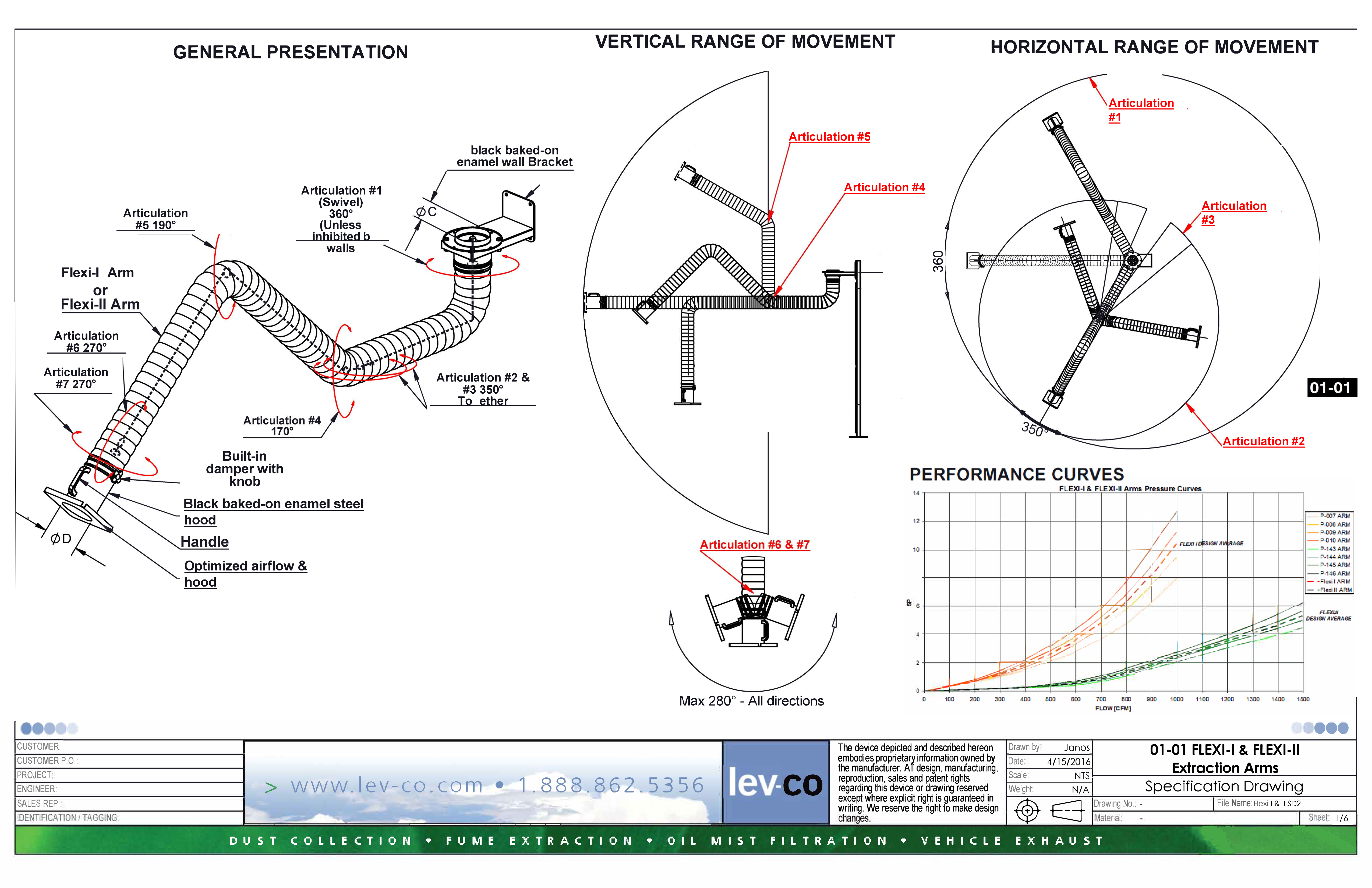

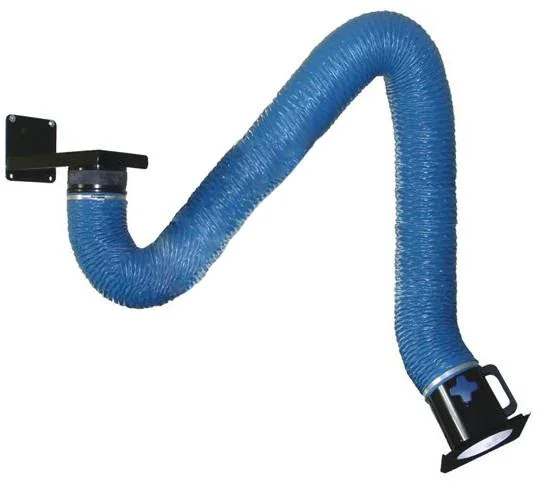

FLEXI EXTRACTION ARM - DUST, FUMES & GASES TO 17’ - INTERNALLY SUPPORTED - 6.5'' Ø (650 CFM) & 8'' Ø (1000 CFM)

FLEXI Extraction Arms are an excellent solution for capturing low flowing fumes and dust at their origin and expelling it safely away from users into the atmosphere. FLEXI Extraction Arms come "ready to install and use" straight from the package.

Product Function:

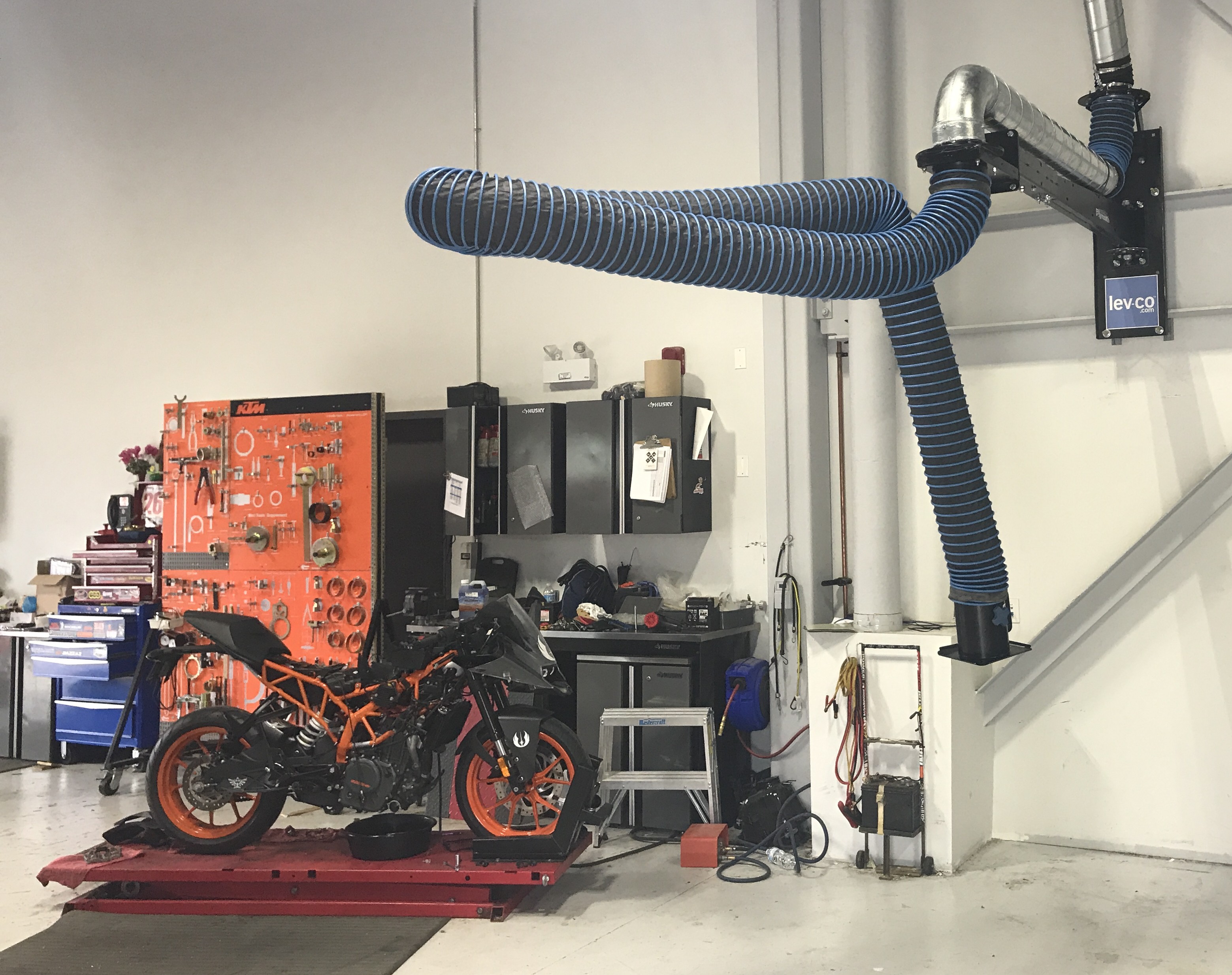

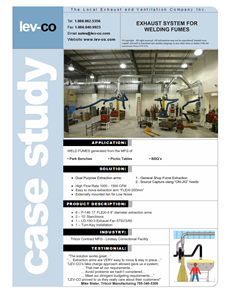

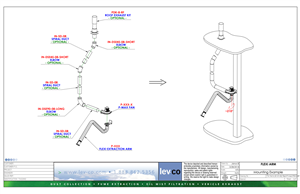

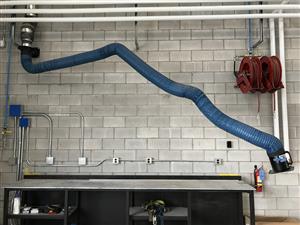

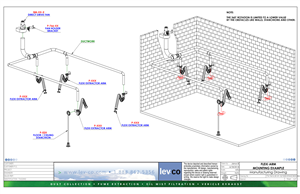

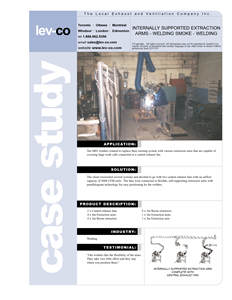

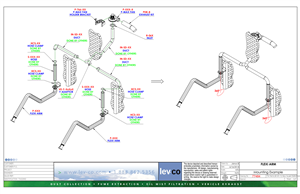

The FLEXI Extraction Arms are perfect to use in garages and repair shops as the arm allows you to directly cover sources of fumes, dust and gases at any angle due to the arms flexibility. The extraction arm is supported through a wall mounting bracket, built in damper and a "stay in place" extraction arm. The extraction arm comes in lengths with a range from 7 feet to a maximum length of 17 feet, allowing for sources that may be upstream or downstream to be covered and have the fumes, dust or gases captured. FLEXI Extraction Arms are also able to support hoses for higher temperature capture applications such as in vehicle exhaust and welding fumes, up to 700º F. Optional components include:
  • Exhaust Fan comes with motor overload
  • Bird Screen
  • Backdraft Damper
  • Exhaust Duct
  • Wall Flashing
  • Extension Hoses & Hoods

Construction:

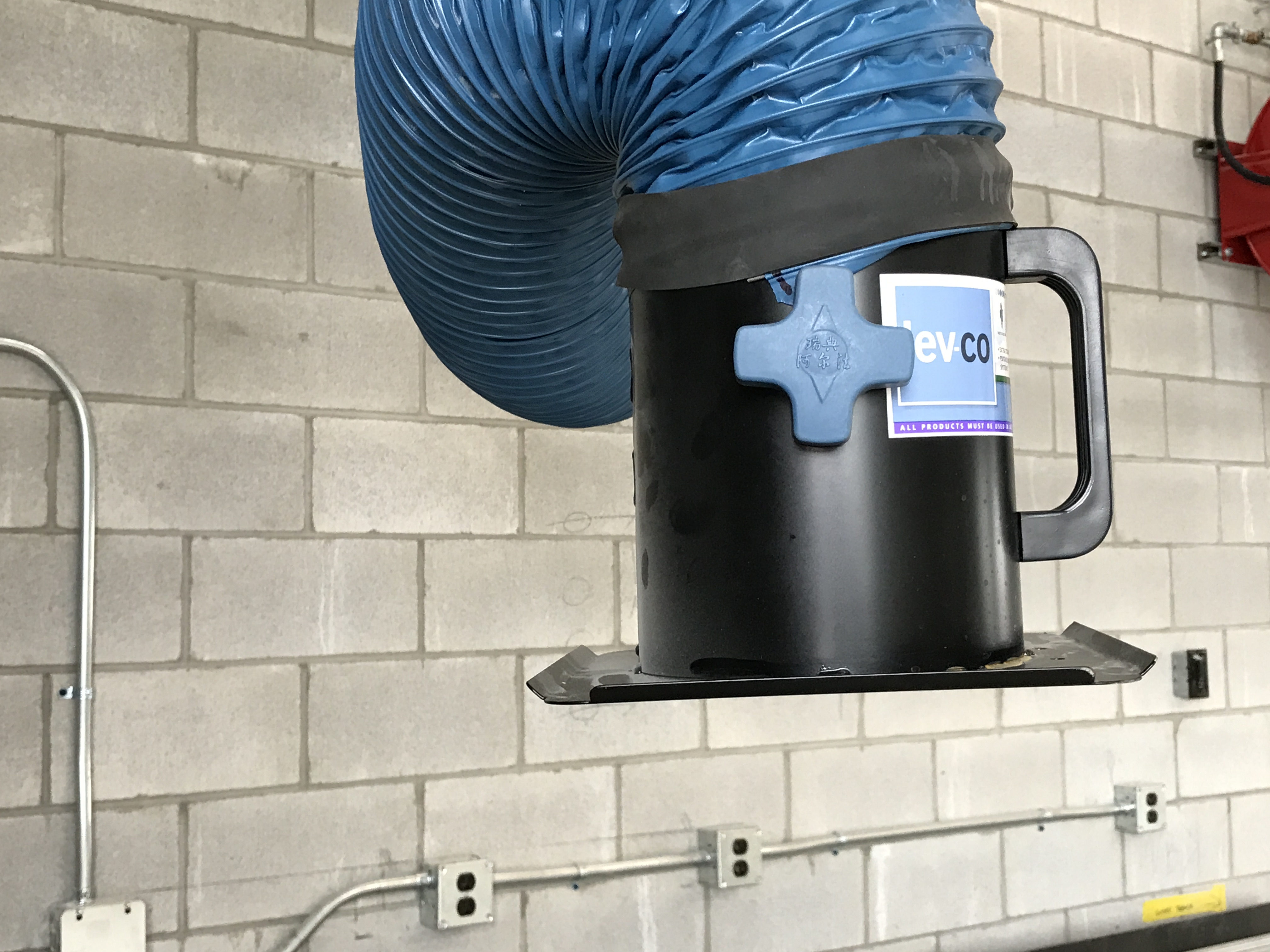

Internal supporting mechanism made of mild steel tubing c/w 3 spring-assisted joints to provide precise counterbalancing of the extractor's inner and outer arm. The FLEXI Extraction Arm comes with a black baked-on enamel steel hood w/ optimized airflow & ring handle, and built in damper and with black baked-on enamel wall bracket. ***The P-149 and P-152 fans mount directly to the wall bracket of the arm***

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
P-171 15"H x 12"W x 53"D 45 lbs
P-169 13"H x 10"W x 34"D 28 lbs
P-168 13"H x 10"W x 34"D 28 lbs
P-167 13"H x 10"W x 34"D 28 lbs
P-146-HT 15"H x 12"W x 65"D 56 lbs
P-146-H-45 15"H x 12"W x 65"D 56 lbs
P-146 15"H x 12"W x 65"D 56 lbs
P-145 12"H x 15"W x 54"D 52 lbs
P-144 15"H x 12"W x 54"D 50 lbs
P-143 14"H x 12"W x 37.5"D 41 lbs
P-069 13"H x 10"W x 34"D 28 lbs
P-010 12"H x 10"W x 65"D 56 lbs
P-009 12"H x 10"W x 53"D 52 lbs
P-008 12"H x 10"W x 53"D 42 lbs
P-007 12"H x 10"W x 34"D 36 lbs
P-006 12"H x 10"W x 34"D 35 lbs
P-003 14"H x 11"W x 54"D 35 lbs
P-002 13"H x 10"W x 34"D 28 lbs
P-002 13"H x 10"W x 34"D 28 lbs
EAF-8-7-ND 17"H x 40"W x 36"D 40 lbs
EAF-8-17-ND 72"H x 24"W x 24"D 95 lbs
EAF-8-14-ND 1"H x 1"W x 1"D 87 lbs
EAF-8-10-ND 1"H x 1"W x 1"D 84 lbs
EAF-6-14 "H x "W x "D 0 lbs
Part #
Qty
Description
P-002
2m (7’) Flexi 160mm (6.5")Ø Extraction arm for mounting to horizontal surface (EG: Mobi Flex, Table, etc.) c/w damper and horizontal surface mounting bracket.
P-002
2m (7’) Flexi 160mm (6.5")Ø Extraction arm for mounting to horizontal surface (EG: Mobi Flex, Table, etc.) c/w damper and horizontal surface mounting bracket.
P-069
1.5m (5’) Flexi-I 160mm (6.5")Ø Extraction arm for mounting to horizontal surface (EG: Mobi Flex, Table, etc.) c/w damper and turning flange
P-167
1.5m (5’) Flexi-II 200mm (8")Ø Extraction arm for mounting to horizontal surface (EG: Mobi Flex, Table, etc.) c/w damper and turning flange.
P-168
2m (7’) Flexi-I 160mm (6.5")Ø Extraction arm for mounting to horizontal surface (EG: Mobi Flex, Table, etc.) c/w damper and turning flange.
P-169
2m (7’) Flexi-I 160mm (6.5")Ø Extraction arm for mounting to horizontal surface (EG: Mobi Flex, Table, etc.) c/w damper and turning flange.
P-003
3m (10’) Flexi 160mm (6.5")Ø Extraction arm for mounting to horizontal surface (EG: Mobi Flex, Table, etc.) c/w damper and horizontal surface mounting bracket.
P-006
Flexi-I Extraction Arm 160mm (6.5")Ø - 1.5m (5')L. c/w damper and wall/fan bracket.
P-007
Flexi-I Extraction Arm 160mm (6.5")Ø – 2m (7')L. c/w damper and wall/fan bracket.
P-008
Flexi-I Extraction Arm 160mm (6.5")Ø – 3m (10'')L. c/w damper and wall/fan bracket (wall mount).
P-009
Flexi-l Extraction Arm 160mm (6.5")Ø – 4m (14')L. c/w damper and wall/fan bracket.
P-010
Flexi-I Extraction Arm 160mm (6.5")Ø – 5m (17')L. c/w damper and wall/fan bracket. Complete with larger diameter friction disk.
Part #
Qty
Description
P-142
Flexi-II Extraction Arm: 200mm (8”)Ø – 1.5m (5’)L.
P-143
Flexi-II Extraction Arm: 200mm (8”)Ø – 2m (7')L. c/w damper and wall/fan bracket.
P-144
Flexi-II Extraction Arm: 200mm (8")Ø – 3m (10')L. c/w damper and wall/fan bracket.
P-145
Flexi-ll Extraction Arm: 200mm (8")Ø – 4m (14')L. c/w damper and wall/fan bracket.
P-146
Flexi-II Extraction Arm: 200mm (8")Ø – 5m (17')L. c/w damper and wall/fan bracket.
P-146-H-45
Flexi-II Extraction Arm: 200mm (8”)Ø – 5m (17’)L. c/w damper and wall/fan bracket. 45° version for mounting on a table or portable unit.
P-146-HT
Flexi-ll Extraction Arm: 200mm (8”)Ø – 5m (17’)L.
  • 850 Degrees F
  • P-171
    3m (10') Flexi II 200mm (8") ø Extraction arm for mounting to horizontal Surface (EG: Mobi Flex, Table, etc.) c/w damper and horizontal surface mounting bracket.
    Part #
    Qty
    Description
    EAF-6-5-ND
    5’ Extraction Arm, 6.5”ø c/w 1.5 HP Fan. Switch & Plug
    EAF-6-7-ND
    7' Extraction Arm, 6.5" dia c/w 1.5 HP Fan. Switch & Plug
    EAF-6-10-ND
    10’ Extraction Arm, 6.5”ø c/w 1.5 HP Fan. Switch & Plug
    EAF-6-14
    14’ Extraction Arm, 6.5”ø c/w 1.5 HP Fan & Install Kit
    EAF-6-14-ND
    14' Extraction Arm, 6.5"ø c/w 1.5 HP Fan. Switch & Plug
    EAF-6-17-ND
    17’ Extraction Arm, 6.5”ø c/w 1.5 HP Fan. Switch & Plug
    EAF-8-7-ND
    7' Extraction Arm, 8"ø c/w 1.5 HP Fan with wall bracket. Switch & Plug
    EAF-8-10-ND
    10’ Extraction Arm, 8”ø c/w 1.5 HP Fan. Switch & Plug
    EAF-8-14-ND
    14’ Extraction Arm, 8”ø c/w 1.5 HP Fan. Switch & Plug
    EAF-8-17-ND
    17’ Extraction Arm, 8”ø c/w 1.5 HP Fan. Switch & Plug

    Frequently bought together these options:

    Part #
    Qty
    Description
    RELH-8-24
    Conical Bell Mouth Receiving hood for 8" extraction arms. C/w 24" diameter receiving end, 16G, Aluminum. Bell Mouth Version.
    RELH-8-36
    Conical Bell Mouth Receiving hood for 8" extraction arms. C/w 36" diameter receiving end, 16G, Aluminum. Bell Mouth Version.
    Part #
    Qty
    Description
    LEV-P-018-160-2MAG
    LEV-P-018-160-2MAG - 3m (10') - 160mm (6.5”)Ø Extension Hose for extraction arms c/w magnetic nozzle
    LEV-P-018-160-4MAG
    10' long 6.5" 250 deg. hose, hood & 4 magnets
    LEV-P-018-160-RCA
    10' long 6.5'' 600 deg. hose c/w RCA Nozzle and Extension Pole
    LEV-P-018-200-2MAG
    10' long 8" 250 deg. hose, hood & 2 magnets
    LEV-P-018-200-4MAG
    10' long 8" 250 deg. hose, hood & 4 magnets
    LEV-P-018-200-RCA
    10' long 8" 600 deg. hose c/w RCA Nozzle and Extension Pole
    Part #
    Qty
    Description
    RELH-6-24-EXT
    Conical Bell Mouth hood extension for 6" hoods.
  • 24" diameter receiving end
  • 16G, Aluminum.
  • Bell Mouth Version
  • RELH-6-36-EXT
    Conical Bell Mouth hood extension for 6" hoods.
  • 36" diameter receiving end
  • 16G, Aluminum.
  • Bell Mouth Verison
  • RELH-8-24-EXT
    Conical Bell Mouth hood extension for 8" hoods.
  • 24" diameter receiving end
  • 16G, Aluminum.
  • Bell Mouth Version
  • RELH-8-36-EXT
    Conical Bell Mouth hood extension for 8" hoods.
  • 36" diameter receiving end
  • 16G, Aluminum.
  • Bell Mouth Version
  • Part #
    Qty
    Description
    HT-P-007
    6"(160mm)Ø, 600°F hose ''Adder'' for P-007 2m(7')
    HT-P-008
    6"(160mm)Ø,600°F hose ''Adder'' for P-008 3m(10')
    HT-P-009
    6"(160mm)Ø, 600°F hose ''Adder'' for P-009 4m(14')
    HT-P-010
    6"(160mm)Ø, 600°F hose ''Adder'' for P-010 5m(17')
    HT-P-143
    8"(200mm)Ø, 600°F hose ''Adder'' for P-143 2m(7')
    HT-P-144
    8"(200mm)Ø, 600°F hose ''Adder'' for P-144 3m(10')
    HT-P-145
    8"(200mm)Ø, 600°F hose ''Adder'' for P-145 4m(14')
    Part #
    Qty
    Description
    GPH-6.5
    6.5 Ø polyester fabric, neoprene coated single ply w/wire reinforcement.. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25' Length Minimum)
    HD1-S-160-1
    6.5" diameter Heavy Duty single ply 450 degree hose for fume extractors (priced per foot)
    HD1-S-175-1
    6.5" diameter Heavy Duty single ply 450 degree hose for fume extractors (priced per foot)
    HD1-S-200-1
    6.5" diameter Heavy Duty single ply 450 degree hose for fume extractors (priced per foot)
    HD2-S-160-1
    6.5" diameter Heavy Duty single ply 450 degree hose for fume extractors (priced per foot)
    HD2-S-175-1
    6.5" diameter Heavy Duty single ply 450 degree hose for fume extractors (priced per foot)
    HD2-S-200-1
    6.5" diameter Heavy Duty single ply 450 degree hose for fume extractors (priced per foot)
    S-160-1
    PVC coated polyester blue hose 160mm in diameter.
    S-160-10
    33' of 6.4"/160MM PVC coated polyester blue hose. Price per piece.
    S-160-15
    50' of 6.4"/160MM PVC coated polyester blue hose. Price per piece.
    S-160-1-BLK
    PVC coated polyester black hose 160mm in diameter.
    S-160-1-WHT
    PVC coated polyester white hose 160mm in diameter.
    S-160-2
    7.5' of 6.4" dia. hose - blue (replacement hose for P-002, P-006 & P-007)
    S-160-2-WH
    7.5' of 6.4" dia. hose - WHITE (replacement hose for P-002, P-006 & P-007)
    S-160-3
    11' of 6.4" dia. hose - blue (replacement hose for P-003 and P-008)
    S-160-3-BLK
    11' of 6.4" dia. hose - black (replacement hose for P-003 and P-008)
    S-160-4
    16' of 6.4"/160MM PVC coated polyester blue hose. Price per piece. (Replacement hose for P-009)
    S-160-4-BLK
    16' of 6.4"/160MM PVC coated polyester black hose. Price per piece. (Replacement hose for P-009)
    S-160-5
    18' of 6.4"/160MM PVC coated polyester blue hose. Price per piece.
    S-200-1
    Fire retardant PVC coated polyester blue hose. 8" Diameter (sold per foot).
    S-200-1-BLK
    Fire retardant PVC coated polyester black hose. 8" Diameter (sold per foot).
    S-200-1-WHT
    Fire retardant PVC coated polyester white hose. 8" Diameter (sold per foot).
    S-200-2
    7.5' of 8" diameter fire retardant PVC coated polyester blue hose. Price per piece. (Replacement hose for P-143).
    S-200-3
    11' of 8" diameter fire retardant PVC coated polyester blue hose. Price per piece. (Replacement hose for P-144 and P-171).
    S-200-4
    16' of 8" diameter fire retardant PVC coated polyester blue hose. Price per piece. (Replacement hose for P-145).
    S-200-5
    18' of 8" diameter fire retardant PVC coated polyester blue hose. Price per piece. (Replacement hose for P-146).
    S-200-6
    20' of 8" diameter fire retardant PVC coated polyester blue hose. Price per piece.
    Part #
    Qty
    Description
    HS-2500-160
    2500 °F Hose Shield for all 6" & 6.5"Ø hoses. 30" in length
    HS-2500-200
    2500 °F Hose Shield for all 8"Ø hoses. 30" in length
    Part #
    Qty
    Description
    EAF-3HP
    3HP Fan Upgrade (1100CFM - 2000 CFM) 230v/3 phase only, switch & plug by others, Model P-154
    Part #
    Qty
    Description
    P-149-2
    P-Max© direct drive fan 1 HP 208-230V/460V/3/60... 100% Weather-proof and can be mounted outdoors/rooftop. Fans are able to be rotated at 45 degree increments to allow for angular up/down discharge.
    P-149-3
    P-Max© direct drive fan 1 HP 575-600V/3/60...100% Weather-proof and can be mounted outdoors/rooftop. Fans are able to be rotated at 45 degree increments to allow for angular up/down discharge.
    Part #
    Qty
    Description
    P-153-1
    2.0 HP direct drive fan 115/230/1/60 with BI self cleaning aluminum wheel, AMCA type B spark resistance (1200CFM@5 wg), 30 Amp service/breaker (time delay) required
  • If direct mounting to a Hose reel, extraction arm, brackets P-045, P-151, or wall flex you will require a flange P-153-FL
  • The required wire grade size #10 Minimum

    100% Weather-proof and can be mounted outdoors/rooftop. Fans are able to be rotated at 45 degree increments to allow for angular up/down discharge.

  • P-153-2
    2 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.)
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex you will need to order an additional flange part number P-153-FL

    100% Weather-proof and can be mounted outdoors/rooftop. Fans are able to be rotated at 45 degree increments to allow for angular up/down discharge.

  • P-153-3
    2 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.)
  • If direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex you will need to order an additional flange Part Number P-153-FL

    100% Weather-proof and can be mounted outdoors/rooftop. Fans are able to be rotated at 45 degree increments to allow for angular up/down discharge"

  • Part #
    Qty
    Description
    PDK-8
    Industrial grade 8" diameter duct kit for direct exhausting of P-Max fans - for wall exhaust.

    Kit includes: 2 - 24" - 8" diameter lateral duct, 1 - 8" diameter long radius elbow, 24" - 8" exhaust fitting c/w with 45 degree weather configuration, backdraft damper, bird screen and 16" X 16" exterior wall flashing

    PDK-8-RF
    Duct Kit for roof penetration c/w Velocity cone. c/w the following parts:
  • 2 pcs - 24" - 8" diameter lateral duct - 1pc Velocity cone - 1 pc tall Cone - 1 pc Strom collar -1 pc - 8" exhaust fitting -backdraft damper -bird screen 16" X 16" exterior roof flashing
  • PDK-8-SS
    Industrial grade duct kit for direct exhausting of P-Max fans - for Wall exhaust c/w the following parts:
  • 2 pcs - 24" - 8" diameter lateral duct -1 pc - 8" diameter long radius elbow -1 pc - 8" exhaust fitting -45 degree weather elbow -backdraft damper -bird screen 16" X 16" exterior wall flashing

    All exterior components are Stainless Steel

  • Part #
    Qty
    Description
    P-021
    Ceiling/floor stanchion 1m (3.3') for Flexi and Pro-Flex Extraction Arms
    P-022
    Ceiling/floor stanchion 2m (6.5') for Flexi and Pro-Flex Extraction Arms
    P-023
    Ceiling/floor stanchion 3m (9.75') for Flexi and Pro-Flex Extraction Arms
    P-023-HMAX-SING-R2
    VIA-STAN®, Heavy duty stanchion for mounting H-MAX boom's. 9.6' high.
    P-023-H-MAX-DUAL-R2
    VIA-STAN®, Heavy duty stanchion for mounting two (2) H-MAX boom's. 9'6" high.
    Part #
    Qty
    Description
    LS-12-120V-1.5HP-20A
    Hood mounted control station for the automatic "Start/Stop" of the fan and/or automatic damper. C/W Switch and 120V blue 25MM "RUNNING" light. Rated for 1.5HP 120V/1/60, 20 Amps
    ARM-LTK50-12
    Light Kit for extraction arms. Look for P-019-OEM Box (see p-o19-12v ) Comes c/w
  • Hood mounted 50W halogen light
  • Debris screen
  • hood mounted ON/OFF switch
  • 35' cable
  • 120V transformer and 5' of power cord.
  • LTK-LED-2020
    Pivoting Light Kit for extraction arms, Includes glass lenses to protect LED. Optional aluminum cover Comes c/w
  • Hood mounted LED light
  • Light mounted ON/OFF switch for LED and fan
  • 35' cable
  • 120V transformer and 5' of power cord.
  • Fan button usage for control voltage only!
  • LTK-LED-2020-CVR
    Optional aluminum sheet metal shield for LED light kits. R2 version 2020. LED light cover.
    LTK-LED-L
    Pivoting Light Kit for extraction arms, Large Version. Includes glass lenses to protect LED. Comes c/w
  • Hood mounted LED light
  • Light mounted ON/OFF switch for LED and fan
  • 35' cable
  • 120V transformer and 5' of power cord.
  • LTK-LED-L Shield
    Aluminum sheet metal shield for LED light kits.
    LTK-LED-S
    Pivoting Light Kit for extraction arms, Small Version. Includes glass lenses to protect LED. Comes c/w
  • Hood mounted LED light *DISCONTINUED* PLEASE USE PART # "LTK-LED-2020"
  • Light mounted ON/OFF switch for LED and fan
  • 35' cable
  • 120V transformer and 5' of power cord.
  • Fan button usage for control voltage only! - low voltage VFD required
  • Part #
    Qty
    Description
    H-MAX-F-1/D-2M-300
    2m (7') H-MAX Boom Extension for FLEXI-I Extraction Arms
    H-MAX-F-2/D-3M-300
    3m (10') H-MAX Boom Extension for FLEXI-I Extraction Arms
    H-MAX-F-3/D-4M-300
    4m (14') H-MAX Boom Extension for FLEXI-I Extraction Arms
    H-MAX-F-4/D-5M-300
    5m (17') H-MAX Boom Extension for FLEXI-I Extraction Arms
    H-MAX-F-5/D-6M-300
    6m (20') H-MAX Boom Kit for FLEXI-I Extraction Arms c/w duct kit. 300º F
    Part #
    Qty
    Description
    H-MAX-EXTENSION
    H-MAX Boom EXTENSION Kit for H-MAX BOOMS
    H-MAX-FII-1/D-2M-300
    2m (7') H-MAX Boom Kit for FLEXI-II Extraction Arms c/w duct kit. 300º F
    H-MAX-FII-2/D-3M-300
    3m (10') H-MAX Boom Kit for FLEXI-II Extraction Arms c/w duct kit. 300º F
    H-MAX-FII-3/D-4M-300
    4m (14') H-MAX Boom Kit for FLEXI-II Extraction Arms c/w duct kit. 300º F
    H-MAX-FII-4/D-5M-300
    5m (17') H-MAX Boom Kit for Flexi-II Extraction Arms c/w duct kit. 300º F
    H-MAX-FII-5/D-6M-300
    6m (20') H-MAX Boom Kit for Flexi-II Extraction Arms c/w duct kit. 300º F
    Part #
    Qty
    Description
    SIL-8
    Silencer for P-Max series fan, 8" (200mm) (for use with P-Max Fans)
    SIL-12
    Silencer for P-Max series fan, 12.4" (300mm)
    Get My Instant Quote
    Technical Info Requested

    This site is protected by reCAPTCHA Enterprise and the Google Privacy Policy and Terms of Service apply.
