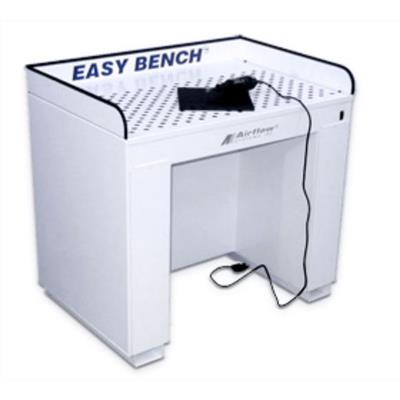

EZ Bench - 2'D x 3'W

The Easy Bench is an 800 CFM (500 CFM with HEPA or AD Module) downdraft table designed for seated use, offering standard desk height with maximum legroom for comfort and focus.

FUNCTION
The EZ Bench effectively captures dust, fumes, and odors at the source, drawing contaminants downward through the appropriate filter before exhausting them back into the workspace. This helps maintain a cleaner, healthier environment and enhances productivity, particularly for close, detailed handwork.

The bench features easy filter access with standard panels that slide in and out, secured with magnetic covers. Available options include washable or disposable filters, absorption media after filters, variable frequency drives, and customizable table height and caster options.
CONSTRUCTION
  • 14/16 gauge welded zinc-coated steel cabinet finished in white powder-coat.
  • Easy-seal magnetic covers for easy access to filters
  • Catch pan
  • ON/OFF switch (115V units only)
  • Non-overloading Fan
  • Acoustically lined blower compartment
  • Hinged grate backsplash
  • 36''W x 24''D
KEY CRITERA
  • Maximum Comfort: Designed ergonomically with standard desk height and maximum legroom. Reduces operator strain and fatigue, optimizing productivity and efficiency.
  • Streamlined Construction for Ease of Use: Hinged top lifts for access to the catch-tray, which traps any larger particles or small tools that may fall through the holes. Seamless integration of back-splash guard on three sides means no crevices to trap dirt, making cleaning easy.
  • Direct-Drive, High-Flow Blower: The Airflow Systems exclusive high-tech reverse-mounted motor/impeller is the secret to the strong airflow, quiet operation, and compact design of the EZ Bench.
  • Cost-Effective, Low-Maintenance Operation: Two standard 24" x 24" x 4" panel filters allow for low filter velocity and high dust holding capacity.
  • Easy-Access Filters: Filters slide in and out from the front, with easy-seal magnetic covers.
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Fine Dusts
  • VOC / Paint Fumes
  • Nail Salons
  • Soldering Fumes
  • Cannabis Dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
PFDT
Downdraft Table, 36W x 24D designed for the operator.
  • Rated at 800 CFM with MERV11 filters
  • (2) legs on each side
  • All aluminum backward centrifugal curved
  • 115V/1/60 Hz 185 Watts, rated UL, CSA, 66dBA, 26" vertical leg room
  • Blower wheel, rated UL
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
PFDT-AL
Downdraft Table, for Aluminum application.
  • Deletes steel bench top, add aluminum bench top, relocate switch to POWER CORD, 2-4 65% filter in place of MERV 11 with Casters
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Part #
Description
EASY BENCH-AD
(4) Odor adsorption filters (24" x 24" x 2") with lock in place filter system, in place of MERV 11 filters (24" x 24" x 4").
  • Filter is made up of charcoal impregnated media
  • Disposable. 500 cfm
EASY BENCH-AD-RF
(2) Refillable AD modules (24" x 24" x 3") with (2) 1" (25mm) merv 7 poly after filter, (24" x 24" x 1") - PLASTIC FRAME.
  • Each module holds 30 lbs of carbon
EASY BENCH-HEPA
(2) 99.97% Metal frame HEPA filters with lock in place filter system, in place of MERV11 filters (2AU4-9710).
EASY BENCH-MERV 13
MERV13 filters in place of MERV11 standard filters.
EASY BENCH-MERV 14
MERV14 filters in place of MERV11 standard filters.

Part #
Description
Lift Out Tray
Easy Lift-out part catcher tray. High impact resistant styrene (17.75" x 25.5" x 1' deep).
PFDT-28
Reduce Table height from 30" to 28.5".
FREQUENTLY BOUGHT TOGETHER

Part #
Description
EASY BENCH-32
Raise Table height from 30" (760mm) (standard) to 32" (810mm).
EASY BENCH-36
Raise Table height from 30" (760mm) (standard) to 36" (915mm).
  • 32" (810mm) vertical leg room
PFDT-1
Downdraft Table, 36W x 24D designed for the operator.
  • Rated at 800 CFM with MERV11 filters
  • (2) legs on each side
  • All aluminum backward centrifugal curved
  • 115V/1/60 Hz 185 Watts, rated UL, CSA, 66dBA
  • 26" vertical leg room
  • Blower wheel, rated UL
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Part #
Description
2AF1-9002
Poly After- Filter (24" x 24" x 1") with Plastic Frame MERV 7.

Part #
Description
EASY BENCH-CASTERS
(4) Ball Casters, keeps height at 30" (760mm) - ONLY FOR STANDARD EASY BENCH.

Part #
Description
2AF7-9001
Refillable module, holds 30 Ibs.of charcoal - order separate.
2AZ1-0006
Cut 1" (25mm) poly, Blue/White, for PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, & EASY BENCH.
2FC7-5604
Charcoal Filter, impregnated (24" x 24" x 2") - Use with AirPod I/II/III, Powerbooth & EZ Bench
7FC7-5604
Charcoal pad, 75%, 1" (25mm) impregnated carbon filter with Poly.
  • QTY (4) per 2FC7-5604
7FJ9-9005
99.97% @ 0.3 micron Mini Pleat 1500 CFM MERV 17 HEPA Filter for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, & Air Pod.
7FP1-1214
2" (50mm) Filter, pleated. MERV11 efficiency.
7FP1-1427-OEM
Filter, pleated for PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, & EASY BENCH.
7FP1-4505-OEM
MERV 14 Filter - synthetic & washable.
  • Pleated for F-120, F122, F240, F360, F480, 200, 202, 203, MP30, PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, PAC91, EASY BENCH, & MP60
7FP1-1427
Filter, pleated. (24" x 24" x 4") MERV11 efficiency.
7FP6-0104
60% Pleated Filter, 24" x 24" x 4".
7FP1-3427
MERV 13 filter, 24" x 24" x 4".
7FP1-4427-OEM
Filter, pleated for EASY BENCH Merv 13.
7FP1-1412
Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP1-4505-P
High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FC75104
24" x 24" x 4" Odor adsorption filter with charcoal impregnated media.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.
  • Suitable when the complaint is more of a mixed or sharp chemical odour, especially if there may be acidic, sulfur, ammonia/amine, aldehyde, or corrosive gas components.


Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
7FJ9-9103
HEPA scanned filter for EASY BENCH.
