Model

05-001

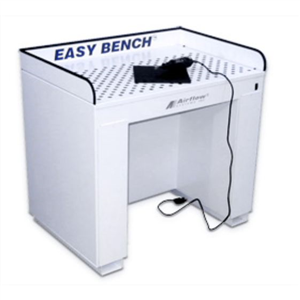

Image for easy_bench.jpg

EZ Bench - 2'D X 3'W

Easy Bench – An 800 CFM (500 CFM with HEPA or AD Module) downdraft table designed for use while sitting. Standard desk height with maximum leg room for optimized comfort and concentration.

Simple Source Capture.

Function:

Removing dust, fumes, and odors, the EZ Bench makes for a cleaner, healthier work environment. Ideal for improved productivity for close, fine hand work.

Easy Filter Access. Standard panels slide in and out from the front, with easy-seal magnetic covers.

Available with:
  • Washable and/or disposable filters.
  • After Filter for Absorption Media
  • Variable Frequency Drives
  • Table Height Options
  • Filter Options
  • Table Height Options
  • Caster Options

Construction:

  • 14/16 gauge welded zinc-coated steel cabinet finished in white powder-coat.
  • Easy-seal magnetic covers for easy access to filters
  • Catch pan
  • On/off switch (115V units only)
  • Non-overloading Fan
  • Acoustically lined blower compartment
  • Hinged grate backsplash
  • 36''W X 24''D

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
PFDT 44"H x 33"W x 44"D 270 lbs
CHARCOAL-CP40 13"H x 12"W x 13"D 40 lbs
CHARCOAL-CP20 13"H x 12"W x 13"D 20 lbs
7FP1-4505-P 5"H x 25"W x 25"D 7 lbs
7FP1-4505-OEM 4"H x 24"W x 24"D 8 lbs
7FP1-4427-OEM 4"H x 24"W x 24"D 2 lbs
7FP1-1427-OEM 4"H x 24"W x 24"D 3 lbs
7FP1-1412 5"H x 25"W x 25"D 7 lbs
7FJ9-9005 4"H x 24"W x 24"D 15 lbs
2FC7-5604 2"H x 24"W x 24"D 4 lbs

Key Buying Criteria:

  • Maximum Comfort: Designed ergonomically with standard desk height and maximum legroom. Reduces operator strain and fatigue, optimizing productivity and efficiency.
  • Streamlined Construction for Ease of Use: Hinged top lifts for access to the catch-tray, which traps any larger particles or small tools that may fall through the holes. Seamless integration of back-splash guard on three sides means no crevices to trap dirt, making cleaning easy.
  • Direct-Drive, High-Flow Blower: The Airflow Systems exclusive high-tech reverse-mounted motor/impeller is the secret to the strong airflow, quiet operation, and compact design of the EZ Bench.
  • Cost-Effective, Low-Maintenance Operation: Two standard 24" x 24" x 4" panel filters allow for low filter velocity and high dust holding capacity.
  • Easy-Access Filters: Filters slide in and out from the front, with easy-seal magnetic covers.

Suitable For:

Top 5 contaminants/processes/applications:

  • Fine Dusts
  • VOC / Paint Fumes
  • Nail Salons
  • Soldering Fumes
  • Cannabis Dust
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
PFDT Downdraft Table, 36W x 24D designed for the operator. Rated at 800 CFM with MERV11 filters.2 legs on each side. All aluminum backward centrifugal curved. 115V/1/60 Hz 185 Watts, rated UL, CSA, 66dBA, 26" vertical leg room. blower wheel, rated UL. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
PFDT-AL Downdraft Table, for Aluminum application. Deletes Steel bench top, add Aluminum bench top, relocate switch to POWER CORD, 2-4 65% filter in place of MERV 11 with Casters. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Part # Qty Description
2AF7-9001 Refillable module, Holds 30 Ibs.of charcoal. Order separate
2AZ1-0006 Cut 1 poly, Blue/White, for PANEL FILTER POWERBOOTH,PANEL FILTER BOOTH and EASY BENCH
2FC7-5604 Charcoal Filter, Impregnated. Use with AirPod I/II/III, Powerbooth
7FC7-5604 Charcoal pad, 75%, 1in impregnated carbon filter w/Poly, 4 per 2FC7-5604
7FJ9-9005 99.97% @ 0.3 micron Mini Pleat 1500 CFM MERV 17 HEPA Filter for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, & Air Pod
7FP1-1214 2" Filter, pleated. MERV11 efficiency.
7FP1-1427-OEM Filter, pleated for PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH and EASY BENCH
7FP1-4505-OEM MERV 14 Filter, Synthetic, Washable. Pleated for F-120, F122, F240, F360, F480, 200, 202, 203, MP30, PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, PAC91, EASY BENCH and MP60.
7FP1-1427 Filter, pleated. MERV11 efficiency.
7FP6-0104 60% Pleated Filter, 24x24x4
7FP1-3427 MERV 13 filter, 24x24x4
7FP1-4427-OEM Filter, pleated for EASY BENCH Merv 13
7FP1-1412 Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench & Air Pod. 24"x24"x4"
7FP1-4505-P High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench & Air Pod. 24"X24X"4"
7FC75104 24x24x4 Odor adsorption filter with charcoal impregnated media
CHARCOAL-CP20 20 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
CHARCOAL-CP40 40 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
7FJ9-9103 HEPA scanned filter for EASY BENCH

Frequently bought together these options:


Part # Qty Description
EASY BENCH-AD Four (4) Odor adsorption filters (24" x 24" x 2") with lock in place filter system, in place of MERV 11 filters (24" x 24" x 4"). Filter is made up of charcoal impregnated media. Disposable. 500 cfm.
EASY BENCH-AD-RF Two refillable modules (24x24x3") with two 1" poly after filter, (24x24x1) w/pllastic frame. Merv 17, each holds 30 lbs of carbon
EASY BENCH-HEPA 2-each 99.97% Metal frame HEPA filters with lock in place filter system, in place of MERV11 filters. (2AU4-9710)
EASY BENCH-MERV 13 MERV13 filters in place of MERV11 standard filters
EASY BENCH-MERV 14 MERV14 filters in place of MERV11 standard filters

Part # Qty Description
EASY BENCH-32 Raise Table height from 30" (Standard) to 32".
EASY BENCH-36 Raise Table height from 30" (Standard) to 36". (32" vertical leg room)
PFDT-1 Downdraft Table, 36W x 24D designed for the operator. Rated at 800 CFM with MERV11 filters.2 legs on each side. All aluminum backward centrifugal curved. 115V/1/60 Hz 185 Watts, rated UL, CSA, 66dBA, 26" vertical leg room. blower wheel, rated UL. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Part # Qty Description
2AF1-9002 Poly After- Filter (24" x 24" x 1") w/Plastic Frame MERV 7

Part # Qty Description
EASY BENCH-CASTERS 4 ball casters, keeps height at 30 ONLY FOR STANDARD EASY BENCH

Part # Qty Description
VFD-KIT-1HP-115-230-3 1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-3HP-220-230-3 3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
