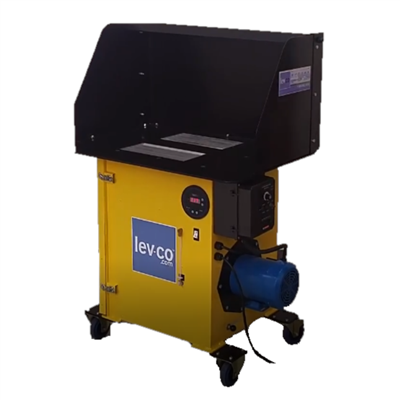

DCB Ductless Spray Booth 1400 CFM

The DSB is equipped with a washable main filter which filters out any particulate, a secondary activated carbon filter and an optional third stage filter for a variety of adsorption medias.
Additionally, the DSB provides a durable (¼”) steel plate work surface (36” x 24”)
Also included are (2) – 2L trays located directly under the ventilation intake which allows for the collection of accidental spills.
Applications include spray painting with spray balms or air brushes, gluing, open cans of paint, and more.
All contaminated air is filtered and returned to the facility.

These pre-engineered, ‘’Plug and Play’’ downdraft tables come complete with the following:

• Fan Capacity: MAX 1400 CFM (will change depending on filter selection)
• Washable main filter cartridge, 99.9 % efficient
• 2nd stage activated carbon filter
• Direct drive fan coupled with Non-Sparking Aluminum Impeller
• 1.5 HP (1.1 KW) 120V/1/60 TEFC Direct Drive motor
• ’Plug and Play’ Design includes easy maneuverable wheels, motor starter, overload protection, 12’ cord, and plug)
• Flow Controller allows the flow rate to be reduced in flow sensitive applications
• Internal dust and liquid spill drawer/tray
• 1/4" steel plate work surface 36” x 24” (900 x 600 mm)
• Working booth design with back and side walls
• Low height design that can be easily raised to suit almost every working height
• Easy to maneuver and roll into position

Top 5 contaminants/processes/applications:

• Spray Balms
• Air Brushes
• Gluing
• Open Cans of Paint

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
