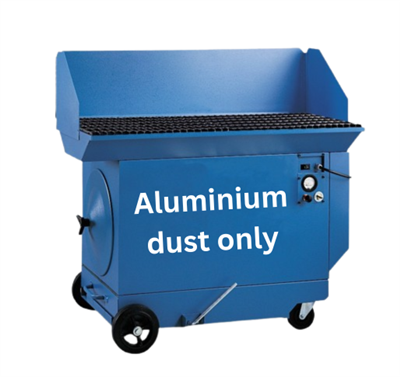

ALH2 (24''D x 48''W @ 1700 CFM)

1400 CFM (175 FPM downdraft velocity) Downdraft table to collect aluminum dust., 24”D x 49”W, aluminum work surface, 14” (350mm) side shields, removable dust tray. 3HP, 230-460/575-600/3/60HZ. Electrical meets NFPA Division II, group-E for aluminum dust.
FUNCTION
1400 CFM (175 FPM downdraft velocity) Downdraft table to collect aluminum dust., 24”D x 49”W, aluminum work surface, 14” (350mm) side shields, removable dust tray. 3HP, 230-460/575-600/3/60HZ. Electrical meets NFPA Division II, group-E for aluminum dust.
CONSTRUCTION
l12/14/16 Ga. welded steel cabinet with powder-coat finish; includes removable end cap for easy access to filter, removable back panel for access to direct drive motor/blower compartment, removable 10 gallon external dust drawer, 8” (200mm) front wheels with 5” (125mm) rear swivel casters and motor wired to side electrical junction box. (Ferrous grates and VIBRA-PULSE® filter cleaning system not available. (Motor starter not included.)
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
ALH-2
1200 cfm portable downdraft table to collect aluminum dust.
  • 24" deep x 48" wide work surface at 36.25 height
  • 208 fpm downdraft velocity, with 12" (300mm) tall aluminum side & back shields with aluminum grate panels
  • Contains (2) ULTRACLEAN-PLUS ™ cartridge filters
ALH2-2
1200 cfm portable downdraft table to collect aluminum dust, 24" deep x 48" wide work surface at 36.25" height. 208 fpm downdraft velocity, with 12" tall aluminum side & back shields and aluminum grate panels. Contains (2) ULTRACLEAN-PLUS ™ cartridge filter. (150 sq.ft. each) and a 3 Hp Group E motor. 575/3/60 Hz (8.4-8/4 amps). Electrical components meet NFPA requirements for Class II, Group-E. (ALUMINUM DUST). 79 dBA.

Part #
Description
ALH-2-EXAD
External AD Module Filter Option for Standard ALH-2 Unit.
ALH-2-EXDOP
External 95% DOP Filter Option for Standard ALH-2 Unit.
ALH-2-EXHE
External 99.97% HEPA Filter Option for Standard ALH-2 Unit.
ALH2-HE/AD
Kit using EXTERNAL HEPA and EXTERNAL AD options.

Part #
Description
ALH-2-PG-6
0-6" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.

Part #
Description
2FR5-1001
Cartridge, AD, refillable with 1" (25mm) pre-filter pad & 1" (25mm) after-filter pad.
  • Holds 15 lbs. of charcoal
ALH-2-EXT FRONT
Table extension, front, full width with solid aluminum surface, 9" (230mm) deep.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
ALH-2-BF3A
Aluminum Enclosure, 36" High, Sides, Back, & Top Option for Standard ALH-2 Unit.

Part #
Description
ALH-2-S-EXT
External Silencer Option for Standard ALH-2 Unit

Part #
Description
ALH-2-FIBER
Fiberglass Bar Grate Option for Standard ALH-2 Unit.

Part #
Description
1PN6-1749
Aluminum Grate Panels. Price per each (6 required for DTH800) DUSTPAK ALH-1, DUSTPAK ALH-2, DUSTPAK AL-6, DUSTPAK DTH-800, (9 required for DUSTPAK DTH-1700.)
2AF2-0011
2" (50mm) Polyester Frame & Pad. (18" x 24" x 2").
2AF9-0001
Adsorber module, flat, refillable. (18" x 24" x 2½").
  • Holds 18 lbs. of charcoal
  • Charcoal sold separately
2AZ2-0013
2" (50mm) Polyester Filter, pad only, (18" x 24" x 2").
7FJ9-5003
95% @ 0.3 microns DOP Filter for PCH/DCH/DTH/ALH units.
7FJ9-9003
99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - METAL FRAME.
7FJ9-9003-W
99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - WOOD FRAME.
7FR0-5020
OEM Cartridge Filter ALH-1/2/6 filter used in explosive & flammable applications such as aluminum dust applications.
CHARCOAL-20
20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
