Model

05-007

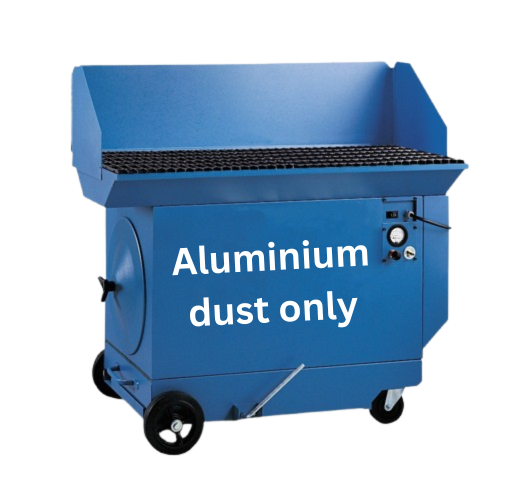

ALH2 (24''D X 48''W @ 1700 CFM)

1400 CFM (175 FPM downdraft velocity) Downdraft table to collect aluminum dust., 24”Dx49”W, aluminum work surface, 14” side shields, removable dust tray. 3HP, 230-460/575-600/3/60HZ. Electrical meets NFPA Division II, group-E for aluminum dust.

Function:

1400 CFM (175 FPM downdraft velocity) Downdraft table to collect aluminum dust., 24”Dx49”W, aluminum work surface, 14” side shields, removable dust tray. 3HP, 230-460/575-600/3/60HZ. Electrical meets NFPA Division II, group-E for aluminum dust.

Construction:

l12, 14 & 16 Ga. welded steel cabinet with powder-coat finish; includes removable end cap for easy access to filter, removable back panel for access to direct drive motor/blower compartment, removable 10 gallon external dust drawer, 8” front wheels with 5” rear swivel casters and motor wired to side electrical junction box. (Ferrous grates and VIBRA-PULSE® filter cleaning system not available. (Motor starter not included.)

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
CHARCOAL-CP40 13"H x 12"W x 13"D 40 lbs
CHARCOAL-CP20 13"H x 12"W x 13"D 20 lbs
CHARCOAL-20 14"H x 10"W x 10"D 20 lbs
7FR0-5020 15"H x 18"W x 18"D 11 lbs
7FJ9-9003-W 20"H x 25"W x 5"D 6 lbs
7FJ9-9003 4"H x 24"W x 18"D 6 lbs
7FJ9-5003 4"H x 24"W x 18"D 12 lbs
2AF9-0001 4"H x 25"W x 20"D 7 lbs
2AF2-0011 5"H x 25"W x 20"D 3.5 lbs
Part # Qty Description
ALH-2 1200 cfm portable downdraft table to collect aluminum dust, 24 deep x 48 wide work surface at 36.25 height. 208 fpm downdraft velocity, with 12 tall aluminum side & back shields and aluminum grate panels. Contains (2) ULTRACLEAN-PLUS ™ cartridge filte
ALH2-2 1200 cfm portable downdraft table to collect aluminum dust, 24" deep x 48" wide work surface at 36.25" height. 208 fpm downdraft velocity, with 12" tall aluminum side & back shields and aluminum grate panels. Contains (2) ULTRACLEAN-PLUS ™ cartridge filter. (150 sq.ft. each) and a 3 Hp Group E motor. 575/3/60 Hz (8.4-8/4 amps). Electrical components meet NFPA requirements for Class II, Group-E. (ALUMINUM DUST). 79 dBA.
Part # Qty Description
1PN6-1749 Aluminum Grate Panels. Price per each (6 required for DTH800) DUSTPAK ALH-1, DUSTPAK ALH-2, DUSTPAK AL-6, DUSTPAK DTH-800, (9 required for DUSTPAK DTH-1700.)
2AF2-0011 2" Polyester Frame & Pad .
2AF9-0001 Adsorber module, flat, refillable. (18" x 24" x 2½"). Holds 18 lbs. of charcoal.Charcoal sold separately.
2AZ2-0013 2" Polyester Filter, pad only, 18 x 24 x 2
7FJ9-5003 95% @ 0.3 microns DOP Filter for PCH/DCH/DTH/ALH units
7FJ9-9003 99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units, Metal Frame
7FJ9-9003-W 99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units WOOD FRAME
7FR0-5020 OEM Cartridge Filter ALH-1/2/6 filter used in explosive and flamable applications such as aluminum dust applications.
CHARCOAL-20 20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-CP20 20 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
CHARCOAL-CP40 40 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids

Frequently bought together these options:

Part # Qty Description
ALH-2-EXAD External AD Module Filter Option for Standard ALH-2 Unit
ALH-2-EXDOP External 95% DOP Filter Option for Standard ALH-2 Unit
ALH-2-EXHE External 99.97% HEPA Filter Option for Standard ALH-2 Unit
ALH2-HE/AD Kit using EXTERNAL HEPA and EXTERNAL AD options.
Part # Qty Description
ALH-2-BF3A Aluminum Enclosure, 36 High, Sides, Back & Top Option for Standard ALH-2 Unit
Part # Qty Description
ALH-2-S-EXT External Silencer Option for Standard ALH-2 Unit
Part # Qty Description
ALH-2-PG-6 0-6 magna-helic pressure gauge, approximately 5 diameter size. Surface mounted.
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-5 pressure gauge. 3/16 inside diameter tubing ordered separately.
PG-10 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-10 pressure gauge. 3/16 inside diameter tubing ordered separately.
Part # Qty Description
VFD-KIT-1HP-115-230-3 1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3 2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3 3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
Part # Qty Description
ALH-2-FIBER Fiberglass Bar Grate Option for Standard ALH-2 Unit
