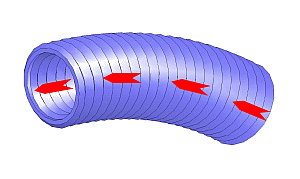

Animated diagram for Industrial Hose & Duct Work

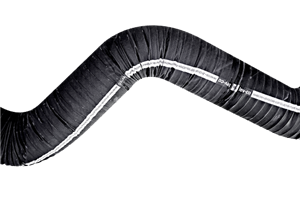

Industrial Hose & Duct Work

Lev-Co offers a wide variety of lightweight, flexible, abrasive resistant, heat tolerant, innovative technical hoses to provide solutions for a wide range of industrial & Automotive applications. Here are some general design velocities when using "CAPTURE" Hoods:

Smoke (e.g. Welding):
  • Capture Velocity 100 FPM
  • Transport Velocity 3000 FPM
  • Minimun Face velocity 2355 FPM

    Dust (e.g. Grinding):
  • Capture Velocity 500 FPM
  • Transport Velocity 4000 FPM
  • Minimun Face Velocity 4000 FPM

    Gas (e.g. V.O.C.'s):
  • Capture Velocity 50 FPM
  • Transport Velocity 2000 FPM
  • Minimun Face Velocity 785 FPM

    Mist:
  • Capture Velocity 100 FPM
  • Transport Velocity 2250 FPM
  • Minimun Face Velocity 1766 FPM

    FOR MORE SUPPORT IN SELECTING THE RIGHT HOSE pls EMAIL us with details on your application at: sales@lev-co.com
  • 16-001
    Spiral Ducts & Installation Accessories
    spiral-ducts-and-installation-accessories - Main Image
    Spiral duct sections, duct fittings, transitions, install accessories, etc.

    16-002
    OM-AB-260 - Oil Mists and Abrasive dusts (260°F)
    om-ab-260-urethane-oil-mist-and-abrasive-dust-hose - Main Image
    Ideally suited for conveying oil mist from machining processes and many applications where a flexible, chemical and abrasion resistant hose is required.

    Wire reinforced, very flexible and clear. Minimum 5 times wear life improvement over PVC and TPR.
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    007 - Written Specifications:
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
    16-003
    LT-300 Vehicle Exhaust Hose - Vehicle Emissions (300°F) GPH
    lt-300-vehicle-exhaust-hose - Main Image
    This hose is well suited for low temp vehicle exhaust gases, medium duty dust collection and a variety of fume applications where external abrasion resistance is required (e.g.: dragging the hose across the floor.) Santoprene coated polyester fabric w/wire reinforcement. Spring steel wire w/ external wear strip. Temp range of – 60 F to 300 F.
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
    16-004
    HRHT-850 Vehicle Exhaust - Vehicle Emissions Hose reels (850°F)
    hrht-850-vehicle-exhaust-for-hose-reels - Main Image
    Pyroflex© hose has been specifically designed for demanding high temperature “Process Ventilation” applications such a diesel exhaust and many other high temperature applications.


    This hose has the following features:
    • long Life -> Abrasion resistant both externally and internally
    • High temperature resistance -> 850 degrees F under normal use and intermittently up to 2000 degrees F
    • low pressure drop -> with very smooth internal bore
    • Light weight -> easy to use and place into position
    • fatigue resistant -> ideal for constant flexing applications such as hose reels and retraction systems.
    16-005
    LWHT-600 Vehicle Exhaust Hose - Vehicle Emissions Light Weight (600°F) SFH1
    lwht-600-vehicle-exhaust-for-hose-reels-hose - Main Image
    Silicone Fiberglass duct suitable for high temperature 600°F vehicle exhaust control.
    1 ply Silicone/Fiberglass Hose
    2 plies for added service life. A popular style for stationary high temperature exhaust control applications. *Not for use with garage hose reels
    16-006
    MWHT-600 Vehicle Exhaust Hose - Vehicle Emissions Medium Weight (600°F) SFH2
    mwht-600-ve-vehicle-exhaust-hose - Main Image
    Material hose wall: two-layers, inner and outer layer special-coated high temperature fabric external helix: galvanized steel processes

    • Hot air
    • Suction plants
    • Vehicle Exhaust
    Attachments
    16-007
    HWHT-600 Vehicle Exhaust Hose - Vehicle Emissions High Weight (600°F)
    hwht-600-ve-vehicle-exhaust-hose - Main Image
    Material hose wall: two-layers, inner and outer layer special-coated high temperature KEVLAR fabric external helix: galvanized steel


    Processes:
    • Hot air
    • Suction plants
    • Vehicle Exhaust
    Attachments
    16-008
    HWHT-750 Hose Vehicle Exhaust Hose - Vehicle Emissions High Weight (750°F)
    hwht-750-ve-vehicle-exhaust-hose - Main Image
    MD-Master-Clip HT 750 Material hose wall: special-coated high temperature fabric, asbestos free, reinforced by woven in stainless steel wire external helix: galvanized steel processes
    • Hot air
    • Suction plants
    • Furnace
    16-009
    HWHT-1000 Vehicle Exhaust Hose - Vehicle Emissions High Weight (1000°F)
    hwht-1000-ve-vehicle-exhaust-hose - Main Image
    MD-Master-Clip HT 1000 High temperature Silicon coated glass fabric asbestos free reinforced in galvanized or stainless steel wire. Excellent high temp resistance hose high flexibility can handle up to 1000 degrees. Temp range – 5° F to 1000° F. Suitable for vehicle exhaust systems; high temperature diesel exhaust. Material hose wall: special-coated high temperature fabric, asbestos free, reinforced by woven in stainless steel wire external helix: galvanized steel
    16-010
    - MD-Master-Clip HT 1200 (Vehicle Exhaust - 1200°F)
    md-masterclip-ht-1200-vehicle-exhaust- - Main Image
    2-layer special coated high temp fabric reinforced in stainless steel wire is the best and most widely used 1200° F range flexible hose on the market. This hose is perfect for dynos and high performance engines. Temp range – 75F to 1200°F. Price per ft. (10' Length Minimum) Material Hose Wall: two layer
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    007 - Written Specifications:
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
    16-011
    - MD-Master-Clip HT 1500 (Vehicle Exhaust - 1500°F)
    md-masterclip-ht-1500-vehicle-exhaust- - Main Image
    2-layer special coated high temp fabric reinforced in stainless steel wire is the best and most widely used 1500° F range flexible hose on the market. This hose is perfect for dynos and high performance engines. Temp range – 75F to 1500°F.
    Price per ft. (10' Length Minimum) Material Hose Wall: two layer
    Attachments
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
    16-012
    - MD-Master-Clip HT 2010 (Vehicle Exhaust - 2010°F)
    md-masterclip-ht-2010-vehicle-exhaust- - Main Image
    3-layer special coated high temp fabric reinforced w/inside layer of stainless steel mesh makes this a very strong and flexible hose, excellent for high performance and massive engines- buses, trucks, jets. Price per ft. (10' Length Minimum) Material hose wall: three-layer
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    007 - Written Specifications:
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
    16-020
    ECH-260 - Electrically Conductive Hoses - Explosive Dusts and Vapours (260°F)
    ech-260-vehicle-exhaust- - Main Image
    MD-Master-Pur L-EC Material hose wall: Electrically Conductive POLYURETHANE spiral: PU-coated spring steel wire


    Applications:
    • Dangerous areas, where electrical conductivity is demanded
    • Special hose for industrial vacuum cleaners
    • Suction and transport of paper fibers and wood chips
    • Transport of granules
    • Suction and transport of abrasive materials, gaseous and liquid media
    • Extraction of coarse-grained particles with high flow volume
    • Oil-spray extraction
    • Protection hose against mechanical damage
    Properties:
    • Surface resistance RO<=104 Ohm
    • Electrically conductive
    • Abrasion-resistant
    • Very flexible, lightweight
    • Small bend radius
    • Resistant to oil and fuels, gas-tight
    • Free of plasticisers and halogens
    • Good chemical resistance
    • UV- and ozone-resistant
    • Improved pressure and vacuum characteristics
    • High tensile and burst strength
    • Optimum flow characteristics
    16-021
    IEH-2000-HT
    ieh-2000-ht-vehicle-exhaust-hose - Main Image
    Standard 25ft length (Custom lengths available on request). Flame/water resistant, extremely flexible, 3 Ply construction, no glues or adhesives. Ideal for vehicle exhaust and high temperature fume extraction
    Attachments
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
    16-021
    Quick Lock
    quick-lock-pipes-and-fittings - Main Image
    Modular ducting systems
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    001a - How to Install (How to install local exhaust system, Isometric and Exploded Views):
    16-025
    Hose Accessories
    hose-accessories - Main Image
    Hose Accessories
    16-026
    - Self-Supporting Fume & Dust Extraction Hose - 200°F
    self-supporting-extraction-hose - Main Image
    Fume Extractor: hose used for spot extraction of fume/dust removal. White in colour.
    Priced per foot.
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
    16-045
    HRHT-600-SNH Vehicle Exhaust - Vehicle Emissions Hose reels (600°F)
    Silicon Nomex hose has been specifically designed for demanding high temperature “Process Ventilation” applications such a diesel exhaust and many other high temperature applications up to 600 degrees F.


    This hose has the following features:
    • long Life -> Abrasion resistant both externally and internally
    • High temperature resistance -> 600 degrees F
    • low pressure drop -> with very smooth internal bore
    • Light weight -> easy to use and place into position
    • fatigue resistant -> ideal for constant flexing applications such as hose reels and retraction systems
    Attachments
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
    16-001
    GPH General Duty Hose - Dust, Fume, Smoke (275°F) - 694
    general-duty-exhaust-hose - Main Image
    GPH - Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (10' Length Minimum)
    Attachments
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
