Direct capture with hoses and nozzles

Capture of a variety of airborne contaminants can be accomplished by placing a combination of hoses and capture and or receiving nozzles at the source. Holding devices such as magnets, suction cups and vice grips may be used to provide precise positioning.
14-081
3'' Dia. Portable Vehicle Exhaust Solution VES-3 Fan (220 CFM )
Portable-vehicle-exhaust-system-fan-hose-kit-small-cars - Main Image
220 CFM*, 3” Diameter Portable Vehicle Exhaust systems for exhaust removal applications. Ideal for applications where stationary systems may not reach, V.E.S. Portable Removal System provides convenient exhaust removal for relief from the annoyance of vehicle exhaust.
Lightweight and easy to handle, the V.E.S. Portable Removal System is a simple solution for providing portable exhaust removal.
Product Overview:
  • Removes exhaust gases rather than just re-circulating it within the facility.
  • One-person operation is made easy with standard wheels and support stand.
  • Powerful 220 CFM collection fan in a portable package. (See Options for Higher flow rates/CFM)
  • Operates with standard 115V power for use anywhere within a service bay. (1.5 and 3HP fans require higher voltages 208/230/460/575V)
Please Note: 220 CFM is ACTUAL CFM when hoses are connected to the fan. Free-Blowing (No Hoses attached) CFM is 600 CFM
14-082
4.5'' Dia. Portable Vehicle Exhaust Solution VES-4 Fan (340 CFM up to 450 CFM with fan upgrade)
Portable-vehicle-exhaust-system-fan-hose-kit-cars-and-light-trucks - Main Image
340 CFM*, 4.5” Diameter Portable Vehicle Exhaust systems for exhaust removal applications. Ideal for applications where stationary systems may not reach, V.E.S. Portable Removal System provides convenient exhaust removal for relief from the annoyance of vehicle exhaust.
Lightweight and easy to handle, the V.E.S. Portable Removal System is a simple solution for providing portable exhaust removal.
Product Overview:
  • Removes exhaust gases rather than just re-circulating it within the facility.
  • One-person operation is made easy with standard wheels and support stand.
  • Powerful 340 CFM collection fan in a portable package. (See Options for Higher flow rates / CFM )
  • Operates with standard 115V power for use anywhere within a service bay. (1.5 and 3HP fans require higher 208/230/460/575V)
Please Note: 340 CFM is ACTUAL CFM when hoses are connected to the fan. Free-Blowing (No Hoses attached) CFM is 600 CFM
14-083
6'' Dia. Portable Vehicle Exhaust Solution VES-6 Fan (500 CFM up to 670 CFM with fan upgrade)
Portable-vehicle-exhaust-system-fan-hose-kit-trucks - Main Image
500 CFM*, 600” Diameter Portable Vehicle Exhaust systems for exhaust removal applications. Ideal for applications where stationary systems may not reach, V.E.S. Portable Removal System provides convenient exhaust removal for relief from the annoyance of vehicle exhaust.
Lightweight and easy to handle, the V.E.S. Portable Removal System is a simple solution for providing portable exhaust removal.
Product Overview:
  • Removes exhaust gases rather than just re-circulating it within the facility.
  • One-person operation is made easy with standard wheels and support stand.
  • Powerful 500 CFM collection fan in a portable package. (See Options for Higher flow rates / CFM )
  • Operates with standard 115V power for use anywhere within a service bay. (1.5 and 3HP fans require higher 208/230/460/575V)
Please Note: 500 CFM is ACTUAL CFM when hoses are connected to the fan. Free-Blowing (No Hoses attached) CFM is 600 CFM
14-076
Electric balancer for G-MAX Heavy Vehicle Exhaust Articulated Crane Drop
electric-balancer-for-gmax-vehicle-exhaust-hoses - Main Image
Electric Balancer for vehicle exhaust applications. The IP66 sealed motor assembly allows for precise recoiling of the hose as required by the process. While making the process of recoiling the hose easier, it also offers the following benefits:
  • Eliminates the damaging effects of a hose recoiling aggressively due to the force of the spring
  • Permits the hose to be raised as 40’, leaving the area clear of obstructions
  • Allows setting of maximum and minimum hose heights
Balancer comes complete with the following features:
  • Remote control (Optional Wired or Wall mount IR controls are available)
  • Upper and lower limit switches
  • IP66 sealed motor assembly
  • Manual Crank allows the hoes to be recoiled in the event of a power outage
Attachments
001 - Equipment Specification and Dimension Drawings:
14-075
G-MAX Heavy Vehicle Exhaust (Mining equipment, Other Heavy equip.) Articulated Crane Drop for Hose - up to 30” dia. (up to 25,000 CFM)
vehicle-exhaust-gmax-ultra-large-heavy-duty-extraction-hoses-for-mining-vehicles - Main Image
The G-MAX Articulating Crane Drops allows you to position the Hose Drop on any side of the vehicle and to position the extraction system against the wall and out of the way. The G-MAX Articulating Crane will reach as far as 36ft into the service bay and pass over the top of heavy equipment with ease, it is made from three articulated booms which allows you also to avoid any obstacles in the bay.
  • Low Temp. Hose: suitable for temperatures up to 250º F

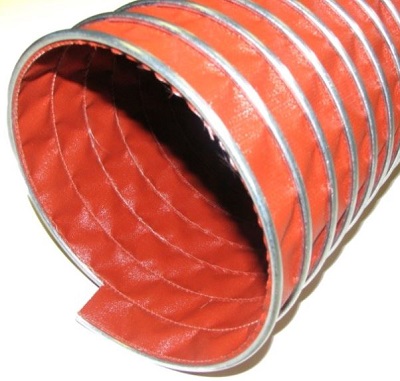

  • High Temp. Hose: suitable for temperatures of 600º F
  • Ultra High temperatures available up to 2500º F
Attachments
001 - Equipment Specification and Dimension Drawings:
007 - Written Specifications:
14-009
In-Groud In-Floor vehicle exhaust ventilation - 600°F/850°F/1200°F
in-floor-vehicle-exhaust-ventilation - Main Image
“In-Ground” AKA “In-Floor” systems are systems that use a duct located below the floor, often embedded in concrete.
Considered “old school” by some, IN-GROUND systems will always have a place when selecting a vehicle exhaust solution.


The systems are broken down into 2 groups.
  • Under Floor: Hose is stored in the floor and pulled out as required.
  • On Floor: Hose is stored on a wall bracket and a “trap door” in the floor is opened and the hose is connected to the exposed inlet.
14-055
P2D2-R3 Multi-Purpose Portable VE - 6.5''/8'' DIA.
p2d2-portable-exhaust-extractor-for vehicle-exhaust - Main Image
The P2D2, Portable Vehicle Exhaust System is an EASY TO POSITION solution for removal of diesel exhaust gases. This unit can capture vehicle exhaust from both a tall vertical stack, or a common tailpipe. Either flex hose or an internally supported arm can be used on the inlet of the P2D2. (Patent Pending)

  • Powerful exhaust fan removes exhaust gases directly to atmosphere
  • One-person operation that allows the operator to position the nozzle on an OVERHEAD stack without the use of a ladder
  • Ability to service both overhead and under-carriage exhaust pipes
  • Sturdy trolley which allows for storage of all ventilation components
  • Locking casters ensures the base unit stays in place during use
  • Exhaust Port is easily located under the garage door or through a "Garage door Port" that is easily installed in the garage door (sold separately)
  • Service the entire facility, All Bays (Extra Door ports may be required)
  • Easy to store exhaust hose
  • Exhaust hose lengths available up to 100 feet and 2500 degrees F.
  • Engines up to 150 HP @ max RPM & Load select: P2D2-R2-1.5HP
  • Engines up to 200 HP @ max RPM & Load select: P2D2-R2-3HP
  • Engines up to 300 HP @ max RPM & Load select: P2D2-R2-5HP
  • Engines up to 400 HP @ max RPM & Load select: P2D2-R2-7.5HP
  • Engines up to 500 HP @ max RPM & Load select: P2D2-R2-10HP
  • Equipment over 500HP - Call Lev-co for exact product selection
Attachments
001 - Equipment Specification and Dimension Drawings:
14-054
PATRIOT - Heavy Duty Portable Vehicle Exhaust for Diesel trucks & Heavy Equipment - 8''/10'' DIA. (7000CFM)
patriot-portable-extraction-system-for-heavy-equipment-for-diesel-exhaust - Main Image
The PATRIOT is a heavy-duty portable LEV system for almost any heavy industrial application.

  • Designed to capture smoke and fumes from: Diesel Exhaust, Welding, Arc Air Gouging and Flame cutting.

  • Multiple tool-less hose sections/nozzle options allow for quick optimization of the machine for each maximum reach and exhaust.



    The purpose of the Patriot is to capture 99%+ of all airborne emissions “at-Source” before the emissions reach the operators breathing zone.

    • Portable & Easy to position - 6 Heavy-duty casters (2 straight, 4 swivel)
    • “All-in-one” design – “on-cart” storage for all hoses, hoods, etc.
    • Plug & Go design with many voltage options
    • Quick setup - Tool-less “quick-connect” hoses and accessories
    • Adjustable velocity from 700 to 7000 FPM (12.8 to128 KM/H)
    • Energy Efficient – eliminates peak electrical charges and wasted heat
    • Environmentally friendly VFD control – exhaust only the flow required
    • Ultra-quiet mode – control the VFD to the noise level and frequency
    • Hose storage tubes – Ensure the hoses will last
    • Many hose options available (EG: Chemical, ESD, Abrasion, Hi-temp>2000 C)
    • Spark Proof design and construction – Optional: Haz Loc up to Div. Class 1
    • Variety of capture and receiving hoods available
    • Multipurpose design – suitable for the following applications
      • Welding
      • Arc Air Gouging
      • Flame cutting
      • Diesel exhaust
      • V.O.C.’s
      • Explosive Gases
      • Etc.
    • Single person deployment
    • All steel heavy duty construction - 3/14/16 ga.
    • Under garage door or through door/wall exhaust
    • Transports well to and from jobsites
    • Suitable for use outdoors –
      • IP66 controls
      • Chassis fabricated from combination satin coat steel, powder-coated for addition protection and appeal
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    002 - Brochures:
    004 - Product Videos:
    14-025
    PnP Vehicle Exhaust (Car, truck, motorcycle, Heavy equip.) Single or Double Extractor w/ pulley kit - 4''/5”/6”/8” dia. (300/475/700/1,200 CFM)
    pnp-vehicle-exhaust-single-and-dual-extractor-kit - Main Image
    PnP Vehicle exhaust single or double extractor system c/w rope, pulley kit and saddle. Available in both Low Temp. as well as High Temp Hose.

    • Low Temp. Hose: suitable for temps. up to 300º F
    • High Temp. Hose: suitable for temps. up to 600º F
    Attachments
    001a - How to Install (How to install local exhaust system, Isometric and Exploded Views):
    14-053
    Portable VE for cars, vans & small trucks - Rev 1.0
    portable-vehicle-exhaust-cars-vans-small-trucks - Main Image
    The Portable Vehicle Exhaust System is a compact, simple solution for exhaust removal. Includes a short inlet flex hose with clamping style nozzle and layflat exhaust hose.

    • Removes exhaust gases rather than just re-circulating it within the facility.
    • One-person operation is made easy with standard wheels and support stand.
    • Provides powerful collection power in a portable package.
    • Operates with standard 115V power for use anywhere within a garage.
    14-008
    Portable VES Fan - 3"/4.5"/6" dia. (500-1500 CFM)
    portable-vehicle-exhaust-system-fan - Main Image
    For exhaust removal applications where stationary systems may not reach, the Airflow Systems V.E.S. Portable Removal System provides convenient exhaust removal for relief from the annoyance of vehicle exhaust. If not removed, vehicle exhaust can contribute to worker illness, increase facility maintenance expense, and harm the sensitive electronics of diagnostic and service equipment.


    Lightweight and easy to handle, the V.E.S. Portable Removal System is a practical solution for providing exhaust removal in areas where conventional systems cannot reach.
    Product Overview:
    • Removes exhaust gases rather than just re-circulating it within the facility.
    • One-person operation is made easy with standard wheels and support stand.
    • Powerful 225-1000 CFM collection fan in a portable package.
    • Operates with standard 115V power for use anywhere within a service bay.
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    14-055
    R1- Portable VE for Diesel trucks & Heavy Equipment
    portable-vehicle-exhaust-trucks-and-small-heavy-equipment- - Main Image
    The P2D2, Portable Vehicle Exhaust System is an EASY TO POSITION solution for removal of diesel exhaust gases. Suited in areas where conventional exhaust systems cannot reach or exceed budgetary limits. (Patent Pending) The benefits of this solution are:
    • Powerful exhaust fan removes exhaust gases directly to atmosphere
    • One-person operation that allows the operator to position the nozzle on an OVERHEAD stack without the use of a ladder
    • Ability to service both overhead and under-carriage exhaust pipes
    • Sturdy trolley which allows for storage of all ventilation components
    • Locking casters ensures the base unit stays in place during use
    • Exhaust Port is easily located under the garage door or through an optional "Letter box" style port installed in the garage door
    • Base unit operates with standard 115V/1/60 power for use anywhere within a garage (higher Power and voltage units available)
    • Low Cost yet provides the ability to service the entire facility
    • Easy to store exhaust hose
    • Exhaust hose lengths available up to 100 feet and 2500 degrees F.
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    14-055
    R2 - P2D2 Portable Vehicle Exhaust
    p2d2-portable-vehicle-exhaust - Main Image
    The P2D2, Portable Vehicle Exhaust System is an EASY TO POSITION solution for removal of diesel exhaust gases. Ideally suited in areas where conventional exhaust systems cannot reach or exceed budgetary limits. (Patent Pending) The benefits of this solution are:
    • Powerful exhaust fan removes exhaust gases directly to atmosphere
    • One-person operation that allows the operator to position the nozzle on an OVERHEAD stack without the use of a ladder
    • Ability to service both overhead and under-carriage exhaust pipes
    • Sturdy trolley which allows for storage of all ventilation components
    • Locking casters ensures the base unit stays in place during use
    • Exhaust Port is easily located under the garage door or through a "Garage door Port" that is easily installed in the garage door (sold separately)
    • Service the entire facility, All Bays (Extra Door ports may be required)
    • Easy to store exhaust hose
    • Exhaust hose lengths available up to 100 feet and 2500 degrees F.
    • Engines up to 150 HP @ max RPM & Load select: P2D2-R2-1.5HP
    • Engines up to 200 HP @ max RPM & Load select: P2D2-R2-3HP
    • Engines up to 300 HP @ max RPM & Load select: P2D2-R2-5HP
    • Engines up to 400 HP @ max RPM & Load select: P2D2-R2-7.5HP
    • Engines up to 500 HP @ max RPM & Load select: P2D2-R2-10HP
    • Equipment over 500HP - Call Lev-co for exact product selection
    Attachments
    14-003
    Vehicle Exhaust (Car, truck, Heavy equip., etc.) Single Extractor w/ balancer - Hose dia.& flow rates to suit application
    vehicle-exhaust-extraction-system-with-balancer-hose-suspension - Main Image
    Vehicle exhaust single extractor system c/w hose, balancer and saddle. Locking ratcheting mechanism for precise hose placement on tailpipe or stack. Available in both Low Temp. as well as High Temp Hose.

    • Low Temp. Hose: suitable for temperatures up to 350º F.
    • High Temp. Hose: suitable for temperatures up to 850º F.
    • Ultra High Temp Hoses: suitable for temperatures from 750 to 2500º F.
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    003 - Client Installations - Case Studies with Photos:
    003a - Client Installations - Case Studies with Video:
    006 - Local Exhaust and Ventilation Duct 3D Layouts:
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
    14-007
    Vehicle Exhaust (Car, truck, motorcycle, Heavy equip.) Articulating Crane for Hoses - 4'' to 24'' dia. (300 to 18,000 CFM)
    vehicle-exhaust-articulating-crane-hose-drop-with-balancer-recoil - Main Image
    The VE Articulating Crane Drops allows you to position the Hose Drop on any side of the vehicle and to fold the extraction system against the wall and out of the way. The Articulating Crane will reach as far as 10m (33.5') into the service bay and pass over the top of heavy equipment with ease.


    • Low Temp. Hose: suitable for temperatures up to 250º F
    • High Temp. Hose: suitable for temperatures of 600º F
    • Ultra High temperatures available up to 1200º F
    • "Dyno" hoses for temperatures up to 2500º F
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    001a - How to Install (How to install local exhaust system, Isometric and Exploded Views):
    007 - Written Specifications:
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
    14-015
    Vehicle Exhaust (Car, truck, motorcycle, Heavy equip.) ECONO FLEX - Single Extractor with storage tube - 4'' or 6.5” dia. (475 or 900 CFM)

    *COMING SOON*

    Vehicle exhaust single extractor system c/w Wall/Fan Bracket, 33' of hose, Storage Tube, Nozzle and hose clamps.Available in both Low Temp. as well as High Temp Hose.

    • Low Temp. Hose: suitable for temperatures up to 250º F
    • High Temp. Hose: suitable for temperatures up to 850º F.
    14-006
    Vehicle Exhaust (Car, truck, motorcycle, Heavy equip.) Extension Booms - (Up to 24” Ø and 24,000 CFM)
    vehicle-exhaust-hose-drops-with-extension-booms - Main Image
    The Extension Boom allows to install the hose reel or hose drop the end of a 2m (6.5'), 3m (10') or 4m (13') extension boom. This allows positioning the hose drop on any side of the vehicle, and also allows the extraction system to be folded against the wall and out of the way.
    14-004
    Vehicle Exhaust (Car, truck, motorcycle, Heavy equip.) Hose Reel - Spring Recoil - 4''/5”/6”/8” dia. (300/475/700/1,200/2000 CFM)
    spring-recoil-hose-reel-for-vehicle-exhaust-extraction - Main Image
    Spring recoil hose reels are designed for removing exhaust gas emitted by exhaust pipes of every type of vehicle (cars, trucks, tractors, armored vehicles and means of public transport).

    Mechanical spring hose reels have a locking ratcheting mechanism for precise hose placement on tailpipe or stack. Allows for easy retraction onto reel. They are perfect for bus depots, garages or service stations. They may be mounted under a roof as well as in a wall, supporting column or at the end of an extension boom.
    The hose is lowered manually against spring tension. The reel is equipped with a locking catch, which locks the reel at the required position. A further pulling of the hose releases the locking catch and then the hose reels automatically. Available in both Low Temp. as well as High Temp Hoses.
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    003a - Client Installations - Case Studies with Video:
    004 - Product Videos:
    006 - Local Exhaust and Ventilation Duct 3D Layouts:
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
    14-002
    Vehicle Exhaust (Car, truck, motorcycle, Heavy equip.) Single Extractor w/ pulley kit - 4''/5”/6”/8” dia. (300/475/700/1,200 CFM)
    economical-vehicle-exhaust-extraction-system-with-pulley-suspension - Main Image
    Vehicle exhaust single extractor system c/w rope, pulley kit and saddle. Available in both Low Temp. as well as High Temp Hose.

    Adjustable drop height via pulley and rope system. Used in high temp vehicle exhaust applications.
    • Low Temp. Hose: suitable for temps. up to 250º F
    • High Temp. Hose: suitable for temps. up to 600º F.
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    001a - How to Install (How to install local exhaust system, Isometric and Exploded Views):
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
    14-013
    Vehicle Exhaust (Car, truck, motorcycle, Heavy equip.) Single Extractor w/ strap - 4''/5”/6”/8” dia. (300/475/700/1,200 CFM)
    vehicle-exhaust-single-extractor-with-suspension-strap - Main Image
    Vehicle exhaust single extractor system c/w saddle and strap suspension support. Available in both Low Temp. as well as High Temp Hose.

    Vehicle exhaust single extractor system c/w saddle and strap suspension support. Available in both Low Temp. as well as High Temp Hose.
    • Low Temp. Hose: suitable for temperatures up to 250º F
    • High Temp. Hose: suitable for temperatures up to 600º F.
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    14-073
    Vehicle Exhaust (Trucks & Heavy equipment.) Herculean +H-MAX Articulating Crane Drop with Hose reel and RCA nozzle - 8/10/12/14 inch dia Hoses
    vehicle-exhaust--extended-reach-herculean-hmax-crane-drop-hose-reel - Main Image
    The VE Articulating Crane with hose reel allows you to position the Hose Drop on any side of the vehicle and to fold the extraction system against the wall and out of the way. The Articulating Crane will reach far into the service bay and pass over the top of heavy equipment with ease.
    • Low Temp. Hose: suitable for temperatures up to 250º F
    • High Temp. Hose: suitable for temperatures of 850º F
    • Custom temperature range available upon request
    Attachments
    001a - How to Install (How to install local exhaust system, Isometric and Exploded Views):
    14-072
    Vehicle Exhaust (Trucks & Heavy equipment.) Herculean Articulating Crane Drop with extraction arm - 8/10/12/14 inch dia Hoses
    vehicle-exhaust-herculian-heavy-duty-crane-boom-with-extraction-arm - Main Image
    The VE Articulating Crane Drop with high temp "Self-Supporting" extraction arm allows you to position the nozzle/hood directly over the tailpipe of the vehicle without any mechanical connection. The entire assembly folds out of the way and against the wall (if applicable) the extraction system against the wall and out of the way. The Articulating Crane will reach as far as 10m (38')into the service bay and pass over the top of heavy equipment with ease.
    • Low Temp. Hose: suitable for temperatures up to 250º - 350º F
    • High Temp. Hose: suitable for temperatures of 850º - 1000º F
    • Ultra High temperatures available up to 2500º - 3500º F
    14-071
    Vehicle Exhaust (Trucks & Heavy equipment.) Herculean Crane Drop for Hose - 8/10/12/14 inch Hoses
    vehicle-exhaust-high-reach-herculean-crane-drop-for-extraction-hose - Main Image
    The VE Articulating Crane Drops allows you to position the Hose Drop on any side of the vehicle and to fold the extraction system against the wall and out of the way. The Articulating Crane will reach as far as 10m (33.5') into the service bay and pass over the top of heavy equipment with ease.


    • Low Temp. Hose: suitable for temperatures up to 250º F
    • High Temp. Hose: suitable for temperatures of 850º F
    • Ultra High temperatures available up to 3500º F
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    004 - Product Videos:
    14-045
    Vehicle Exhaust - Sliding Hose Reel System
    vehicle-exhaust-sliding-spring-recoil-hose-reel-on-exhaust-rail - Main Image
    The Sliding Hose Reel System is a versatile system that can be used on different vehicle applications. The ability to move the hose reel the length of the track provides great mobility of where the capture of source is needed.
    14-011
    Vehicle Exhaust Accessories (Car, truck, Heavy equip.) Hoses, Nozzles, Hose clamps, couplers, WYE’s.
    vehicle-exhaust-nozzles-fittings-and-accessories - Main Image
    Vehicle Exhaust Accessories, dual tailpipe connectors, extension nozzles, magnetic hoods, duct fittings, and other accessories for all vehicle exhaust systems.

    • Hoses
    • Tailpipe Nozzles
    • Hose Clamps
    • Overhead Stack Nozzles
    • Dual Tailpipe 'Y' Fittings and assemblies
    • Etc.
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    001a - How to Install (How to install local exhaust system, Isometric and Exploded Views):
    003a - Client Installations - Case Studies with Video:
    14-010
    Vehicle Exhaust Rails
    vehicle-exhaust-extraction-rails-and-hoses - Main Image
    Our rail systems serve mobilize source capture devices and transport of contaminated fumes safely away from the working environment. These rails can be used for a variety of applications. Additionally, they can simple Hose drops with balancers (As shown in the image to the right) or more ergonomic by adding a hose reel and more 'user friendly' by adding an extractor arm. The working range of the systems is determined by the length of the rails and capture devices. Future expansion is a breeze, by simply adding extra rail, trolleys and or capture devices.
    14-005
    Vehicle Exhaust (Car, truck, motorcycle, Heavy equip.) Hose Reel - Motorized - 4''/5”/6”/8”/10''/12''/14'' dia. (300/475/700/1,200/2000/2900/4300CFM)
    motorized-hose-reel-for-vehicle-exhaust-extraction - Main Image
    Electric - driven hose reels are for removing exhaust gas emitted by exhaust pipes of every type of vehicle (cars, trucks, tractors, armored vehicles). Hose is coiled and lowered easily via a wireless remote controller.

    They are perfect for bus depots, garages, service stations and repair shops. One universal hose reel allows the attaching of hoses of different diameters, lengths, and temperature ratings. The Lev-co hose reel stands out due to its unique high temperature 2500 degree bearings mounted within is side plates, duct connection and supporting frame. The motor is a sealed IP 66 electric motor with back up coil and recoil handle that allows the reel to be operated when no power is available. The reel may be mounted under a roof, within a ceiling structure as well as in a wall or at the end of an extension boom. Available in both Low Temp. as well as High Temp Hose.
    • Low Temp. Hose: suitable for temperatures up to 250º F
    • High Temp. Hose: suitable for temperatures of 850º F
    • Ultra High temp: suitable for temperatures up to 2500 º F
    NB: This reel is also an excellent solution for heavy welding, gouging, plasma and flame cutting.
    Attachments
    001 - Equipment Specification and Dimension Drawings:
    001a - How to Install (How to install local exhaust system, Isometric and Exploded Views):
    017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
