Model

Image for HIGH-TEMP-HOSE.JPG

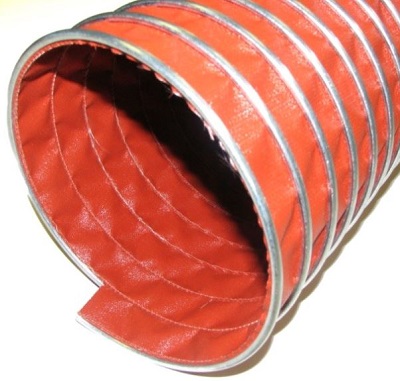

Silicon Fiberglass Hose 600° F (4-16''Ø 2ply Bright Orange)

Flexible high temperature hose (600° F continuous) is ideal for vehicle exhaust gasses and other high temperature applications. Available in sizes from 4" to 16" diameter.

Function:

Silicone Fiberglass duct suitable for stationary high temperature 600° F exhaust control. 2-ply Silicone/Fiberglass Hose, (2) plies for added service life. A popular style for stationary high temperature exhaust control applications. *NOT for use with garage hose reels.

Construction:

  • Red silicone coating
  • Fiberglass cloth
  • High temperature/chemical application
  • High pressure rated
  • Flame retardant
  • Extremely tear resistance
  • Low smoke
  • Water and oil resistance
  • Exterior galvanized steel helix
  • No glues or adhesive
  • Excellent for welding exhaust application
  • Excellent resistance against molten splatter
  • Manufactured in standard 25' lengths
  • Custom lengths available on request

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
PT-SFH-8 9"H x 9"W x 13"D 26 lbs
PT-SFH-6 7"H x 7"W x 13"D 24 lbs
PT-SFH-5 6"H x 6"W x 13"D 23 lbs
PT-SFH-4 5"H x 5"W x 13"D 22 lbs
PT-SFH-160 7"H x 7"W x 13"D 24 lbs
PT-SFH-16 17"H x 17"W x 13"D 34 lbs
PT-SFH-14 15"H x 15"W x 13"D 32 lbs
PT-SFH-12 13"H x 13"W x 13"D 20 lbs
PT-SFH-10 11"H x 11"W x 13"D 28 lbs

Key Buying Criteria:

External Wear Strip: Designed for durability, the external wear strip is perfect for applications where the hose will be dragged across surfaces, offering superior protection against abrasion and extending the hose's lifespan
Lightweight: Exceptionally easy to handle and maneuver, this hose is an excellent choice for use with high-temperature extraction arms, providing flexibility and ease of operation without sacrificing performance
Low Cost:Offering exceptional value, this hose ranks among the most affordable options in the 600° F temperature range, making it a budget-friendly solution without compromising on quality or reliability
4 to 1 Compression Ratio:With its 4:1 compression ratio, this hose can be conveniently stored in a compact form, saving valuable space while maintaining its effectiveness and flexibility when expanded for use

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding Fumes
  • Vehicle Exhaust
  • Gasses
  • High Temperature Air
  • VOCs
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
PT-SFH-4 Silicone fiberglass hose 4" (100mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.
PT-SFH-5 Silicone fiberglass hose 5" (125mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.
PT-SFH-6 Silicone fiberglass hose 6" (150mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.
PT-SFH-160 Silicone Fiberglass Hose 6.33" (160mm)Ø - not suitable for hose reels.
PT-SFH-8 Silicone fiberglass hose 8" (200mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.
PT-SFH-10 Silicone fiberglass hose 10" (250mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.
PT-SFH-12 Silicone fiberglass hose 12" (300mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.
PT-SFH-14 Silicone fiberglass hose 14" (350mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.
PT-SFH-16 Silicone Fiberglass Hose 16" (400mm)Ø, not suitable for hose reels - Sold per ft. 25' min.
