Model

06-007

model_icon

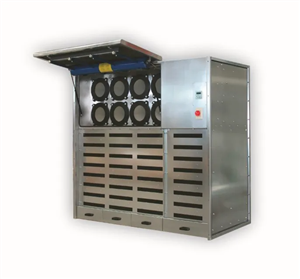

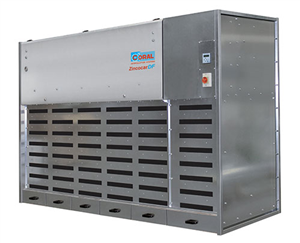

ZINCOCAR DF - Back & Side Draft Systems

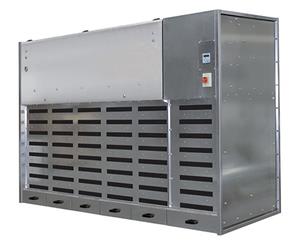

The Zincocar is a filter wall with high-efficiency cartridges designed for suction and filtering of dust, smoke and fumes.

Function:

The ZINCOCAR DF is a "Plug & Play" filter wall, with easy maintenance, maximum filtration efficiency, and stand-alone positioning.

Available Options:
  • Variable Frequency Drives
  • Modular extended roof
  • Filter Options
  • Light
  • Sound proof plenum for air outlet
  • Side modular wall in Lexan or in galvanized sheet metal

Construction:

  • 3 kW fan. 7.5 hp, 3ph, 208-230/460V 60Hz 3490 rpm
  • 8 cartridge filters
  • Easy dust disposal thanks to a wheeled container
  • Crane eyelets and forklift lifting points
  • Low noise due to the high efficiency of the installed backward curved fan
  • Soundproofed centrifugal fan positioned on the upper part of the cabinet
  • Equipped with a cyclic programmer for automatic cleaning of the filtering cartridges with an ON/OFF switch and compressed air

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
zincocar 86"H x 45"W x 75"D 1256 lbs

Key Buying Criteria:

  • Plug and Play
  • Easy filter maintenance
  • Energy saving, reducing heating and Air conditioning costs
  • Filtered air recirculation in the work area
  • Easy installation with a compressed air connection and electric power
  • Ideal when at source exhaust is difficult or inaccessible, or where ductwork installation is complicated or not suitable
  • Designed for Air-conditioned or heated workshops to avoid energy waste in exhausting the air outdoor
  • When recycling the outside air is a must
  • Environments where the source of pollutant/smoke is changing depending on process
  • When local exhaust performed by portable units is insufficient or weak

Suitable For:

Top 5 contaminants/processes/applications:

  • VOC's, Odors, and Fumes
  • Wood, Steel, and Grinding Dusts
  • Welding Fumes
  • Dust from working with Inert Materials
  • Spray Metallizing
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
zincocar ZINCOCAR DF 1.5 sanding booth for dust and smokes with 8 cartridge filters. 3 kW fan. 7.5 hp, 3ph, 208-230/460V 60Hz electrical feeding. 3490 rpm.

Frequently bought together these options:


Part # Qty Description
VFD-KIT-1HP-115-230-3 1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3 2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3 3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
