WFD - Wall Flex Duo - Weld Fume, Dusts & Gases - Self Cleaning filters - 1000 to 2600 CFM - PES

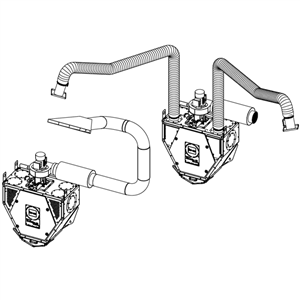

The Wall Flex Duo is an ideal solution for SINGLE or DUAL workstations that require “capture at source” and/or ambient collection as well as filtration of airborne contaminants such as welding fumes, grinding dust, etc. This solution comes pre-engineered and ready to use. The (2) "self-supporting” extraction arms offer at source capture of contaminants. The adjustable inlets capture fugitive emissions in an ambient/general ventilation fashion. Exhaust air can be optionally distributed through “Push-Pull” high velocity jets that project the air over 50’ & de-stratify the air in the upper echelons of the facility. This allows for best dilution of fugitive emissions (fumes not captured at source). In all cases, the contaminated air is filtered and returned to the facility. The Wall Flex Duo comes typically equipped with the following components:
  • Direct mount fan (1.5 HP, 115/1/60) Optional: 3, 5, 7.5, & 10 HP
  • High efficiency “Nano-fiber” cartridge filter
  • Filter cleaning system
  • Cam-lock dust tray
  • Dual blowback dampers
  • (2) Extraction arms, up to 43’ in length
  • 1.1 KW (1.5 HP)/115V/1/60Hz fan
  • Pre-wired switch
  • Motor overload
  • Cord and plug

Function:

The Wall Flex Duo is an ideal solution for SINGLE or DUAL workstations that require “capture at source” and/or ambient collection as well as filtration of airborne contaminants such as welding fumes, grinding dust, etc. This solution comes pre-engineered and ready to use. The (2) "self-supporting” extraction arms offer at source capture of contaminants. The adjustable inlets capture fugitive emissions in an ambient/general ventilation fashion. Exhaust air can be optionally distributed through “Push-Pull” high velocity jets that project the air over 50’ & de-stratify the air in the upper echelons of the facility. This allows for best dilution of fugitive emissions (fumes not captured at source). In all cases, the contaminated air is filtered and returned to the facility. The Wall Flex Duo comes typically equipped with the following components:
  • Direct mount fan (1.5 HP, 115/1/60) Optional: 3, 5, 7.5, & 10 HP
  • High efficiency “Nano-fiber” cartridge filter
  • Filter cleaning system
  • Cam-lock dust tray
  • Dual blowback dampers
  • (2) Extraction arms, up to 43’ in length
  • 1.1 KW (1.5 HP)/115V/1/60Hz fan
  • Pre-wired switch
  • Motor overload
  • Cord and plug

Construction:

The filter box is made of powder coated 12-14-16 gauge sheet steel sheet. It comes complete with integrated wall bracket, extraction arm brackets, and all necessary installation components. Please note: Ducted systems will require duct and sheet metal components to be supplied by others.
Please note: extraction arms longer than 11' are required to be mounted to a column or wall and not to the underside of the filter unit. Additional sheet metal fittings and/or hoses and/or hose clamps may be required.

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
WFD-1000-00-R2-WMOUP 0"H x 0"W x 0"D 0 lbs
P-171-Rental 15"H x 12"W x 53"D 45 lbs
P-171 15"H x 12"W x 53"D 45 lbs
P-169 13"H x 10"W x 34"D 28 lbs
P-168 13"H x 10"W x 34"D 28 lbs
P-167 13"H x 10"W x 34"D 28 lbs
P-146 15"H x 12"W x 65"D 66 lbs
P-145 12"H x 15"W x 54"D 62 lbs
P-144 15"H x 12"W x 54"D 52 lbs
P-143 14"H x 12"W x 37.5"D 46 lbs
P-010 12"H x 10"W x 65"D 56 lbs
P-009 12"H x 10"W x 65"D 52 lbs
P-008 12"H x 10"W x 53"D 42 lbs
P-007 12"H x 10"W x 34"D 36 lbs
P-006 12"H x 10"W x 34"D 35 lbs
P-003 14"H x 11"W x 54"D 35 lbs
P-002 13"H x 10"W x 34"D 28 lbs
BDT-ARM-160-1500 13"H x 10"W x 34"D 28 lbs

Part # Qty Description
WFD-1000-00-R2-WMOUP 1000 CFM Wall Flex high efficiency filtration system, manual Vibra-Pulse cleaning system, hopper with dust drawer and two connection ports for extraction arms.
  • Fan & motor starter not included
WF-DUO-2.0HP-NC Standard WF DUO without arms complete with the following features:
  • 12/14/16 ga. all steel construction
  • Exhaust fan 575V/3/60 (upgraded to 2HP, 1550 CFM)
  • Self-Cleaning filter system
  • Blow back dampers
  • All steel 5 Litre dust tray/drawer
WF-DUO-2-NA-2.0HP-2 Standard WF DUO without arms complete with the following features:
  • 12/14/16 ga. all steel construction
  • Exhaust fan 575V/3/60 (upgraded to 2HP, 1550 CFM)
  • Self-Cleaning filter system
  • Blow back dampers
  • All steel 5 Litre dust tray/drawer
WF-DUO-2-NA-3HP Standard WF DUO without arms complete with the following features:
  • 12/14/16 ga. all steel construction
  • Exhaust fan 575V/3/60 (upgraded to 3HP, 2000 CFM)
  • Dual function - "Push Pull" air vents or "Source Capture" connections to extraction arms
  • Self-Cleaning filter system
  • Blow back dampers
  • All steel 5 Litre dust tray

6.33'' (160mm)Ø - Extraction Arms - Arm only
Part # Qty Description
BDT-ARM-160-1500 5’ (1500mm) Flexi-I Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.). Complete with damper & turning flange
P-002 7’ (2000mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface. Complete with damper & horizontal surface mounting bracket
P-003 10’ (3000mm) Flexi Extraction Arm 6.33" (160mm)Ø for mounting to horizontal surface. Complete with damper & horizontal surface mounting bracket
EX-ARM-160-1500 5' (1500mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket
EX-ARM-160-2000 7’ (2000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket
EX-ARM-160-3000 10' (3000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket
EX-ARM-160-4000 14' (4000mm) Flexi-l Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket
EX-ARM-160-5000 17' (5000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket
P-167 5’ (1500mm) Flexi-II Extraction Arm 8" (200mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.). Complete with damper & turning flange
P-168 7’ (2000mm) Flexi-I Extraction arm 6.33" (160mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.). Complete with damper & turning flange
P-169 7’ (2000mm) Flexi-I Extraction 6.33" (160mm)Ø arm for mounting to horizontal surface (EG: Mobi Flex, Table, etc.). Complete with damper & turning flange

8" (200mm)Ø - Extraction Arms - Arm only
Part # Qty Description
EX-ARM-200-2000 7' (2000mm) Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
EX-ARM-200-3000 10' (3000mm)Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
EX-ARM-200-4000 14' (4000mm) Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
EX-ARM-200-5000 17' (5000mm)Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
P-171 10' (3000mm) Flexi II Extraction Arm 8" (200mm)Ø for mounting to horizontal surface (EG: Mobi Flex, Table, etc.) Complete with damper & turning flange
P-171-Rental Rental 10' (3000mm) Flexi II Extraction Arm 8" (200mm) for mounting to horizontal Surface (EG: Mobi Flex, Table, etc.). Complete with damper & horizontal surface mounting bracket

Frequently bought together these options:


Part # Qty Description
WF-DUO-2-10-1.5HP 1200 CFM Wall Flex high efficiency filtration system complete with:
  • 1.5 HP direct mount P-Max fan 120V/1/60 TEFC motor
  • Manual Vibra-Pulse cleaning system
  • Hopper with dust drawer & (2) 10' extraction arms
  • Complete with plug & switch
WF-DUO-2-14-1.5HP 1200 CFM Wall Flex high efficiency filtration system complete with:
  • 1.5 HP direct mount P-Max fan 120V/1/60 TEFC motor
  • Manual Vibra-Pulse cleaning system
  • Hopper with dust drawer & (2) 14' extraction arms
  • Complete with plug & switch
WF-DUO-2-17-1.5HP 1200 CFM Wall Flex high efficiency filtration system complete with:
  • 1.5 HP direct mount P-Max fan 120V/1/60 TEFC motor
  • Manual Vibra-Pulse cleaning system
  • Hopper with dust drawer & (2) 17' extraction arms
  • Complete with plug & switch
WF-DUO-2-5-1.5HP 1200 CFM Wall Flex high efficiency filtration system complete with:
  • 1.5 HP direct mount P-Max fan 120V/1/60 TEFC motor
  • Manual Vibra-Pulse cleaning system
  • Hopper with dust drawer & (2) 5' extraction arms
  • Complete with plug & switch
WF-DUO-2-7-1.5HP 1200 CFM Wall Flex high efficiency filtration system complete with:
  • 1.5 HP direct mount P-Max fan 120V/1/60 TEFC motor
  • Manual Vibra-Pulse cleaning system
  • Hopper with dust drawer & (2) 7' extraction arms
  • Complete with plug & switch

Part # Qty Description
PG-10-1 Differential pressure gage.
  • Range: 0-10in w.c.
  • Accuracy: ±5%
  • Temperature range 20 to 120 ºF
PG-5 Differential pressure gage.
  • Range: 0-5in w.c.
  • Accuracy: ±5%
  • Max pressure 30PSI
  • Temperature range 20 to 120 ºF
  • 3/16" barbed hose connection

Part # Qty Description
EAF-10HP 10 HP Fan Upgrade (2000-2800 CFM) 3 phase only.
  • Switch & plug by others
  • Model P-156
EAF-2HP 2HP Fan Upgrade (900 CFM - 1500 CFM) 3 phase only.
  • Switch & plug by others
  • Model P-153
EAF-3HP 3HP Fan Upgrade (1100CFM - 2000 CFM) 230v/3 phase only.
  • Switch & plug by others
  • Model P-154
EAF-5HP 5 HP Fan Upgrade (1500-2200 CFM) 3 phase only.
  • Switch & plug by others
  • Model P-155
EAF-7.5HP 7.5 HP Fan Upgrade (2000-2800 CFM) 3 phase only.
  • Switch & plug by others
  • Model P-156

Part # Qty Description
WF-DUO-CART Mobile cart for the wallflex duo.
  • Base Plate
  • 2 side crossbars
  • 1 rear crossbar
  • 4 legs
  • 2 ULTRA DUTY casters with breaks
  • 2 ULTRA DUTY casters
    		•

    Part # Qty Description
    SIL-18 Silencer for P-Max series fan, 18" (200mm) (for use with P-Max Fans).
    SIL-20 Silencer for P-Max series fan, 20" (200mm) (for use with P-Max Fans).
    SIL-26 Silencer for P-Max series fan, 26" (200mm) (for use with P-Max Fans).
    SIL-4 Silencer for P-Max series fan, 4" (200mm) (for use with P-Max Fans).
    SIL-8 Silencer for P-Max series fan, 8" (200mm) (for use with P-Max Fans).

    Part # Qty Description
    P-004-WFC-24 Combo Filter - Spun bond polyester Pre-filter & Deep Bed activated carbon 23.5" deep.
    7FR0-2020-BB 24" (610mm) FR Nano-Fiber Blend Cartridge for DCH-2, PCH-2 DT-1700 & Wall Flex Duo's. Complete with (2) Vibra-Pulse tubes
    BB-2416-PTFE Teflon Replacement Main Filter (PTFE) cartridge.
