Vehicle Exhaust (trucks & heavy equipment) Herculean Extension + Herculean + H-MAX Articulating Crane Drop with Hose reel & RCA nozzle - Ø4'' /5'' /6'' /8'' Hoses

Function:

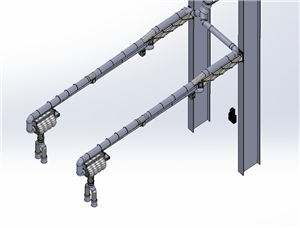

This system merges a space-saving hose reel drop with an articulating crane arm to provide point-of-use exhaust extraction in smaller workshops or low-clearance environments. The reel allows operators to easily extend or retract the hose as needed, enabling fast positioning of the nozzle or hood over vehicle exhaust outlets or other emission points. Once deployed, it immediately captures contaminants before they disperse into the workspace.

Available with either a motorized or spring-return hose reel, the system delivers dependable, one-person operation for both overhead and undercarriage exhaust capture. The articulating boom offers full mobility across the work zone and folds neatly against the wall when not in use, preserving valuable floor area.

The hose reel assembly is compatible with 4”, 5”, 6”, and 8” diameter hoses, allowing for flexible application in automotive, fleet maintenance, and light industrial environments. Capture devices, fans, and duct adapters can be configured to match the target contaminants, temperature ratings, and space constraints.

Main Options include:

• Motorized Hose Reel (120V Centris Motor, 200 N·m torque)
• Spring-Return Hose Reel
• Articulating Crane Arm (H-Series)
• Fixed Boom Extensions (4’ or 10’ available)
• Ø4”, Ø5”, Ø6”, or Ø8” Hose Reels
• Direct-Mount Fans (1–10 HP)
• Overhead Stack Adapters
• Variable Frequency Drives
• Low Temperature Hose: suitable for applications up to 300°F (150°C)
• High Temperature Hose: suitable for applications up to 850°F (454°C)
• Custom Temperature Ranges available upon request

Construction:

The boom assembly is built from powder-coated and galvanized steel with ball-bearing pivot joints and integrated disc-brake friction locks at each articulation point for smooth, stable positioning. Each section provides 180° rotation for complete coverage of the workspace.

The hose reel is constructed from 10–18 gauge galvanized steel and can be equipped with either a 120V Centris motor or spring-retract mechanism. The motorized version draws 790 Watts at 6.6 Amps and delivers 12 full hose rotations. All reels are fitted with sealed bearings and laser-cut Teflon supports for long-term reliability and minimal maintenance. Hoses are steel-reinforced, temperature-rated, and available in various lengths and materials to suit the specific application.

Key Buying Criteria:

• Compact Design: Ideal for smaller bays, low-ceiling facilities, and light-duty service areas
• Flexible Reach: Articulating boom and hose reel allow coverage of multiple service points
• Efficient Performance: Handles up to 2000 CFM and 6000 FPM for localized contaminant capture
• Temperature Versatility: Choose between 300°F low-temp or 850°F high-temp hoses to match your process
• Custom Temperature Options: Custom-rated hoses available upon request for special applications
• One-Person Operation: Quick and simple hose deployment and retraction
• Low Maintenance: Durable galvanized components with sealed bearings and Teflon supports
• Space Saving: Folds neatly against wall when not in use

Suitable For:

Top 5 contaminants/processes/applications:

• Gasoline Exhaust Fumes
• Diesel Exhaust Fumes
• Light-Duty Vehicle Maintenance
• Fleet Service Garages
• Small Equipment Repair
• Motorcycle and ATV Exhaust Extraction

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
