Model Number

01-042

model_icon

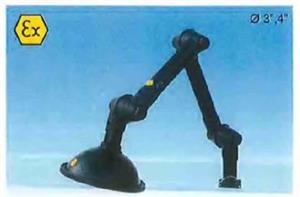

TERFU Lab & Bench Top - Extraction Arms

TERFU arms are excellent small to midsized arms designed with tabletop use in mind. Our arms can be mounted in a variety of configurations, either tabletop, ceiling, or wall-mounted configurations available.

These arms come in 3 diameters. 50, 75, and 100mm.

Function:

The TERFU is a local extractor with friction joints designed for use in workplaces where great flexibility is required e.g. laboratories, production environments, and light industrial applications.

Simple, easy function:
  • The friction joints have a large frictional diameter and are supported with ball bearings. The degree of friction is easily adjusted with a one-hand knob.
  • Adapted support springs balance out the weight of the arm.
  • All arms are equipped with a 360 degree rotational swivel-mounted in place. An airtight damper is fitted as standard.
  • All sizes are suitable for table mounting, ceiling mounting and wall mounting.
  • The same suction arm is used for suspended mounting from ceilings and walls.
  • Ceiling and wall brackets both consist of an anodized square aluminum profile for durable surfaces and high stability.
  • All ceiling brackets are available in eight standard lengths up to 80 inches. Longer lengths can be supplied by special orders.
  • To further simplify your mounting and provide a cleaner look, an MTI CT escutcheon plate can be used to cover rough cut holes in the false ceiling.
Terfu is available in two versions:
  • Standard: For use in most laboratory environments. Joints made from PP and tubes from aluminium
  • PP: For environments containing high concentrations of corrosive pollutants. Internal epoxy coating is recommended for ceiling installations. Joints and tubes made from polypropylene

Construction:

  • Ceiling and wall brackets consist of anodized square section aluminum profile for high finish and good stability. The 050 and 075 sizes use the same brackets, while the 0100 size has its own selection of brackets
  • All ceiling brackets are available in eight standard lengths up to 2 m. Longer lengths can be supplied to special orders
  • To further simplify your mounting and provide a neat finish, escutcheon plate MTI CT can be used if it is necessary to cut holes in the false ceiling
  • There are six hoods adapted for Terfu 50 & 75 and four specially adapted hoods for Terfu 100. A suitable airflow is from 20 l/s to 125 l/s. 75 m /h - 450 m /h . The TERFU system is design protected with several patents- and design protections pending
  • Simple, easy function. The friction joints have a large frictional diameter and are supported with ball bearings. The degree of friction is easily adjusted with a one-hand knob
  • Adapted support springs balance out the weight of the arm. All arms are equipped with a 360-degree rotational swivel-mounted in place. An airtight damper is fitted as standard

Key Buying Criteria:

  • Terfu’s joints contain ball bearings and have a large frictional diameter
  • Support springs balance out the weight of the arm360° rotation
  • Tight-sealing damper as standard
  • Easy to positioning to the pollution source positional stability supplied assembled for ease of installation

Suitable For:

Top 5 contaminants/processes/applications:

  • Laboratories
  • Schools, universities
  • Hospitals
  • The pharmaceutical industry
  • Hairdressing salons
  • The electronics industry
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
