Model Number

01-014

model_icon

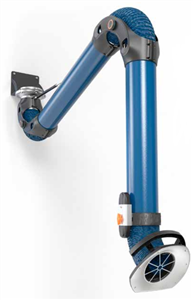

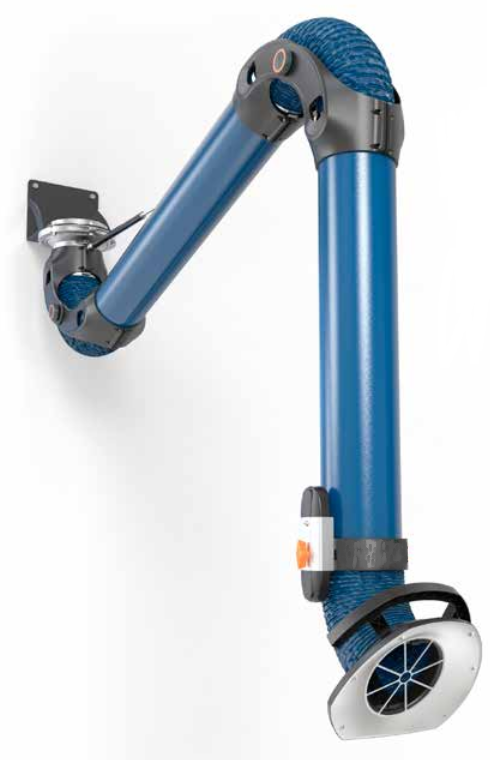

PRX - Extraction Arms

An excellent solution for a variety of contaminants, PRX extraction arms have high reach capabilities, and options of 5-inch and 6-inch diameter hose.

Function:

The PRX is extremely easy to maneuver, while at the same time offering great positional stability, even with the arm fully extended. The suction nozzle can be angled through 90° in all directions, and the wall attachment has a 360° swivel function. The smooth interior of the suction tube makes the extractor very easy to clean.

The external position of the link joints provides a pressure drop that is around 50% lower than that of internal linkage systems. The suction nozzle is made entirely of sheet steel with a quick-coupling system for accessories.

Unique on the market

The PRX is equipped with knobs for adjusting the friction joints. The knob is easy to adjust and provides great flexibility in the desired resistance. This makes the PRX unique on the market today.

The PRX arm is based on an externally supported design that provides:
  • Low pressure drop
  • Low risk of blockage
  • Low energy consumption
  • Quiet operation

Construction:

  • Lengths: 7, 10, 14, 20, 26, and 32 feet
  • Diameters: 5, 6, and 8 inch
  • Partially assembled with flame-resistant PVC hose and wall bracket
  • Externally supported joints offer 50% lower pressure drop
  • Friction brake offers easy maneuverability and keep the arm retained

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
PRX 3000-125 1"H x 1"W x 1"D 0 lbs

Key Buying Criteria:

  • Easy to maneuver with great positional stability
  • Suction nozzle made of sheet steel with a quick-coupling system for accessories
  • Cast aluminum attachment with a 360° swivel function
  • Knobs for adjusting friction joints
  • External link joints = low-pressure drop
  • Easy to clean

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding smoke
  • Light Dust
  • Food and Pharma Dusts
  • VOC's
  • Low-Temperature exhaust gases below 150 degrees
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Frequently bought together these options:

Part #
Qty
Description
PRX 2000-160
7' x 6" Ø extraction arm with tubes in powder coated blue aluminum tubes, hose in blue PVC hose and wall bracket in powder coated sheet steel. The suction nozzle can be angled through 90° in all directions (360°). In addition, the wall and ceiling attachment has a 360° swivel function. The Arm is supported by an external gas spring which balances the arms weight. Manual damper provided as standard.
Part #
Qty
Description
PRX 3000-125
5" Diameter x 118" Length externally supported extraction arm.
PRX 3000-160
6" Diameter x 118" Length externally supported extraction arm.
Part #
Qty
Description
PK-T4-160
Conical round aluminum hood 6 " Ø arm (Black) with LED light button for control of damper/fan
