Model

02-006

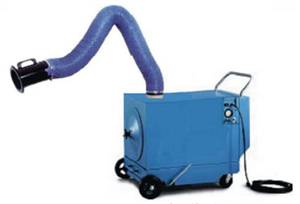

Image for Mobi-Pulse 2.doc.png

Mobi-Pulse 2 - 1500 CFM

The Mobi-Pulse 2 is a portable dual cartridge collector, ideal for medium and heavy-duty maintenance or production welding, grinding, and most dust-producing applications.

Function:

The Mobi-Pulse 2 is an all-steel construction with high reliability and a small shop footprint. The unit is easy to use and move around, providing user-friendly operation during arm positioning and maintenance. It has a nominal airflow of 800 to 1500 CFM.

Available Options:
  • Filter Options
  • Hood and Nozzle Accessories
  • Extraction Arms
  • Fan/Motor Upgrades or Options
  • Preventative Maintenance Pressure Gauges
  • variable Frequency Drives
  • Silencer Options

Construction:

  • 12, 14, and 16 ga. welded steel cabinet with powder-coated finish
  • Comes complete with a 10' Flexi II Extractor Arm 8" (200mm)Ø with damper
  • (2) Clean2® filter cartridges (150ft² of media each)
  • Manual VIBRA-PULSE® filter cleaning system
  • TEFC motor
  • Removable 10-gallon external dust drawer
  • 8” (200mm) front wheels, and 5” (125mm) rear swivel casters
  • Full-width handle
  • Removable end cap for easy access to filter
  • Removable back panel for access to the direct-drive motor/blower compartment which is wired to a side junction box.

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
MPLS2-200-4M "H x "W x "D 0 lbs
MPLS2-200-3M 48"H x 36"W x 55"D 445 lbs
MPLS2-200-2M 1"H x 1"W x 1"D 200 lbs
MPLS2-160-4M 48"H x 60"W x 36"D 300 lbs
MPLS2-160-3M 48"H x 60"W x 36"D 300 lbs
MPLS2-160-2M 48"H x 60"W x 36"D 300 lbs

Key Buying Criteria:

  • 115 Volt Power: Ability to plug into any standard circuit while maximizing total flow rate and usage around the facility. (3-Phase voltage optional)
  • Complete, Pre-Engineered Unit: Guaranteed suitability. Versatile, easy to use, and no installation required.
  • Spark Proof Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability. No wear items such as pulleys or belts to replace.
  • "Secure Seal" Filter Mounting: Eliminates contaminant bypass around filters.
  • Efficient Source Capture: 99.5% filter efficiency produces cleaner air.
  • Fire/Melt-proof Metal Construction: No plastic structure. Avoids high priced replacement costs.
  • Integrated Spark Deflector: Reduces fire risk in high sparking applications.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Low Profile Cabinet: Low center of gravity for easy maneuverability and arm positioning.
  • Heavy Duty 25-ft. Power Cord: High visibility 12 gauge cord. Maximizes system portability and positioning during operation.

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding Smoke
  • Grinding Dust
  • Machining Dust
  • Composite dust
  • Fiberglass Dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
MPLS2-160-2M Mobi-Pulse 2 Filtration unit complete with:
  • (1) only 7' Flexi-I Extraction arm 6.33" (160mm)Ø with damper
  • (2) filter cartridges (150ft² of media each)
  • Manual VIBRA-PULSE filter cleaning system
  • A 1.5 Hp 115/1/60Hz TEFC motor, centrifugal blower, removable 5 gallon dust drawer, 8” (200mm) front (fixed) & 5" (125mm) rear (swivel) casters
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety.
MPLS2-160-3M Mobi-Pulse 2 Filtration unit complete with:
  • (1) only 10' Flexi-I Extraction arm 6.33" (160mm) with damper
  • (2) filter cartridges (150ft² of media each)
  • Manual VIBRA-PULSE filter cleaning system
  • A 1.5 Hp 115/1/60Hz TEFC motor, centrifugal blower, removable 5 gallon dust drawer, 8” (200mm) front (fixed) & 5" (125mm) rear (swivel) casters
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety.
MPLS2-160-4M Mobi-Pulse 2 Filtration unit complete with:
  • (1) only 14' Flexi-I Extraction arm 6.33" (160mm)Ø with damper
  • (2) filter cartridges (150ft² of media each)
  • Manual VIBRA-PULSE filter cleaning system
  • A 1.5 Hp 115/1/60Hz TEFC motor, centrifugal blower, removable 5 gallon dust drawer, 8” (200mm) front (fixed) & 5" (125mm) rear (swivel) casters
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety.
MPLS2-160-5M Mobi-Pulse 2 Filtration unit complete with:
  • (1) only 17' Flexi-I Extraction arm 6.33" (160mm)Ø with damper
  • (2) filter cartridges (150ft² of media each)
  • Manual VIBRA-PULSE filter cleaning system
  • A 1.5 Hp 115/1/60Hz TEFC motor, centrifugal blower, removable 5 gallon dust drawer, 8” (200mm) front (fixed) & 5" (125mm) rear (swivel) casters
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety.
MPLS2-200-2M Mobi-Pulse 2 Filtration unit complete with:
  • (1) only 7' Flexi-II Extraction arm 8" (200mm)Ø with damper
  • (2) filter cartridges (150ft² of media each)
  • Manual VIBRA-PULSE filter cleaning system
  • A 1.5 Hp 115/1/60Hz TEFC motor, centrifugal blower, removable 5 gallon dust drawer, 8” (200mm) front (fixed) & 5" (125mm) rear (swivel) casters
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
MPLS2-200-3M Mobi-Pulse 2 Filtration unit complete with:
  • (1) only 10' Flexi-II Extraction arm 8" (200mm)Ø with damper
  • (2) filter cartridges (300ft² of media each)
  • Manual VIBRA-PULSE filter cleaning system
  • A 1.5 Hp 115/1/60Hz TEFC motor, centrifugal blower, removable 5 gallon dust drawer, 8” (200m) front (fixed) & 5" (125mm) rear (swivel) casters
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
MPLS2-200-4M Mobi-Pulse 2 Filtration unit complete with:
  • (1) only 14' Flexi-II Extraction arm 8" (200mm)Ø with damper
  • (2) filter cartridges (300ft² of media each)
  • Manual VIBRA-PULSE filter cleaning system
  • A 3 Hp 115/1/60Hz TEFC motor, centrifugal blower, removable 5 gallon dust drawer, 8” (200mm) front (fixed) & 5" (125mm) rear (swivel) casters
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
MPLS2-200-5M Mobi-Pulse 2 Filtration unit complete with:
  • (1) only 17' Flexi-II Extraction arm 8" (200mm)Ø with damper
  • (2) filter cartridges (300ft² media each)
  • Manual VIBRA-PULSE filter cleaning system
  • A 5 Hp 115/1/60Hz TEFC motor, centrifugal blower, removable 5 gallon dust drawer, 8” (200mm) front (fixed) & 5" (125mm) rear (swivel) casters
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Frequently bought together these options:


Part # Qty Description
PCH-2-EXAD External AD Module Option for Standard PCH-2 Unit.
PCH-2-EXHE External 99.97% HEPA Filter Option for Standard PCH-2 Unit.
  • QTY (1) filters for future replacement

Part # Qty Description
DCH-2-EXHE External 99.97% HEPA Filter Option for Standard DCH-2 Unit.

Part # Qty Description
DCH-2-PG-10 0-10" MagnaHelic pressure gauge, approximately 5" (125mm)Ø size.
  • Remote mounted
DCH-2-PG-10-RENTAL Rental 0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Remote mounted
PCH-2-PG-6 0-6" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted

Part # Qty Description
HS-2500-160 2500°F Hose Shield for all 6.33" (160mm)Ø hoses.
  • 30" (760mm) in length

Part # Qty Description
DCH-2-EXAD External Adsorber Module Option for Standard DCH-2 Unit.

Part # Qty Description
DCH-2-5HP 5 Hp TEFC motor, 208-230-460-575/3/60Hz, High Flow Option for Standard DCH-2 Unit.
PCH-2-3HP-1PH 3 Hp 1 Phase, TEFC, 230/1/60 Hz, High Pressure Option for Standard PCH-2 Unit.
DCH-2-3HP-3PH 3 Hp TEFC motor, 208-230-460-575/3/60 Hz, High Flow Option for Standard DCH-2 Unit.

Part # Qty Description
DCH-2-S-EXT External Silencer Option for Standard DCH-2 Unit.

Part # Qty Description
7FR0-2027 Teflon Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • VIBRA-PULSE tubes included
7FR0-5020 OEM Cartridge Filter ALH-1/2/6 filter used in explosive & flammable applications such as aluminum dust applications.
7FJ9-9003 99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - METAL FRAME.
7FJ9-9003-W 99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - WOOD FRAME.
7FR0-2020 Flame Retardant Cartridge Filter made of 80/20% Cell/Poly Blend - Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units
  • Complete with Vibra Pulse Tube
7FR0-2020-BB 24" (610mm) FR Nano-Fiber Blend Cartridge for DCH-2, PCH-2 DT-1700 & Wall Flex Duo's
  • Complete with (2) Vibra-Pulse tubes
7FR0-2020-OEM Replacement Filter.
7FR0-2027-OEM Cartridge filter for DC-8, DT3000v2.0, DC-4, DC-6, DC-12, TC-4 and HC-4
  • Complete with Vibra pulse tubes
CHARCOAL-CP20 20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40 40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
