Model

02-003

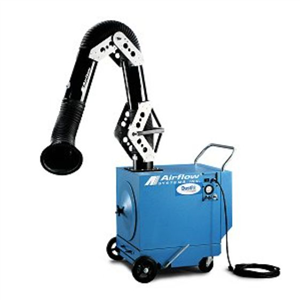

Image for pch-1.jpg

PCH-1 - 1500 CFM

The PCH-1 is a portable self-cleaning dust collector. It is ideal for medium and heavy-duty extraction, production welding, grinding, and various dust-producing applications.

Function:

This single cartridge dust collector has a small shop footprint and is easily movable. The unit has a flow rate of 800 to 1500 CFM and comes with an easy-to-use push-button self-cleaning system.

Main Options available:
  • Extraction Arms
  • Filter Options
  • Fan/Motor Upgrades or Options
  • Sound Attenuation
  • Preventative Maintenance Pressure Gauges
  • Variable Frequency Drives
  • Fan, Light, and other Electrical Accessories

Construction:

  • 12, 14, and 16 ga. welded steel cabinet with powder-coated finish
  • Includes full-width handle
  • Removable end cap for easy access to filter
  • Removable back panel for access to direct drive motor/blower compartment
  • Magnetic motor starter included
  • Complete with a 7' EZ-Arm®
  • 7” (175mm)Ø hose, high flow extractor (with a damper)
  • (1) Clean2® filter cartridges (150ft² of media)
  • Manual VIBRA-PULSE® filter cleaning system built-in
  • 1 HP TEFC motor
  • Backward incline blower
  • Removable 5-gallon external dust drawer
  • 8” (200mm) front wheels
  • 5” (125mm) rear swivel casters

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
PCH-1-1HP-1 90"H x 37"W x 46"D 400 lbs
PCH-1-1.5HP-3 "H x "W x "D 0 lbs
PCH-1-1.5HP-2 "H x "W x "D 0 lbs
PCH-1-1.5HP-1 90"H x 37"W x 46"D 400 lbs

Key Buying Criteria:

  • 115 Volt Power: Ability to plug into any standard circuit while maximizing total flow rate and usage around the facility. (3-Phase voltage optional)
  • Complete, Pre-Engineered Unit: Guaranteed suitability. Versatile, easy to use, no installation required.
  • Spark Proof Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability. No wear items such as pulleys or belts to replace.
  • "Secure Seal" Filter Mounting: Eliminates contaminant bypass around filters.
  • Efficient Source Capture: 99.5% filter efficiency produces cleaner air.
  • Fire/Melt-proof Metal Construction: No plastic structure. Avoids high priced replacement costs.
  • Integrated Spark Deflector: Reduces fire risk in high sparking applications.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Low Profile Cabinet: Low center of gravity for easy maneuverability and arm positioning.
  • Heavy Duty 25-ft. Power Cord: High visibility 12 gauge cord. Maximizes system portability and positioning during operation.

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding Fume
  • Grinding Dust
  • Silica Dust
  • Artifact Restoration dust
  • Food and Pharmaceutical Dusts
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
PCH-1-1.5HP-1 800cfm portable cartridge collector with:
  • (1) 7' long E-Z Arm ® high flow extractor with damper
  • (1) CLEAN-2 ® cartridge filter (150 sq.ft. of media)
  • Manual VIBRA-PULSE ® filter cleaning system
  • 1.5 Hp TEFC motor 115/230/1/60Hz (12/6 amps)
  • Backward incline blower
  • Removable 5 gallon external dust drawer
  • 8" (200mm) front wheels & 5" (125mm) rear swivel casters - 70 dBA
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation prior to shipping.
PCH-1-1HP-1 700 cfm portable cartridge collector with:
  • (1) 7' long E-Z Arm ® high flow extractor with damper
  • (1) CLEAN-2 ® cartridge filter (150 sq.ft. of media)
  • Manual VIBRA-PULSE ® filter cleaning system
  • 1.5 Hp TEFC motor 115/230/1/60Hz (12/6 amps)
  • Backward incline blower
  • Removable 5 gallon external dust drawer
  • 8" (200mm) front wheels & 5" (125mm) rear swivel casters - 70 dBA
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation prior to shipping.
PCH-1-1.5HP-2 800 cfm portable cartridge collector with:
  • (1) 7' long E-Z Arm ® high flow extractor with damper
  • (1) CLEAN-2 ® cartridge filter (150 sq.ft. of media)
  • Manual VIBRA-PULSE ® filter cleaning system
  • 1.5 Hp TEFC motor 230-460/3/60Hz (12/6 amps)
  • Backward incline blower
  • Removable 5 gallon external dust drawer
  • 8" (200mm) front wheels & 5" (125mm) rear swivel casters - 70 dBA
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation prior to shipping.
PCH-1-1.5HP-3 800 cfm portable cartridge collector with:
  • (1) 7' long E-Z Arm ® high flow extractor with damper
  • (1) CLEAN-2 ® cartridge filter (150 sq.ft. of media)
  • Manual VIBRA-PULSE ® filter cleaning system
  • 1.5 Hp TEFC motor 575/3/60Hz (1.5 amps)
  • Backward incline blower
  • Removable 5 gallon external dust drawer
  • 8" (200m) front wheels & 5" (125mm) rear swivel casters - 70 dBA
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation prior to shipping.

Frequently bought together these options:


Part # Qty Description
PCH-1-FD "Fiberdust" Cartridge Option. (Instead of "Clean2" filters)
  • Select this option when dealing with larger particle sizes
PCH-1-UCP UCP Cartridge Option (Instead of Clean2 filters).
PCH-1-EXAD External AD Gas & Vapor adsorption Module Option.
PCH-1-EXDOP External 95% DOP Filter Option.
PCH-1-EXHE External 99.97% HEPA Filter Option.
PCH-1-EXT HE/AD Kit using EXTERNAL HEPA & EXTERNAL AD options
  • Order Charcoal Separately

Part # Qty Description
PCH-1-7E10-DD (1) 10' L E-Z Arm Option for Standard PCH-1 Unit.
  • Note: this is the upgrade cost and already includes the price deduction for the 7' arm
Wall Bracket must be ordered separately
PCH-1-DA-4-DD (2) 8' L EZ Arm Down Flange high flow extractors with dampers, in place of the 7' long E-z Arm.

Part # Qty Description
PCH-1-S-EXT External Silencer Option.

Part # Qty Description
PCH-1-PG-6 0-6" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted
PCH-1-PG-6-Hepa 0-6" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted
  • Use with external hepa

Part # Qty Description
PCH-1-3 PHASE 1.0Hp, TEFC motor, 208-230/460/3/60 Hz Option for Standard PCH-1 Unit in place of 1Hp 1 PH motor. Please note: This option does not add any addition airflow. If more flow is required, please see options # 6004 (PCH-1-HP-1)or # 6005 (PCH-1-HP-3)

Part # Qty Description
PCH-1-AP-1 Off Line Auto-Clean 1 Phase Option for Standard PCH-1 Unit.
PCH-1-AP-3 Off Line Auto-Clean 3 Phase Option.
PCH-1-EXP VENT Explosion vent.
PCH-1-REG Regulator Option for Standard PCH-1 Unit
OM-019/200 Standing Flange for mounting Flexi II arms on DCH/PCH units: 8" (200mm)Ø.
PCH-AD Internal AD option, AD Cartridge 15 lbs capacity.

Part # Qty Description
2AF9-0001 Adsorber module, flat, refillable. (18" x 24" x 2½").
  • Holds 18 lbs. of charcoal
  • Charcoal sold separately
2AF9-0011 Adsorber module, v-bank, refillable for MINI-VAC.
7FJ9-5003 95% @ 0.3 microns DOP Filter for PCH/DCH/DTH/ALH units.
7FR0-2021-1 Cartridge for PCH-1, PCH-2, DCH-1, DCH-2, DC-4, DC-6, DC-8, DC-12, DTH-800, DTH-1700 & DT3000v2.0.
  • Base Filter
7FR0-2027 Teflon Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • VIBRA-PULSE tubes included
7FR0-5020 OEM Cartridge Filter ALH-1/2/6 filter used in explosive & flammable applications such as aluminum dust applications.
CHARCOAL-20 20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-25 25 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-40 40 lbs. of non-recycled coconut shell-based activated charcoal.
CS-350-999 CLEAR SKY SERIES Nano Fiber Filters. Flame Retardant with nano fiber technology. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • Complete with Vibra Pulse Tube
7FJ9-9003-W 99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - WOOD FRAME.
CHARCOAL-200 200 lbs. of non-recycled coconut shell-based activated charcoal.
7FR0-2020 Flame Retardant Cartridge Filter made of 80/20% Cell/Poly Blend - Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units
  • Complete with Vibra Pulse Tube
7FR0-2025 Washable Spunbond filter cartridge for PCH/DCH/DTH, DT-3000V2, Mobi-Pulse, Mobi Flex TC-4, HC-4, DC-4/6/8/12/18 and Wall Flex filter units.
  • Complete with Vibra Pulse Tubes
7FR0-2020 - PTFE Cartridge filter PTFE Polyester media for PCH/DCH/DTH units.
CHARCOAL-CP20 20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40 40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
