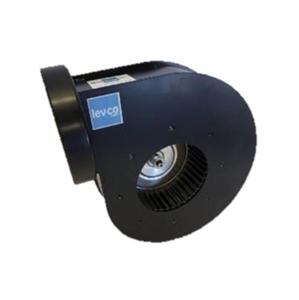

P-Max - Exhaust Fan & Control

The P-Max fan is designed to be a direct mount to extraction arms and hose reels. These fans are a good solution where space is limited due to their compact design. Depending on fan housings and motors, these fans boast flow rates anywhere from 200 - 2,300 CFM.

Function:

P-Max© "Local Exhaust" fans are recommended for applications involving fumes, smoke and light dust. Suitable for direct mounting to a mounting bracket, most extraction arms, filter units, hose reels and simple hose drops.

These fans are versatile in the sense that they can be used for many applications. With good durability and construction, these fans can take on the toughest tasks required of them with ease.

Possible mounting configurations for these fans are atop hose reels and hose drops, directly mounting to a bracket or extraction arm, and most filter units. All Lev-Co P-max fans come in a standard configuration of clockwise rotation/top horizontal discharge. For alternate discharges, please indicate on your purchase order and approved submittal drawings. Alternate rotation is not available.

Main Options:
  • Numerous Motor Options
  • Fan Mounting Options
  • Sound Attenuation
  • Pressure Gauges
  • Hose Connectors and Fittings
  • Variable Frequency Drives
  • Fan Control Panel with Timer
  • Duct Systems

Construction:

  • 16ga. steel fan housing
  • Cast Iron or Aluminum Motor
  • 8" outer diameter outlet
  • Powder-coated
  • Radial impeller with curved blades direct connected to TEFC motor
  • P-Flange for direct duct mounting (Must be ordered separately)

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
P-152-2 24"H x 24"W x 24"D 50 lbs
P-149-2-SS 17"H x 17"W x 17"D 45 lbs

Key Buying Criteria:

  • 100% Weather-proof: Can be mounted outdoors/rooftop.
  • 45 Degree Rotation: Fans are able to be rotated at 45 degree increments to allow for angular up/down discharge.
  • ConfigurableFor a large variety of applications
  • Modular:Easily bolts into an existing ductwork system

Suitable For:

Top 5 contaminants/processes/applications:

  • Cardboard Dust
  • Oil Smoke
  • Fibreglass Dust
  • Car Exhaust Fumes
  • Wood Dust
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part #
Qty
Description
P-149-2-SS
P-Max© direct drive fan 1 HP 208-230V/460V/3/60... 100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"

Stainless Steel Variant

P-152-2
P-Max© direct drive fan 1.5 HP 208-230V/460V/3/60 (use 2HP motor when the TSP is less than 4 w.g.)

100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"

Frequently bought together these options:

Part #
Qty
Description
P-147-55dBA-1
ULTRA LOW NOISE P-Max Fan 115V-220V/1/60 0.5 HP Fan 55dBA @ 3M
P-147-55dBA-2
ULTRA LOW NOISE P-Max Fan 220V-460V/3/60 0.5 HP Fan 55dBA @ 3M
P-147-55dBA-3
ULTRA LOW NOISE P-Max Fan 575V/3/60 0.5 HP Fan 55dBA @ 3M
P-152-55dBA-2
ULTRA LOW NOISE P-Max Fan 230V-460V/3/60 1.5 HP Fan, 55dBA @ 3M
P-149-55dBA-1
ULTRA LOW NOISE P-Max Fan 115V-220V/1/60 1 HP Fan 55dBA @ 3M
P-149-55dBA-2
ULTRA LOW NOISE P-Max Fan 220V-460V/3/60 1 HP Fan 55dBA @ 3M
P-149-55dBA-3
ULTRA LOW NOISE P-Max Fan 575V/3/60 1 HP Fan 55dBA @ 3M
P-152-2HP-55dBA-1
ULTRA LOW NOISE P-Max Fan 120V-220V/1/60 2 HP Fan 55dBA @ 3M
P-152-2HP-55dBA-2
ULTRA LOW NOISE P-Max Fan 220V-460V/3/60 2 HP Fan 55dBA @ 3M
P-152-2HP-55dBA-3
ULTRA LOW NOISE P-Max Fan 575V/3/60 2 HP Fan 55dBA @ 3M
P-152-55dBA-1
ULTRA LOW NOISE P-Max Fan 115V-220V/1/60 1.5 HP Fan 55dBA @ 3M
P-152-55dBA-3
ULTRA LOW NOISE P-Max Fan 575V/3/60 1.5 HP Fan 55dBA @ 3M
Part #
Qty
Description
PG-10
Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-10 pressure gauge. 3/16 inside diameter tubing ordered separately.
Part #
Qty
Description
P-149-2
P-Max© direct drive fan 1 HP 208-230V/460V/3/60... 100% Weather-proof and can be mounted outdoors/rooftop. Fans are able to be rotated at 45 degree increments to allow for angular up/down discharge.
P-149-3
P-Max© direct drive fan 1 HP 575-600V/3/60...100% Weather-proof and can be mounted outdoors/rooftop. Fans are able to be rotated at 45 degree increments to allow for angular up/down discharge.
Part #
Qty
Description
P-152-2HP-2
P-Max© direct drive fan 2 HP 208-230V/460V/3/60
P-152-2HP-1
P-Max© direct drive fan 2 HP 115V/230V/1/60 (use 2HP motor when the TSP is less then 4 w.g.)
P-153-1
2.0 HP direct drive fan 115/230/1/60 with BI self cleaning aluminum wheel, AMCA type B spark resistance (1200CFM@5 wg), 30 Amp service/breaker (time delay) required
  • If direct mounting to a Hose reel, extraction arm, brackets P-045, P-151, or wall flex you will require a flange P-153-FL
  • The required wire grade size #10 Minimum

100% Weather-proof and can be mounted outdoors/rooftop. Fans are able to be rotated at 45 degree increments to allow for angular up/down discharge.
P-153-1-EXP
2.0 HP direct drive fan 230/1/60 with Explosion Proof Motor and BI self cleaning aluminum wheel, AMCA type B spark resistance (1200CFM@5 wg), 30 Amp service/breaker (time delay) required
  • If direct mounting to a Hose reel, Ext. arm, Brackets P-045, P-151, or wall flex you need Flange P-153-FL
  • wire required is grade size #10 Minimum


100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"
P-153-2
2 HP direct drive fan 208-230/460/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.)
  • If you are direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex you will need to order an additional flange part number P-153-FL

100% Weather-proof and can be mounted outdoors/rooftop. Fans are able to be rotated at 45 degree increments to allow for angular up/down discharge.
P-153-2-EXP
2 HP direct drive fan 208-230/460/3/60 with Explosion Proof Motor and BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.)
  • If direct mounting this fan to a Hose reel, Extractor arm, Brackets P-045, P-151, or wall flex you will need to order an additional flange Part Number P-153-FL


100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"
P-153-3
2 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.)
  • If direct mounting this fan to a hose reel, extraction arm, brackets P-045, P-151, or wall flex you will need to order an additional flange Part Number P-153-FL

100% Weather-proof and can be mounted outdoors/rooftop. Fans are able to be rotated at 45 degree increments to allow for angular up/down discharge"
P-153-3-EXP
2 HP direct drive fan 575/3/60 with Explosion Proof Motor and BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1200CFM@5 w.g.)
  • If direct mounting this fan to a Hose reel, Extractor arm, Brackets P-045, P-151, or wall flex you will need to order an additional flange Part Number P-153-FL


100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"
Part #
Qty
Description
P-154-1
P-Max© direct drive fan 3 HP 208-230V/460V/3/60

100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"
P-154-1-SINGLE
**DO NOT USE**P-Max© direct drive fan 3 HP 208-230V/460V/1/60

100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"
P-154-2
P-Max© direct drive fan 3 HP 575V/3/60

100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"
P-152-3HP-1
P-Max© direct drive fan 3 HP 115V/230V/1/60 (use 2HP motor when the TSP is less then 4 w.g.)

100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"
P-152-3HP-2
P-Max© direct drive fan 3 HP 208-230V/460V/3/60

100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"
P-152-3HP-3
P-Max© direct drive fan 3 HP 575-600V/3/60 (use 2HP motor when the TSP is less then 4 w.g.)

100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"
Part #
Qty
Description
P-155-1
5 HP direct drive fan 208-230/460/3/60 with BI(cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1300CFM@10 w.g.) Comes complete with an 10" dia. inlet and outlet collar. If a mounting bracket is required pls use part number P-766/155/156/156HF.

100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"
P-155-2
5 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1300CFM@10 w.g.) Comes complete with an 10" dia. inlet and outlet collar. If a mounting bracket is required pls use part number P-766-155/156/156HF.
100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"
Part #
Qty
Description
P-156-1
7.5 HP direct drive fan 208-230/460/3/60 with BI(cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.) Comes complete with an 10" dia. inlet and outlet collar. If a mounting bracket is required pls use part number P-766-155/156/156HF.
100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"
P-156-2
7.5 HP direct drive fan 575/3/60 with BI (cast) aluminum wheel with self cleaning blades, AMCA type B spark resistance construction (rated for 1600CFM@10 w.g.) Comes complete with an 10" dia. inlet and outlet collar. If a mounting bracket is required pls use part number P-766-155/156/156HF.
100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"
Part #
Qty
Description
P-766-HD-GALV-1
Heavy duty galvanized main fan mounting bracket ONLY.
P-766-HD-GALV-BR
Rear brace for P-766-HD Made of 14 GA GALV
P-766-HD-GALV-LL-1
Left Lower Leg for P-766-HD Made of 11 GA GALV
P-766-HD-GALV-LL-2
Left upper Leg for P-766-HD Made of 11 GA GALV
P-766-HD-GALV-MP
Nema/IEC Motor plate for P-766-HD Made of 11 GA GALV
P-766-HD-GALV-RL-1
Right Lower Leg for P-766-HD Made of 11 GA GALV
P-766-HD-GALV-RL-2
Right upper Leg for P-766-HD Made of 11 GA GALV
Part #
Qty
Description
R-064
Inlet Ø75 powder coated black, 8 bolts M8 x 16mm.
R-063
Inlet Ø100 powder coated black, 8 bolts M8 x 16mm.
R-060
Inlet Ø125 galvanized, 8 bolts M8 x 125mm. (5")
R-061
Inlet Ø150/160 6" powder coated black, 8 bolts M8 x 16mm. Packed in plastic.
R-062
Inlet Ø200/8" powder coated black, 8 bolts M8 x 16mm.
Part #
Qty
Description
AD-VFD-115V-0.5
0.5 HP AC DRIVE ,115VAC 1 PH IN, 230VAC 3PH OUT
VFD-AC-230V-3P/3P-1HP-NEMA4X-WHT
1.0 HP AC DRIVE ,230V single or 3 PH IN 3 PH OUT in NEMA 4 enclosure and simple "Dial/Potentiometer" speed control. Includes line disconnect.
VFD-AC-460V-3HP-NEMA4X-WHT
3.0 HP AC DRIVE ,460V single or 3 PH IN 3 PH OUT in NEMA 4 enclosure and simple "Dial/Potentiometer" speed control.
VFD-KIT-1HP-115-230-3
1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3
2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3
3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
Part #
Qty
Description
P-019-12V
12V Halogen light kit complete with:
  • 12V Halogen Light
  • Halogen Light holder
  • 33 ft 2 wire cable
  • Switch for controlling LIGHT and OPTIONALLY the Motor
  • Associated hardware
  • Typically used in conjunction with P-025 series controller
P-019-24V
24V Halogen light kit complete with:
  • 24V Halogen Light
  • Halogen Light holder
  • 33 ft 2 wire cable
  • Switch for controlling LIGHT and OPTIONALLY the Motor
  • Associated hardware
  • Typically used in conjunction with P-025 series controller
P-106
Switch with 10 m cable for mounting on the hood of a fume extractor arm (Note: This switch is to be used in conjunction with a P-025 series magnetic starter.)
Part #
Qty
Description
SIL-16
Silencer for P-Max series fan, 16" (406mm)
SIL-8
Silencer for P-Max series fan, 8" (200mm) (for use with P-Max Fans)
SNDATT-STL-CM24
24in cube for reducing the sound produced by fans as well as the apparent exit velocity the air leaving the fan. For use in offices and other environments where sound and drafts are key.
SIL-6
Silencer for P-Max series fan, 6" (150mm)
SIL-10
Silencer for P-Max series fan, 10" (250mm)
SIL-12
Silencer for P-Max series fan, 12.4" (300mm)
SIL-14
Silencer for P-Max series fan, 14" (350mm)
Part #
Qty
Description
ACCESS-DOOR
Quick open Door, optional accessory for Lev-co fans.
DISC-MRD403P
Motor Disc Rotary Encl 40A 3P N4-IP65
Part #
Qty
Description
PDK-6
Industrial grade duct kit for direct exhausting of P-Max fans - for Wall exhaust c/w the following parts:
  • 2 pcs - 24" - 6" diameter lateral duct -1 pc - 6" diameter long radius elbow -1 pc - 6" exhaust fitting -45 degree weather elbow -backdraft damper -bird screen 16" X 16" exterior wall flashing
ELEC-DISC
Disconnect switch to allow the manual disconnect of the fan. Inside control panel.
MS-12-BAL
NEW STYLE BALANCER,BL-SWLH-00 SWITCH AND LIGHT HOLDER ADAPTED, FOR HOSE DROPS
R-062-L1
8" dia collar for hose, 4" high, 5/16 " flange, 22 Gauge Galvanized Steel, complete with 1 1/8 " bead for hose.
SWITCH-530
Series 530 air flow switch
Part #
Qty
Description
P-MAX-UMB
Umbrella for P-MAX fan with P-766 bracket
P-MAX-UMB-SS
Umbrella for P-MAX fan with P-766 bracket STAINLESS STEEL version
P-SM-IN
Safety mesh for the inlet of P-Max fans.
P-SM-OT-Exhaust
Safety mesh for the exhaust outlet of P-Max fans.
Part #
Qty
Description
CONTROL-BOX-10HP-208-230-460/3/60
Starter for Exhaust fan to operate from Pressure switch.
  • max 10HP 208-230-460/3/60
  • Hand off Auto
  • one shot timer
  • 24 Volt control
CONTROL-BOX-10HP-220/1/60
Starter for Exhaust fan to operate from Pressure or door switch.
  • max 10HP 220/1/60
  • Hand off Auto
  • one shot timer
  • 24 Volt control
CONTROL-BOX-10HP-575/3/60
Starter for Exhaust fan to operate from Pressure switch.
  • max 10HP 575/3/60
  • Hand off Auto
  • one shot timer
  • 24 Volt control
CONTROL-BOX-15HP-208-230-460/3/60
Starter for Exhaust fan to operate from Pressure switch.
  • max 15HP 208-230-460/3/60
  • Hand off Auto
  • one shot timer
  • 24 Volt control
CONTROL-BOX-15HP-575/3/60
Starter for Exhaust fan to operate from Pressure switch.
  • max 15HP 575/3/60
  • Hand off Auto
  • one shot timer
  • 24 Volt control
CONTROL-BOX-15HP-575/3/60
Starter for Exhaust fan to operate from Pressure switch.
  • max 15HP 575/3/60
  • Hand off Auto
  • one shot timer
  • 24 Volt control
CONTROL-BOX-20HP-208-230-460/3/60
Starter for Exhaust fan to operate from Pressure switch.
  • max 20HP 208-230-460/3/60
  • Hand off Auto
  • one shot timer
  • 24 Volt control
CONTROL-BOX-20HP-575/3/60
Starter for Exhaust fan to operate from Pressure switch.
  • max 20HP 575/3/60
  • Hand off Auto
  • one shot timer
  • 24 Volt control
CONTROL-BOX-2HP-120/1/60
Starter for Exhaust fan to operate from Pressure or door switch.
  • max 2HP 120/1/60
  • Hand off Auto
  • Adjustable timer
  • 24 Volt control
CONTROL-BOX-3HP-208-230-460/3/60
Starter for Exhaust fan to operate from Pressure switch.
  • max 3HP 208-230-460/3/60
  • Hand off Auto
  • one shot timer
  • 24 Volt control
CONTROL-BOX-3HP-220/1/60
Starter for Exhaust fan to operate from Pressure or door switch.
  • max 3HP 220/1/60
  • Hand off Auto
  • one shot timer
  • 24 Volt control
CONTROL-BOX-3HP-575/3/60
Starter for Exhaust fan to operate from Pressure switch.
  • max 3HP 575/3/60
  • Hand off Auto
  • one shoot timer
  • 24 Volt control
CONTROL-BOX-5HP-120/1/60
Starter for Exhaust fan to operate from Pressure or door switch.
  • max 5HP 120/1/60
  • Hand off Auto
  • Adjustable timer
  • 24 Volt control
CONTROL-BOX-5HP-208-230-460/3/60
Starter for Exhaust fan to operate from Pressure switch.
  • max 5HP 208-230-460/3/60
  • Hand off Auto
  • one shoot timer
  • 24 Volt control
CONTROL-BOX-5HP-220/1/60
Starter for Exhaust fan to operate from Pressure or door switch.
  • max 5HP 220/1/60
  • Hand off Auto
  • one shot timer
  • 24 Volt control
CONTROL-BOX-5HP-575/3/60
Starter for Exhaust fan to operate from Pressure switch.
  • max 5HP 575/3/60
  • Hand off Auto
  • one shot timer
  • 24 Volt control
CONTROL-BOX-5HP-575/3/60
Starter for Exhaust fan to operate from Pressure switch.
  • max 5HP 575/3/60
  • Hand off Auto
  • one shot timer
  • 24 Volt control
CONTROL-BOX-7.5HP-208-230-460/3/60
Starter for Exhaust fan to operate from Pressure switch.
  • max 7.5HP 208-230-460/3/60
  • Hand off Auto
  • one shot timer
  • 24 Volt control
CONTROL-BOX-7.5HP-220/1/60
Starter for Exhaust fan to operate from Pressure or door switch.
  • max 7.5HP 220/1/60
  • Hand off Auto
  • one shot timer
  • 24 Volt control
CONTROL-BOX-7.5HP-575/3/60
Starter for Exhaust fan to operate from Pressure switch.
  • max 7.5HP 575/3/60
  • Hand off Auto
  • one shot timer
  • 24 Volt control
Part #
Qty
Description
LEV-ESTACK-CPRU-560-SS
No loss stack with gravity damper for the CPRU-560 fan. Fan termination kit for CPRU-560-3600 fan. Complete with back draft damper, velocity cone and drip guard. Construction to be stainless steel. 3-4 guy wire fastening points on each stack. Reinforced stainless steel construction. Rated for high temp exhaust @ 850 deg F.
Get My Instant Quote
Technical Info Requested

This site is protected by reCAPTCHA Enterprise and the Google Privacy Policy and Terms of Service apply.
