Model Number

11-018

model_icon

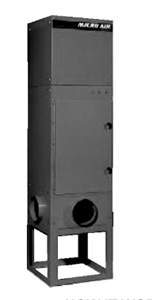

OM-3510

Oil mist laden air flows through the inlet into the bottom of the unit where it turns 90 degrees. The air goes upward through the impinger, then the mesh prefilter, and finally through the special oil mist bag. Clean air is then discharged at the top of the unit. Oil drains out the bottom of the unit.

Function:

Oil mist laden air flows through the inlet into the bottom of the unit where it turns 90 degrees. The air goes upward through the impinger, then the mesh prefilter, and finally through the special oil mist bag. Clean air is then discharged at the top of the unit. Oil drains out the bottom of the unit.

Construction:

Part #
Qty
Description
OM-3510
Media Style Air Cleaner 3000 CFM, 3HP 460V 3PH mag gauge, inlet plenum, floor stand, 2"alum Mesh prefilter, 2" baffle pre filter, & 95% oil mist bag filter
Part #
Qty
Description
OM-3510-CHARCOAL-40
Charcoal for One refillable Module (40 lbs)
OM-3510-CHARCOAL-80
Charcoal for two refillable Module (80 lbs)

Frequently bought together these options:

Part #
Qty
Description
OM-3510-REFM-12
REFILLABLE MODULE , 12" LONG FOR FIRST MAIN FILTER OPTION (Must add carbon) "First Pass" with activated carbon
OM-3510-REF-MOD12
REFILLABLE MODULE, 12" LONG FOR SECOND MAIN FILTER OPTION "Second Pass" complete with activated Carbon
Part #
Qty
Description
OM-3510-1MSH-PRFT
1" MESH PREFILTER
OM-3510-2ALMN-MSH
2" ALUMINUM MESH PREFILTER
Part #
Qty
Description
OM-3510-95-BGFLT-28
95% OIL MIST BAG FILTER, 28" LONG
Part #
Qty
Description
VFD-KIT-1HP-115-230-3
1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3
2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3
3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
Part #
Qty
Description
OM-3510-WMB
WALL MOUNT BRACKET
