21-006

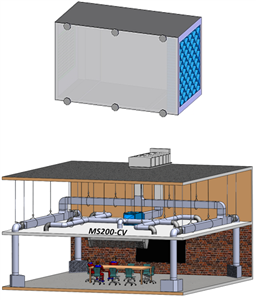

MS200-CV - Non-Powered Filtration & Powered Return from Floor Level - No Fan (1,000-2,000 CFM)

1,000 - 2,000 CFM MS-Series package air cleaner is a industrial/commercial grade high efficiency, side servicing filter housing. The MS series was designed for a variety of filter configurations allowing up to 5 stages.

Function:


Whether you are filtering respirable viruses, or VOC’s or paper dust, the MS series will likely fit the bill. High quality side servicing filter housings are made from 16 GA powder-coated steel and come rated to a maximum of 10” WG. Blower-less filtration housing designed with up to 4 stages of filtration for industrial applications. Designed to handle airflow between 1000 & 2000 CFM , (multiple units can be combined for greater CFM). Filter system comes standard with (1) 4” deep 30% pleated pre-filter, (1) 65% bag filter, 120ft² of media. System can be upgraded with different filter to suit a variety of applications and contaminants.

Clean Filtered Air leaves the diffusion hood and reaches the work table (roughly 1 meter below) after 1.31 seconds after the main filter unit is turned on!

Construction:

16 ga. welded zinc coated steel cabinet, finished with a two part chemical and oil resistant paint, with ULTRA-SEAL filter mounting system and hinged side access doors to filters. Blower less.

Frequently bought together these options:

Part #
Qty
Description
MS200-CV
Modular air cleaner, blower less. Includes 4” pleated 30% prefilter, 95% main filter, 120 sq. ft.
Part #
Qty
Description
FO200-0.65-CV
65% Bag Filter Option for Standard 200 Unit
FO200-2A-CV
2 aluminum mesh filter in place of 4 pleated prefilter.
FO200-95DOP-CV
95% DOP HEPA Filter Option for Standard 200 Unit
FO200-AD-CV
Adsorption option; includes (1) 4 prefilter, (1) 95% short bag filter (64 sq.ft.), (2) refillable, v-bank absorber modules and (1) 2 pleated after-filter, 50 lbs. capacity, rate 2000 cfm. Order charcoal separately. (Adds 22 lbs. to ship weight).
FO200-CV-CV
CHEVRON® option; includes (1) 2 aluminum mesh prefilter, (1) 4 CHEVRON ® mist eliminator, (1) 95% bag filter (120 sq.ft.) and (2) drains in cabinet (3/4 FPT).
FO200-EC-CV
(1) Easy clean, polyester membrane, cleanable bag filter, MERV 12; replaces standard 95% throw-away filter.
FO200-HEPA-CV
99.97% DOP HEPA Filter Option for Standard 200 Unit
Part #
Qty
Description
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-5 pressure gauge. 3/16 inside diameter tubing ordered separately.
PG-10
Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-10 pressure gauge. 3/16 inside diameter tubing ordered separately.
PG-3
0-3"liquid gauge, surface mounted pressure gauge for T140
Part #
Qty
Description
FAN-0.75-RAD3600-8
Fan, 600 CFM (free-blowing) air and maximum static pressure of 2.75” of Static Pressure W.G.. Motor is direct mounted for Low maintenance and ease of installation.
FAN-1.5-RAD3600-9
Fan, 1200 CFM (free-blowing) air and maximum static pressure of 3.20” of Static Pressure W.G.. Motor is direct mounted for Low maintenance and ease of installation.
FAN-3.0-RAD3600-11
Fan, 1800 CFM (free-blowing) air and maximum static pressure of 5.00” of Static Pressure W.G.. Motor is direct mounted for Low maintenance and ease of installation.
Part #
Qty
Description
BI-122-AFS
Adjustable front support, to be used in conjunction with the optional exhaust stack.
BI-135-AFS
Adjustable front support, to be used in conjunction with the optional exhaust stack.
BI-150-AFS
Adjustable front support, to be used in conjunction with the optional exhaust stack.
BI-165-AFS
Adjustable front support, to be used in conjunction with the optional exhaust stack.
BI-182-AFS
Adjustable front support, to be used in conjunction with the optional exhaust stack.
BI-122-AR-INLET
Optional standard angle ring hole pattern adapter.
BI-135-AR-INLET
Optional standard angle ring hole pattern adapter.
BI-150-AR-INLET
Optional standard angle ring hole pattern adapter.
BI-165-AR-INLET
Optional standard angle ring hole pattern adapter.
BI-182-AR-INLET
Optional standard angle ring hole pattern adapter.
Part #
Qty
Description
BI-122-70-2
Industrial Exhaust Fan 1300 CFM @ 9 w.g. to 2000 CFM@5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class II c/w, 3 HP, 230-460V/3/60, 3600 RPM. AMCA Type B construction.
BI-122-70-3
Industrial Exhaust Fan 1300 CFM @ 9 w.g. to 2000 CFM@5 w.g.BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class II c/w, 3 HP, 575V/3/60, 3600 RPM. AMCA Type B construction.
BI-135-100
Industrial Exhaust Fan 1800 CFM@1.5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class II c/w, 1.5 HP, 115/230/1/60, 1750 RPM. AMCA type B
BI-135-75-2
Industrial Exhaust Fan 2000 CFM@10 w.g. to 3000 CFM@5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class II c/w, 5 HP, 230-460V/3/60, 3600 RPM. AMCA type B
BI-135-75-3
Industrial Exhaust Fan 2000 CFM@10 w.g. to 3000 CFM@5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class II c/w, 5 HP, 575V/3/60, 3600 RPM. AMCA type B
BI-150-90-2
Industrial Exhaust Fan 3000 CFM@9 w.g. to 4500 CFM@5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class II c/w 7.5 HP, 230-460V/3/60, 3600 RPM. AMCA type B construction
BI-150-90-3
Industrial Exhaust Fan 3000 CFM@9 w.g. to 4500 CFM@5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class II c/w 7.5 HP, 575V/3/60, 3600 RPM. AMCA type B construction
BI-165-75-2
Industrial Exhaust Fan 4000 CFM@10 w.g. to 5000 CFM@6 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 10 HP/3 PH, 230-460V/3/60, 3600 RPM. AMCA Type B Construction
BI-165-75-3
Industrial Exhaust Fan 4000 CFM@10 w.g. to 5000 CFM@6 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 10 HP/3 PH, 575V/3/60, 3600 RPM.AMCA Type B Construction
BI-182-70-2
Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 15 HP/3 PH, 230-460V/3/60, 3600 RPM. AMCA type B construction
BI-182-70-3
Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 15 HP/3 PH, 575V/3/60, 3600 RPM. AMCA type B construction
BI-182-95-2
Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 15 HP/3 HP, 230-460V/3/60, 3600 RPM. AMCA type B construction
BI-182-95-3
Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 15 HP/3 HP, 575V/3/60, 3600 RPM. AMCA type B construction
BI-270-65-2
10,000 CFM@7.5" w.g. to 12,000 CFM@5.5 w.g. BI Direct Drive Fan c/w slip fit inlet, flanged outlet; Class IV c/w 20 HP/3 PH, 230-460V/3/60, 1750 RPM.
BI-270-65-3
10,000 CFM@7.5" w.g. to 12,000 CFM@5.5 w.g. BI Direct Drive Fan c/w slip fit inlet, flanged outlet; Class IV c/w 20 HP/3 PH, 575V/3/60, 1750 RPM.
BI-270-85-2
Industrial Exhaust Fan 12,000 CFM@8" w.g. to 14,500 CFM@5.5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 25 HP/3 PH, 230/460/3/60, 1750 RPM.AMCA type B construction
BI-270-85-3
Industrial Exhaust Fan 12,000 CFM@8" w.g. to 14,500 CFM@5.5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 25 HP/ 3 PH, 575V/3/60, 1750 RPM. AMCA type B construction
BI-270-100-2
Industrial Exhaust fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 30 HP/ 3 PH, 230/460/3/60, 1750 RPM.AMCA type B construction
BI-270-100-3
Industrial Exhaust Fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 30 HP/ 3 PH, 575V/3/60, 1750 RPM.AMCA type B construction
BI-300-100-2
Industrial Exhaust fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 30 HP 230/460/3/60, 1750 RPM.AMCA type B construction
BI-300-100-3
Industrial Exhaust fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 30 HP 575V/3/60, 1750 RPM.AMCA type B construction
Part #
Qty
Description
P-766-HD-GALV-1
Heavy duty galvanized main fan mounting bracket ONLY.
P-766-HD-GALV-BR
Rear brace for P-766-HD
P-766-HD-GALV-LL-1
Left Lower Leg for P-766-HD
P-766-HD-GALV-LL-2
Left upper Leg for P-766-HD
P-766-HD-GALV-MP
Nema/IEC Motor plate for P-766-HD
P-766-HD-GALV-RL-1
Right Lower Leg for P-766-HD
P-766-HD-GALV-RL-2
Right upper Leg for P-766-HD
Part #
Qty
Description
VFD-KIT-1HP-115-230-3
1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3
2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3
3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
Part #
Qty
Description
BI-122-C
AMCA type C spark resistant construction option for the BI-122 series fans.
BI-135-C
AMCA type C spark resistant construction option for the BI-135 series fans.
BI-150-C
AMCA type C spark resistant construction option for the BI-150 series fans.
BI-165-C
AMCA type C spark resistant construction option for the BI-165 series fans.
BI-182-C
AMCA type C spark resistant construction option for the BI-182 series fans.
Part #
Qty
Description
SIL-BI-122-R0
Silencer option for BI-122-70 Fan.
SIL-BI-135-R0
Silencer option for BI-135-75 Fan
SIL-BI-150-R0
Silencer option for BI-150-90 Fan
SIL-BI-150-R0-1
Silencer option for BI-150-90 Fan
SIL-BI-165-R0
Silencer option for BI-165-75 Fan
SIL-BI-182-R0-1
Silencer option for BI-182-70 Fan
Part #
Qty
Description
BI-DRAIN
Drain, optional accessory for BI Fans, 1/2" Push in connection. Installed on site, step drill bit included with kit. To be installed at the lowest point on the fan.
BI-ACC-DOOR
Quick open access/inspection door for BI fans
BI-EPOXY-122
Epoxy paint option for BI-122 fans. Including all accessories.
BI-EPOXY-135
Epoxy paint option for BI-135 fans. Including all accessories.
BI-EPOXY-150
Epoxy paint option for BI-150 fans. Including all accessories.
BI-EPOXY-165
Epoxy paint option for BI-165 fans. Including all accessories.
BI-EPOXY-182
Epoxy paint option for BI-182 fan. Including all accessories.
Part #
Qty
Description
PG-20
0-20 Mini-Helic pressure gauge, approximately 3" diameter size. Surface mounted.
Part #
Qty
Description
LEV-ESTACK-BI-122
No loss stack with gravity damper for the BI-122-70 fan.
LEV-ESTACK-BI-135
No loss stack with gravity damper for the BI-135-70 fan.
LEV-ESTACK-BI-150
No loss stack with gravity damper for the BI-150-90 fan.
LEV-ESTACK-BI-165
No loss stack with gravity damper for the BI-165-X fan.
LEV-ESTACK-BI-182
No loss stack with gravity damper for the BI-182-70 fan.
