Model

13-101

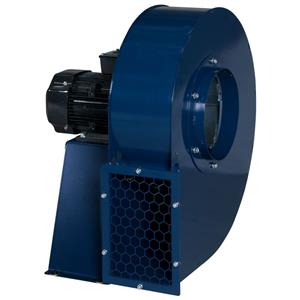

FB Series - 8000 CFM

The FB Series fans feature a wide range of radial fans for the extraction of gases, smoke, and small particles. Depending on fan and motor options, the flow rates range anywhere from 200 CFM up to 8000 CFM.

Function:

The FB Series fans offer a wide range of options for size and power, making them a smart choice for any job ranging from light to heavy demand.

The FB series fans feature a radial design for the evacuation of gases, smoke, and low-weight particles. The fans boast high levels of quality and operational reliability. All fans undergo inspection and test operation before leaving the factory.

These fans offer great versatility in terms of configurations as they can be mounted on the floor, and suspended in the air, both inside and outside of a building. Outdoor options allow for mounting on exterior walls or roofs.

Main Options:
  • Various Motor Options
  • Variable Frequency Drives
  • Vibration Dampers

Construction:

  • Powder-coated sheet steel fan housing
  • Impeller with curved blades
  • Electro-galvanized welded sheet steel
  • 3-phase or 1-phase asynchronous motors
  • Cooling fan fitted to all motors
  • Inlet for cooling fan at the rear of the motor

Key Buying Criteria:

  • High Energy Efficiency: This allows for the utmost performance while using as little energy as possible.
  • Sustainability: Quality design and construction provide long-lasting reliability.
  • Carbon Reduction: Environmentally and health-conscious operation allows for piece of mind when operating these fans.

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding Fumes
  • Vehicle Exhaust Gases
  • Oil Smoke
  • Wood Dust
  • VOC/Paint Fumes
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Frequently bought together these options:


Part # Qty Description
DISC-N-MTR-1.5HP-3600-C-56-5/8-208-460 **DISCONTINUED**NEMA Motor 1.5 HP 3600 RPM complete with flange mount 208-230/460/60 TEFC 56 C Frame. *CSA Approved Motor*
M-MTR-.75HP-3600-C-56-5/8-575/3/60-EXP .75HP Explosion Proof Motor 575/6/60 V 3600 RPM, complete with:
  • 56 or 143 C flange and a 5/8 shaft size *CSA Approved Motor*
M-MTR-0.5HP-3600-B5-71-14-115-230/1/60 Motor 0.5HP 3600 RPM B5 Flange 115/230V, 14 Shaft size, 71 Frame. *CSA Approved Motor*
M-MTR-0.5HP-3600-B5-71-14-208-230-460/3/60 Motor 0.5HP 3600 RPM B5 Flange 208/230V, 14 Shaft size, 71 Frame. *CSA Approved Motor*
M-MTR-0.5HP-3600-B5-71-14-575/3/60 Motor 0.5HP 3600 RPM B5 Flange 575V, 14 Shaft size, 71 Frame. *CSA Approved Motor*
M-MTR-0.75HP-3600-B5-71-14-115-230/1/60 Motor 0.75HP 3600 RPM B5 Flange 115/230V, 14 Shaft size, 71 Frame. *CSA Approved Motor*
M-MTR-0.75HP-3600-B5-71-14-208-230-460/3/60 Motor 0.75HP 3600 RPM B5 Flange 208/230/460V, 14 Shaft size, 71 Frame. *CSA Approved Motor*
M-MTR-0.75HP-3600-B5-71-14-575/3/60 Motor 0.75HP 3600 RPM B5 Flange 575V, 14 Shaft size, 71 Frame.*CSA Approved Motor*
M-MTR-1.5HP-3600-575/3 Motor for MP14, 1.5HP, 145T, 5/8" shaft, 575V, 3PH, 3450 RPM, TEFC. *CSA Approved Motor*
M-MTR-1.5HP-3600-B35-80-19-208-230-460/3/60 Motor 1.5HP 3600 RPM B35 Flange 208/230/460V, 19 Shaft size, 80 Frame. *CSA Approved Motor*
M-MTR-1.5HP-3600-B5-80-19-575/3/60 Motor 1.5HP 3600 RPM B5 Flange 575V, 19 Shaft size, 80 Frame 1.1kw. *CSA Approved Motor*
M-MTR-1.5HP-3600-C-143-5/8-575-EXP 1.5 HP Explosion Proof Motor 575 V 3600 RPM, complete with:
  • 143 C flange & a 5/8 shaft size *CSA Approved Motor*
M-MTR-1.5HP-3600-C-56-115-230-EXP 1.5 HP Explosion Proof Motor 120 V 3600 RPM, complete with:
  • 56 or 143 C flange & a 5/8 shaft size
  • WITHOUT OVERLOAD PROECTION
*CSA Approved Motor*
M-MTR-1.5HP-3600-C-56-5/8-115-230-EXP 1.5 HP Explosion Proof Motor 120 V 3600 RPM, complete with:
  • 56 or 143 C flange & a 5/8" shaft size *CSA Approved Motor*
M-MTR-1.5HP-3600-C-56-5/8-208-460-EXP 1.5 HP Explosion Proof Motor 208-460 V 3600 RPM, complete with:
  • 56 or 143 C flange & a 5/8 shaft size *CSA Approved Motor*
M-MTR-1.5HP-3600-C-56-5-1/2-115-230/1/60 Motor 1.5 hp 3400 rpm C flange mount 115-230 volt/single phase 60 hz.*CSA Approved Motor*
M-MTR-1.5HP-575/3/60-EXP 1.5HP Explosion proof 575/3/60 Class I / Div. 1 Grp. C,D,F & G - 3600 RPM, 143TC FRAME 7/8'' SHAFT. *CSA Approved Motor*
M-MTR-10HP-3600-B5-132-38-575/3/60 Motor 10HP 3600 RPM B5 Flange 575V, 38 Shaft size, 132 Frame 7.5kw. *CSA Approved Motor*
M-MTR-15HP-3600-254T-1 1/8-575-EXP 15 HP Explosion Proof Motor 575 V 3600 RPM, 254T Frame & a 1 1/8 shaft size. *CSA Approved Motor*
M-MTR-1HP-3600-C-56-3600-115-230-EXP 1 HP Explosion Proof Motor 120 V 3600 RPM, C/W 56 C flange and a 5/8 shaft size
  • WITHOUT OVERLOAD PROECTION.
*CSA Approved Motor*
M-MTR-1HP-3600-C-56-3600-115-230-EXP 1 HP Explosion Proof Motor 120 V 3600 RPM, C/W 56 C flange and a 5/8" shaft size
  • WITHOUT OVERLOAD PROTECTION.
*CSA Approved Motor*
M-MTR-1HP-3600-C-56-5/8-115-230-EXP 1 HP Explosion Proof Motor 120 V 3600 RPM, C/W 56 or 143 C flange and a 5/8 shaft size
  • WITHOUT OVERLOAD PROECTION. *CSA Approved Motor*
M-MTR-1HP-3600-C-56-5/8-115-230-EXP 1 HP Explosion Proof Motor 120 V 3600 RPM, C/W 56 or 143 C flange and a 5/8 shaft size
  • WITHOUT OVERLOAD PROECTION. *CSA Approved Motor*
M-MTR-1HP-3600-C-56-5/8-230-460-EXP 1 HP Explosion Proof Motor 230-460 V 3600 RPM, complete with:
  • 56 or 143 C flange & a 5/8 shaft size *CSA Approved Motor*
M-MTR-20HP-3600-254T-1 1/8-575-EXP 20 HP Explosion Proof Motor 575 V 3600 RPM, 254T Frame & a 1 1/8 shaft size. *CSA Approved Motor*
M-MTR-20HP-3600-B5-160-42-575/3/60 Motor 20HP 3600 RPM B5 Flange 575V, 42 Shaft size, 160 Frame. *CSA Approved Motor*
M-MTR-2HP-1800-B5-90-24-115-230/1/60 Motor 2HP 1800 RPM B5 Flange 115/230V, 24 Shaft size, 90 Frame. *CSA Approved Motor*
M-MTR-2HP-1800-B5-90-24-208-230-460/3/60 Motor 2HP 3600 RPM B5 Flange 208-240-460V, 24 Shaft size, 90 Frame. *CSA Approved Motor*
M-MTR-2HP-3600-B5-90-24-575/3/60 Motor 2HP 3600 RPM B5 Flange 575V, 24 Shaft size, 90 Frame 1.5kw. *CSA Approved Motor*
M-MTR-2HP-3600-C-145-7/8-575-EXP 2 HP Explosion Proof Motor 575 V 3600 RPM, complete with:
  • 145 TC flange & a 1 1/8 shaft size *CSA Approved Motor*
M-MTR-2HP-3600-C-56-5/8-115-230-EXP 2 HP Explosion Proof Motor 115-230 V 3600 RPM, complete with:
  • 56 or 143 C flange & a 5/8 shaft size
  • WITHOUT OVERLOAD PROECTION *CSA Approved Motor*
M-MTR-2HP-3600-C-56-5/8-208-460-EXP 2 HP Explosion Proof Motor 208-460 V 3600 RPM, complete with:
  • 56 or 143 C flange & a 5/8 shaft size *CSA Approved Motor*
M-MTR-2HP-3600-C-56-5/8-575-EXP Explosion Proof Motor 2 HP 3600 RPM C flange mount 575/3/60 TEFC 56 C Frame. *CSA Approved Motor*
M-MTR-3HP-208-230/1/60-EXP-CLS1-GRPC&D Explosion proof 3HP 208-230/1/60 Class I / Div. 1 Grp. C&D & Class II/ Div. 1 Grp. F&G. 3450 RPM, NO FLANGE
  • WITHOUT OVERLOAD PROECTION *CSA Approved Motor*
M-MTR-3HP-208-230/3/60-EXP-CLS1-GRPC&D Explosion proof 3HP 208-230/3/60 Class I / Div. 1 Grp. C&D and Class II/ Div. 1 Grp. F&G. 3450 RPM, NO FLANGE. *CSA Approved Motor*
M-MTR-3HP-3600-B5-90-24-115-230/1/60 Motor 3HP 3600 RPM B5 Flange 115/230V, 24 Shaft size, 90 Frame. *CSA Approved Motor*
M-MTR-3HP-3600-B5-90-24-208-230-460/3/60 Motor 3HP 3600 RPM B5 Flange 208/230/460V, 24 Shaft size, 90 Frame. *CSA Approved Motor*
M-MTR-3HP-3600-B5-90-24-575/3/60 Motor 3HP 3600 RPM B5 Flange 575V, 24 Shaft size, 90 Frame 2.2kw. *CSA Approved Motor*
M-MTR-3HP-3600-C-182-1 1/8-230-460 3 HP MOTOR 230-460V 3600 RPM, 182T C flange, 1 1/8 shaft size & feet. *CSA Approved Motor*
M-MTR-3HP-3600-C-182-1 1/8-575 3 HP MOTOR 575V 3600 RPM, 182T C flange, 1 1/8 shaft size & feet. *CSA Approved Motor*
M-MTR-3HP-3600-NF-145- 7/8-208-460 3 HP MOTOR 208/460 V 3600 RPM, 145T NO flange & a 7/8 shaft size. *CSA Approved Motor*
M-MTR-3HP-3600-NF-145- 7/8-575 3 HP MOTOR 575/3/60 V 3600 RPM, 145T NO flange & a 7/8 shaft size. *CSA Approved Motor*
M-MTR-3HP-3600-NF-182-1 1/8-115-230 3 HP MOTOR 115/230V 3600 RPM, KX182T NO flange & a 1 1/8 shaft size
  • WITHOUT OVERLOAD PROECTION. *CSA Approved Motor*
M-MTR-3HP-3600-NF-182-1 1/8-230-460 3 HP MOTOR 230/460V 3600 RPM, 182T NO flange & a 1 1/8 shaft size. *CSA Approved Motor*
M-MTR-4HP-3600-B5-100-1-230-460 Metric Motor 4 HP 3600 RPM B5 flange 230/460V, 25mm Shaft size, 100L Frame. *CSA Approved Motor*
M-MTR-4HP-3600-B5-100-28-208-230-460/3/60 Motor 4HP 3600 RPM B5 Flange 208/230/460V, 28 Shaft size, 100 Frame.*CSA Approved Motor*
M-MTR-4HP-3600-B5-100-28-575/3/60 Motor 4HP 3600 RPM B5 Flange 575V, 28 Shaft size, 100 Frame 3kw. *CSA Approved Motor*
M-MTR-4HP-3600-B5-100-575 Metric Motor 4 HP 3600 RPM B5 flange mount 575/3/60 TEFC 100L Shaft size 25mm. *CSA Approved Motor*
M-MTR-4HP-3600-B5-100L-25MM-575 Metric Motor 4 HP 3600 RPM B5 flange mount 575/3/60 TEFC 100L Frame complete with feet. *CSA Approved Motor*
M-MTR-4HP-3600-B6-100-25-230-460 Metric Motor 4 HP 3600 RPM B6 flange 230/460V, 25mm Shaft size, 100L Frame. *CSA Approved Motor*
M-MTR-5HP-3450-184T-3ph-TEFC-575 5HP, 184T, 3450RPM, 3 PHASE, TEFC. *CSA Approved Motor*
M-MTR-5HP-3600-B5-112-28-208-230-460/3/60 Motor 5HP 3600 RPM B5 Flange 208/230/460V, 28 Shaft size, 112 Frame. *CSA Approved Motor*
M-MTR-5HP-3600-B5-112-28-575/3/60 Motor 5HP 3600 RPM B5 Flange 575V, 28 Shaft size, 112 Frame 3.7kw. *CSA Approved Motor*
M-MTR-5HP-3600-NF-184T-1 1/8-575-EXP 5 HP explosion Proof Motor, 3600 RPM NO flange, 575/3/60V, 184T Frame, 1 1/8 Shaft Size. *CSA Approved Motor*
M-MTR-7.5HP-3600-B35-112M-28-208-230-460/3/60 Motor 7.5HP 3600 RPM B35 Flange 208/230/460V, 28 Shaft size, 112M Frame. *CSA Approved Motor*
M-MTR-7.5HP-3600-B35-112M-28-575/3/60 Motor 7.5HP 3600 RPM B35 Flange 575V, 28 Shaft size, 112M Frame. *CSA Approved Motor*
M-MTR-7.5HP-3600-B5-132-38-208-230-460/3/60 Motor 7.5HP 3600 RPM B5 Flange 208/230/460V, 38 Shaft size, 132 Frame. *CSA Approved Motor*
M-MTR-7.5HP-3600-B5-132-38-575/3/60 Metric Motor 7.5HP 3600 RPM B5 Flange 575V, 38 Shaft size, 132 Frame 5.5kw. *CSA Approved Motor*
M-MTR-LFan Motor for Leader Fan. *CSA Approved Motor*
M-MTR-RB-80-6bU Regenerative Motor Blower 7.5 HP, 3/60/575V.
  • 175 CFM @ 100 SP
  • Integral inlet & outlet silencers
  • Precision cast aluminum impeller
  • 2.5” (60mm) NPT inlet & outlet connections
  • 3/60/575V, 6.3 kW, 3450 RPM, IP54 rated motor complete with CSA (Canada & US) certification for use in all US states and Canadian provinces. *CSA Approved Motor*
M-MTR-RGB-150-90 Regenerative Motor Blower 5 HP, 3/60/575V.
  • 150 CFM @ 90 SP
  • Integral inlet & outlet silencers
  • Precision cast aluminum impeller
  • 2.5” (60mm) NPT inlet & outlet connections
  • 3/60/575V, 5 HP, 3450 RPM, IP54 rated motor complete with CSA (Canada & US) certification for use in all US states and Canadian provinces. *CSA Approved Motor*
M-MTR-RGB-175-100 Regenerative Motor Blower 7.5 HP, 3/60/575V.
  • 175 CFM @ 100 SP
  • Integral inlet & outlet silencers
  • Precision cast aluminum impeller
  • 2.5” (60mm) NPT inlet & outlet connections
  • 3/60/575V, 6.3 kW, 3450 RPM, IP54 rated motor complete with CSA (Canada & US) certification for use in all US states and Canadian provinces. *CSA Approved Motor*
M-MTR-RGB-390-100 Regenerative Motor Blower 15 HP, 3/60/575V.
  • 390 CFM @ 100 SP
  • Integral inlet & outlet silencers.
  • Precision cast aluminum impeller.
  • 3.5” (90mm) NPT inlet & outlet connections
  • 3/60/575V, 12.5 kW, 3450 RPM, IP54 rated motor complete
    • with CSA (Canada & US) certification for use in all US states and Canadian provinces. *CSA Approved Motor*
N-MTR-0.5HP-1800-C-56-1/2-115-230 NEMA Motor 0.5 HP, 1800 RPM, C flange, 115/230 , 56 Frame, Shaft size 5/8"
  • WITHOUT OVERLOAD PROTECTION *CSA Approved Motor*
N-MTR-0.5HP-1800-C-56-1/2-115-230-EXP NEMA Motor 0.5 HP, 1800 RPM, C flange, 115/230 , 56 Frame, Shaft size 5/8"
  • WITHOUT OVERLOAD PROTECTION
  • Explosion proof
*CSA Approved Motor*
N-MTR-0.5HP-3600-B5-71-115/230 NEMA Motor 0.5HP, 3600RPM, B5 flange, 208/230V, N/A Frame,14mm Shaft size. *CSA Approved Motor*
N-MTR-0.5HP-3600-C-56-1/2-115-230 NEMA Motor 0.5 HP, 3600 RPM, C flange, 115/230 , 56 Frame, Shaft size 5/8".
  • WITHOUT OVERLOAD PROTECTION *CSA Approved Motor*
N-MTR-0.5HP-3600-C-56-1/2-230-460 NEMA Motor 0.5 HP, 3600 RPM, C flange, 230/460 V TEFC, 56 Frame, 5/8" Shaft size. *CSA Approved Motor*
N-MTR-0.5HP-3600-C-56-1/2-575 NEMA Motor 0.5 HP, 3600 RPM, C flange, 575/3/60, 56C Frame, 5/8" Shaft size.
N-MTR-0.75HP-3600-C-56-5/8-115 NEMA Motor 0.75 HP, 3600 RPM, C flange, 115 V, D56 Frame, 5/8" Shaft Size.
  • WITHOUT OVERLOAD PROECTION *CSA Approved Motor*
N-MTR-0.75HP-3600-C-56-5/8-115-230 NEMA Motor 0.75 HP, 3600 RPM, C flange, 115/230 56 Frame, 5/8" Shaft Size.
  • WITHOUT OVERLOAD PROECTION
N-MTR-0.75HP-3600-C-56-5/8-230-460 NEMA Motor 0.75 HP, 3600 RPM, C flange, 230-460, 56 Frame, Shaft size 5/8". *CSA Approved Motor*
N-MTR-0.75HP-3600-C-56-5/8-575 NEMA Motor 0.75 HP, 3600 RPM, C flange, 575/3/60 V, 56 Frame, Shaft size 5/8". *CSA Approved Motor*
N-MTR-0.75HP-3600-NF-56-5/8-115-230 NEMA Motor 0.75 HP, 3600 RPM, No flange, 115/230 V, 56Z Frame, 5/8" Shaft Size.
  • WITHOUT OVERLOAD PROECTION *CSA Approved Motor*
N-MTR-1.5HP-1800-56-5/8-575/3/60 NEMA Motor 1.5 hp 1800 rpm w/feet 575 volt/3 phase 60 hz TEFC 56. *CSA Approved Motor*
N-MTR-1.5HP-1800-C-56-5/8-115-230/1/60 NEMA Motor 1.5 hp 1800 rpm C flange mount 115-230 volt/single phase 60 hz TEFC 56 C Frame flange
  • WITHOUT OVERLOAD PROECTION
  • Load 100%, - efficiency is 90%, 2080 hours/year and 0.11$/kW/h *CSA Approved Motor*
N-MTR-1.5HP-1800-C-56-5/8-575/3/60 NEMA Motor 1.5 hp 1800 rpm C flange mount 575 volt/single phase 60 hz TEFC 56 C Frame flange.*CSA Approved Motor*
N-MTR-1.5HP-3600-C-143-7/8-115 NEMA Motor 1.5HP, 3600 RPM, C flange, V115, F143T Frame, Shaft Size 7/8".
  • WITHOUT OVERLOAD PROECTION *CSA Approved Motor*
N-MTR-1.5HP-3600-C-143-7/8-115-230/1/60 NEMA Motor 1.5 hp 3600 rpm C flange mount 115-230 volt/single phase 60 hz TEFC 143 C Frame flange.
  • WITHOUT OVERLOAD PROECTION
  • Load 100%, - efficiency is 90%, 2080 hours/year and 0.11$/kW/h *CSA Approved Motor*
N-MTR-1.5HP-3600-C-143-7/8-575 NEMA Motor 1.5 HP, 3600 RPM, C flange, V575/3/60, F143T Frame, Shaft Size 7/8. *CSA Approved Motor*
N-MTR-1.5HP-3600-C-56-5/8-115-230/1/60 NEMA Motor 1.5 hp 3600 rpm C flange mount 115-230 volt/single phase 60 hz TEFC 56 C Frame flange.
  • WITHOUT OVERLOAD PROTECTION
  • Load 100%, - efficiency is 90%, 2080 hours/year and 0.11$/kW/h *CSA Approved Motor*
N-MTR-1.5HP-3600-C-56-5/8-115-230/1/60-OLP NEMA Motor 1.5 hp 3600 rpm C flange mount 115-230 volt/single phase 60 hz TEFC 56 C Frame flange.
  • WITH OVERLOAD PROTECTION
  • Load 100%, - efficiency is 90%, 2080 hours/year and 0.11$/kW/h *CSA Approved Motor*
N-MTR-1.5HP-3600-C-56-5/8-115-230-D NEMA Motor 1.5HP, 3600 RPM, C flange, V115/230, 56 Frame, Shaft Size 5/8" Demo.
  • WITHOUT OVERLOAD PROECTION. *CSA Approved Motor*
N-MTR-1.5HP-3600-C-56-5/8-208-460 NEMA Motor 1.5 HP 3600 RPM C flange mount 208-230/460/60 TEFC 56 C Frame. *CSA Approved Motor*
N-MTR-1.5HP-3600-C-56-5/8-575 NEMA Motor 1.5 hp 3600 rpm C flange 575/3/60 volt, shaft size 5/8", 56 frame.
N-MTR-1.5HP-3600-NF-56-5/8-115-230 NEMA Motor 1.5HP, 3600 RPM, NO flange, V115/230, 56H Frame, Shaft Size 5/8".
  • WITHOUT OVERLOAD PROECTION. *CSA Approved Motor*
N-MTR-3HP-3600-C-145-7/8-575-EXP 3 HP Explosion Proof Motor 575 V 3600 RPM, complete with 145 TC flange and a 7/8" shaft size.
  • Motor is rated at Class 1/ Division 1 Group C & D and Class 2/ division 1 Group F & G. *CSA Approved Motor*
N-MTR-7.5HP-3600-C-213-1 3/8-575 Motor 7.5HP 36000 RPM C Flange 575V, 1 3/8" Shaft size, 213T Frame.*CSA Approved Motor*
