(02-07) MiniPac - Flammable Gases & Volatile Organic Compounds - 650 to 1000 CFM - 7” Ø Extraction Arm **

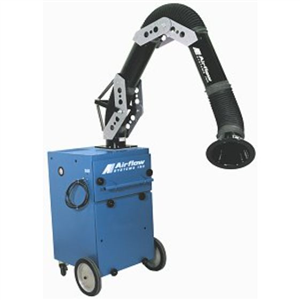

The MiniPac is a Portable Air cleaner best suited for Flammable Gases & Volatile Organic Compounds.
Product Function
Construction
Shipping Weight
and Dimensions
Product Function:
Portable air cleaner with (1) 7’ long E-Z Arm® high flow extractor (1) 2” aluminum mesh pre-filter, (1) 95% bag filter (28ft² of media), a ¾ HP TEFC motor, 115/230/1/60Hz (9.8/4.9 amps), and 5” casters, (2) fixed and (2) swivel with brakes.
Construction:
16 ga. welded steel cabinet with powder-coat finish; includes access door to filters, a removable access panel to motor/blower compartment, 10’ power cord and on-off switch for 115V units; 230/1 phase and 3 phase units are wired to a side junction box. (Motor starter not included; order from starters page.)
Shipping Dimensions and Weight:
Main System Part #
Length x Width x Height
Weight
MINI-PAC-4
80"H x 33"W x 53"D
440 lbs
MINI-PAC
51"H x 29.5"W x 29.5"D
230 lbs
Main System / Part
Part #
Qty
Description
MINI-PAC
0
1
2
3
4
5
6
7
8
9
10
550 CFM Portable air cleaner with E-Z ARM®, 7’ long arm, includes 2” mesh prefilter, 95% bag filter, 28 sq. ft., ¾ HP TEFC motor, 115/230/1/60, 10.4/5.2a.
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
MINI-PAC-4
0
1
2
3
4
5
6
7
8
9
10
350 CFM Portable air cleaner with E-Z ARM®, 4 x 8' L support arm, includes 2” mesh prefilter, 95% bag filter, 28 sq. ft., ¾ HP TEFC motor, 115/230/1/60, 10.4/5.2a.
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
Frequently bought together these options:
Fan / Motor Upgrades or Options (when ordering main unit)
Part #
Qty
Description
74865-MINIPAC-GRPD
0
1
2
3
4
5
6
7
8
9
10
Group "D" motor/blower with switch adder for MINI-PAC. 1HP, 110V/1/60.
Suitable for explosive vapours
MINIPAC-GRPE
0
1
2
3
4
5
6
7
8
9
10
Group "E" motor/blower with switch adder for MINI-PAC. 1HP, 110V/1/60.
MINI-PAK-1.5HP-1Ph
0
1
2
3
4
5
6
7
8
9
10
1.5 TEFC motor, 115/208-230/1/60Hz (15/7.9-7.5 amps) with high pressure blower and acoustical lining.
MINI-PAK-3 PHASE
0
1
2
3
4
5
6
7
8
9
10
1 Hp 3 Phase TEFC Motor,208-230/460/575/3/60Hz Option for Standard MINI-PAC Unit
MINI-PAK-HP
0
1
2
3
4
5
6
7
8
9
10
1HP 1 Phase or 3 Phase High Pressure Option for Standard MINI-PAK Unit
Filter Options (when ordering with main unit)
Part #
Qty
Description
MINIPAC-2P
0
1
2
3
4
5
6
7
8
9
10
2" Polyester prefilter in place of standard aluminum mesh filter
MINI-PAK-95% DOP
0
1
2
3
4
5
6
7
8
9
10
Internal 95% DOP Filter Option for Standard MINI-PAC Unit
MINI-PAK-AD
0
1
2
3
4
5
6
7
8
9
10
Internal AD Module Option for Standard MINI-PAC Unit
MINI-PAK-EXAD
0
1
2
3
4
5
6
7
8
9
10
External AD Filter Option for Standard MINI-PAC Unit
MINI-PAK-EXHE
0
1
2
3
4
5
6
7
8
9
10
External 99.97% HEPA Filter Option for Standard MINI-PAC Unit
MINI-PAK-HEPA
0
1
2
3
4
5
6
7
8
9
10
Internal 99.97% HEPA Filter Option for Standard MINI-PAC Unit
MINI-PAK-SHAKER
0
1
2
3
4
5
6
7
8
9
10
Shaker Bag Option for Standard MINI-PAC Unit
Extraction Arms
Part #
Qty
Description
MINIPAC-7E10-DD
0
1
2
3
4
5
6
7
8
9
10
7 E-Z ARM 10' Long Option for Standard MINI-PAC Unit
Wall Bracket must be ordered separately
MINI-PAC-DA-4
0
1
2
3
4
5
6
7
8
9
10
Two (2) 8' long 4" diameter E-Z Arm II Down-Flange high flow extractors in place of 7' long E-Z Arm high flow extractor.
Sound Attenuation
Part #
Qty
Description
MINI-PAK-S
0
1
2
3
4
5
6
7
8
9
10
Acoustic Lining Silencer Option for Standard MINI-PAC Unit
MINI-PAK-S-EXT
0
1
2
3
4
5
6
7
8
9
10
External Silencer Option for Standard MINI-PAC Unit
Preventative Maintenance Pressure Gauges, etc. (when ordering main unit)
Part #
Qty
Description
MINI-PAK-PG-5
0
1
2
3
4
5
6
7
8
9
10
0-5" magnahelic pressure gauge, approximately 5" diameter size. Surface mounted.
MINI-PAK-PG-6
0
1
2
3
4
5
6
7
8
9
10
0-6" magnahelic pressure gauge, approximately 5" diameter size. Surface mounted.
