Model

01-041

Image for (01-041)_ME_Lab_&_Bench_Top_-_Externally_Supported_-_2''3''4''_Ø.jpg

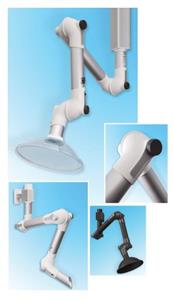

ME Lab & Bench Top - Ø 2'' / 3''/ 4''

The ME is a versatile local exhaust system with friction joints, designed for environments that require high flexibility, such as laboratories and production facilities in lighter industrial applications. The standard version is engineered for the efficient removal of a wide range of airborne contaminants, ensuring optimal air quality and safety in the workplace.

Available from 40'' to 80'' length, with hose diameter ranging from 2-4''.

Function:

The innovative joint design of the ME system results in an exceptionally low-pressure drop, delivering numerous significant benefits in terms of efficiency and performance.

Easy to combine with other extractors in the same ventilation system, and therefore the ideal extractor for schools, nail salons, and the electronics industry.

With its optimal design, the ME has a very low-pressure drop, which provides many valuable benefits:
  • Low-pressure drop saves energy.
  • Air flow noise is reduced.
  • Lower pressure drop is achieved without selecting a larger diameter extractor.
  • Lower pressure drop allows the ME to be combined with additional extraction systems.
Unique design and stable mounting brackets make the ME your best choice.

With its uniquely designed joint construction, the ME combines maximum flexibility with low-pressure drop. The air passes through the joints without creating unnecessary turbulence, thus producing an energy-saving low-pressure drop and a quieter working environment.

Optimal capture:
To maximize the effectiveness of the local extractor, it is crucial to utilize its flexibility to position it as close to the source of contamination as possible. As a general guideline, the optimal distance should be 2–3 times the diameter of the extractor tube. When operating at the recommended airflow, the extractor will deliver highly efficient extraction, even in the presence of surrounding disturbances.

Unique design:
The ME joints feature a patented friction design, complemented by a large joint diameter and a single-grip handle, ensuring a secure, stable arm that allows for smooth adjustments. This design eliminates the need for excessive force or tools when adjusting the positioning knob, offering ease of use and reliability.

The ME has a complete range of accessories to suit every situation, enabling you to create the optimal extractor for the evacuation of hazardous airborne gases and particulates.

Four available versions:

  • Standard version: Suitable for evacuating most types of airborne contaminants, e.g. in laboratories, schools, hospitals, the pharmaceutical industry, nail salons and light industrial applications.
  • ESD version: Suitable for evacuating airborne contaminants in environments where there is a need to avoid the risk of spark formation and in areas where products need to be ESD-certified, e.g. the electronics industry.
  • ATEX version: For explosive environments. Complies with the ATEX directive 94/9/EC-Joints and tubes made from carbon-impregnated polypropylene.
  • PP version: For environments containing high concentrations of corrosive pollutants. Joints and tubes made from polypropylene.

Construction:

  • Available sizes: 50, 75, and 100 mm
  • Ceiling and wall brackets: Anodized square section aluminum profile. 050 and 075 sizes use the same brackets, 0100 size has its own selection of brackets. Ceiling brackets are available in eight standard lengths up to 2m
  • Hoods adapted for ME 50 & 75 and four specially adapted hoods for ME 100. A suitable airflow is from 20 l/s to 125 l/s. 75 m /h - 450 m /h
  • Friction joints: Ball-bearing-equipped adjustable friction joints in polypropylene with guide ring of low-friction treated rubber
  • Tubes: Made from thin-wall anodized aluminum, alternatively from polypropylene. Air-tight damper supplied as standard
  • Component parts in zinc-plated steel or stainless steel
  • Support springs balance out the weight of the arm.
  • 360° rotational swivel-mounted in place
  • Airtight damper is fitted as standard

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
MET 2000-75 "H x "W x "D 0 lbs
MET 1500-75-PP "H x "W x "D 0 lbs
MET 1500-75 "H x "W x "D 0 lbs
MET 1350-100 "H x "W x "D 0 lbs
MET 1000-75-PP 6"H x 6"W x 60"D 15 lbs
MET 1000-75 5"H x 12"W x 12"D 5 lbs
MEB-1900-100-PP 4"H x 4"W x 46"D 20 lbs
MEB-1900-100 12"H x 8"W x 44"D 20 lbs
MEB-1650-100-PP 4"H x 4"W x 46"D 20 lbs
MEB-1650-100 12"H x 8"W x 44"D 20 lbs
MEB-1350-100-PP 4"H x 4"W x 46"D 20 lbs
MEB-1350-100 4"H x 4"W x 46"D 20 lbs
MEB-1150-100-PP 4"H x 4"W x 46"D 20 lbs
MEB-1150-100 4"H x 4"W x 46"D 20 lbs

Key Buying Criteria:

  • R & D facilities
  • Low noise criteria
  • Toxic gases and dust in Laboratories
  • Food and Pharmaceutical Dusts
  • Soldering fumes
  • Police forensic facilities

Suitable For:

Top 5 contaminants/processes/applications:

  • Gases and Emmissions from Lab Processes
  • Soldering fumes from electronic Manufacturing and repair
  • Light Dusts and Gases from R & D facilities
  • Ink and Paint fumes
  • Lead fumes from Stain Glass soldering
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
MEB-1150-100 4" (100mm)Ø x 46"L fume extractor arm with anodized aluminum tubes & polypropylene joints.
  • Table mounted version including a manual damper
MEB-1350-100 4" (100mm)Ø x 54"L fume extractor arm with anodized aluminum tubes & polypropylene joints.
  • Table mounted version including a manual damper
MEB-1650-100 4" (100mm)Ø x 66"L fume extractor arm with anodized aluminum tubes & polypropylene joints.
  • Table mounted version including a manual damper
MEB-1900-100 4" (100mm)Ø x 76"L fume extractor arm with anodized aluminum tubes & polypropylene joints.
  • Table mounted version including a manual damper
Part # Qty Description
MET 1000-75 3" (75mm)Ø x 40"L fume extractor arm with anodized aluminum tubes & 5" (125mm)Ø polypropylene joints.
  • Ceiling mounted version including a manual damper
MET 1300-75 3" (75mm)Ø x 52" long Fume Extractor Arm with anodized aluminum tubes & 5" (125mm)Ø polypropylene joints.
  • Ceiling mounted version including a manual damper
MET 1500-75 3" (75mm)Ø x 60"L fume extractor arm with anodized aluminum tubes & 5" (125mm)Ø polypropylene joints.
  • Ceiling mounted version including a manual damper
MET 2000-75 3" (75mm)Ø x 80"L fume extractor arm with anodized aluminum tubes & 5" (125mm)Ø polypropylene joints.
  • Ceiling mounted version including a manual damper
Part # Qty Description
MEB 1000-75-PP 3" (75mm)Ø x 40"L fume extractor arm with polypropylene tubes & 5" (125mm)Ø polypropylene joints.
  • Table mounted version including a manual damper
MEB 1300-75-PP 3" (75mm)Ø x 51"L fume extractor arm with anodized aluminum tubes & 5" (125mm)Ø polypropylene joints.
  • Table mounted version including a manual damper
MEB 1500-75-PP 3" (75mm)Ø x 60"L fume extractor arm with polypropylene tubes & 5" (125mm)Ø polypropylene joints.
  • Table mounted version including a manual damper
MEB 1900-75-PP 3" (75mm)Ø x 76"L fume extractor arm with polypropylene tubes & 5" (125mm)Ø polypropylene joints.
  • Table mounted version including a manual damper
Part # Qty Description
MET 1000-75-PP 3" (75mm)Ø x 40"L fume extractor arm with polypropylene tubes & 5" (125mm)Ø polypropylene joints.
  • Ceiling mounted version including a manual damper
MET 1300-75-PP 3" Diameter x 51" Long fume extractor arm with polypropylene tubes and 5" diameter polypropylene joints. Ceiling mounted version including a manual damper.
MET 1500-75-PP 3" (75mm)Ø x 60"L fume extractor arm with anodized aluminum tubes & 5" (125mm) polypropylene joints.
  • Ceiling mounted version including a manual damper
MET 2000-75-PP 3" Ø x 80" Long fume extractor arm with polypropylene tubes and 5" Ø polypropylene joints. Ceiling mounted version including a manual damper.
Part # Qty Description
MEB 1000-75 3" (75mm)Ø x 40 fume extractor arm with anodized aluminum tubes & 5" (125mm)Ø polypropylene joints.
  • Table mounted version including a manual damper
MEB 1300-75 3" (75mm)Ø x 51"L fume extractor arm with anodized aluminum tubes & 5" (125mm)Ø polypropylene joints.
  • Table mounted version including a manual damper
MEB 1500-75 3" (75mm)Ø x 60"L fume extractor arm with anodized aluminum tubes & 5" (125mm)Ø polypropylene joints.
  • Table mounted version including a manual damper
Part # Qty Description
MET 1150-100 4" Ø x 46" Long fume extractor arm with anodized aluminum tubes and polypropylene joints. Ceiling mounted version including a manual damper.
MET 1350-100 4" Ø x 54" Long fume extractor arm with anodized aluminum tubes and polypropylene joints. Ceiling mounted version including a manual damper.
MET 1650-100 4" Diameter x 66" Long fume extractor arm with anodized aluminum tubes and 5" diameter polypropylene joints. Ceiling mounted version including a manual damper.
MET 1900-100 4" Ø x 76" Long fume extractor arm with anodized aluminum tubes and polypropylene joints. Ceiling mounted version including a manual damper.
MET 2100-100 4" Ø x 84" Long fume extractor arm with anodized aluminum tubes and polypropylene joints. Ceiling mounted version including a manual damper.
MET-2650-100 4" Diameter x 106" Long fume extractor arm with anodized aluminum tubes and polypropylene joints. Ceiling mounted version without manual damper.
Part # Qty Description
MET 1150-100-PP 4" Diameter x 46" Long fume extractor arm with polypropylene tubes and polypropylene joints. Ceiling mounted version including a manual damper
MET 1350-100-PP 4" (100mm)Ø x 54"L polypropylene fume extractor arm.
  • Ceiling mounted version including a manual damper
MET 1650-100-PP 4" (100mm)Ø x 66"L polypropylene fume extractor arm.
MET 1900-100-PP 4" (100mm)Ø x 76"L polypropylene fume extractor arm.
  • Ceiling mounted version including a manual damper
MET 2100-100-PP 4" (100mm)Ø x 84"L polypropylene fume extractor arm.
  • Ceiling mounted version including a manual damper
MET 2650-100-PP 4" (100mm)Ø x 106"L polypropylene fume extractor arm.
  • Ceiling mounted version including a manual damper
Part # Qty Description
MEB-1150-100-PP 4" (100mm)Ø x 46"L fume extractor arm with anodized polypropylene tubes & joints.
  • Table mounted version including a manual damper
MEB-1350-100-PP 4" (100mm)Ø x 54"L fume extractor arm with anodized polypropylene tubes & joints.
  • Table mounted version including a manual damper
MEB-1650-100-PP 4" (100mm)Ø x 66"L fume extractor arm with anodized polypropylene tubes & joints.
  • Table mounted version including a manual damper
MEB-1900-100-PP 4" (100mm)Ø x 76"L fume extractor arm with anodized polypropylene tubes & joints.
  • Table mounted version including a manual damper

Frequently bought together these options:

Part # Qty Description
MTI 1000 40"L standard anodized aluminum ceiling bracket including a 4" (100mm) side inlet & 7 7/8" x 7 7/16" mounting plate.
MTI 1250 50"L standard anodized aluminum ceiling bracket including a 4" (100mm) side inlet & 7 7/8" x 7 7/16" mounting plate.
MTI 1500 60"L standard anodized aluminum ceiling bracket including a 4" (100mm) side inlet & 7 7/8" x 7 7/16" mounting plate.
MTI 1750 70" Long standard anodized aluminum ceiling bracket including a 4" side inlet and 7 7/8" x 7 7/16" mounting plate.
MTI 2250 90" Long standard anodized aluminum ceiling bracket including a 4" side inlet and 7 7/8" x 7 7/16" mounting plate. 7 7/8" x 7 7/16" mounting plate.
MTI 250 10"L standard anodized aluminum ceiling bracket including a 4" (100mm) side inlet & 7 7/8" x 7 7/16" mounting plate.
MTI 2500 100" Long standard anodized aluminum ceiling bracket including a 4" side inlet and 7 7/8" x 7 7/16" mounting plate.
MTI 2750 110" Long standard anodized aluminum ceiling bracket including a 4" side inlet and 7 7/8" x 7 7/16" mounting plate.
MTI 3000 120" Long standard anodized aluminum ceiling bracket including a 4" side inlet and 7 7/8" x 7 7/16" mounting plate.
MTI 500 20" Long standard anodized aluminum ceiling bracket including a 4" side inlet and 7 7/8" x 7 7/16" mounting plate.
MTI 750 30"L standard anodized aluminum ceiling bracket including a 4" (100mm) side inlet & 7 7/8" x 7 7/16" mounting plate.
Part # Qty Description
MEM-250-75 Metal hood 10" (255mm)Ø, powder coated aluminum
  • for 3" (75mm) arms
MEPH-375-100 Flat screen hood 15" (380mm) x 10"(255m) (PETG) material for 4" (100mm)Ø arm.
MEPH-375-100-EX Flat screen hood 15" (380mm) x 10"(255m) (PETG) material for 4" (100mm)Ø arm.
  • Atex Version
MES-300-50 2" (50mm) Suction Nozzle L=12" (300mm) standard aluminum.
MK 350-75 14" (355mm)Ø round domed hood (PETG) material 3" (75mm) arm.
Part # Qty Description
MEM-251-100 Metal hood 10" (255mm), powder coated aluminum & connector.
Part # Qty Description
Flexi-Movex-WALL-BRK Wall bracket from Flexi to Movex arms
MTI 125-118 5” (125mm) PROFILE RAIL ALUMINIUM EXTRUSION ONLY
