20-014

ICA 45 Degree Adjustment Nozzle
with Hepa H14 Filtration

- for Coffee, Lunch and Meeting rooms, Offices, Waiting rooms, Schools, Restaurants, Fitness studios, Changing Room, etc.

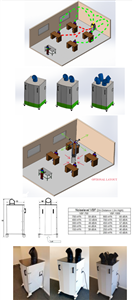

LEV-CO’s Stand-alone ICA (Immediate Clean Air) 45 Degree Adjustable Nozzle with Hepa H14 Filtration for Coffee, Lunch, Meeting, Waiting rooms, Offices, Schools, Restaurants, Fitness Studios, Locker rooms and benches. A simple “Pre-engineered” solution with "Clean-to-less-clean" air distribution, HEPA H14 Filtration (99.995% @ 100 Nanometer), Duct and Diffusion Hood.

Product Function:



ICA 45 Degree Adjustable Nozzle with HEPA H14 Professional Airpurifiers are used indoors to reduce COVID-19 and other Viruses in the air. They come in two sizes. 700m3/hour and 1000m3/hour maximum airflow. It is recommended to filter the total air volume in a room 6 times/hour. The ADO and H-ADO models are for larger rooms. With ADO (Adjustable Direction Outlet) you can direct the cleaned air in any direction and with up to 4 nozzles. This makes it possible to reduce the overall concentration of Virus and Bacteria in larger rooms faster. The cleaned air is blown out in a controlled direction and is better mixed with the rest of the air in the room. The concentration of Virus and Bacteria in the air which come back to the Filter Unit is higher, which means that more Virus/Bacteria is filtered in a shorter time. The concentration in the room will be reduced faster. ICA-700 is for rooms up to 40m2. ICA-1000 is for rooms up to 60m2.

Here's how it works:
  • STEP 1: The "Clean-to-less-clean" air movement supplies clean filtered air to the occupants breathing zone through a pre-engineered diffusion hood explicitly designed for the application e.g., meeting rooms, lunchrooms, Locker rooms, classrooms, etc. This precise air movement is essential as the viral particles associated with Covid-19 have shown that they can remain airborne, for up to 16 hours in still air.
  • STEP 2: An ultra-low noise fan draws the room air in at floor level where the air is least clean. The air is drawn in by a variable speed, centrifugal fan that allows the operator to control the flow based on the number of people in the room.
  • STEP 3: The air passes through a silenced chamber engineered to dampen the associated noise generated by the air movement.
  • STEP 4: A multi-stage filter module filters the contaminated air containing virus particles as small as 0.1 Micron (MicroMeters) to a purity level of 99.995%.
  • STEP 5: An optional UVC germicidal treatment lamp can be purchased as a supplement to help destroy virus particles that may remain attached to the inner surfaces of the unit’s air intake housing.
  • STEP 6: Clean filtered air is returned to the indoor space through a low-noise duct and diffuser hood detailed in Step 1, thus completing the filtration and ventilation circuit. This allows the air in a typical room to be changed over 100 times an hour.

Construction:


Each system Fan/Filter module complete with four-stage filtration:

1. Prefilter for larger particles >50 microns. (Washable)
2. High-efficiency F5 class secondary filter 40-60% efficiency on particles larger than 0.4 microns. (Disposable)
3. High-Efficiency HEPA H14 class final filter 99.995% efficient on particles smaller than 0.1 microns. (Delivered with Efficiency and leak test Certificate)
4. Outlet filter of washable Aluminum mesh (Washable)

Additional Information:

- All ICA air-purifiers come complete with 120V variable-speed EC motors. Units are delivered ready to plug in and use. The fan speed can be adjusted to suit precise ‘Draft-Free’ airspeeds and ‘Ultra Quiet’ noise levels.
- When selected, duct kits come complete with lightweight sheet metal ducting, duct fitting, chains (to hang the hood and duct), and hooks (for the ceiling).
- The duct kit, hoods, and/or supply arms are simple to install and typically require no more than 30 minutes to set up.
- Units are fabricated with heavy-duty, all-steel materials of the highest quality.
- All units are delivered complete with 4x5" diameter locking casters. Alternatively, 5" legs can be ordered separately.
- Optional bacteria killing UVC lamps can be placed before the HEPA H14 filter to kill surface viruses, mold and bacteria.

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
L-814 60"H x 25"W x 30"D 165 lbs
L-812 60"H x 25"W x 30"D 165 lbs
L-810 60"H x 25"W x 30"D 165 lbs
L-808 50"H x 25"W x 25"D 145 lbs
L-806 50"H x 25"W x 25"D 145 lbs
Part #
Qty
Description
L-806
COVID-ICA1/ADO1/700-HEPA fan/filter unit H14. 1 Outlet D.200/45. EC 1-phase, 220V, 50/60Hz, 175W. H14(8M2).
L-808
COVID-ICA2/ADO2/700-HEPA fan/filter unit H14. 2 Outlets D.160/45. EC 1-phase, 220V, 50/60Hz, 350W. H14(8m2).
L-810
COVID-ICA1/ADO1/1000-HEPA fan/filter unit H14. 1 Outlet D.200/45. EC 1-phase, 115V, 50/60Hz, 175W. H14(13M2).
L-812
COVID-ICA2/ADO2/1000-HEPA fan/filter unit H14. 2 Outlets D.200/45. EC 1-phase, 220V, 50/60Hz, 350W. H14(13m2).
L-814
COVID-ICA4/ADO4/1000-HEPA fan/filter unit H14. 4 Outlets D.160/45. EC 1-phase, 220V, 50/60Hz, 350W. H14(13m2).

Frequently bought together these options:

Part #
Qty
Description
L-800
Replacement F5 2 " Prefilter for COVID-ICA-700 Models.
L-801
Replacement F5 4" Prefilter for COVID-ICA-1000 Models.
Part #
Qty
Description
L-802
Replacement HEPA filter coronavirus H14 (8m2) for COVID-ICA-700 Models. Certificate and Leak Test.
L-803
Replacement HEPA filter coronavirus H14 (13m2) for COVID-ICA-1000 Models. Certificate and Leak Test.
Part #
Qty
Description
NOZZLE-DIFFUSER-8
Round Nozzle Diffuser - 8 inch - Aluminium
Part #
Qty
Description
L-579
Casters 4x125mm for all air purifiers for COVID-ICA-700/ 1000 Models.
Part #
Qty
Description
CUSTOM-PAINT-UPGRADE
Custom paint upgrade (sheet metal components only). Includes: set up fee, base custom painting, 60 sq ft
Part #
Qty
Description
BELT-COUP-8-10
MESH BELT COUPLER 8-10" DIAMETER, 4 TIGHTENING CLAMPS
HCS-8
Gear Clamps HS140, 7.5" - 9.5"
OM-071
Hood D200MM with damper for externally supported extraction arm. Pro-flex, supermax or magnetic hood
S-200-1
Fire retardant PVC coated polyester blue hose. 8" Diameter (sold per foot).
S-200-1-BLK
Fire retardant PVC coated polyester black hose. 8" Diameter (sold per foot).
S-200-1-WHT
Fire retardant PVC coated polyester white hose. 8" Diameter (sold per foot).
