Model

16-001

Image for GPH.png

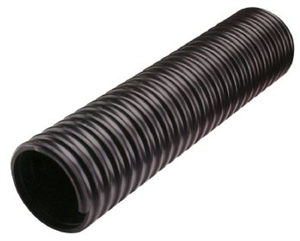

GPH General Duty Hose - INDUSTRIAL HOSE & DUCT WORK

This hose is an excellent general-purpose hose and is somewhat more durable than TPR film hoses.

Function:

The GPH General Duty Hose is a lightweight TPR coated polyester fabric with wire reinforcement. This hose has been optimally designed for low temperature vehicle exhaust applications, temperature ranges between 60°F - 275°F.

Construction:

  • Material: Polyester fabric, neoprene coated
  • Construction: Single-ply fabric over fully covered spring steel spiral
  • Diameters: 1.5” to 36”
  • Weight = 0.14lbs/ft x per inch I.D. of Hose
  • Length: 25 ft
  • Compression Ratio: 5:1
  • Temperature Range: -40°F to +250°F
  • Color: Black

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
MD-363-150-107***SEE NF-3ULAF2X06 8"H x 8"W x 13"D 2 lbs
MD-361-400-118 18"H x 18"W x 13"D 2 lbs
MD-361-350-118 16"H x 16"W x 13"D 2 lbs
MD-361-325-118 1"H x 1"W x 13"D 0 lbs
MD-361-300-118 14"H x 14"W x 13"D 2 lbs
MD-361-275-118 13"H x 13"W x 13"D 2 lbs
MD-361-250-118 12"H x 12"W x 13"D 2 lbs
MD-361-225-118 11"H x 11"W x 13"D 2 lbs
MD-361-200-107- 24"H x 24"W x 13"D 20 lbs
MD-361-200-107 24"H x 24"W x 13"D 20 lbs
MD-361-175-118 9"H x 9"W x 13"D 2 lbs
MD-361-170-118 "H x "W x 13"D 0 lbs
MD-361-160-118 30"H x 24"W x 13"D 2 lbs
MD-361-150-118***Discontinued see 363-150-107 8"H x 8"W x 13"D 2 lbs
MD-361-140-118 "H x "W x 13"D 0 lbs
MD-361-125-118 7"H x 7"W x 13"D 2 lbs
MD-361-120-118 "H x "W x 13"D 0 lbs
MD-361-115-118 6.5"H x 6.5"W x 13"D 2 lbs
MD-361-090-118 5.5"H x 5.5"W x 13"D 2 lbs
MD-361-075-118 5"H x 5"W x 13"D 2 lbs
MD-361-070-118 "H x "W x 13"D 0 lbs
MD-361-063-118 4.5"H x 4.5"W x 13"D 2 lbs
MD-361-050-118 4"H x 4"W x 13"D 2 lbs

Key Buying Criteria:

  • Lightweight makes this hose easily maneuverable
  • Low-cost
  • Medium temperature resistance up to 350° F
  • Medium abrasive resistance, good for non-flammable particles
  • Withstands static pressure up to 8" (200mm) WG

Suitable For:

Top 5 contaminants/processes/applications:

  • Dust
  • Fume
  • Smoke
  • Chemical Fumes
  • Plastic Fumes
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
MD-361-050-118 2" (50mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F. Price per foot (25' Length Minimum)
MD-361-063-118 2.5" (60mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F. Price per foot (25' Length Minimum)
MD-361-070-118 2.8" (70mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F. Price per foot (25' Length Minimum)
MD-361-075-118 AF2 hose.
MD-361-090-118 3.5" (90mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F, intermittent to +300°F. Price per foot (25' Length Minimum)
MD-361-100-118***Disc replaced by GPH-4 4" (100mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
MD-361-115-118 4.5" (115mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F, intermittent to +300°F. Price per foot (25' Length Minimum)
MD-361-120-118 4.8" (120mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F. Price per foot (25' Length Minimum)
MD-361-125-118 5" (125mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F. Price per foot (25' Length Minimum)
MD-361-140-118 5.5" (140mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F. Price per foot (25' Length Minimum)
MD-361-150-118***Discontinued see 363-150-107 6 Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement. Excellent general purpose hose, somewhat more durable than TPR film hoses. Very good for low temp vehicle exhaust applications. Temp range of 60F - 275F. Price per foot. (25' Length Minimum)
MD-361-160-118 6.4" (162mm) Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F. Price per foot (25' Length Minimum)
MD-361-170-118 6.8" (170mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F. Price per foot (25' Length Minimum)
MD-361-175-118 7" (175mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F, intermittent to +300°F. Price per foot (25' Length Minimum)
Price Update 25/11/2010
MD-361-200-107 8" (200mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F. Price per foot (25' Length Minimum)
MD-361-200-107- All Black---- 8" (200mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F. Price per foot (25' Length Minimum)
This hose is all black
MD-361-225-118 9" (230mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hose
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F, intermittent to +300°F. Price per foot (25' Length Minimum)
MD-361-250-118 10" (250mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F. Price per foot (25' Length Minimum)
MD-361-275-118 11" (280mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F. Price per foot (25' Length Minimum)
MD-361-300-118 12" (300mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F. Price per foot (25' Length Minimum)
MD-361-325-118 13" (330mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F. Price per foot (25' Length Minimum)
MD-361-350-118 14" (350mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F, intermittent to +300°F. Price per foot (25' Length Minimum)
MD-361-400-118 16" (400mm)Ø Master Santo L Lightweight TPR coated polyester fabric with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F, intermittent to +300°F. Price per foot (25' Length Minimum)
MD-363-150-107***SEE NF-3ULAF2X06 6" (150mm)Ø Master Santo L Lightweight TPR coated polyester fabric w/wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60°F - 275°F. Price per foot (25' Length Minimum)
MD-363-200-118 SANTO L, 8" (200mm)Ø with blue wire.
