Model

08-001

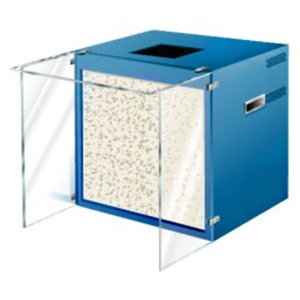

Image for fume_booth.jpg

Fume Booth - 28.5''H x 26.5''W

Fume Booth - A portable (230 CFM) ductless desktop and benchtop system for the removal of fumes, light dust, smoke, odors and gases. Compact design.

Function:

Removes fumes, dust, and odors for a healthier work environment, and improved productivity.

Available with:
  • Variable Frequency Drives
  • Filter Options
  • Preventative Maintenance Pressure Gauges

Construction:

  • 18 gauge welded steel cabinet with powder-coat finish
  • Includes 9” (230mm) deep removable/hinged acrylic shields (sides and top)
  • Built-in side handles
  • Spark resistant blower
  • 1/10 HP motor
  • 115/1/60Hz (1.3 amps)
  • 6’ power cord with on-off switch and running light
  • 2’ x 2’ Opening

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
Fume/Booth 28.5"H x 26.5"W x 19"D 85 lbs

Key Buying Criteria:

  • Portable, Self-Contained Unit: No installation required, easy to set up and use anywhere.
  • High-Efficiency 3-Stage Filtration: Provides up to 98% filtration efficiency.
  • Hinged, Removable Top and Side Shields with built-in side handle for easy access for cleaning and filter changeout.
  • Acrylic Top and Side Shields: Enhances worker visibility.
  • Plug-In Operation with any 115V Outlet: Can be used anywhere, no special wiring required; operates with simple on-off switch.

Suitable For:

Top 5 contaminants/processes/applications:

  • Spray Painting
  • Light Dusts
  • Grinding
  • Polishing
  • Soldering
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
Fume/Booth Portable desk-top air cleaner with:
  • (1) 1" (25mm) thick polyester pre-filter
  • (1) 65% pleated main filter (14 sq. ft. of media)
  • (1) 2" (50mm) thick disposable charcoal filter
  • (1) ODOR/EX deodorizer
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Frequently bought together these options:


Part # Qty Description
FUME/BOOTH-0.95 95% Main Filter in place of 65% standard filter.
FUME/BOOTH-AD Adsorption option, includes:
  • (1) refillable v-bank adsorption module (7 lbs. capacity)
  • (1) 2" (50mm) pleated after filter in place of standard 65% filter
  • Standard 2" (50mm) charcoal filter
  • Order charcoal separately
FUME/BOOTH-HEPA 99.97% Hepa Filter in place of standard 65% filter.

Part # Qty Description
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01 Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.

Part # Qty Description
F120 3800 cfm industrial air cleaner with:
  • (1) 4" (100mm) deep, 30% pleated pre-filter
  • (1) 65% bag filter (120 sq.ft. of media)
  • (1) 2 HP TEFC motor
Please specify voltage when ordering (6.5-6.2/3.1 amps) - 75 dBA.
FUME/BOOTH-ESS Extended acrylic side shields extends width to 30 (Add 10 lbs. to ship weight).
FUME/BOOTH-V550 Outside Vent Kit, includes:
  • Blower outlet adapter with 12 ½" of 6" (150mm)Ø flex hose
Can retrofit in the field (Add 20 lbs. to ship weight).
MSF120-CV 3800 cfm industrial air cleaner with:
  • (1) 4" (100mm) deep, 30% pleated pre-filter
  • (1) 65% bag filter (120 sq.ft. of media)
  • (1) 2 HP TEFC motor
Please specify voltage when ordering (6.5-6.2/3.1 amps) - 75 dBA.

Part # Qty Description
2AF9-0008 Adsorber module, v-bank, refillable, holds 7 lbs. of charcoal. AD.
2AZ1-0003 1" (25mm) replacement polyester filter, pad only.
7FC7-5402 Charcoal Filter for 500 series.
7FH9-9406 99.97% HEPA Filter wood frame (10" x 20" x 6")
7FP6-0402 2" (50mm) Pleated Filter, 60% efficiency 9.75" x 19.75" x 2" PLEATED PRE FILTER YELLOW FILTRATE.
7FP9-5401 95% main filter, 14 sq.ft.
CHARCOAL-CP20 20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40 40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
