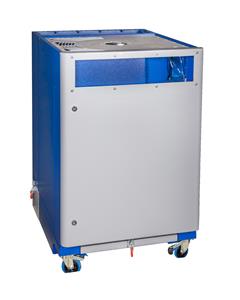

(02-14) Dustflex- Down flow wheeled filter for welding fumes, fine and coarse dusts as well as of small quantities of chips **
The Dustflex DF are filter units equipped with horizontal cartridges suitable for suction and filtration of welding fumes, fine and coarse dusts as well as of small quantities of chips.
Product Function
Shipping Weight
and Dimensions
Product Function:
They are composed by powder coated steel panels and prefitted with articulated arm flanged connection model UNIVERSAL NO-SMOKE 3.3 mts (Standard) or EVOLUTION NO–SMOKE 3 mts (Optional) both in Dia 6" (150 mm). They are engineered to be used inside the work premises.
The polluted air is sucked through the inlet thanks to the depression created by the suction fan positioned on the clean side.
The filter unit consists of one vertical pre-chamber, where the heaviest dusts are sorted out, falling then in a first collecting bin. The following labyrinth together with the high efficiency filtering cartridges complete the filtration of the remaining fine dusts collected in the second bin.
The high performance fan, placed just on the top of the unit, assures a high suction capacity and a low noise level, the clean air is exhausted out through a top grill.
The JETCLEAN DF thanks to the pneumatic cleaning automatic system (with compressed air) grants the perfect efficiency of the filter cartridges.
The CLEANING DF unit is equipped instead with disposable filter
cartridges.
Construction:
Shipping Dimensions and Weight:
Main System Part #
Length x Width x Height
Weight
Jet Clean DF2 Box
48"H x 32"W x 40"D
418 lbs
Jet Clean DF1 Box
42"H x 30"W x 37"D
220 lbs
Main System / Part
Part #
Qty
Description
Jet Clean DF1 Box
0
1
2
3
4
5
6
7
8
9
10
Jet Clean dust collector with one filter. this is the general box design that shall be used by levco to localy assemble grindex, jetclean, cleaning DF.
no motor or electrics (but complete with
Jet Clean DF2 Box
0
1
2
3
4
5
6
7
8
9
10
Jet Clean dust collector with two filter. this is the general box design that shall be used by levco to localy assemble grindex, jetclean, cleaning DF. The same box can be used with either one or two arms, depending on the Inlet plate used. For one arm,uses a 208-230 3phase 3hp NEMA 145T motor For two arm use a 208-230 3phase 5hp NEMA 182T motor
Main System - Pre-Engineered-Kits
Part #
Qty
Description
DUSTFLEX-DF1-kit
0
1
2
3
4
5
6
7
8
9
10
Dustflex DF1 kit 0.75 kW dust collector with one filter cartridge. One Ø6" (150mm) arm. 1.5 HP, 3480 rpm. 115/208-230V 60Hz fan. 856 cfm (1450 m³/h) nominal air flow. Ø6" (150mm) arm air flow 649 cfm (1100 m³/h).
DUSTFLEX-DF2-Kit-1.1kW
0
1
2
3
4
5
6
7
8
9
10
Dustflex DF2 kit 1.1 kW dust collector with two filter cartridges. One Ø6" (150mm) arm. 3 HP, 3490 rpm. 208-230/460 V, 60Hz fan. 1109 cfm (1880 m³/h) nominal air flow. Ø6" (150mm) arm air flow 915 cfm (1550 m³/h).
DUSTFLEX-DF2-Kit-2.2kW
0
1
2
3
4
5
6
7
8
9
10
Dustflex DF2 kit 2.2 kW dust collector with two filter cartridges. Two Ø6" (150mm) arms. 5 HP, 3510 rpm. 208-230/460 V, 60Hz fan. 1345 cfm (2280 m³/h) nominal air flow. Ø6" (150mm) arm air flow 649 cfm (1100 m³/h).
