Model

12-008

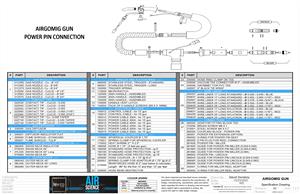

Image for AIRGOMIG - Fume gun.png Image for AIRGOMIG-SD 1_1.jpg

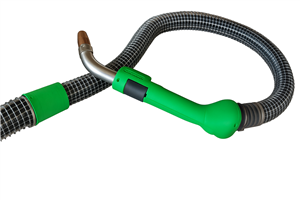

AIRGOMIG Fume Extraction MIG Gun

AIRGOMIG Series (AGM3, AGM4, AGM5) — a professional-grade, air-cooled fume-extraction MIG gun family delivering 15–65% higher extraction airflow versus competing guns and engineered to help meet ACGIH, OSHA & CCOHS exposure limits (e.g., manganese = 0.02 mg/m³ in welder breathing zone). Designed for continuous industrial use, the three models (AGM3, AGM4, AGM5) cover 300A, 400A and 500A duty ranges while remaining 5–25% lighter than comparable guns for less operator fatigue and improved arc visibility.

Function:

  • Overview: AIRGOMIG extracts fumes coaxially at the arc so welders no longer need to reposition external hoods or arms. This increases arc-on time and productivity on large or awkward workpieces while maintaining superior capture efficiency.
  • General function of each model:
    • AGM3 (300A) — suited for general-purpose steel and aluminum MIG work where a compact, high-extraction gun is needed.
    • AGM4 (400A) — a mid-range heavy-duty option for higher deposition and frequent use.
    • AGM5 (500A) — the high-duty option for continuous, demanding production and robotic/automated applications.
  • Configurations & common options:
    • Standard cable lengths: 12' and 15' (custom lengths available on request).
    • Swan neck angles: 45°, 45° long, 60°, 60° long for tight access or extended reach.
    • Nozzle choices: Copper or Zirconium-Copper in sizes ½", 5/8", ¾".
    • Connection interfaces: Euro, Power Pin (Miller), Power Pin (Lincoln) — compatible with virtually all feeders.
  • Main benefits summary: high extraction flow (reduces manganese/Cr(VI) exposure), ergonomic 360° swivel handle and ball-joint, narrow front end for better process view, reduced heat at the handle, robust consumables for long life, and broad wire/metal compatibility.

Construction:

  • Handle & ergonomics: durable polymer handle with integrated 360° ball-joint swivel and three-position top vent for porosity control and multi-position welding comfort.
  • Neck & heat management: chrome-plated metallic outer neck tube for improved heat dissipation and dimensional stability.
  • Electrical & feed path: coaxial power cables with heavy-duty swaged copper connections; low-friction liners for reliable wire feeding (Teflon liner option for aluminum).
  • Extraction hose & fittings: crush- and heat-resistant vacuum hose sized for high flow; secure, high-conductivity copper alloy consumables for longer life and consistent arc stability.
  • Duty & build: engineered for high duty cycles (100% on CO2, 60% on mixed gas depending on model) and produced in Canada to industrial quality standards.
  • Protective options: aramid protection sleeves available (7' and 10') for added abrasion and heat resistance.

Key Buying Criteria:

  • Model vs. application: choose AGM3/AGM4/AGM5 based on peak amp needs and duty cycle (300/400/500A respectively).
  • Extraction performance: confirm stated airflow vs. competitor guns and ensure your vacuum source provides equivalent suction — AIRGOMIG’s advantage depends on adequate vacuum capacity.
  • Wire & metal compatibility: verify required wire sizes (steel: 0.030"–3/32"; aluminum: 0.035"–1/16" with Teflon liner) match your feeders and process.
  • Connector type: pick the correct connection (Euro / Miller power pin / Lincoln power pin) for your feeder to avoid adapter complications.
  • Neck angle & nozzle size: select swan neck angle and nozzle size that give proper access and capture for your joint geometry without impeding visibility.
  • Durability features: look for copper alloy consumables, chrome neck, and optional aramid sleeve if you operate in abrasive or high-heat environments.
  • Regulatory/compliance intent: if you need to meet manganese or Cr(VI) exposure limits, request documented test results (e.g., Group Gesfor/Pinchin data) for your specific welding parameters and positions.

Suitable For:

Top 5 contaminants/processes/applications:

    • Solid wire MIG welding (steel)
    • Flux-cored welding
    • Metal-core (metal-cored) wire welding
    • Aluminum MIG (with Teflon liner)
    • Robotic and manual MIG applications
    • Confined space welding
    • Maintenance, repair, and production welding where fume control is required
    • Contaminants: welding fumes generally, manganese, hexavalent chromium
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
AIRGO-AGMXXXXXX AIRGOMIG high-duty cycle, air-cooled Vacuum Assisted MIG gun designed for superior fume extraction and welding performance in demanding industrial environments. Provides exceptional mobility, comfort, and consistent weld quality. The guns come with these options:
  • power cable of 300A, 400A, or 500A
  • gun length of 12' or 15' (other lengths available on demand)
  • welding machine connection with Euro type or power pin (Lincoln or Miller)
  • gas nozzle (01), contact tip (02), swan neck (07), and liner (25) according to customer needs.

Frequently bought together these options:


Part # Qty Description
AIRGO-GN-01C038 GAS NOZZLE - Cu - Ø 3/8"
AIRGO-GN-01C050 GAS NOZZLE - Cu - Ø 1/2"
AIRGO-GN-01C063 GAS NOZZLE - Cu - Ø 5/8"
AIRGO-GN-01C075 GAS NOZZLE - Cu - Ø 3/4"
AIRGO-GN-01Z050 GAS NOZZLE - CuCrZr - Ø 1/2"
AIRGO-GN-01Z063 GAS NOZZLE - CuCrZr - Ø 5/8"
AIRGO-GN-01Z075 GAS NOZZLE - CuCrZr - Ø 3/4"

Part # Qty Description
AIRGO-CT-02C035 CONTACT TIP - CU - 0.035
AIRGO-CT-02C045 CONTACT TIP - CU - 0.045
AIRGO-CT-02CT35 CONTACT TIP - CU - 0.035 TAPER
AIRGO-CT-02Z030 CONTACT TIP - CUCRZR - 0.030
AIRGO-CT-02Z035 CONTACT TIP - CUCRZR - 0.035
AIRGO-CT-02Z045 CONTACT TIP - CUCRZR - 0.45
AIRGO-CT-02Z052 CONTACT TIP - CUCRZR - 0.052
AIRGO-CT-02Z063 CONTACT TIP - CUCRZR - 0.063 (1/16)
AIRGO-CT-02Z094 CONTACT TIP - CUCRZR - 0.094 (3/32)

Part # Qty Description
AIRGO-GD-030001 GAS DIFFUSOR TUNNEL
AIRGO-GD-040001 DIFFUSOR INSULATOR FLAT

Part # Qty Description
AIRGO-FS-050000 FUME SHROUD - STANDARD
AIRGO-FS-050001 FUME SHROUD - TULIP
AIRGO-HNDL-120300 300A HANDLE - ASSEMBLED
AIRGO-HNDL-120400 400A HANDLE - ASSEMBLED
AIRGO-HNDL-120500 500A HANDLE - ASSEMBLED
AIRGO-HNDL-130001 HANDLE VENT LATCH
AIRGO-HNDL-140004 HANDLE SCREWS (M3.5 X 16MM) - PACK OF 5
AIRGO-NK-060000 SWAN NECK INSULATOR (2 per gun)
AIRGO-NK-07L045 SWAN NECK 45° LONG
AIRGO-NK-07L060 SWAN NECK 60° LONG
AIRGO-NK-07L180 SWAN NECK 180°
AIRGO-NK-07S045 SWAN NECK 45°
AIRGO-NK-07S060 SWAN NECK 60°
AIRGO-NK-08L045 OUTER NECK 45° LONG
AIRGO-NK-08L060 OUTER NECK 60° LONG
AIRGO-NK-08L180 OUTER NECK 180° LONG
AIRGO-NK-08S045 OUTER NECK 45°
AIRGO-NK-08S060 OUTER NECK 60°

Part # Qty Description
AIRGO-ACC-090000 STAINLESS STEEL TRIGGER
AIRGO-ACC-090001 STAINLESS STEEL TRIGGER - LONG
AIRGO-ACC-100000 TRIGGER SPRING
AIRGO-ACC-110000 MICROSWITCH

Part # Qty Description
AIRGO-AC-150012 CONTROL CABLE - for 12' gun
AIRGO-AC-150015 CONTROL CABLE - for 15' gun
AIRGO-AC-150017 CONTROL CABLE - for 17' gun
AIRGO-AC-150020 CONTROL CABLE - for 20' gun
AIRGO-AC-150021 CONTROL CABLE - for 21' gun
AIRGO-AC-150024 CONTROL CABLE - for 24' gun
AIRGO-AC-160412 POWER CABLE 400A - for 12' gun
AIRGO-AC-160415 POWER CABLE 400A - for 15' gun
AIRGO-AC-160417 POWER CABLE 400A - for 17' gun
AIRGO-AC-160420 POWER CABLE 400A - for 20' gun
AIRGO-AC-160421 POWER CABLE 400A - for 21' gun
AIRGO-AC-160424 POWER CABLE 400A - for 24' gun
AIRGO-AC-160512 POWER CABLE 500A - for 12' gun
AIRGO-AC-160515 POWER CABLE 500A - for 15' gun
AIRGO-AC-160517 POWER CABLE 500A - for 17' gun

Part # Qty Description
AIRGO-VC-170000 SPHERICAL COUPLER Ø
AIRGO-VC-170001 SPRING CLAMP FOR SPHERICAL COUPLER
AIRGO-VC-170002 HEAT SHRINK Ø2" X 2.5"
AIRGO-VC-170100 AIRGOMIG TUBING 44.5" (400A AND 500A GUNS)
AIRGO-VC-170101 AIRGOMIG TUBING 67" (300A GUNS)
AIRGO-VC-180000 FLEXIBLE HOSE Ø 1.75" (PRICE PER FOOT)
AIRGO-VC-191007 ARAMID HOSE PROTECTION - 7' LONG
AIRGO-VC-191010 ARAMID HOSE PROTECTION - 10' LONG
AIRGO-VC-200000 HOSE COUPLER - Ø 1.75" @ Ø 2"
AIRGO-VC-200001 SPRING CLAMP FOR COUPLER Ø 1.75" @ Ø 2"
AIRGO-VC-210000 REINFORCED HOSE Ø 2" (price per feet)
AIRGO-VC-220000 HOSE BEND RESTRICTOR
AIRGO-VC-230000 HOSE CLAMP ON T
AIRGO-VC-240000 VACUUM TEE CONNECTOR Ø 2.5"

Part # Qty Description
AIRGO-WL-25N455 WIRE LINER NYLATRON - WIRE Ø 0.030 - 0.045 - LG: 25' (BLUE)
AIRGO-WL-25N457 WIRE LINER NYLATRON - WIRE Ø 0.030 - 0.045 - LG: 17' (BLUE)
AIRGO-WL-25N635 WIRE LINER NYLATRON - WIRE Ø 0.052 - 1/16 - LG: 25' (RED)
AIRGO-WL-25N637 WIRE LINER NYLATRON - WIRE Ø 0.052 - 1/16 - LG:175' (RED)
AIRGO-WL-25S455 WIRE LINER - WIRE Ø 0.030 - 0.045 - LG: 25' (BLUE)
AIRGO-WL-25S457 WIRE LINER - WIRE Ø 0.030 - 0.045 - LG: 17' (BLUE)
AIRGO-WL-25S635 WIRE LINER - WIRE Ø 0.052 - 1/16 - LG: 25' (RED)
AIRGO-WL-25S637 WIRE LINER - WIRE Ø 0.052 - 1/16 - LG: 17' (RED)
AIRGO-WL-25S947 WIRE LINER - WIRE Ø 5/64 - 3/32 - LG:17' (BLACK)

Part # Qty Description
AIRGO-CON-260000 COUPLER - TEE TO COUPLING BLOCK
AIRGO-CON-270000 BRASS SCREW M6 X 1
AIRGO-CON-270001 STEEL SCREW M4 X 0.7

Part # Qty Description
AIRGO-PPC-280000 COUPLING BLOCK - POWER PIN
AIRGO-PPC-280001 POWER PIN EXTENSION
AIRGO-PPC-280002 O-RING FOR POWER PIN SEAT
AIRGO-PPC-280005 TRIGGER CONNECTION PLUG - MILLER
AIRGO-PPC-280006 TRIGGER CONNECTION PLUG - LINCOLN
AIRGO-PPC-280011 TRIGGER CONNECTION PLUG ADAPTER - MILLER @ LINCOLN
AIRGO-PPC-281828 POWER PIN MILLER
AIRGO-PPC-281845 GUIDE FOR POWER PIN MILLER (0.024 - 0.045)
AIRGO-PPC-281863 GUIDE FOR POWER PIN MILLER (0.045 - 0.063)
AIRGO-PPC-281894 GUIDE FOR POWER PIN MILLER (0.094)
AIRGO-PPC-289003 POWER PIN LINCOLN
AIRGO-PPC-289045 GUIDE FOR POWER PIN LINCOLN (0.024 - 0.045)
AIRGO-PPC-289063 GUIDE FOR POWER PIN LINCOLN (0.045 - 0.063)
AIRGO-PPC-289094 GUIDE FOR POWER PIN LINCOLN (0.094)

Part # Qty Description
AIRGO-EUC-290000 COUPLING BLOCK FOR EURO ADAPTOR - ASSEMBLED
AIRGO-EUC-290001 COUPLING BLOCK FOR EURO ADAPTOR
AIRGO-EUC-290002 ADAPTOR NUT
AIRGO-EUC-290005 GAS NIPPLE FOR EURO ADAPTER - ASSEMBLED
AIRGO-EUC-290009 ELECTRIC SPRING CONTACT PINS - ASSEMBLED (2 per gun)
AIRGO-EUC-290045 GUIDE FOR WIRE LINER (0.030 - 0.045) (FOR EURO BLOCK)
AIRGO-EUC-290063 GUIDE FOR WIRE LINER (0.052 - 0.063) (FOR EURO BLOCK)
AIRGO-EUC-290094 GUIDE FOR WIRE LINER (0.078 - 0.094) FOR EURO BLOCK)

Part # Qty Description
AIRGO-WFA-350001 O-RING FOR LINCOLN REEL ADAPTOR
AIRGO-WFA-350002 O-RING FOR MILLER REEL ADAPTOR
AIRGO-WFA-350003 FEMALE CONNECTOR FOR EURO ADAPTOR
AIRGO-WFA-351828 EURO CONNECTOR - MILLER 1828
AIRGO-WFA-351835 GUIDE TUBE MILLER 1828 (0.024 - 0.035)
AIRGO-WFA-351863 GUIDE TUBE MILLER 1828 (0.045 - 0.063)
AIRGO-WFA-351894 GUIDE TUBE MILLER 1828 (0.094)
AIRGO-WFA-359003 EURO CONNECTOR - LINCOLN 9003
AIRGO-WFA-359035 GUIDE TUBE LINCOLN 9003 (0.024 - 0.035)
AIRGO-WFA-359063 GUIDE TUBE LINCOLN 9003 (0.045 - 0.063)
AIRGO-WFA-359094 GUIDE TUBE LINCOLN 9003 (0.094)
AIRGO-WFA-380000 AIRGOMIG KEY

Part # Qty Description
AIRGO-MV-HV0103 140 CFM single Port High Vacuum Portable Extraction Unit complete with 2.3 HP motor, 120 V / 1 Ph / 60 Hz power supply, and 2" Ø inlet. Designed for connection to any vacuum-assisted MIG gun or extraction nozzle. Includes:
  • Maximum Flow Rate: 140 CFM
  • Maximum Vacuum: 140" H2O
  • MERV 12 Filtration (225 sq. ft.)
  • Tangential Inlet for Cyclonic Separation
  • CSA & UL Approved
  • Noise Level: 76 dB @ 5'
  • Not included in base model: Hose Kit, Filter Upgrade
AIRGO-MV-HV0105 280 CFM Dual Port High Vacuum Portable Extraction Unit complete with 4.6 HP (2 × 2.3 HP) motors, 240 V / 1 Ph / 60 Hz power supply, and 2 × 2" Ø inlets. Designed for connection to any vacuum-assisted MIG guns or extraction nozzles. Includes:
  • Maximum Flow Rate: 280 CFM
  • Maximum Vacuum: 140" H2O
  • MERV 12 Filtration (225 sq. )
  • Tangential Inlet for Cyclonic Separation
  • CSA & UL Approved
  • Noise Level: 78 dB @ 5'
  • Not included in base model: Hose Kit, Filter Upgrade
AIRGO-MV-HV0204 REMOTE START SYSTEM (1 REQUIRED PER GUN)
AIRGO-MV-HV0403 FLEXIBLE HOSE Ø 2.5" VSH-2.5 - 25' LENGTH
AIRGO-MV-HV0405 FLEXIBLE HOSE Ø 2.0" VSH-2.0 - 25' LENGTH
