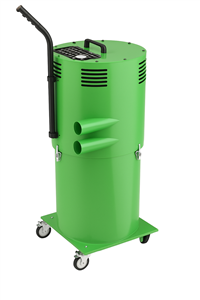

AGFE - HV103/HV105 V2

Function:

The HV103 V2 is a self-contained, mobile vacuum unit designed to capture airborne pollutants directly at the source in confined or hard-to-duct areas. It uses a single 2.25 HP universal-type motor driving a two-stage centrifugal impeller made of lightweight, non-sparking aluminum. This combination delivers a stable vacuum for capturing fine dust and dry particulates without risk of static buildup or ignition. The system includes an integrated collection tank and high-efficiency cartridge filter (109 ft² surface area, 225 ft² on HV103LL V2). An optional HEPA filter can be added for ultra-fine particle retention. The automatic and manual vibration-cleaning modes maintain airflow and filter longevity, while a pressure gauge and indicator light alert operators when filter maintenance is needed. The unit can connect to a wide range of capture tools including vacuum-assisted MIG guns, suction nozzles, and grinder hoods (via 2"–2.5" hoses). It is equipped with a simple ON/OFF control panel, optional remote starter, and vibration cleaning switch. Main options include:

• HEPA after-filter for 99.97 % filtration at 0.3 µm
• Remote starter for manual/automatic operation
• Various capture nozzles (welding gun, grinder, general suction)
• Flexible 2" or 2.5" hoses with clamping collars (max 25 ft)
• Replacement filter cartridges and vibration cleaning kits

Construction:

The HV103 V2 features a heavy-duty, powder-coated steel body mounted on four locking casters for mobility. Its powertrain integrates the motor and turbine in a single housing to maximize efficiency and reduce maintenance. A high-surface-area cartridge filter mounted inside the accumulation tank provides 99.9 % filtration efficiency at 0.5 µm. Electrical design includes a 120 V (1.67 kW) power requirement through a NEMA L5-20P plug and 25 A breaker. The system operates quietly at 78 dB and incorporates complete grounding for safe operation. All components are sealed to prevent dust leakage and maintain vacuum integrity. Key technical data:

• Airflow: 140 CFM (HV103SS V2) / 225 CFM (HV103LL V2)
• Vacuum: 140" H2O maximum
• Filter area: 109–225 ft²
• Filter efficiency: 99.9 % @ 0.5 µm
• Power: 1.67 kW (120 V, 50/60 Hz)
• Noise level: 78 dB @ 5 ft
• Operating temperature: 5 – 40 °C (= 80 % RH)

Key Buying Criteria:

• Compact Power: Delivers 140" H2O vacuum in a small, portable footprint.
• Quiet and Efficient: Low 78 dB noise rating ideal for indoor and training environments.
• Automatic Filter Cleaning: Built-in vibration cycle maintains performance and reduces downtime.
• Plug-and-Play Setup: Uses standard 120 V power with L5-20 plug — no hard wiring required.
• High Filtration Efficiency: 99.9 % capture at 0.5 µm with optional HEPA upgrade.
• Simple Maintenance: Tool-free filter access and standardized replacement parts.
• Safe Operation: Non-sparking aluminum impeller and grounded system for operator safety.
• Mobile Design: Ergonomic handle and casters enable easy relocation between stations.

Suitable For:

Top 5 contaminants/processes/applications:

• Welding Fumes
• Grinding Dust
• Metal Dust and Chips
• Soldering Fumes
• Fine Dry Powders
• Smoke from Cutting or Polishing
• Surface Finishing Dust
• Maintenance and Repair Operations
• Training and Technical Education Workshops

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
