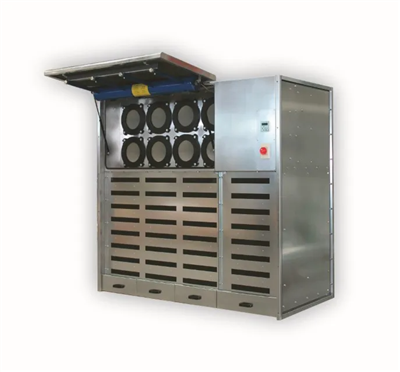

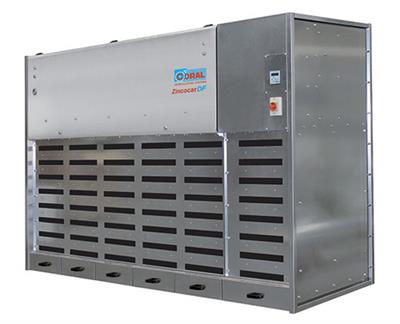

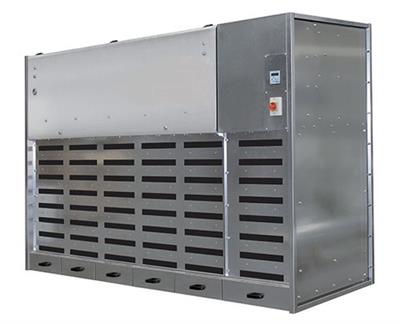

ZINCOCAR DF - 86''H x 45''W

The ZINCOCAR DF is a "Plug and Play" filter wall, with easy maintenance, maximum filtration efficiency, and stand-alone positioning.

Available Options:

• Variable Frequency Drives
• Modular Extended Roof
• Filter Options
• Light
• Sound Proof Plenum for Air Outlet
• Side Modular Wall in Lexan or in Galvanized Sheet Metal

• 3 kW fan. 7.5 hp, 3ph, 208-230/460V 60Hz 3490 rpm
• (8) cartridge filters
• Easy dust disposal thanks to a wheeled container
• Crane eyelets and forklift lifting points
• Low noise due to the high efficiency of the installed backward curved fan
• Soundproofed centrifugal fan positioned on the upper part of the cabinet
• Equipped with a cyclic programmer for automatic cleaning of the filtering cartridges with an ON/OFF switch and compressed air

• Plug and Play
• Easy filter maintenance
• Energy saving, reducing heating and Air conditioning costs
• Filtered air recirculation in the work area
• Easy installation with a compressed air connection and electric power
• Ideal when at source exhaust is difficult or inaccessible, or where ductwork installation is complicated or not suitable
• Designed for air-conditioned or heated workshops to avoid energy waste in exhausting the air outdoor
• When recycling the outside air is a must
• Environments where the source of pollutant/smoke is changing depending on process
• When local exhaust performed by portable units is insufficient or weak

Top 5 contaminants/processes/applications:

• VOC's, Odors, and Fumes
• Wood, Steel, and Grinding Dusts
• Welding Fumes
• Dust from working with Inert Materials
• Spray Metallizing

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
