Model
05-009
Solutions
No solutions exist for this product
Industries
Auto body repair
Dental Offices
Vehicle Repair
Processes
- Buffing and Polishing
- Digital Fabrication (Prosthesis and abutments)
Engineering Control Methods
- Downdraft with integrated filtration

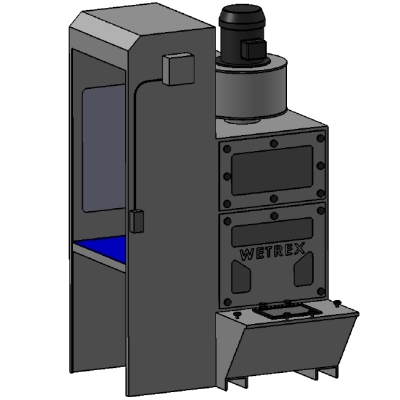

WETREX single & dual Wet Tables - Explosive Dust - Table Qty, sizes, & flow to suit
The WETREX Downdraft Table is a self-contained workstation with its own water dust collection system, excellent for "cell manufacturing." It features easy installation and comes ready to run. The workstation is available with a single work surface or with two work surfaces, one on each side.
The WETREX gets the dust immediately wetted, reducing the risk of fire in ductwork and meets OSHA and NFPA regulations for dust collectors located inside the building. The standard unit includes a fiberglass grated work surface, and optional Regain Air Curtain in front to prevent dust from escaping the work zone.
The WETREX gets the dust immediately wetted, reducing the risk of fire in ductwork and meets OSHA and NFPA regulations for dust collectors located inside the building. The standard unit includes a fiberglass grated work surface, and optional Regain Air Curtain in front to prevent dust from escaping the work zone.
FUNCTION
The WETREX Downdraft Table is a self-contained workstation with its own water dust collection system, excellent for "cell manufacturing." It features easy installation and comes ready to run. The workstation is available with a single work surface or with two work surfaces, one on each side.
The WETREX gets the dust immediately wetted, reducing the risk of fire in ductwork and meets OSHA and NFPA regulations for dust collectors located inside the building. The standard unit includes a fiberglass grated work surface, and optional Regain Air Curtain in front to prevent dust from escaping the work zone.
The WETREX gets the dust immediately wetted, reducing the risk of fire in ductwork and meets OSHA and NFPA regulations for dust collectors located inside the building. The standard unit includes a fiberglass grated work surface, and optional Regain Air Curtain in front to prevent dust from escaping the work zone.
BASE MODELS, OPTIONS & ACCESSORIES
Part #
Description
F1-DHYD1-30-5-4-3R
DHYD1 Hydrotron Downdraft table complete with:
- (1) 48" x 36" table, 3000 CFM, 5 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
F1-DHYD1-30-5-4-4R
DHYD1 Hydrotron Downdraft table complete with:
- (1) 48" x 48" table, 3000 CFM, 5 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
F1-DHYD1-30-5-4R
DHYD1 Hydrotron Downdraft table complete with:
- (1) 48" x 30" table, 3000 CFM, 5 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
F1-DHYD1-30-5-5R
DHYD1 Hydrotron Downdraft table complete with:
- (1) 60" x 30" table, 3000 CFM, 5 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
F1-DHYD1-30-5-6-4R
DHYD1 Hydrotron Downdraft table complete with:
- (1) 72" x 48" table, 3000 CFM, 5 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
F1-DHYD1-30-5-6R
DHYD1 Hydrotron Downdraft table complete with:
- (1) 72" x 30" table, 3000 CFM, 5 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
F1-DHYD1-50-10-4-3R
DHYD1 Hydrotron Downdraft table complete with:
- (1) 48" x 36" table, 5000 CFM, 10 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
F1-DHYD1-50-10-4-4R
DHYD1 Hydrotron Downdraft table complete with:
- (1) 48" x 48" table, 5000 CFM, 10 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
F1-DHYD1-50-10-4R
DHYD1 Hydrotron Downdraft table complete with:
- (1) 48" x 30" table, 5000 CFM, 10 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
F1-DHYD1-50-10-5-3R
DHYD1 Hydrotron Downdraft table complete with:
- (1) 60" x 36" table, 5000 CFM, 10 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
F1-DHYD1-50-10-6-3R
DHYD1 Hydrotron Downdraft table complete with:
- (1) 72" x 36" table, 5000 CFM, 10 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
F1-DHYD1-50-10-8-3R
DHYD1 Hydrotron Downdraft table complete with:
- (1) 96" x 36" table, 5000 CFM, 10 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
F1-DHYD1-50-10-8-4R
DHYD1 Hydrotron Downdraft table complete with:
- (1) 96" x 48" table, 5000 CFM, 10 HP 230/3/60 or 575/3/60 motor (please specify voltage when ordering)
- Regain (Push-Pull) system
LEV-WDDT3-1
Complete Single Table with the following Spec:
- Table Design 36" x 30"
- Construction of mild steel (12 gauge construction)
- Fully welded cabinet with EPOXY interior;
- Water basin, rear entry with baffles and KIMRE pad impingers;
- Full one piece gasket on doors and front cap to ensure pressure capacity within collector.
- Top mounted blower includes housing, AMCA B rating, BI wheel, matching paint, direct drive mounted TEFC motor : 5hp, 600/3/60;
- Blower set for a capacity of 3000 cfm at 6” wg.
- Full water level controls with adjustable logic
- High and Low water level alarms
- Side Walls with Plexiglass
- Regain air with adjustable damper & Bleed
- LED light kit 1x per table
- Hi & Low Alarm – water level control
- Magnetic Motor Starter (ON/OFF)with thermal over load protection
- Manual outlet bleed valve/damper
- Yellow fiberglass grate
LEV-WDDT3-2
Complete Dual Table with the following Spec:
- Tables Design 36" x 30"
- Construction of mild steel (12 gauge construction)
- Fully welded cabinet with EPOXY interior;
- Water basin, rear entry with baffles and KIMRE pad impingers;
- Full one piece gasket on doors and front cap to ensure pressure capacity within collector.
- Top mounted blower includes housing, AMCA B rating, BI wheel, matching paint, direct drive mounted TEFC motor : 5hp, 600/3/60;
- Blower set for a capacity of 3000 cfm at 7” wg.
- Full water level controls with adjustable logic
- High and Low water level alarms
- Side Walls with Plexiglass
- Regain air with adjustable damper & Bleed
- LED light kit 1x per table
- Hi & Low Alarm – water level control
- Magnetic Motor Starter (ON/OFF) with thermal over load protection
- Manual outlet bleed valve/damper
- Yellow fiberglass grate
LEV-WDDT4-1
Complete Single Table with the following Spec:
- Table Design 48" x 30"
- Construction of mild steel (12 gauge construction)
- Fully welded cabinet with EPOXY interior;
- Water basin, rear entry with baffles and KIMRE pad impingers;
- Full one piece gasket on doors and front cap to ensure pressure capacity within collector.
- Top mounted blower includes housing, AMCA B rating, BI wheel, matching paint, direct drive mounted TEFC motor : 7.5hp, 600/3/60;
- Blower set for a capacity of 4000 cfm at 7” wg.
- Full water level controls with adjustable logic
- High and Low water level alarms
- Side Walls with Plexiglass
- Regain air with adjustable damper & Bleed
- LED light kit 1x per table
- Hi & Low Alarm – water level control
- Magnetic Motor Starter (ON/OFF) with thermal over load protection
- Manual outlet bleed valve/damper
LEV-WDDT4-2
Complete Dual Table with the following Spec:
- Tables Design 48" x 30"
- Construction of mild steel (12 gauge construction)
- Fully welded cabinet with EPOXY interior;
- Water basin, rear entry with baffles and KIMRE pad impingers;
- Full one piece gasket on doors and front cap to ensure pressure capacity within collector.
- Top mounted blower includes housing, AMCA B rating, BI wheel, matching paint, direct drive mounted TEFC motor : 7.5hp, 600/3/60;
- Blower set for a capacity of 4000 cfm at 7” wg.
- Full water level controls with adjustable logic
- High and Low water level alarms
- Side Walls with Plexiglass
- Regain air with adjustable damper & Bleed
- LED light kit 1x per table
- Hi & Low Alarm – water level control
- Magnetic Motor Starter (ON/OFF) with thermal over load protection
- Manual outlet bleed valve/damper
- Yellow fiberglass grate
LEV-WDDT6-1
Complete Single Table with the following Spec:
- Table Design 72" x 30"
- Construction of mild steel (12 gauge construction)
- Fully welded cabinet with EPOXY interior;
- Water basin, rear entry with baffles and KIMRE pad impingers;
- Full one piece gasket on doors and front cap to ensure pressure capacity within collector.
- Top mounted blower includes housing, AMCA B rating, BI wheel, matching paint, direct drive mounted TEFC motor : 15hp, 600/3/60;
- Blower set for a capacity of 6000 cfm at 7” wg.
- Full water level controls with adjustable logic
- High and Low water level alarms
- Side Walls with Plexiglass
- Regain air with adjustable damper & Bleed
- LED light kit 1x per table
- Hi & Low Alarm – water level control
- Magnetic Motor Starter (ON/OFF) with thermal over load protection
- Manual outlet bleed valve/damper
- Yellow fiberglass grate
LEV-WDDT6-2
Complete Dual Table with the following Spec:
- Tables Design 72" x 30"
- Construction of mild steel (12 gauge construction)
- Fully welded cabinet with EPOXY interior;
- Water basin, rear entry with baffles and KIMRE pad impingers;
- Full one piece gasket on doors and front cap to ensure pressure capacity within collector.
- Top mounted blower includes housing, AMCA B rating, BI wheel, matching paint, direct drive mounted TEFC motor : 15hp, 600/3/60;
- Blower set for a capacity of 6000 cfm at 7” wg.
- Full water level controls with adjustable logic
- High and Low water level alarms
- Side Walls with Plexiglass
- Regain air with adjustable damper & Bleed
- LED light kit 1x per table
- Hi & Low Alarm – water level control
- Magnetic Motor Starter (ON/OFF) with thermal over load protection
- Manual outlet bleed valve/damper
- Yellow fiberglass grate
WETREX-2-3R
Wetrex-2 Downdraft table c/w:
- One (1) Top mounted Blower SXBD 7.5.HP/460V/3/60
- Spark proof AMCA C fan 13.5 BI wheel 3450 Rpm
- 2000 CFM Flow rate "At the table surface" 2000 cfm @ 10 H20
- (1) 36" x 24" table
- Auto-Fill controls
- High and Low water alarms
- Fan shut off in LOW WATER LEVEL condition
- Additional terminals that allow the operators compressed air tools to be shut off in LOW WATER LEVEL conditions
- FULL control panel including Nema 12 enclosure, magnetic motor starter, thermal overload, step down transformer, on/off buttons. 7.5HP 460V/3/60
- Full one (1) piece gaskets on doors and panels
- Closed water bath (not open to atmosphere)
Part #
Description
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge.
3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01
Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.
Part #
Description
F1-DHYD-CSR
Slot Crane Regain option for DHYD downdraft tables (Per Side for DHYD-2).
F1-DHYD-LWA
Low Water alarm Option for DHYD Downdraft tables.
F1-DHYD-OWA
Overflow water alarm option for DHYD downdraft tables.
FREQUENTLY BOUGHT TOGETHER
Part #
Description
SIL-DHYD1
Silencer for Downdraft Table model # MII - DHYD1-45.7.6-6-4R (Serial Number 07-100=51-301).
SIL-DHYD2
Silencer for Downdraft Table model DHYD-2-50-10-4-3R (Serial Number 11-100-13-426).
Part #
Description
F1-DHYD1-30-5-3-REGAIN
DEDUCT Regain option for DHYD1-30-5-3R.
F1-DHYD1-30-5-4-REGAIN
DEDUCT Regain option for F1-DHYD1-30-5-4R; F1-DHYD1-30-5-4-3R; F1-DHYD1-30-5-4-4R.
F1-DHYD1-30-5-5-REGAIN
DEDUCT Regain option for DHYD1-30-5-5R.
F1-DHYD1-30-5-6-REGAIN
DEDUCT Regain option for DHYD1-30-5-6R; DHYD1-30-5-6-4R.
F1-DHYD1-50-10-4-REGAIN
DEDUCT Regain option for DHYD1-50-10-4R; DHYD1-50-10-4-3R; DHYD1-50-10-4-4R.
F1-DHYD1-50-10-5-3-REGAIN
DEDUCT Regain option for DHYD1-50-10-5-3R.
F1-DHYD1-50-10-6-3-REGAIN
DEDUCT Regain option for DHYD1-50-10-6-3R.
F1-DHYD1-50-10-8-REGAIN
DEDUCT for Regain option for DHYD1-50-10-8-3R; DHYD1-50-10-8-4R.
Part #
Description
AIP-65008
65% Main Filter, 12" x 12" x 12", 53ft² surface area, 5 micron.
- For use with the following units: 73-100, 73-200G, 73-200PM
AIP-65011
Pleated pre-filter for AIP-73-100G and AIP-73-200.
- Sold in boxes of (6) - (1) box min order
